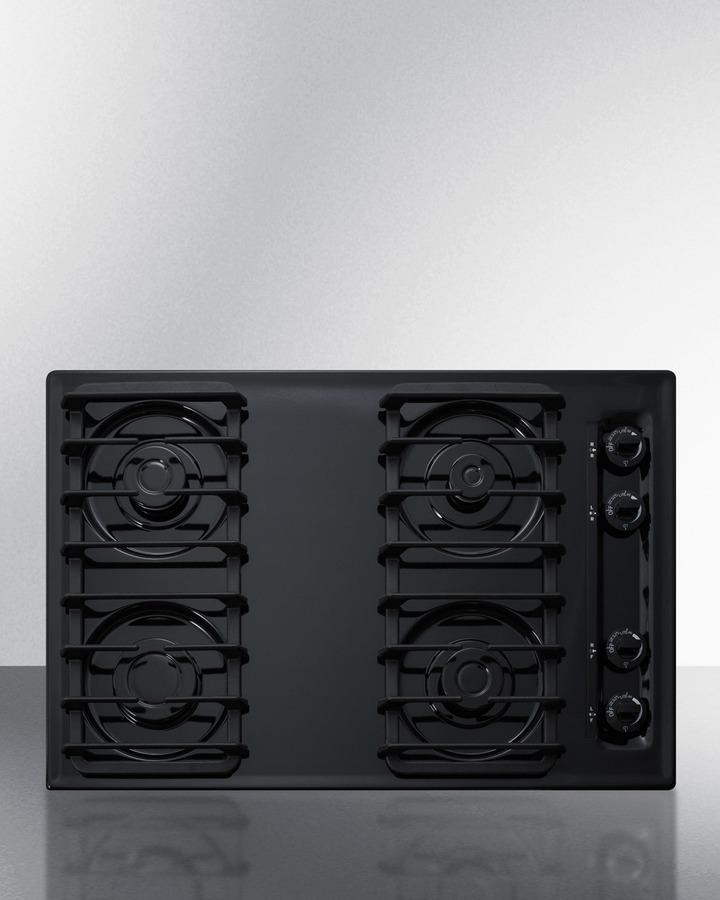

30" Wide 4-burner Gas Cooktop
Model: TTL053S
30" Wide 4-burner Gas Cooktop
Model: TTL053SQuick Specs
30" Wide 4-burner Gas Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Made in the USA
- Designed and constructed domestically
- Sealed Sabaf burners
- Quality burners with cast iron tops ensure lasting durability and easier cleanup
- Cast iron grates
- Two sets of continuous grates in heavy duty cast iron hold up to large cookware
- Fits common cutouts
- Designed for 28 3/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
- Power burner
- Front left burner features 12,000 BTU output for powerful cooking\t
- Simmer burner
- Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items\t
- Two standard burners
- Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes
- Push-to-turn knobs
- To prevent accidents, knobs require a small amount of force when turning\t
- Recessed top
- Curved design helps to contain spills on the surface for easier cleanup
- Porcelain cooking surface
- Black finish on scratch resistant top
- Removable burner caps
- Burners include a removable cap for easy cleaning
- Electronic/gas spark ignition
- Gas spark ignition for automatic lighting of burners
- Cord included
- Pre-installed 115V 3-pronged power cord
- Convertible with kit
- Unit is set for natural gas. To use with LP gas, order Summit Kit LP S2 accessory
- Designed and constructed domestically
- Quality burners with cast iron tops ensure lasting durability and easier cleanup
- Burners include a removable cap for easy cleaning
- Gas spark ignition for automatic lighting of burners
- Pre-installed 115V 3-pronged power cord
- Unit is set for natural gas. To use with LP gas, order Summit Kit LP S2 accessory
- Two sets of continuous grates in heavy duty cast iron hold up to large cookware
- Designed for 28 3/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
- Front left burner features 12,000 BTU output for powerful cooking
- Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
- Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes
- To prevent accidents, knobs require a small amount of force when turning
- Curved design helps to contain spills on the surface for easier cleanup
- Black finish on scratch resistant top
Made in the U.S.A., Summit's gas cooktops offer lasting quality and reliable cooking. The TTL053S is a 30" wide 4-burner cooktop designed for 28 3/8" W x 18 5/8" D cutouts. The scratch-resistant porcelain surface features a glossy jet black finish and recessed design to better contain spills. The side-located push-to-turn dial knobs offer easy use. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans. Four sealed Sabaf burners with removable burner caps ensure safer and cleaner cooking. The TTL053S includes a high output 12000 BTU burner for powerful heating, conveniently located in front for easy access. The rear 5000 BTU burner is ideal for simmering at lower power or keeping food warm without overcooking. Two standard 9100 BTU burners meet most cooking needs. This unit utilizes electronic spark ignition and includes a pre-installed 3-pronged cord. The TTL053S is set for natural gas and can be converted to propane connections with the purchase of our Kit LP S2. Additional choices are available in white and chrome, as well as in 24" and 27" wide fits. Browse our site for more.
| Overview | |
| Nominal Height | 4.0" (10 cm) |
| Height of Cabinet | 4.0" (10 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.75" (76 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Canadian Electrical Safety | CSA-C |
| Weight | 27.0 lbs. (12 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101061634 |
| Gas Cooktop | |
| Ignition | Spark |
| LP Convertible | With Kit LP S2 Accessory |
| Number of Burners | 4 |
| Controls | Dial |
| Surface | Painted |
| Grate Material | Cast Iron |
| Cutout Width | 28.38" (72 cm) |
| Cutout Depth | 18.63" (47 cm) |
| Burner #1 BTU | 12000.0 |
| Burner #2 BTU | 9100.0 |
| Burner #3 BTU | 9100.0 |
| Burner #4 BTU | 5000.0 |
| Power Cord Included | Yes |
- Designed and constructed domestically
- Quality burners with cast iron tops ensure lasting durability and easier cleanup
- Burners include a removable cap for easy cleaning
- Gas spark ignition for automatic lighting of burners
- Pre-installed 115V 3-pronged power cord
- Unit is set for natural gas. To use with LP gas, order Summit Kit LP S2 accessory
- Two sets of continuous grates in heavy duty cast iron hold up to large cookware
- Designed for 28 3/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
- Front left burner features 12,000 BTU output for powerful cooking
- Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
- Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes
- To prevent accidents, knobs require a small amount of force when turning
- Curved design helps to contain spills on the surface for easier cleanup
- Black finish on scratch resistant top
 | |
|---|---|
