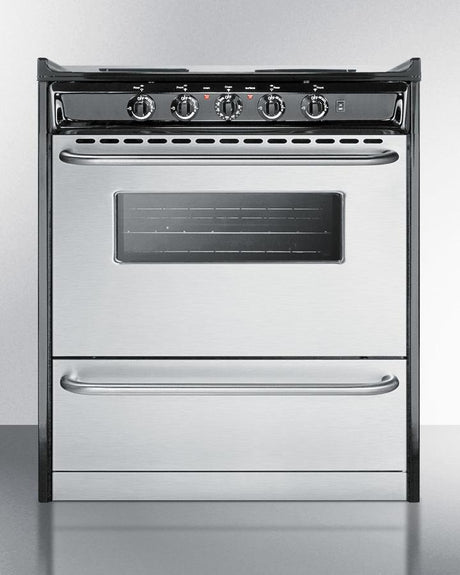

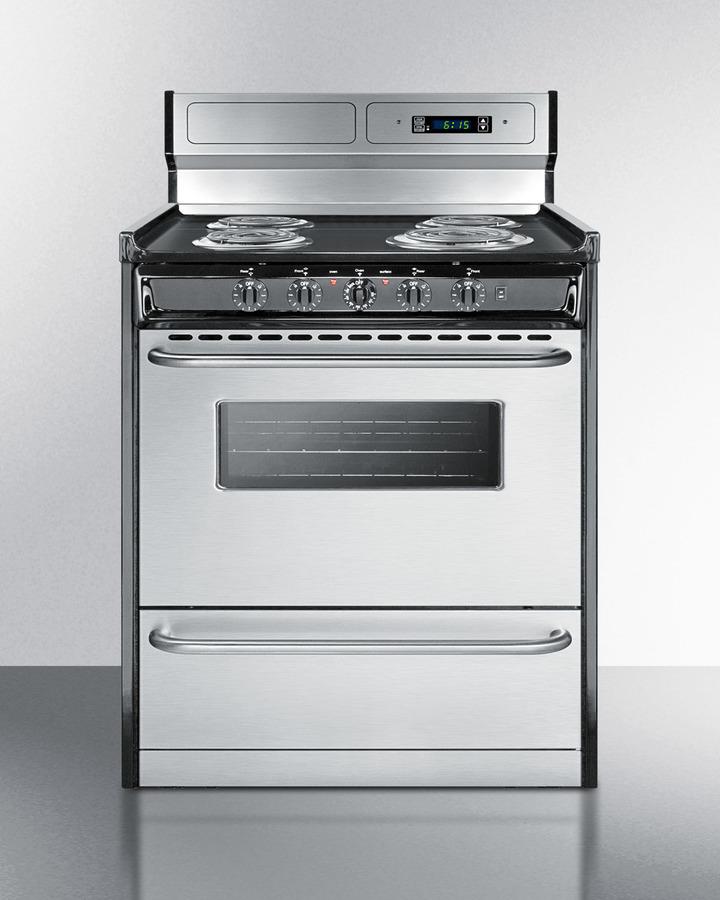

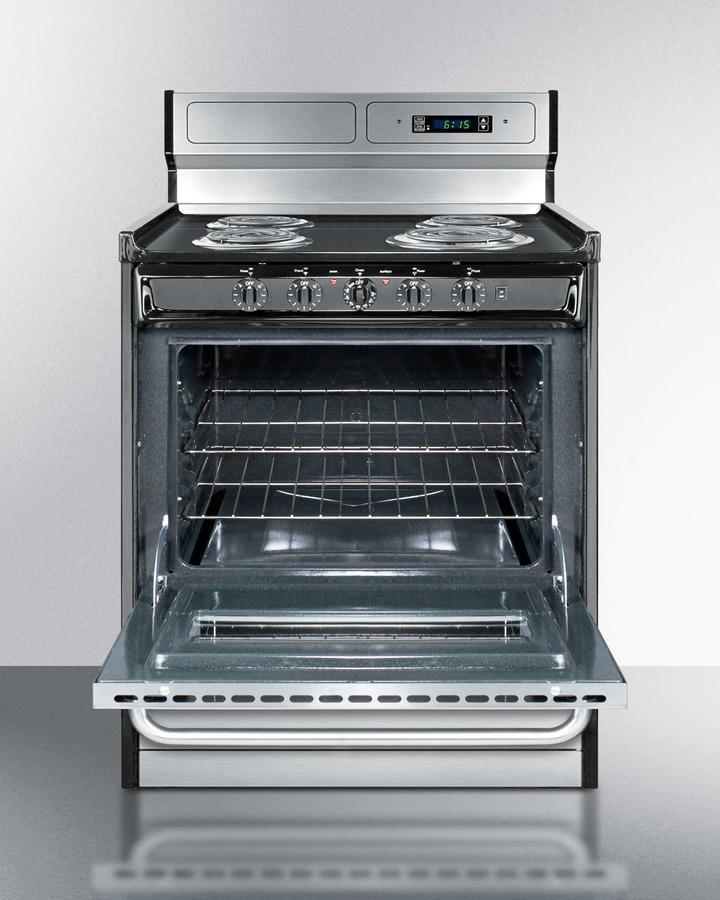

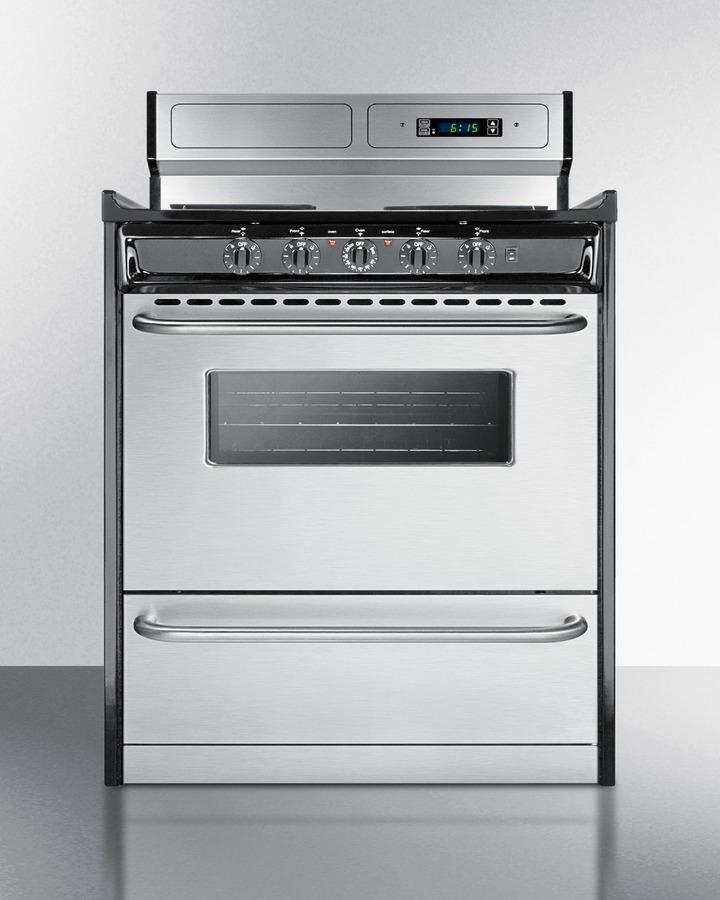

30" Wide Electric Coil Range
Model TEM230BKWY
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
30" Wide Electric Coil Range
Model TEM230BKWYQuick Specs
Width
30
Depth
24
Height
44
Sabbath
NO
ADA
YES
Wifi
NO
Storage
YES
Warming
NO
30" Wide Electric Coil Range is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,452.29
Regular price
$1,780.00
Unit price
/
Unavailable
You save 18%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30
Depth
24
Height
44
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
4
Cooking First Oven Capacity
3.7
Convection
NO
Self Clean
NO
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Nominal Width
30.0
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
- Electric Range
- 30" wide 220V electric range with coil elements and a full-sized oven
- Made in the USA
- Designed and constructed domestically
- 30 inch wide range
- Standard size ideal for most kitchens\t
- 24 inch depth
- Shallower fit is ideal for L-shaped and galley kitchens\t
- Stainless steel finish
- Doors and backguard are constructed from brushed stainless steel for modern luxury built to last\t
- Professional towel bar handles
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Four coil elements
- Three standard 6" 1500W and one large 8" 2400W element\t
- Meets UL-858
- Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature\t
- Chrome drip pans
- Each coil element includes a removable chrome pan for easier cleaning
- Storage compartment
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Oven window and interior lighting
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door\t
- Waist-high broiler\t
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor\t
- Adjustable oven racks
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes\t
- Deluxe backguard
- 8" high backguard helps to protect your walls from spills and splashes
- Digital clock and timer
- Backguard includes time readout
- Upfront oven/burner controls
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners\t
- Push-to-turn knobs
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn\t
- Indicator lights
- Control panel includes an 'on' light for the oven and burners for added safety when using the range\t
- Recessed oven door
- Smart design limits the depth and protects adjacent cabinets
- Porcelain and steel construction
- Solid construction built to hold up to everyday use
- Removable oven door and range top\t
- Allows for easier cleaning as needed\t
- Broiler pan included
- Two-piece porcelain broiler tray with grease well
- Anti-tip bracket
- Included for user installation to help prevent tipping
- Cord not included
- Compatible with standard 40 amp 3 or 4-wire range cords\t
- ADA compliant design
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines\t
- 30" wide 220V electric range with coil elements and a full-sized oven
- Designed and constructed domestically
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- 8" high backguard helps to protect your walls from spills and splashes
- Backguard includes time readout
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Smart design limits the depth and protects adjacent cabinets
- Solid construction built to hold up to everyday use
- Standard size ideal for most kitchens
- Allows for easier cleaning as needed
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
- Shallower fit is ideal for L-shaped and galley kitchens
- Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Three standard 6" 1500W and one large 8" 2400W element
- Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
- Each coil element includes a removable chrome pan for easier cleaning
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM230BKWY is an apartment-sized 220V electric range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces.The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.
| Overview | |
| Nominal Height | 44.0" (112 cm) |
| Height of Cabinet | 44.0" (112 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 30.0" (76 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Stainless Steel |
| Cabinet | Black |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 160.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101012902 |
| Electric Range | |
| Oven Capacity | 3.7 cu.ft. (105 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1500.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1500.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1500.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 2400.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Backguard | Yes |
| Backguard Display | Yes |
| Oven Window | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 24.0" (61 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
- 30" wide 220V electric range with coil elements and a full-sized oven
- Designed and constructed domestically
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- 8" high backguard helps to protect your walls from spills and splashes
- Backguard includes time readout
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Smart design limits the depth and protects adjacent cabinets
- Solid construction built to hold up to everyday use
- Standard size ideal for most kitchens
- Allows for easier cleaning as needed
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
- Shallower fit is ideal for L-shaped and galley kitchens
- Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Three standard 6" 1500W and one large 8" 2400W element
- Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
- Each coil element includes a removable chrome pan for easier cleaning
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
