20" Wide Electric Coil Range
Model: TEM110C
20" Wide Electric Coil Range
Model: TEM110CQuick Specs
20" Wide Electric Coil Range is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Made in the USA
- Designed and constructed domestically
- Slim 20 inch width
- Shallower fit is ideal for L-shaped and galley kitchens\t
- 24 inch depth
- Shallower fit is ideal for L-shaped and galley kitchens\t
- Storage compartment
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Four coil elements
- Three standard 6" and one large 8" element\t
- Safety burners with low wattage outputs
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off\t
- Chrome drip pans
- Each element includes a removable chrome pan for easier cleaning
- Waist-high broiler
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor\t
- Adjustable oven racks
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Recessed oven door
- Smart design limits the depth and protects adjacent cabinets
- Porcelain and steel construction
- Solid construction built to hold up to everyday use
- Upfront controls
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners\t
- Push-to-turn burner knobs
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Indicator lights
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Removable oven door and range top
- Allows for easier cleaning as needed\t
- Broiler tray included
- Two-piece porcelain broiler tray with grease well\t
- Anti-tip bracket
- Included for user installation to help prevent tipping
- Cord not included
- Compatible with standard 40 amp 3 or 4-wire range cords\t
- ADA compliant
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines\t
- Designed and constructed domestically
- Shallower fit is ideal for L-shaped and galley kitchens
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each element includes a removable chrome pan for easier cleaning
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Smart design limits the depth and protects adjacent cabinets
- Solid construction built to hold up to everyday use

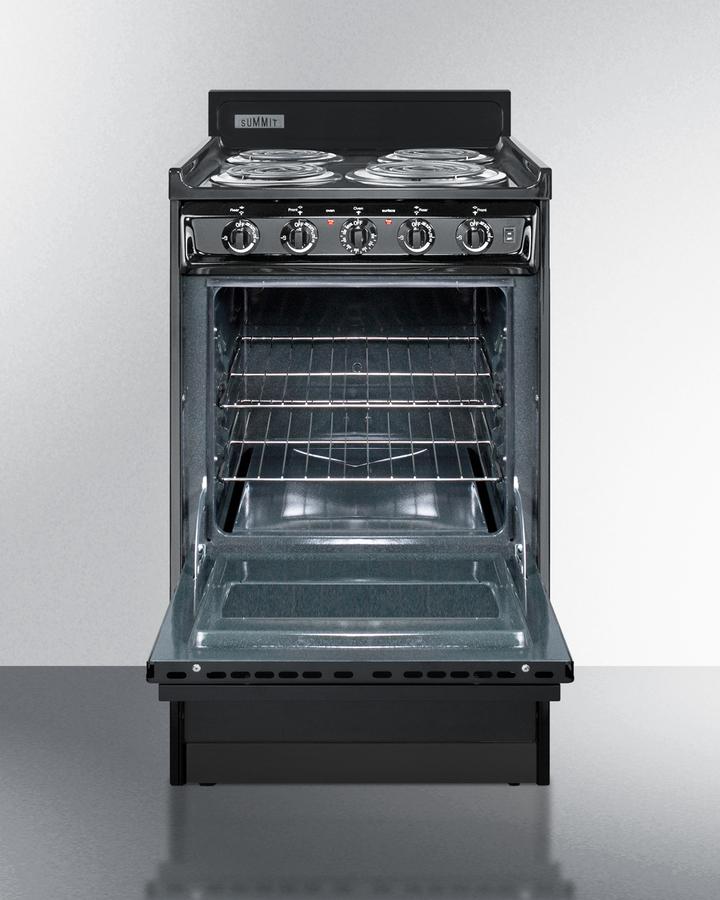

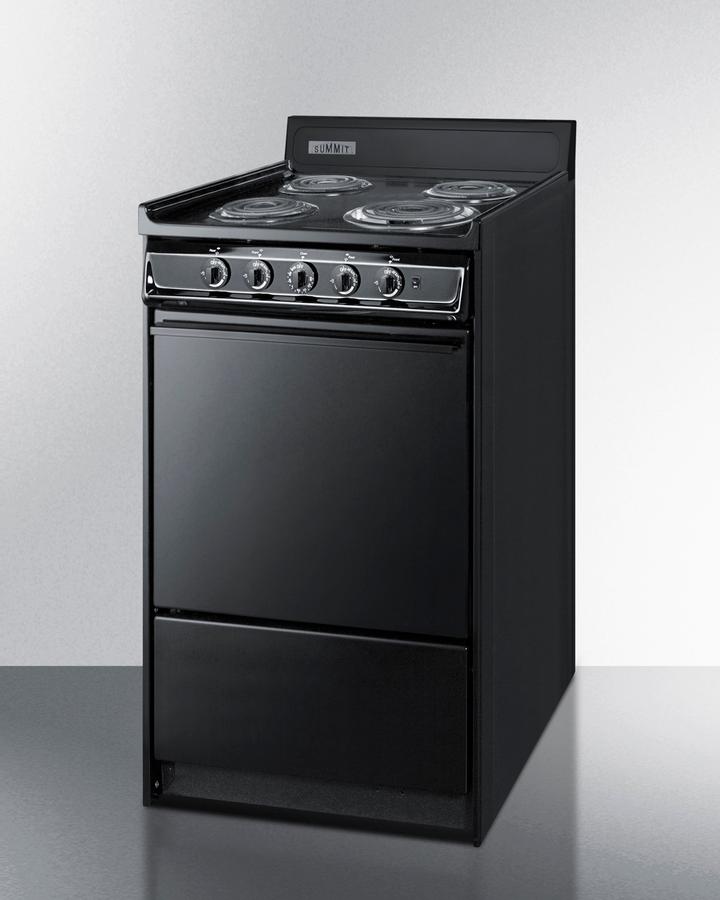

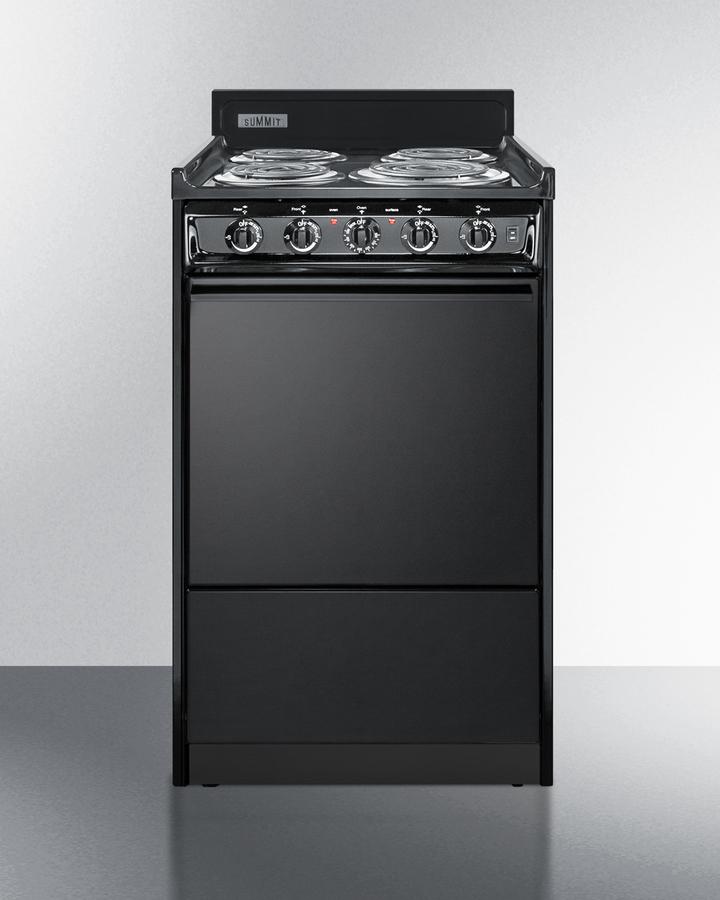

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM110C is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The TEM110C comes in a jet black finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-wire range cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.
| Overview | |
| Nominal Height | 40.0" (102 cm) |
| Height of Cabinet | 40.0" (102 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 20.0" (51 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101018577 |
| Electric Range | |
| Oven Capacity | 2.46 cu.ft. (70 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 950.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 16.0" (41 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Storage Compartment | Yes |
| Broiler Location | Inside Oven |
| Oven Door | Black |
- Designed and constructed domestically
- Shallower fit is ideal for L-shaped and galley kitchens
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each element includes a removable chrome pan for easier cleaning
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Smart design limits the depth and protects adjacent cabinets
- Solid construction built to hold up to everyday use
 20" Wide Electric Coil Range$905.00 | |
|---|---|
