24" Wide Dual-zone Wine Cellar
Model SWCP2163CSS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
24" Wide Dual-zone Wine Cellar
Model SWCP2163CSSQuick Specs
Depth
28.25"
Height
69.5"
Sabbath
NO
Shelves
13
ADA
NO
Disp
NO
Ice
NO
Wifi
NO
24" Wide Dual-zone Wine Cellar is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$3,161.64
Regular price
$4,140.00
Unit price
/
Unavailable
You save 23%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
28.25"
Height
69.5"
Sabbath Mode
NO
Refrigerator number of Shelves
13
ADA
NO
Dispenser
NO
Icemaker
NO
Wifi Connected
NO
Counter Depth
NO
RPM
-1.0
Energy Star Rated
NO
- Commercially approved
- ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
- Built-in capable
- Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

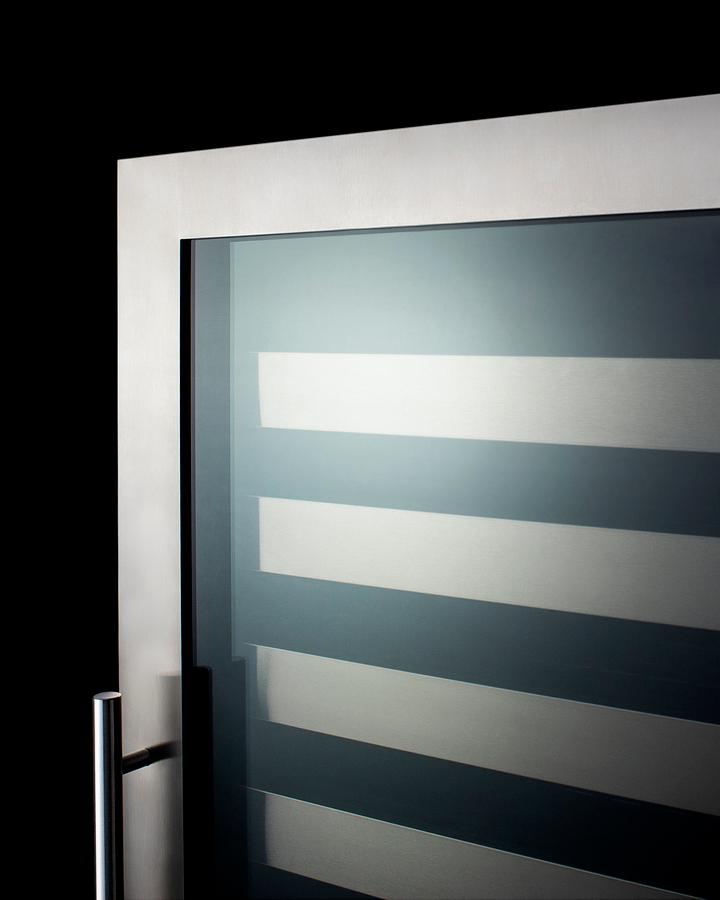

- Double pane tempered glass door
- Provides a full display of the interior, with two levels of glass for added protection
- Seamless stainless steel door frame
- Single-piece door trim offers a more deluxe look
- Two temperature zones
- Chill white wine in the upper zone while preserving your reds at a warmer temperature below

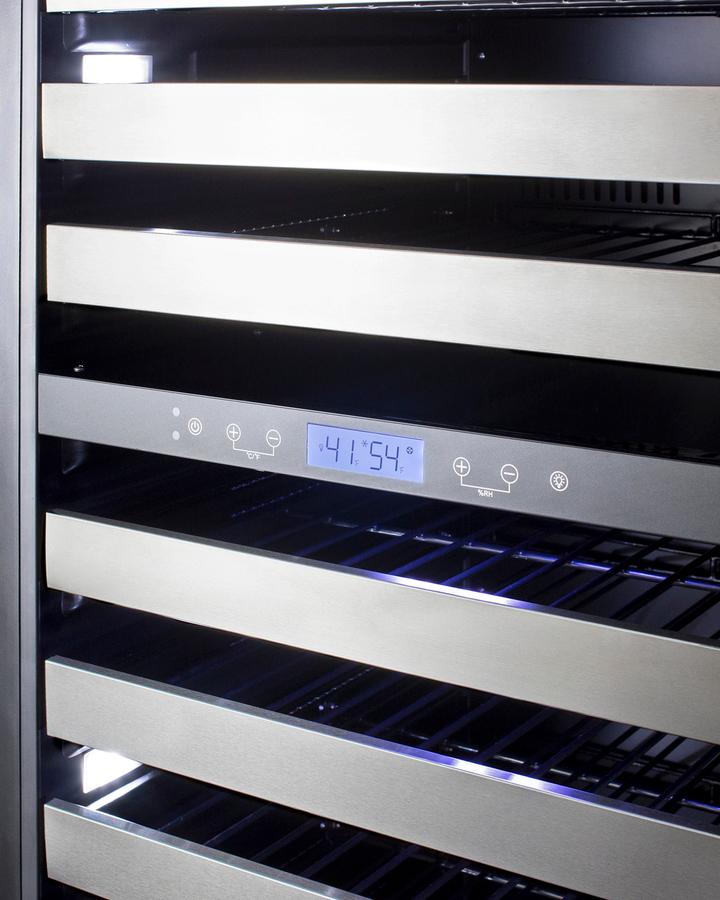

- Digital thermostat
- Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

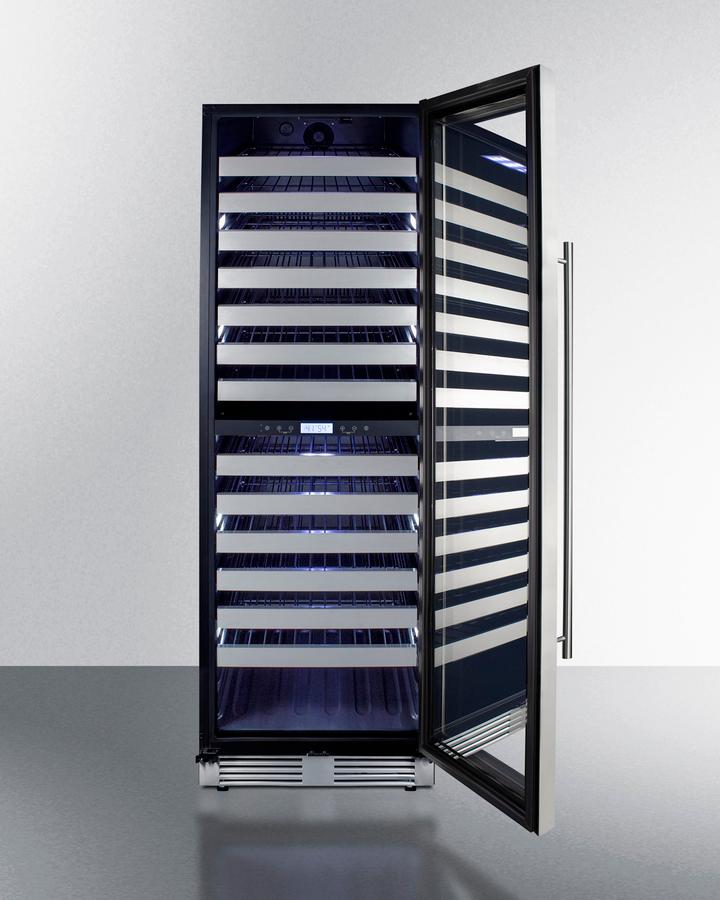

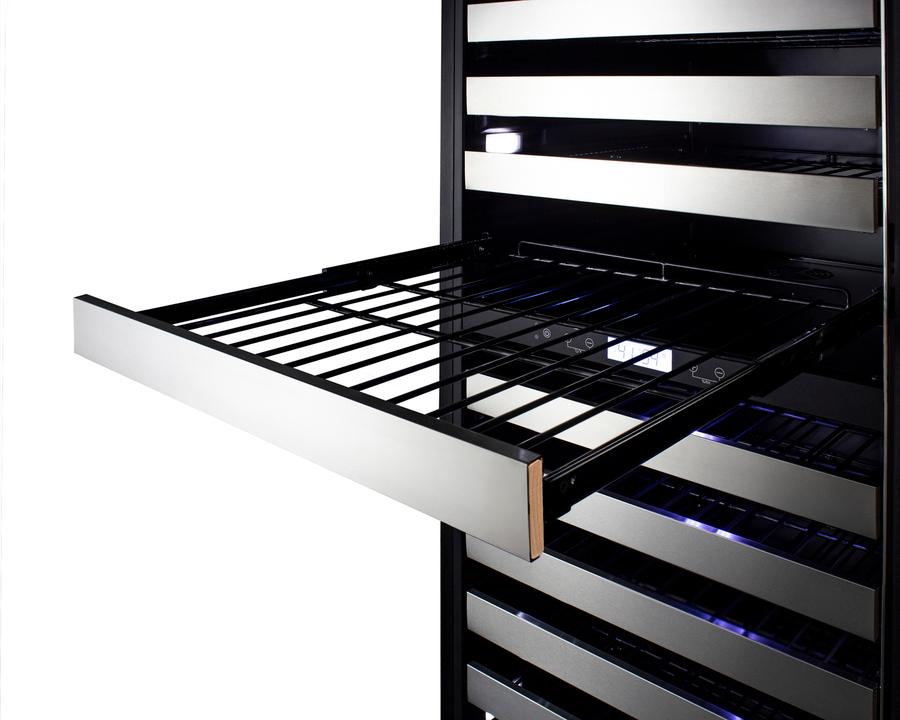

- Full-extension wire shelving
- 13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
- Stainless steel trimmed shelving
- Fronts feature a stainless steel accent to elevate your presentation

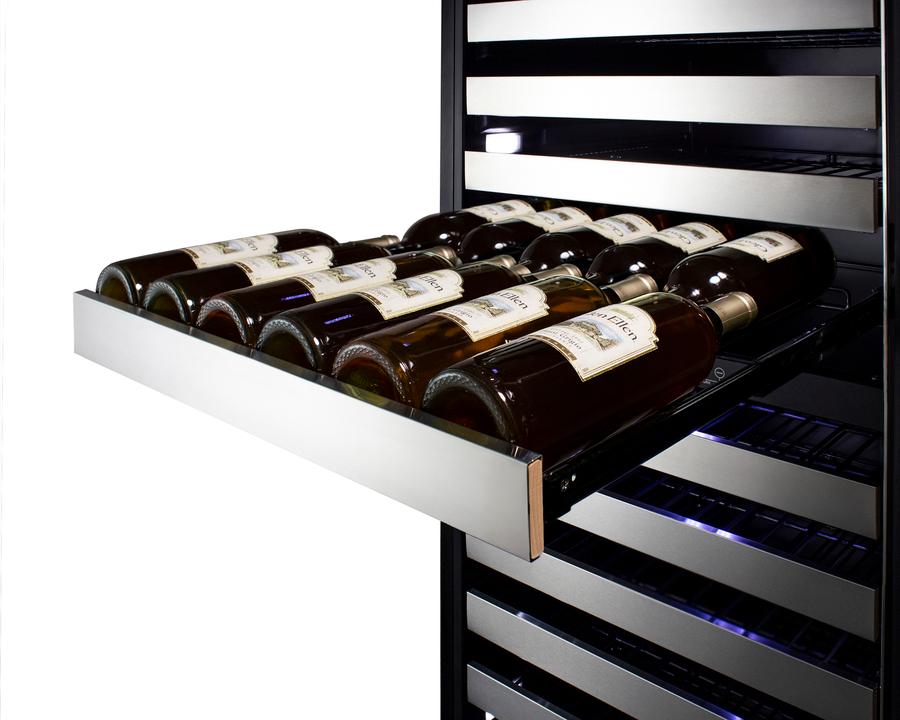

- Versatile storage
- Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)
- Professional handle
- 37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
- LED lighting
- Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue\t
- Factory-installed lock
- Keyed lock secures both zones (2 keys included)
- Temperature range
- Upper zone: 41-54 F ideal for chilling white and sparkling wine; Lower zone: 54-65 F for holding reds at a warmer temperature
- Stainless steel kickplate
- Allows for front ventilation in an elegant design
- Charcoal filtration system
- Helps to purify air for an odor-free interior
- High/low temperature alarms
- Audibly sounds if the interior rises or falls out of recommended range
- Open door alarm
- Alerts if unit door is ajar for more than 5 minutes
- Magnetic door gasket
- Ensures a tight seal for energy savings and improved performance
- Sealed back
- Flush back allows for a better fit and easier cleanability
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Fully finished stainless steel cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
- Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
- Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue
- Keyed lock secures both zones (2 keys included)
- Upper zone: 41-54(degree)F ideal for chilling white and sparkling wine; Lower zone: 54-65(degree)F for holding reds at a warmer temperature
- Allows for front ventilation in an elegant design
- Helps to purify air for an odor-free interior
- Audibly sounds if the interior rises or falls out of recommended range
- Alerts if unit door is ajar for more than 5 minutes
- Ensures a tight seal for energy savings and improved performance
- Flush back allows for a better fit and easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Provides a full display of the interior, with two levels of glass for added protection
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Single-piece door trim offers a more deluxe look
- Chill white wine in the upper zone while preserving your reds at a warmer temperature below
- Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
- 13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
- Fronts feature a stainless steel accent to elevate your presentation
- Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)
- 37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use The SWCP2163CSS is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings. Inside, the SWCP2163CSS includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163CSS can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range. With its convenient size, advanced features, and luxury design, the SWCP2163CSS is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.
| Overview | |
| Nominal Height | 70.0" (178 cm) |
| Height of Cabinet | 69.5" (177 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 27.0" (69 cm) |
| Depth | 26.5" (67 cm) |
| Depth with Handle | 28.25" (72 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Bottles | 163 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 299.0 lbs. (136 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076294 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 13 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 31.0" (79 cm) |
| Interior Width 1 | 20.38" (52 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Level Legs | 2 |
| Temperature Range | 41-54°F (upper zone); 54-65°F (lower zone) |
| Interior Height 2 | 29.75" (76 cm) |
| Interior Width 2 | 20.38" (52 cm) |
| Interior Depth 2 | 21.0" (53 cm) |
| Sound Level | 34 dB |
