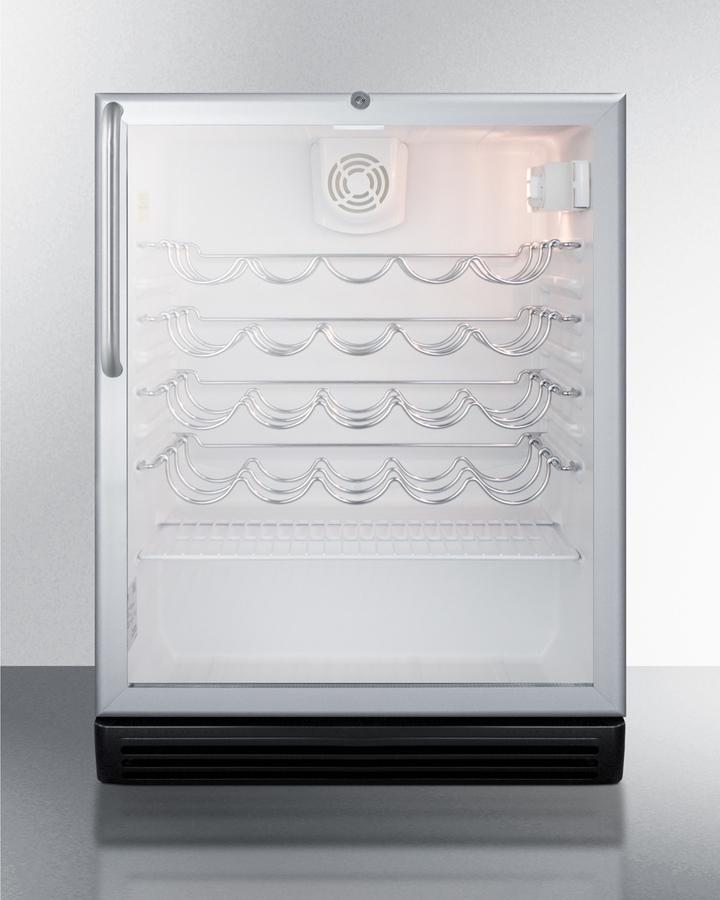

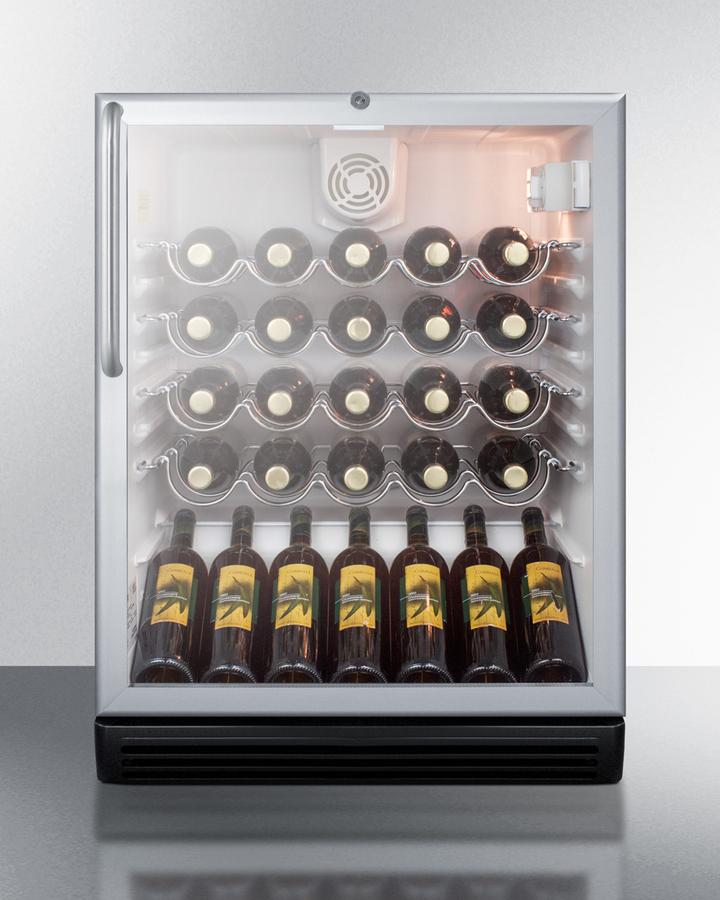

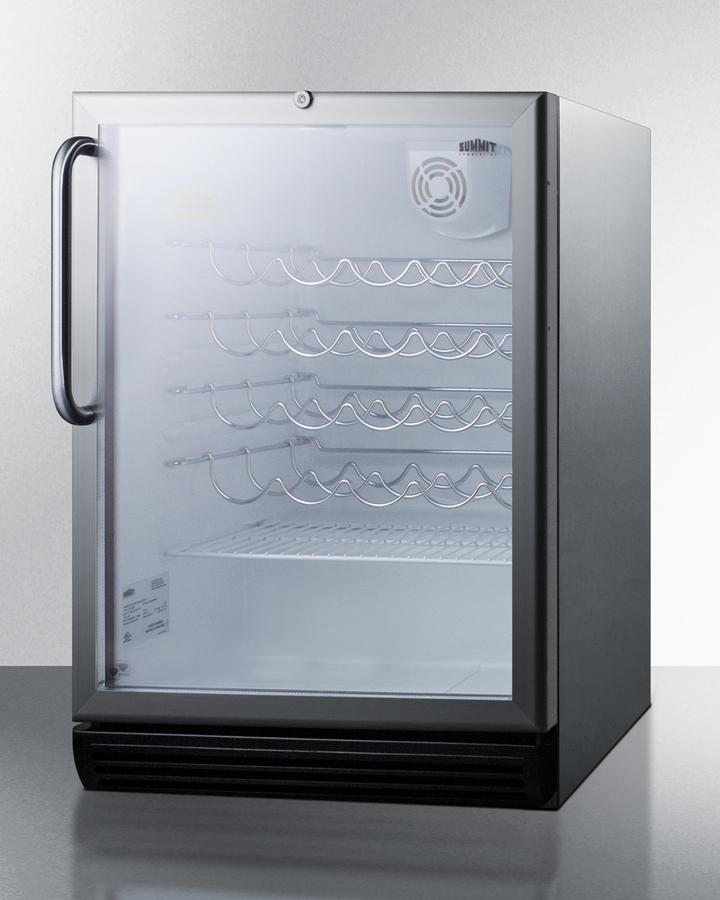

24" Wide Built-in Wine Cellar, ADA Compliant
Model SWC6GBLCSSADA
24" Wide Built-in Wine Cellar, ADA Compliant
Model SWC6GBLCSSADAQuick Specs
24" Wide Built-in Wine Cellar, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- ADA compliant
- 32" high to fit under lower ADA compliant counters
- Commercially approved
- ETL-S listed to NSF-7 for use in foodservice establishments
- Built-in capable
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Stainless steel cabinet
- Fully wrapped in stainless steel for lasting luxury
- Double pane tempered glass door
- Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
- Factory installed lock
- Keyed lock for secure interior, conveniently located at the top of the door
- Professional towel bar handle
- A curved stainless steel handle provides generous room for a comfortable grip
- Automatic defrost
- Reduced maintenance with auto defrost system
- Scalloped steel shelving
- Curved shelves designed for the ideal storage of wine bottles
- Interior light
- Illuminate your collection with an interior light controlled by a rocker on/off switch
- Hidden evaporator
- SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
- Adjustable thermostat
- Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
- 100% CFC Free
- Environmentally friendly design
- Temperature range
- 5 C to 10 C/41 F to 50 F; To reach warmer temperatures, order with our red wine digital thermostat option (10 C to 18 C/50 F to 64 F range)
- 32" high to fit under lower ADA compliant counters
- ETL-S listed to NSF-7 for use in foodservice establishments
- SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
- Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
- Environmentally friendly design
- 5 C to 10 C/41 F to 50 F; To reach warmer temperatures, order with our red wine digital thermostat option (10 C to 18 C/50 F to 64 F range)
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully wrapped in stainless steel for lasting luxury
- Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
- Keyed lock for secure interior, conveniently located at the top of the door
- A curved stainless steel handle provides generous room for a comfortable grip
- Reduced maintenance with auto defrost system
- Curved shelves designed for the ideal storage of wine bottles
- Illuminate your collection with an interior light controlled by a rocker on/off switch
SUMMIT SWC6GBIADA series features European designed, commercially approved wine cellars capable of built-in use under lower ADA compliant counters. The SWC6GBLCSSADA is conveniently sized at just 24" wide, with a front-breathing design for built-in installation under counters. The fully finished stainless steel wrapped cabinet also allows freestanding use. This unit features a double pane tempered glass door for reliable storage. We include our signature towel bar style handle in brushed stainless steel to complete the professional look. The lock is located towards the top of the door for easier access. Inside, the SWC6GBLCSSADA includes adjustable scalloped shelves perfectly designed to hold bottles in place. The white interior helps to improve visibility, letting your collection stand out clearly. This unit includes an interior light with an on/off rocker switch located behind the adjustable dial thermostat. The SWC6GBLCSSADA is made in Europe and is ETL-S listed to NSF-7 standards for commercial use. Additional handle styles and door tint options are available. NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101022581 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
