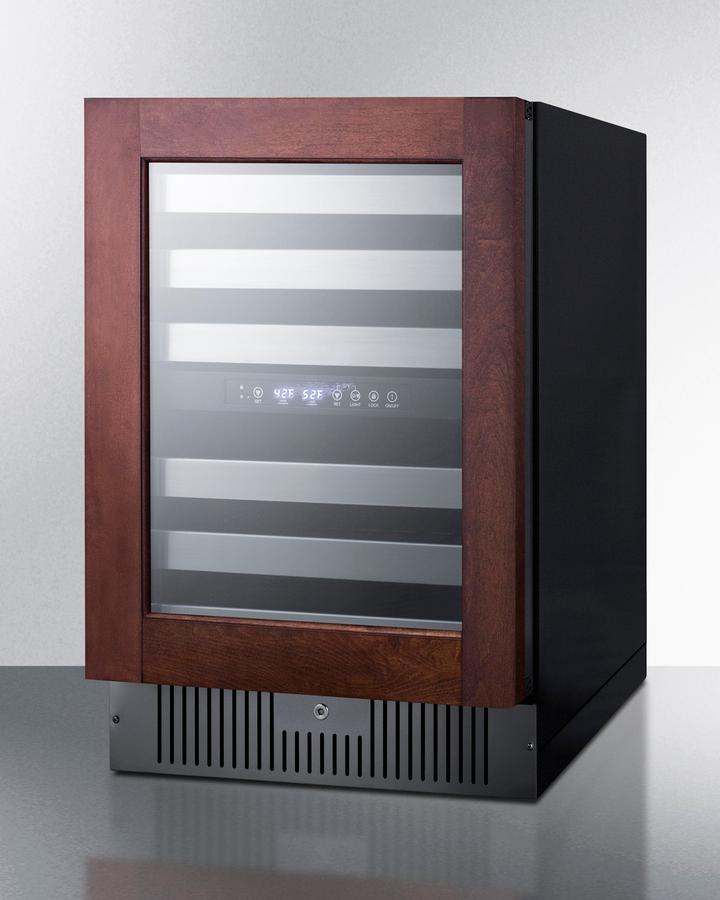

24" Wide Built-in Wine Cellar (panel Not Included)
Model: SWC532BLBISTPNR
24" Wide Built-in Wine Cellar (panel Not Included)
Model: SWC532BLBISTPNRQuick Specs
24" Wide Built-in Wine Cellar (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 24" Dual Zone Wine Cellar
- Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
- Built-in capable

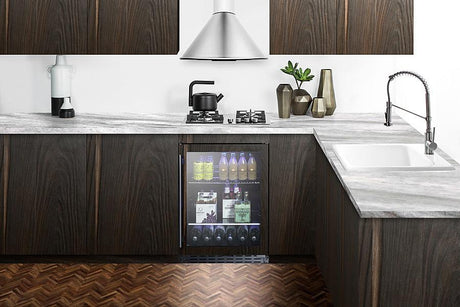

- Front-breathing design allows this unit to be installed under counters

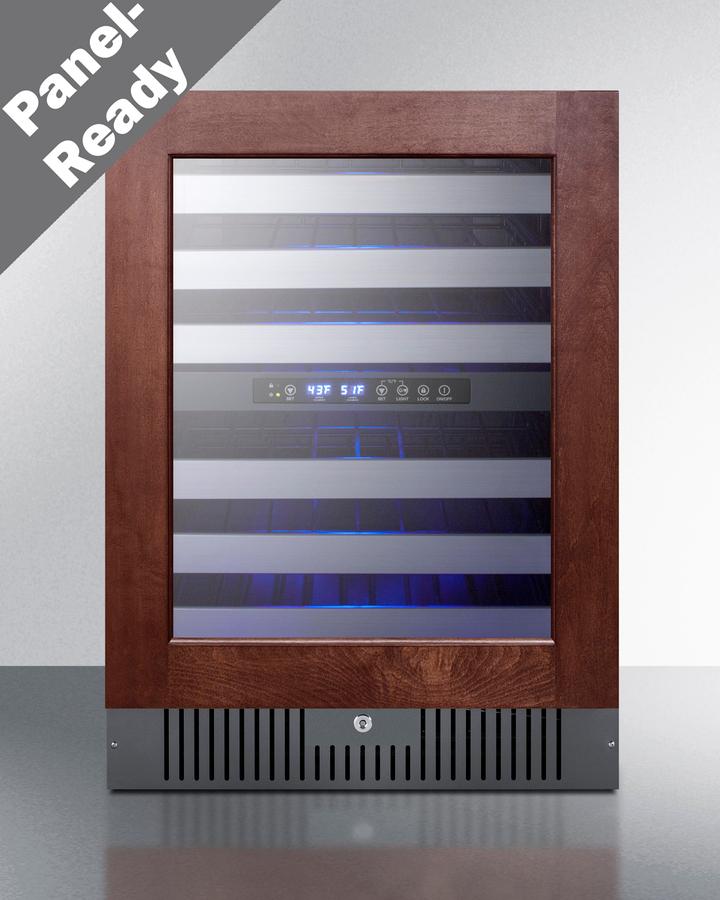

- Panel-ready door trim
- Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
- Flexible commercial grade shelving
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles

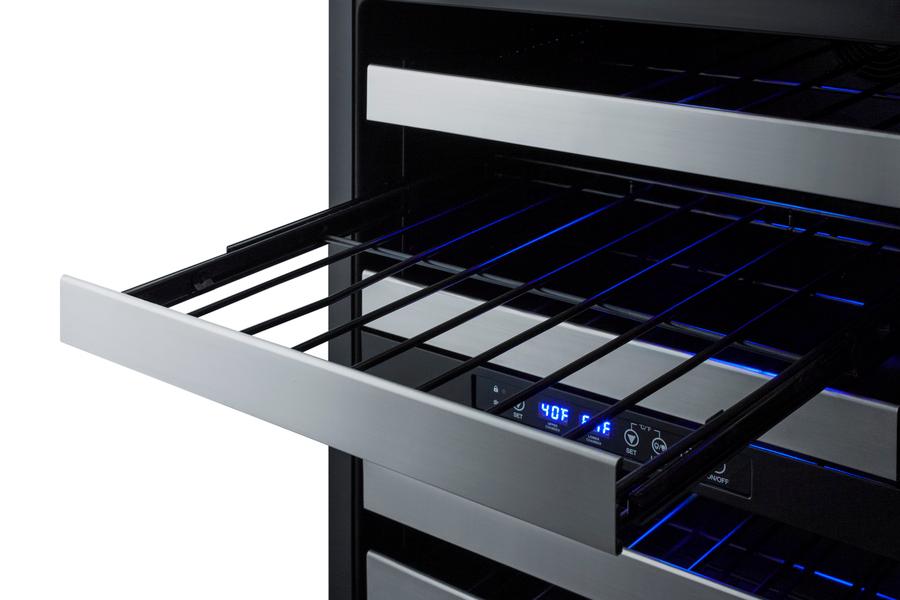

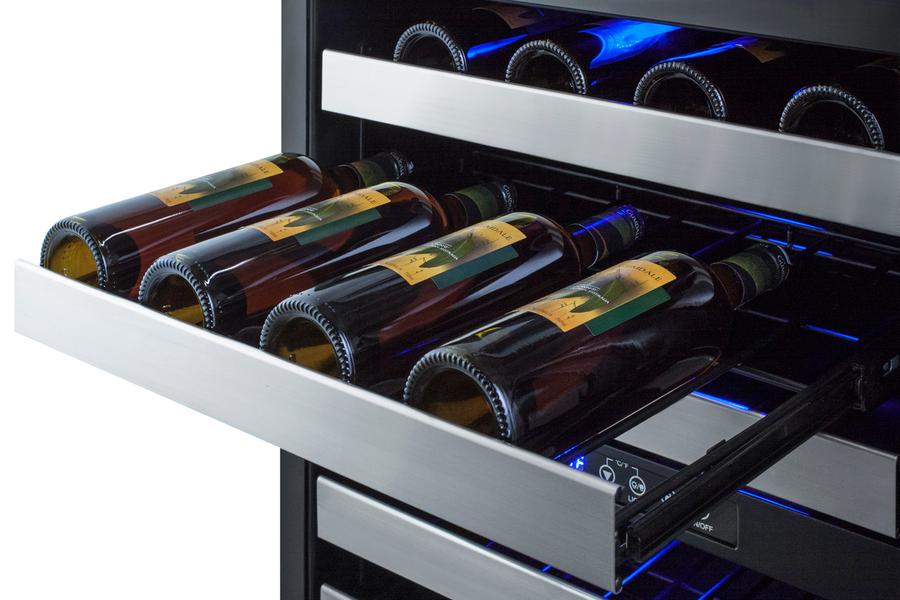

- Full-extension shelving
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Two temperature zones
- Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F

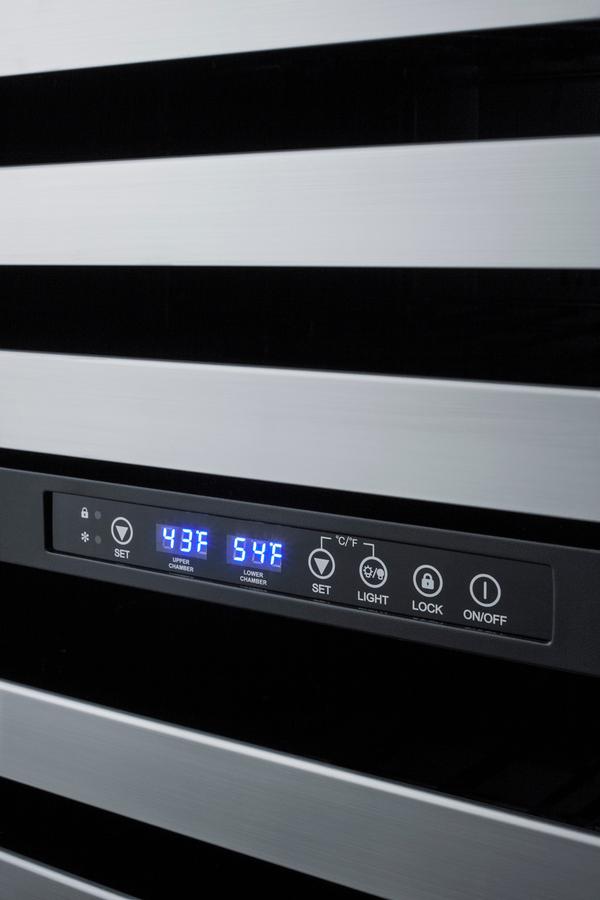

- Digital control panel
- Easy temperature management with electronic controls located inside
- Versatile readout
- Temperature viewable in Celsius or Fahrenheit
- Automatic defrost
- Reduced maintenance with auto defrost system
- Double pane tempered glass door
- Provides a full display of the interior, with two levels of glass for added protection
- Interior lighting
- Recessed LED lighting in both compartments brings striking blue illumination to your collection
- Factory installed lock
- Keyed lock for secure interior, with two keys included

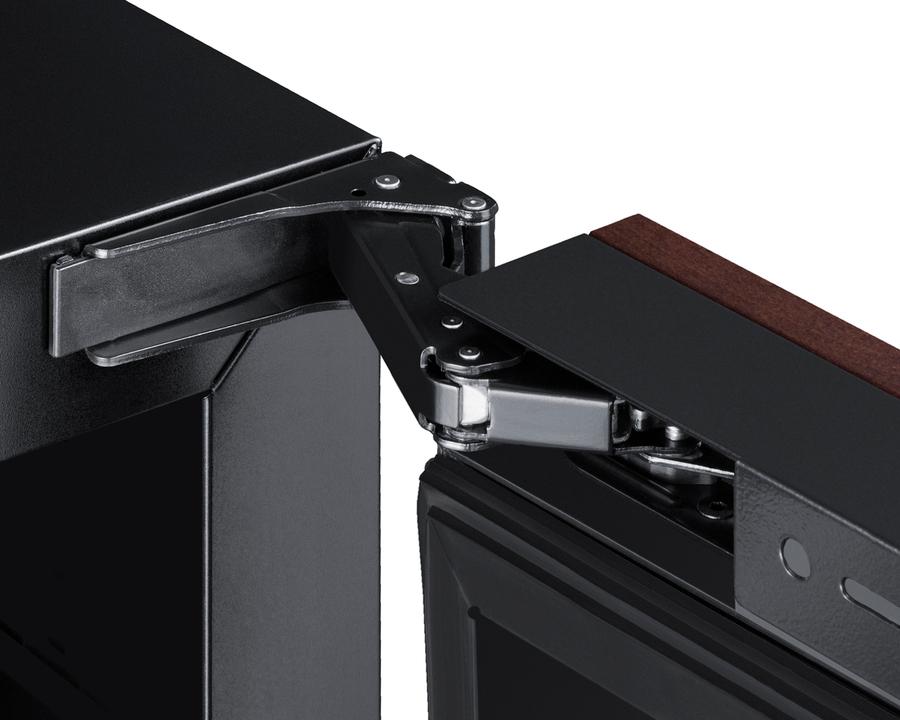

- Fully articulating hinge
- Smoother opening and a better fit with an integrated European style door hinge\t
- Fully finished black cabinet
- Allows the unit to be used freestanding
- Commercially listed
- ETL-S listed to NSF-7 Standards for use in commercial establishments\t
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations\t
- Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
- Front-breathing design allows this unit to be installed under counters
- Recessed LED lighting in both compartments brings striking blue illumination to your collection
- Keyed lock for secure interior, with two keys included
- Smoother opening and a better fit with an integrated European style door hinge
- Allows the unit to be used freestanding
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
- Easy temperature management with electronic controls located inside
- Temperature viewable in Celsius or Fahrenheit
- Reduced maintenance with auto defrost system
- Provides a full display of the interior, with two levels of glass for added protection

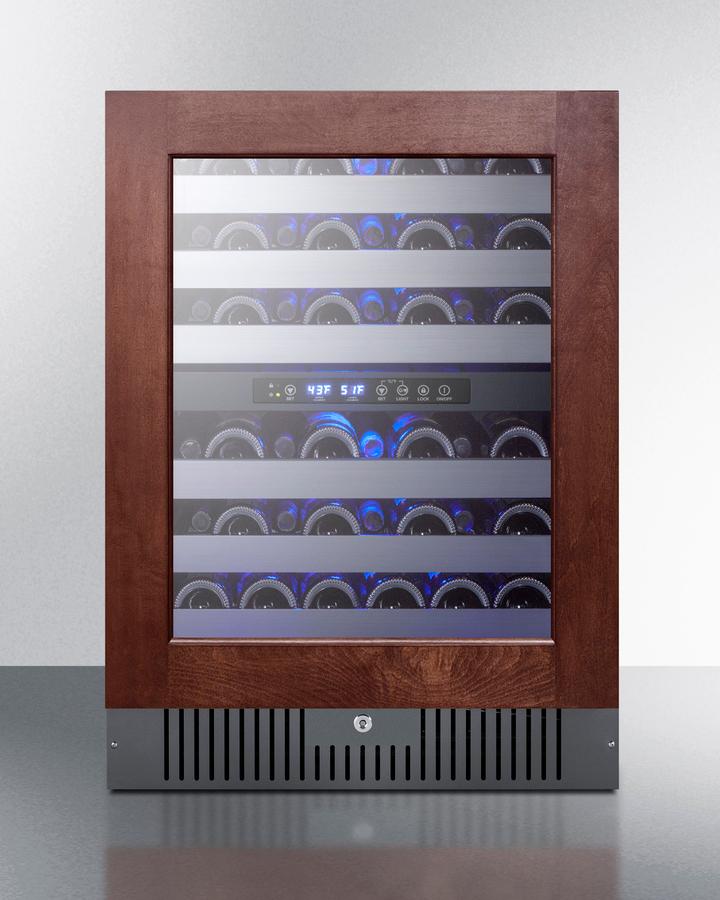

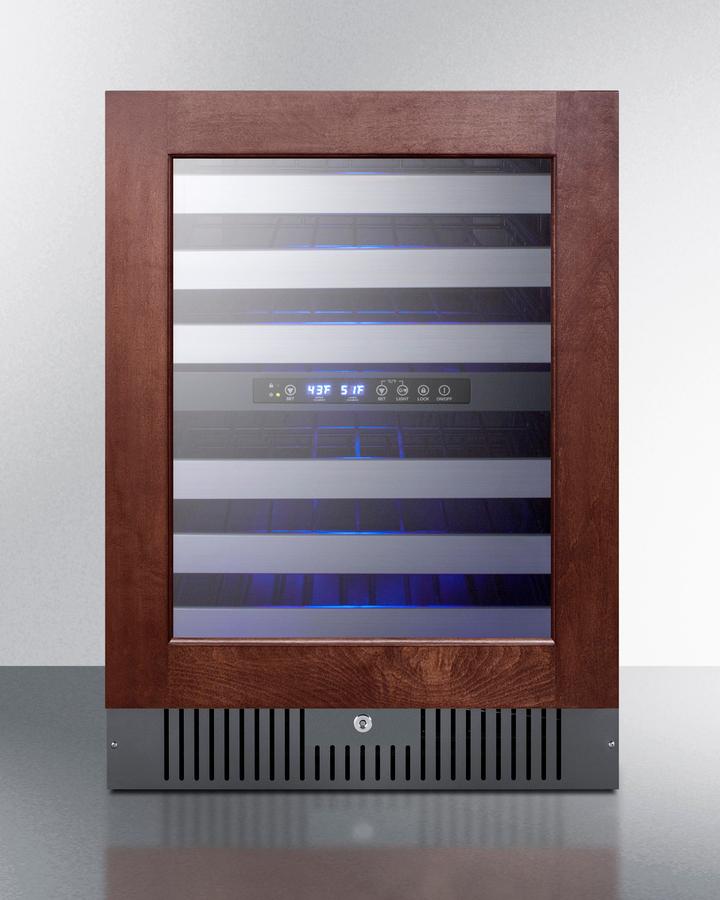

Summit's extensive selection of built-in undercounter commercially approved wine cellars includes elegant choices that let you achieve a custom look ideal for any space. The SWC532BLBISTPNR is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look. Inside, the SWC532BLBISTPNR is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50 F for white wine, while the lower zone is designed to store red wine between 50 and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the SWC532BLBISTPNR makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.
| Overview | |

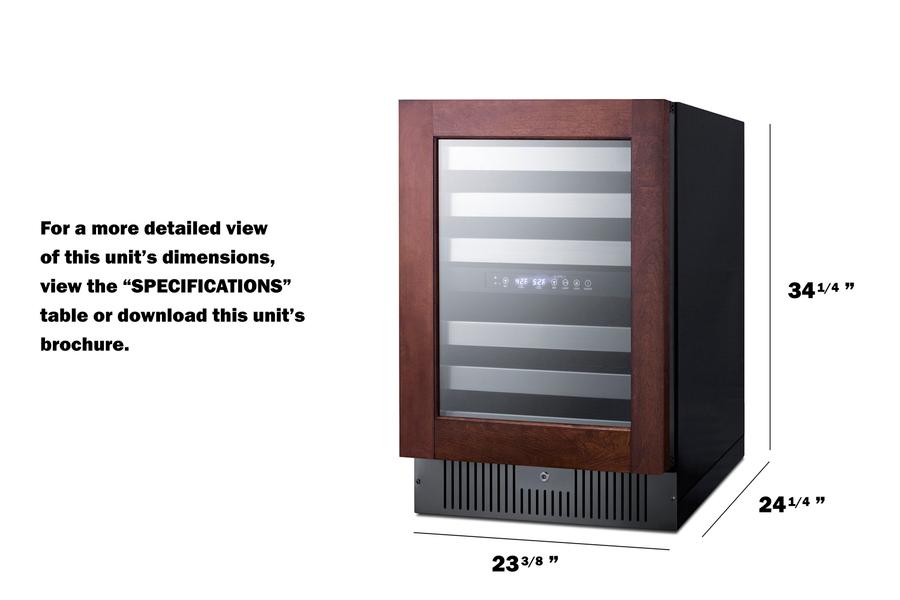

| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 47.38" (120 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067094 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64 F |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
