24" Wide Built-in Wine Cellar, ADA Compliant
Model: SWC530BLBISTCSSADAQuick Specs
Width
23.63"
Depth
25"
Height
32"
Sabbath
NO
Shelves
6
ADA
YES
Disp
NO
Ice
NO
24" Wide Built-in Wine Cellar, ADA Compliant is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-4 weeks
Available to Order
Sale Price
Sale price
$1,931.00
Regular price
$2,405.00
Unit price
/
Unavailable
You save 19%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
23.63"
Depth
25"
Height
32"
Sabbath Mode
NO
Refrigerator number of Shelves
6
ADA
YES
Dispenser
NO
Icemaker
NO
Wifi Connected
NO
Counter Depth
NO
RPM
-1.0
Energy Star Rated
NO
- ADA Compliant
- 32" height fits under lower ADA compliant counters
- Built-in capable
- Make the best use of space by installing your appliance under the counter
- Stainless steel cabinet
- Fully wrapped in 304 grade stainless steel
- Digital thermostats
- Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
- Two temperature zones
- Lower zone for reds has a temperature range of 10 C/50 F to 18 C/64 F; Upper zone stores whites and sparkling wine between 5 C/41 F to 10 C/50 F
- Automatic defrost
- Reduced maintenance with auto defrost system
- Slide-out wooden shelving
- Ideal for holding your bottles, with an elegant touch of stainless steel trim
- Versatile shelving

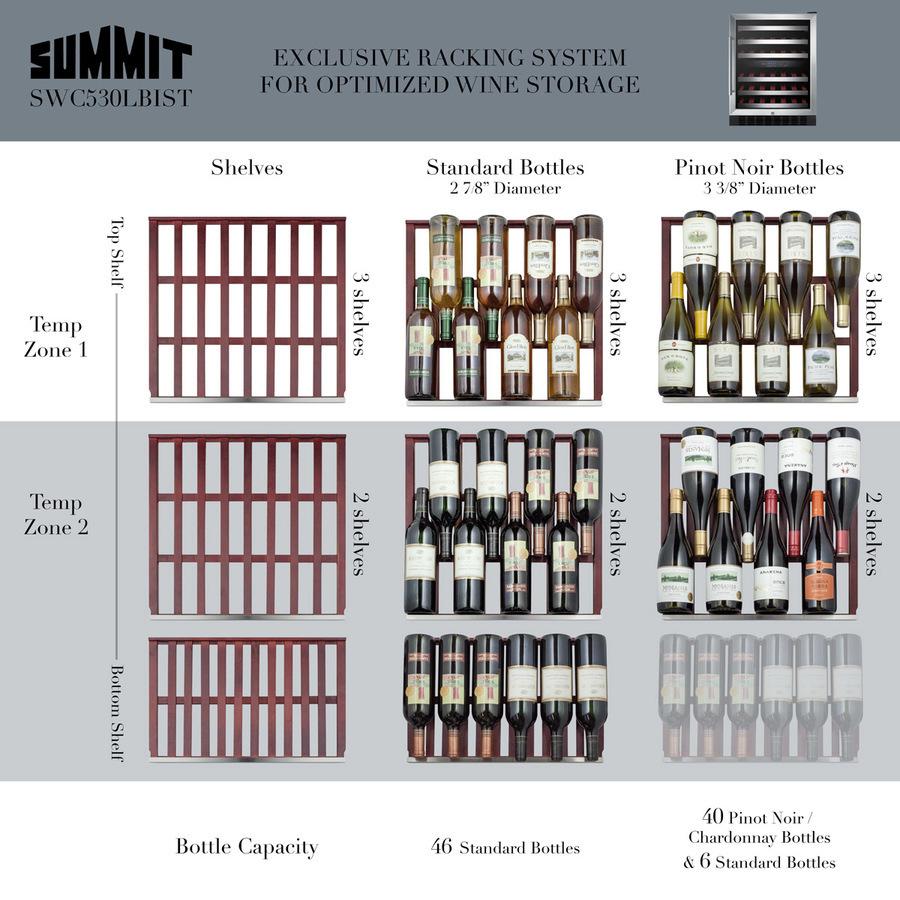

- Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
- Stainless steel door frame
- Classic trim for a refined look
- Glass door
- Provides a full display of your collection
- Interior light
- Illuminate your collection in style
- Factory installed lock
- Keyed lock for secure interior
- Reversible door
- User reversible door swing
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- 32" height fits under lower ADA compliant counters
- Make the best use of space by installing your appliance under the counter
- Illuminate your collection in style
- Keyed lock for secure interior
- User reversible door swing
- Environmentally friendly design with no ozone-damaging chemicals
- Fully wrapped in 304 grade stainless steel
- Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
- Lower zone for reds has a temperature range of 10 C/50 F to 18 C/64 F; Upper zone stores whites and sparkling wine between 5 C/41 F to 10 C/50 F
- Reduced maintenance with auto defrost system
- Ideal for holding your bottles, with an elegant touch of stainless steel trim
- Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
- Classic trim for a refined look
- Provides a full display of your collection

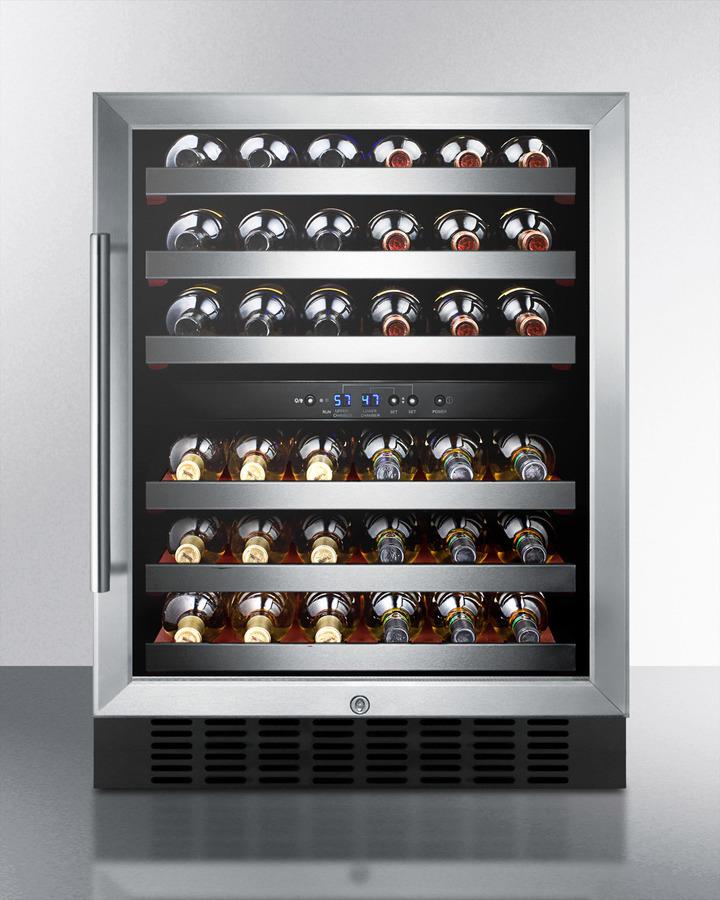

Store your finest collection in the SWC530BLBISTCSSADA, an ADA compliant built-in wine cellar with advanced features and stunning design. Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple. At 32" high, the SWC530BLBISTCSSADA can be used built-in or freestanding under lower ADA compliant counters. The cabinet is fully wrapped in stainless steel, with a reversible glass door to best display your collection. A professional stainless steel door handle completes the look.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056425 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Sound Level | 34.3 dB |
