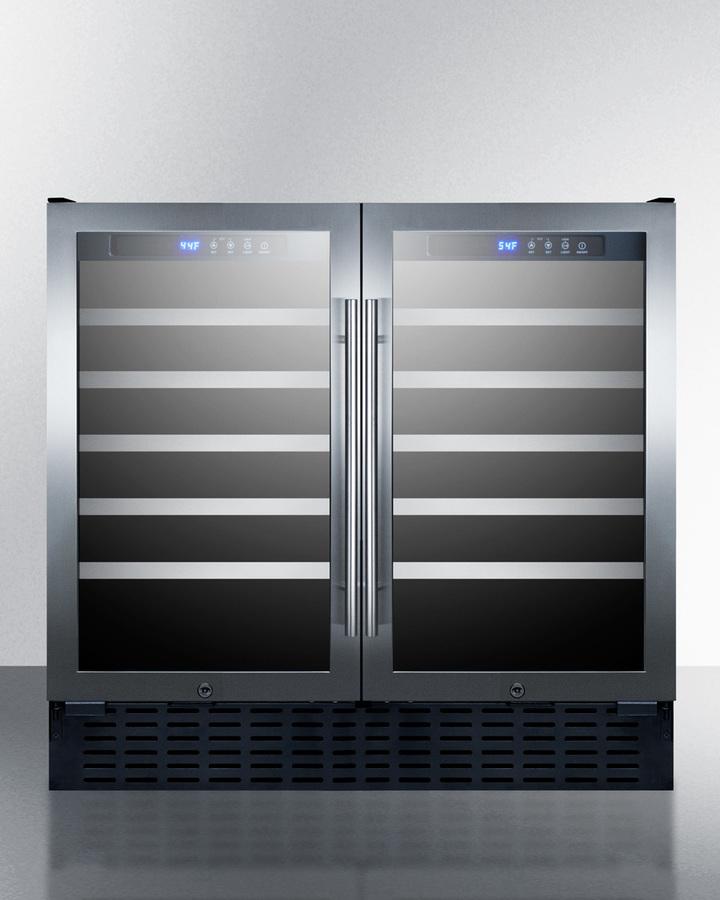

36" Wide Built-in Wine Cellar, ADA Compliant
Model SWC3668ADA
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
36" Wide Built-in Wine Cellar, ADA Compliant
Model SWC3668ADAQuick Specs
Width
35.38
Depth
25.25"
Height
31.5
Sabbath
NO
Shelves
10
ADA
YES
Disp
NO
Ice
NO
36" Wide Built-in Wine Cellar, ADA Compliant is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,117.48
Regular price
$2,730.00
Unit price
/
Unavailable
You save 22%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35.38
Depth
25.25"
Height
31.5
Sabbath Mode
NO
Refrigerator number of Shelves
10
ADA
YES
Dispenser
NO
Icemaker
NO
Wifi Connected
NO
Counter Depth
NO
RPM
-1.0
Energy Star Rated
NO
- ADA compliant height
- Less than 32" high to fit under lower counters following ADA guidelines for accessibility
- Built-in capable
- Make the best use of space by installing this unit under the counter and flush with other cabinetry
- Dual zone design
- Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions

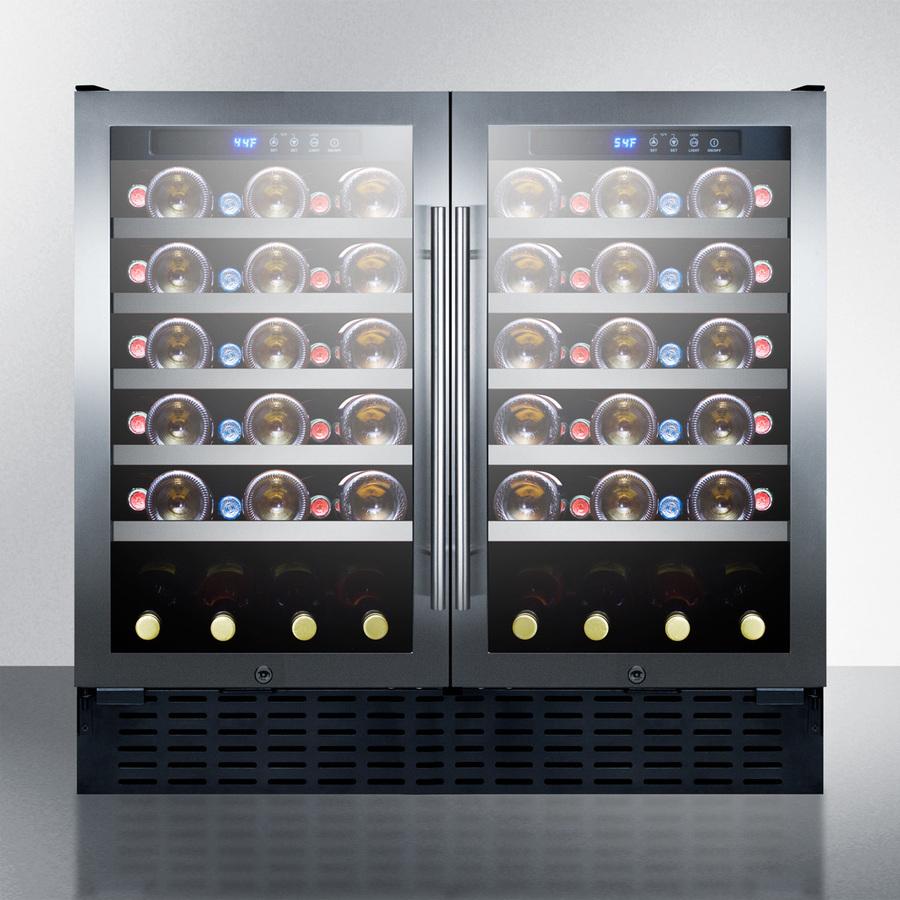

- 68 bottle capacity
- Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
- Recessed LED lighting
- Gentle and energy efficient LED lighting offers an elegant view of your collection

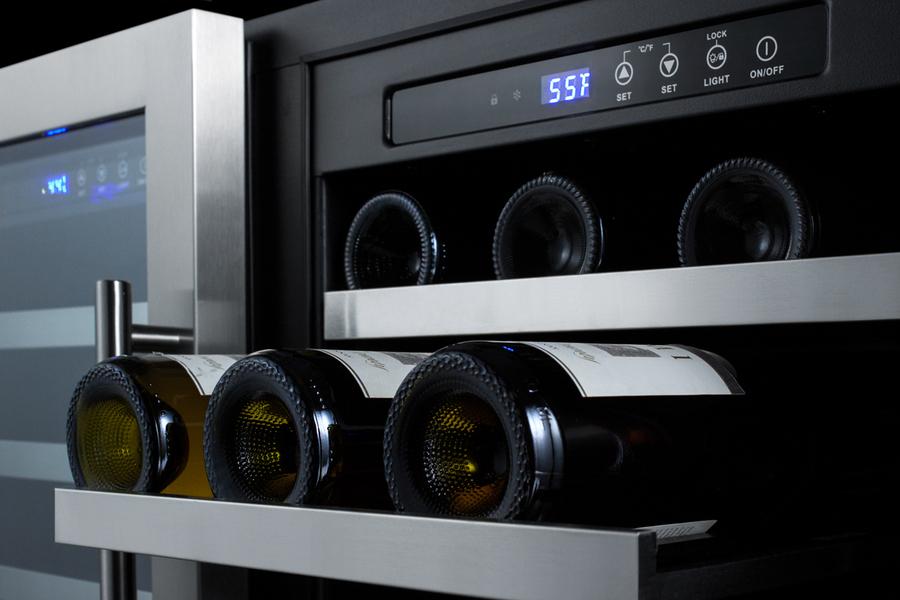

- Digital thermostats
- Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
- Wooden shelves
- Stainless steel trimmed wooden shelves with a jet black finish for a modern look
- Professional handles
- Sleek stainless steel handles add an elegant touch to any setting
- Glass doors
- French door swing for a more dramatic presentation
- Seamless stainless steel trim
- Door trim is completely seamless for a more luxurious look
- Factory installed locks
- Keyed locks on both zones offer separate security for interior contents
- Automatic defrost
- Reduced user maintenance with automatic defrost
- Fan-forced cooling
- Internal fans ensure both interiors have a consistent temperature from top to bottom
- Sealed back
- Space-saving design that ensures easier cleanup
- Fully finished cabinet
- Allows the unit to be used freestanding
- Commercially approved
- ETL-S listed to ANSI-NSF Standard 7
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Less than 32" high to fit under lower counters following ADA guidelines for accessibility
- Make the best use of space by installing this unit under the counter and flush with other cabinetry
- Keyed locks on both zones offer separate security for interior contents
- Reduced user maintenance with automatic defrost
- Internal fans ensure both interiors have a consistent temperature from top to bottom
- Space-saving design that ensures easier cleanup
- Allows the unit to be used freestanding
- ETL-S listed to ANSI-NSF Standard 7
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
- Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
- Gentle and energy efficient LED lighting offers an elegant view of your collection
- Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
- Stainless steel trimmed wooden shelves with a jet black finish for a modern look
- Sleek stainless steel handles add an elegant touch to any setting
- French door swing for a more dramatic presentation
- Door trim is completely seamless for a more luxurious look
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. At just under 32" high and 36" wide, the SWC3668ADA wine cellar is designed for built-in installation under lower ADA compliant counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look. Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style. With a professional look and innovative design, SUMMIT SWC3668ADA is a unique addition to any home.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.38" (90 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Bottles | 68 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 151.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101054940 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 10 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 23.0" (58 cm) |
| Interior Width 1 | 14.0" (36 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 14.0" (36 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 40 to 72 F |
| Interior Height 2 | 23.0" (58 cm) |
| Interior Width 2 | 14.0" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 36.0 dB |
- Less than 32" high to fit under lower counters following ADA guidelines for accessibility
- Make the best use of space by installing this unit under the counter and flush with other cabinetry
- Keyed locks on both zones offer separate security for interior contents
- Reduced user maintenance with automatic defrost
- Internal fans ensure both interiors have a consistent temperature from top to bottom
- Space-saving design that ensures easier cleanup
- Allows the unit to be used freestanding
- ETL-S listed to ANSI-NSF Standard 7
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
- Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
- Gentle and energy efficient LED lighting offers an elegant view of your collection
- Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
- Stainless steel trimmed wooden shelves with a jet black finish for a modern look
- Sleek stainless steel handles add an elegant touch to any setting
- French door swing for a more dramatic presentation
- Door trim is completely seamless for a more luxurious look
