30" Wide Built-in Wine Cellar
Model: SWC3066B
30" Wide Built-in Wine Cellar
Model: SWC3066BQuick Specs
30" Wide Built-in Wine Cellar is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Commercially approved
- ETL-S listed to ANSI-NSF Standard 7
- Built-in capable

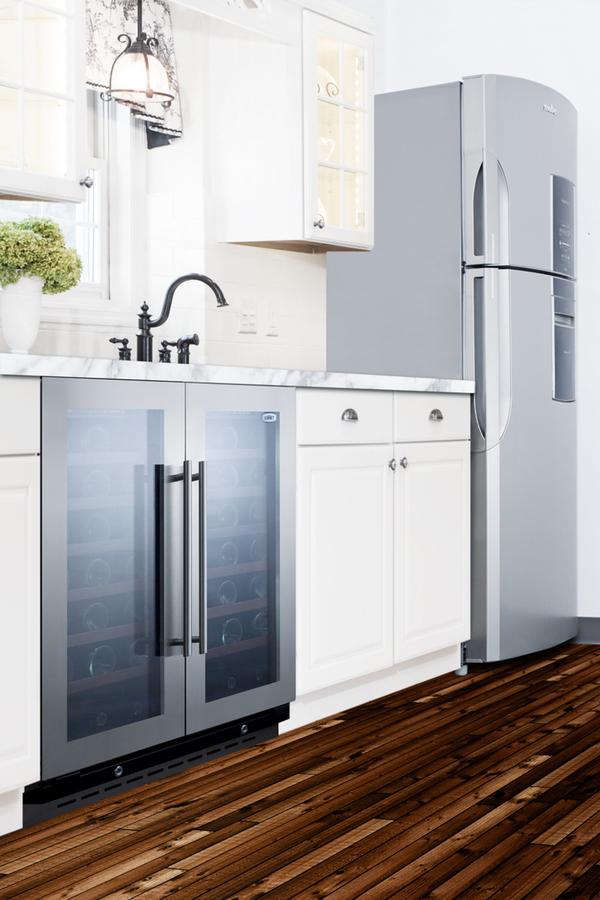

- Make the best use of space by installing this unit under the counter and flush with other cabinetry
- 66 bottle capacity
- Interior can hold 66 standard 750ml Bordeaux style bottles, or 46 wider Burgundy bottles + 10 Bordeaux bottles
- Dual zone design
- Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
- Recessed LED lighting
- Gentle and energy efficient LED lighting offers an elegant view of your collection

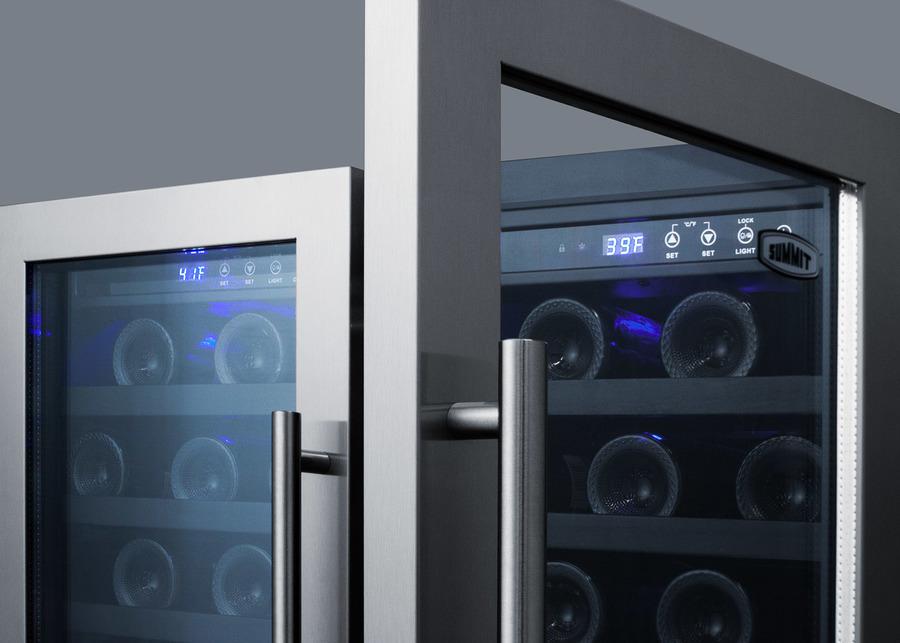

- Digital thermostats
- Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
- Wooden shelves
- Classic wood shelves in a jet black finish are specially designed to hold bottles safely in place
- Professional handles
- Sleek stainless steel handles add an elegant touch to any setting
- Glass doors with seamless stainless steel trim
- French door swing offers a modern look, with stainless steel door trim for an added accent
- Factory installed locks
- Keyed locks on both zones offer separate security for interior contents
- Automatic defrost
- Reduced user maintenance with automatic defrost
- Fan-forced cooling
- Internal fans ensure both interiors have a consistent temperature from top to bottom
- Fully finished cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- ETL-S listed to ANSI-NSF Standard 7
- Make the best use of space by installing this unit under the counter and flush with other cabinetry
- Reduced user maintenance with automatic defrost
- Internal fans ensure both interiors have a consistent temperature from top to bottom
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Interior can hold 66 standard 750ml Bordeaux style bottles, or 46 wider Burgundy bottles + 10 Bordeaux bottles
- Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
- Gentle and energy efficient LED lighting offers an elegant view of your collection
- Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
- Classic wood shelves in a jet black finish are specially designed to hold bottles safely in place
- Sleek stainless steel handles add an elegant touch to any setting
- French door swing offers a modern look, with stainless steel door trim for an added accent
- Keyed locks on both zones offer separate security for interior contents

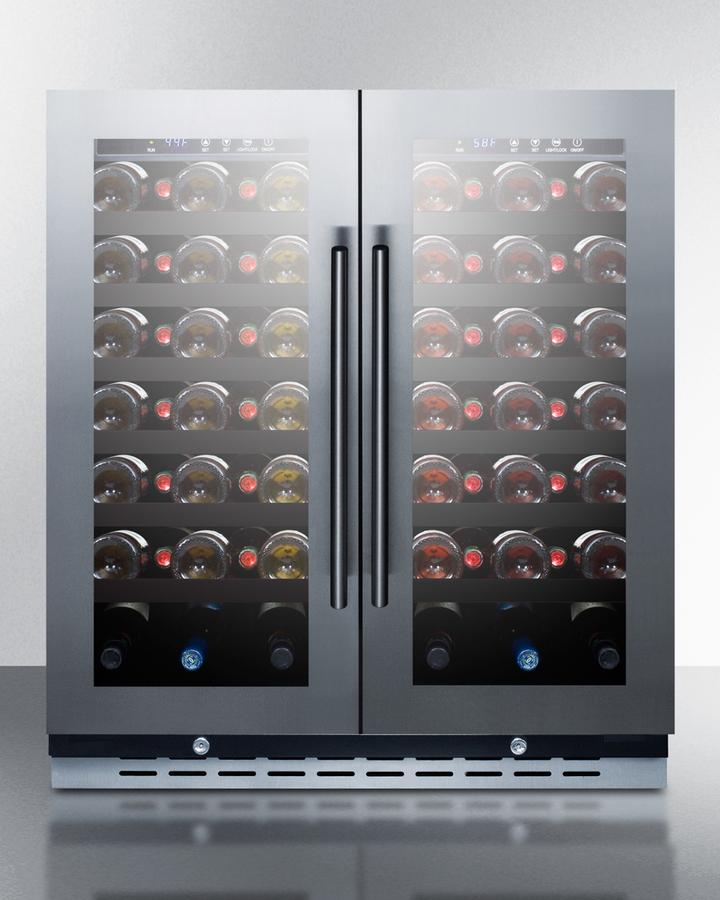

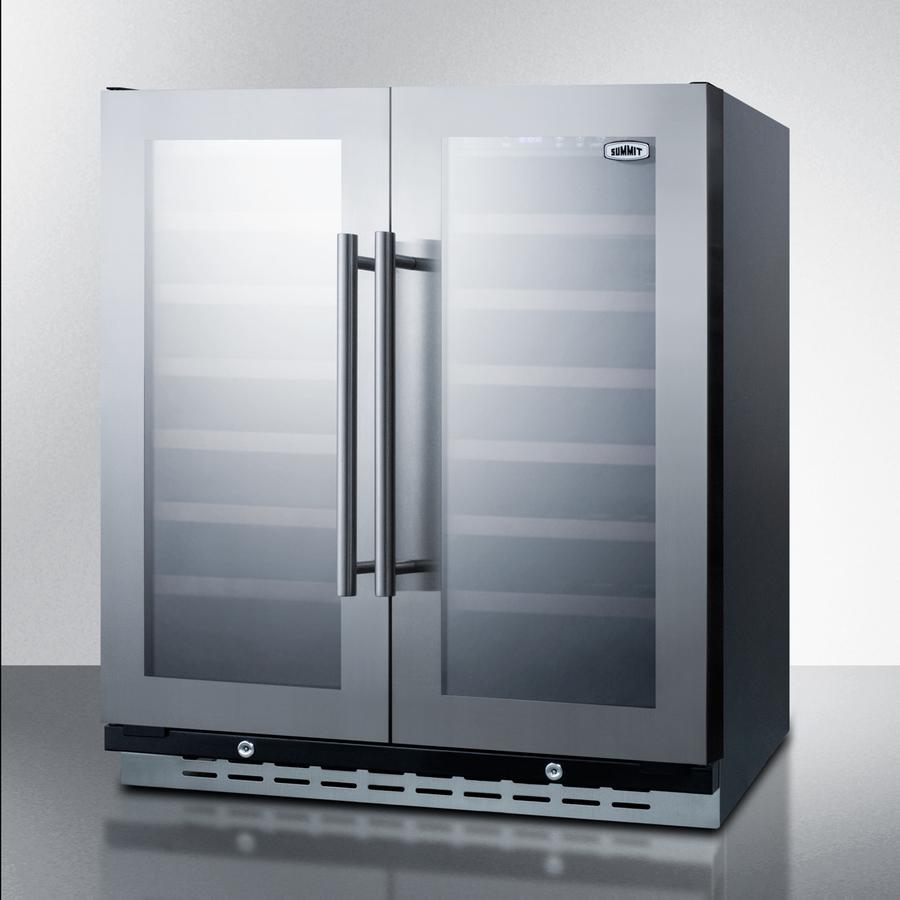

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWC3066B is a 30" wide wine cellar designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles. Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include six wooden shelves in a jet black finish and slotted floors, letting you store up to 66 standard 750ml Bordeaux bottles inside the unit. Alternatively, you can fit up to 46 wider "Burgundy" style bottles (often used for chardonnay and pinot noir) in addition to 10 Bordeaux bottles. The slotted floor can store six champagne bottles. Recessed LED lighting offers an attractive view to let you display your wine collection in style. With a professional look and innovative design, SUMMIT SWC3066B is a unique addition to any home. For a similar unit designed for wine and beverage storage, see the SWBV3067B.
| Overview | |
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.38" (87 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 36.0" (91 cm) |
| Bottles | 66 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 132.0 lbs. (60 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101055787 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 12 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 4 |
