18" Wide Built-in Wine Cellar, ADA Compliant
Model SWC182ZADAQuick Specs
Width
17.75
Depth
25.25"
Height
31.63"
Sabbath
NO
Fresh
3.3
Cu Ft
3.3
Size
3.3
Shelves
4
18" Wide Built-in Wine Cellar, ADA Compliant is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,099.64
Regular price
$1,575.00
Unit price
/
Unavailable
You save 30%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
17.75
Depth
25.25"
Height
31.63"
Sabbath Mode
NO
Fresh food Capacity
3.3
Capacity (cu ft.)
3.3
Refrigerator Size
3.3
Refrigerator number of Shelves
4
ADA
YES
Dispenser
NO
Icemaker
NO
Wifi Connected
NO
Counter Depth
NO
RPM
-1.0
Energy Star Rated
NO
- Dual zone storage
- Keep white wine in the upper compartment stored between 41 and 50 F and red wine at a warmer 50 to 64 F range in the lower chamber
- ADA compliant
- 32" height is designed to fit under lower ADA compliant counters
- Built-in capable
- Make the best use of space by installing your appliance under the counter
- 28 bottle capacity

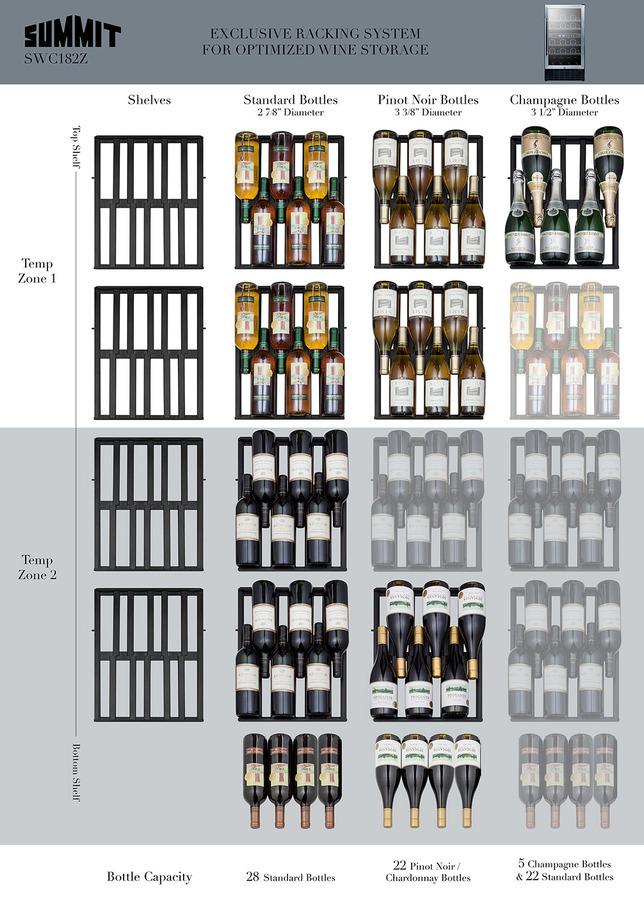

- Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

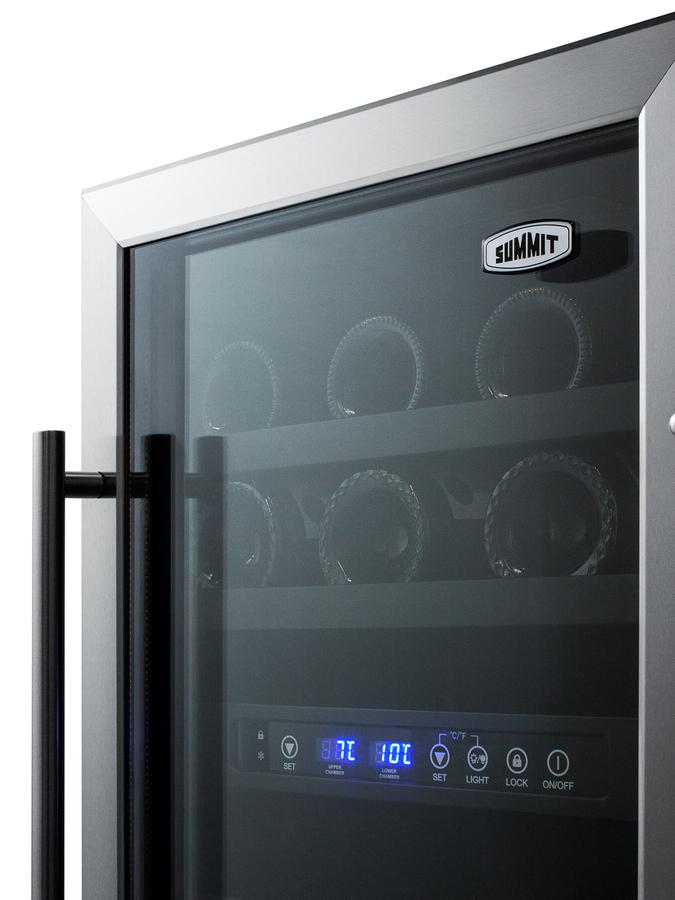

- Glass door with stainless steel trim
- Provides a full display of stored contents with a heat-safe double tempered design
- Factory installed lock
- Keyed lock for a secure interior, with 2 keys included

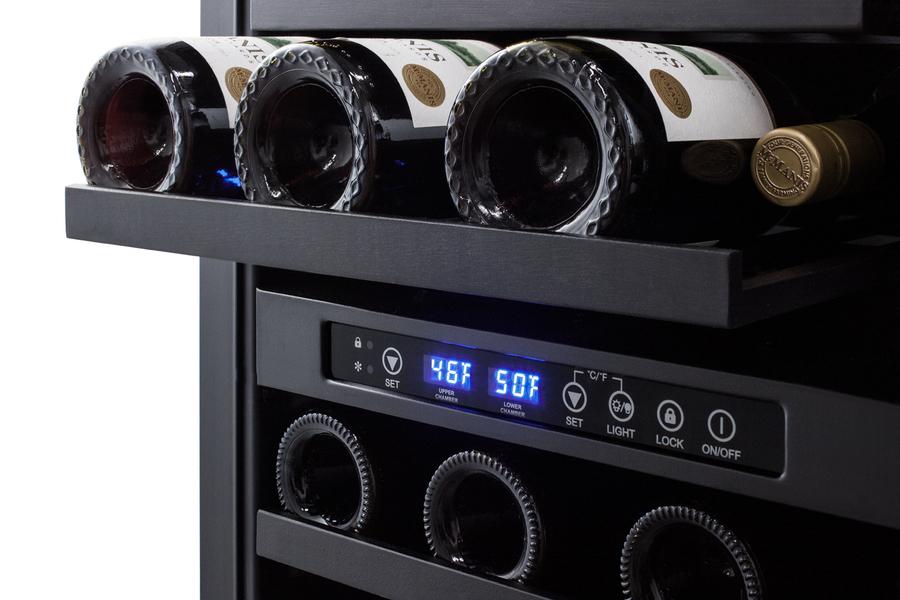

- Digital thermostat
- Electronic controls for precise temperature management.
- Digital display
- Temperature readout can be shown in Celsius or Fahrenheit
- LED lighting
- Gentle illumination for each temperature zone for an elegant presentation
- Automatic defrost
- Reduced maintenance with the convenience of auto defrost
- Wooden shelves
- 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
- Reversible door
- Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Professional handle
- Stainless steel handle completes the look
- Flush back
- Space saving design
- Integrated door hinge
- Hinge is flush with cabinet, adding no additional height to the unit
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Keep white wine in the upper compartment stored between 41 and 50 F and red wine at a warmer 50 to 64 F range in the lower chamber
- 32" height is designed to fit under lower ADA compliant counters
- 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
- Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Stainless steel handle completes the look
- Space saving design
- Hinge is flush with cabinet, adding no additional height to the unit
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Make the best use of space by installing your appliance under the counter
- Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
- Provides a full display of stored contents with a heat-safe double tempered design
- Keyed lock for a secure interior, with 2 keys included
- Electronic controls for precise temperature management.
- Temperature readout can be shown in Celsius or Fahrenheit
- Gentle illumination for each temperature zone for an elegant presentation
- Reduced maintenance with the convenience of auto defrost

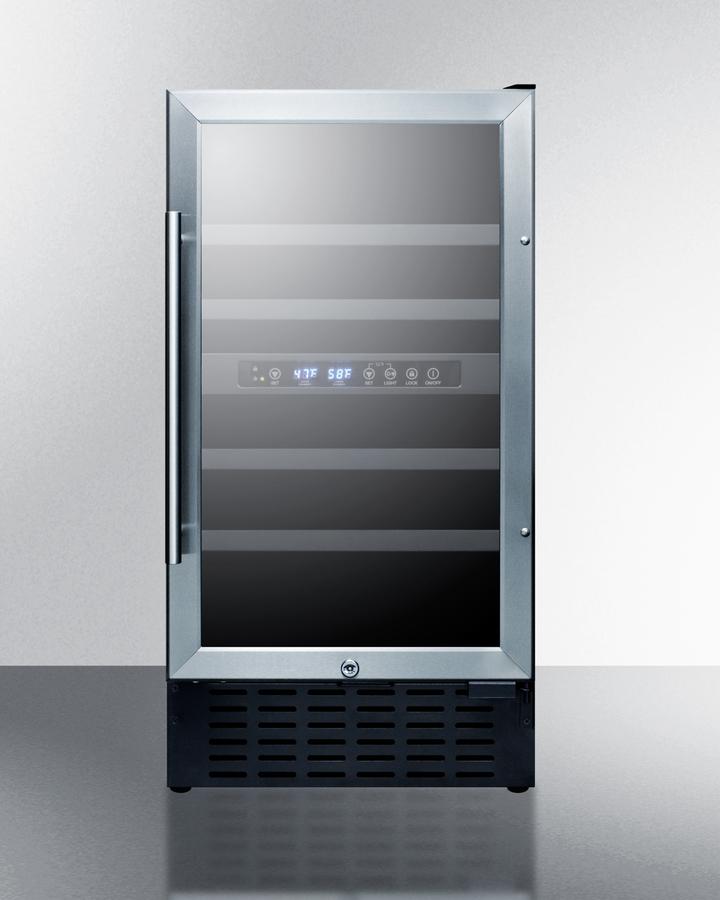

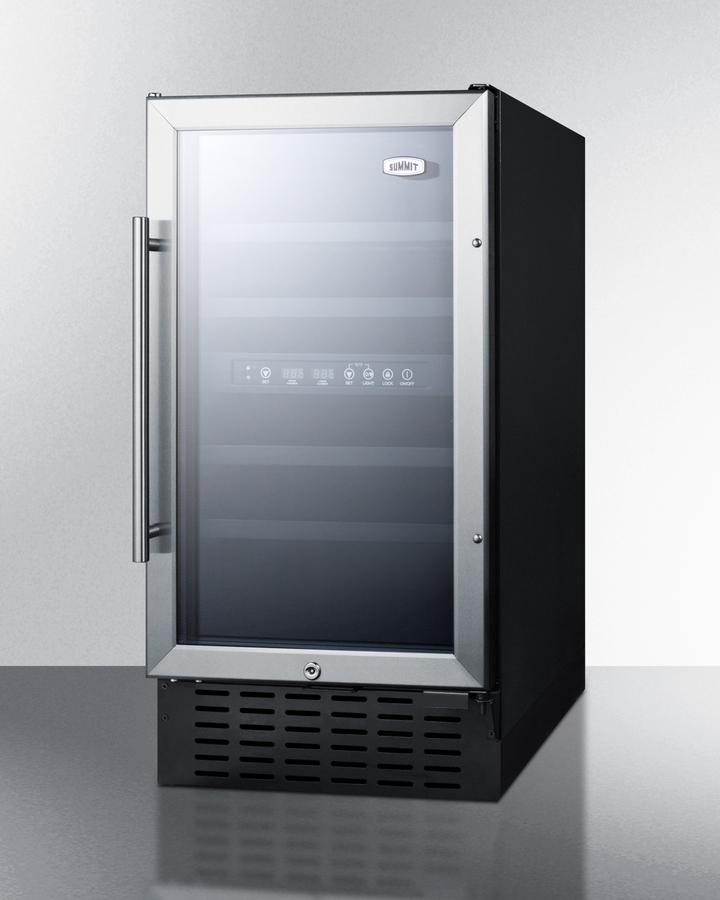

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space. Sized just under 18" wide and 32" high, the SWC182ZADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included. Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management. With its slim fit and convenient design, the SWC182ZADA makes an attractive addition to any room.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.63" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 28 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101055091 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 10.63" (27 cm) |
| Interior Width 1 | 14.25" (36 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 5.25" (13 cm) |
| Compressor Step Width | 14.25" (36 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 64 F |
| Interior Height 2 | 12.25" (31 cm) |
| Interior Width 2 | 14.25" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
