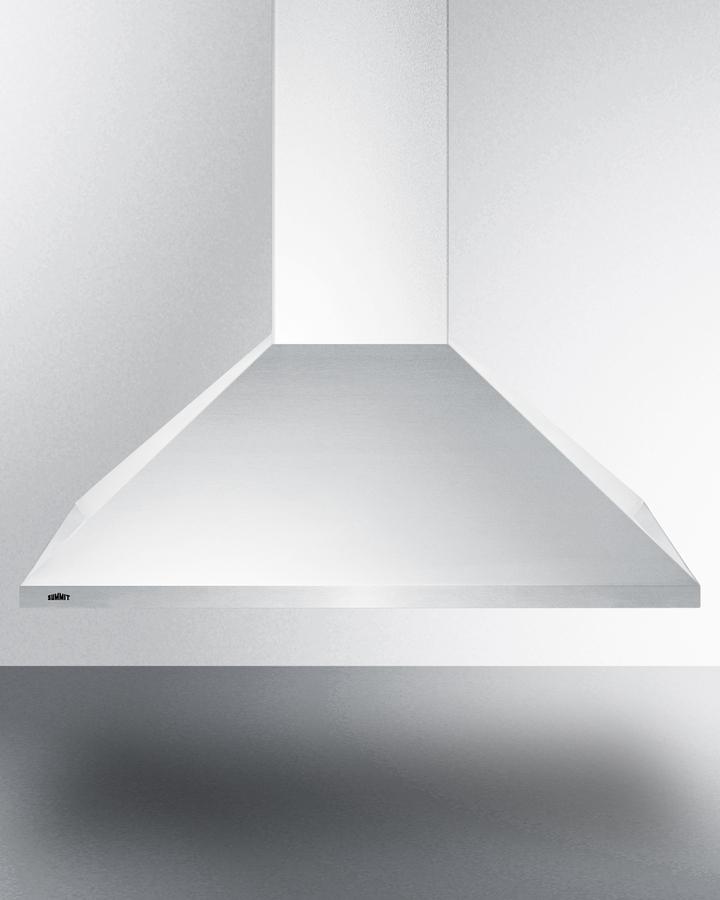

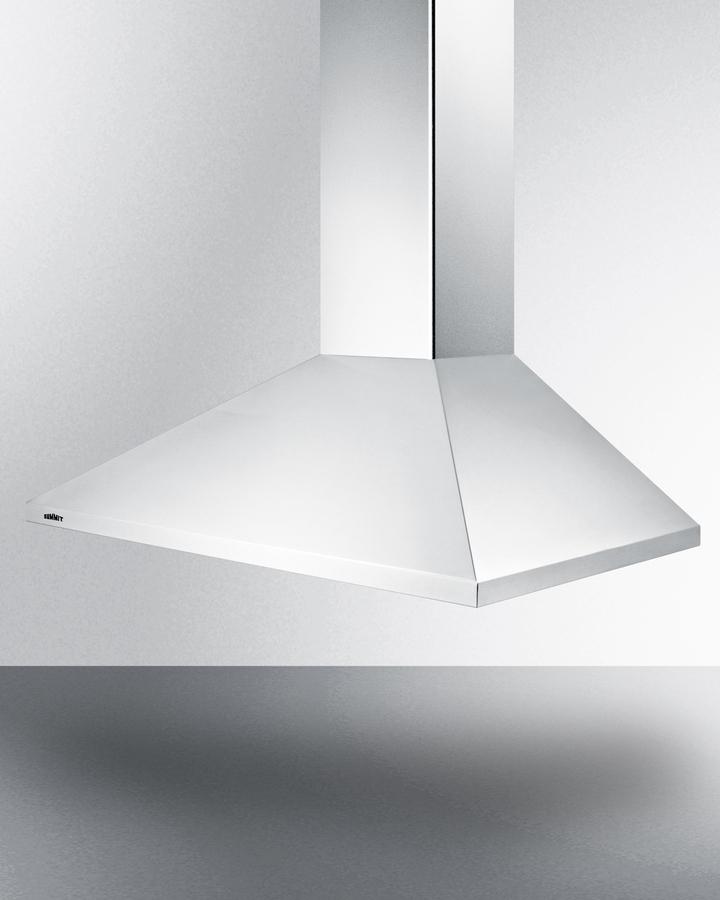

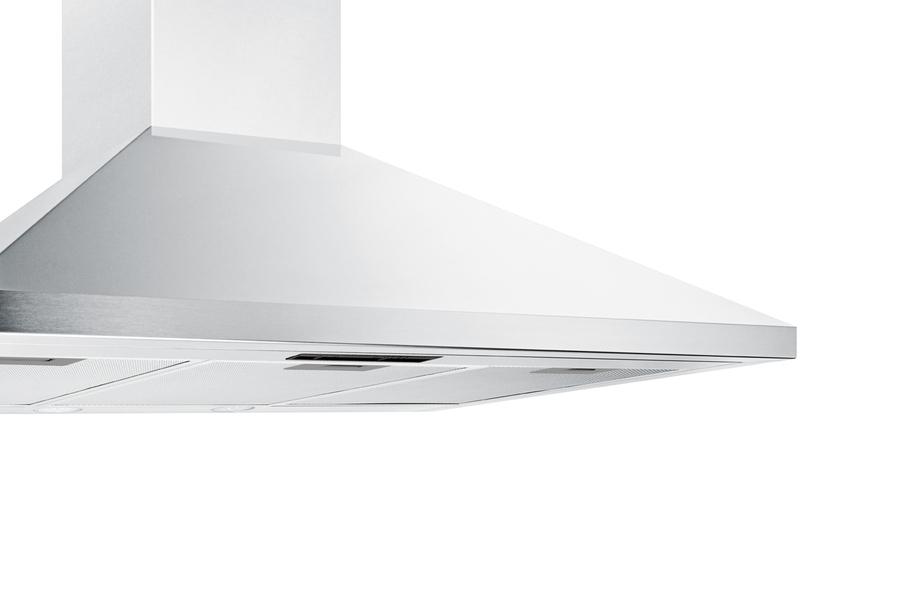

36" Wide Wall-mounted Range Hood, ADA-compliant
Model SEH1536SSADA
36" Wide Wall-mounted Range Hood, ADA-compliant
Model SEH1536SSADAQuick Specs
36" Wide Wall-mounted Range Hood, ADA-compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 36" wide wall-mounted range hood
- European style range hood designed to bring effective ventilation over 36" wide cooking surfaces
- ADA-compliant design
- Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
- Convertible design with no additional purchase necessary
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

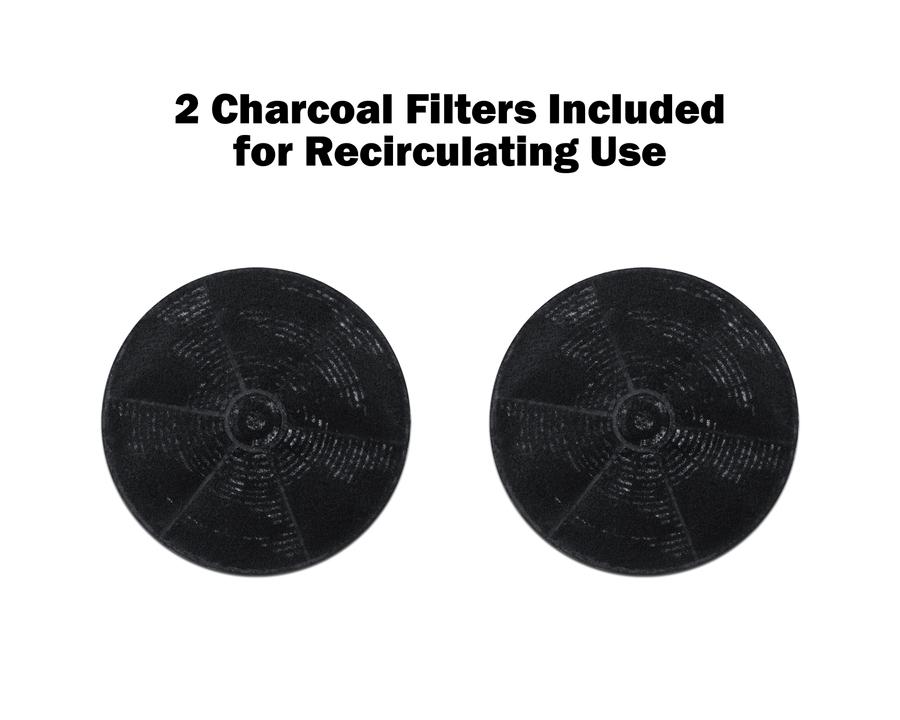

- Charcoal filter set included
- Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
- Powerful ventilation
- 400 CFM blower to effectively remove smoke and cooking odors from your kitchen

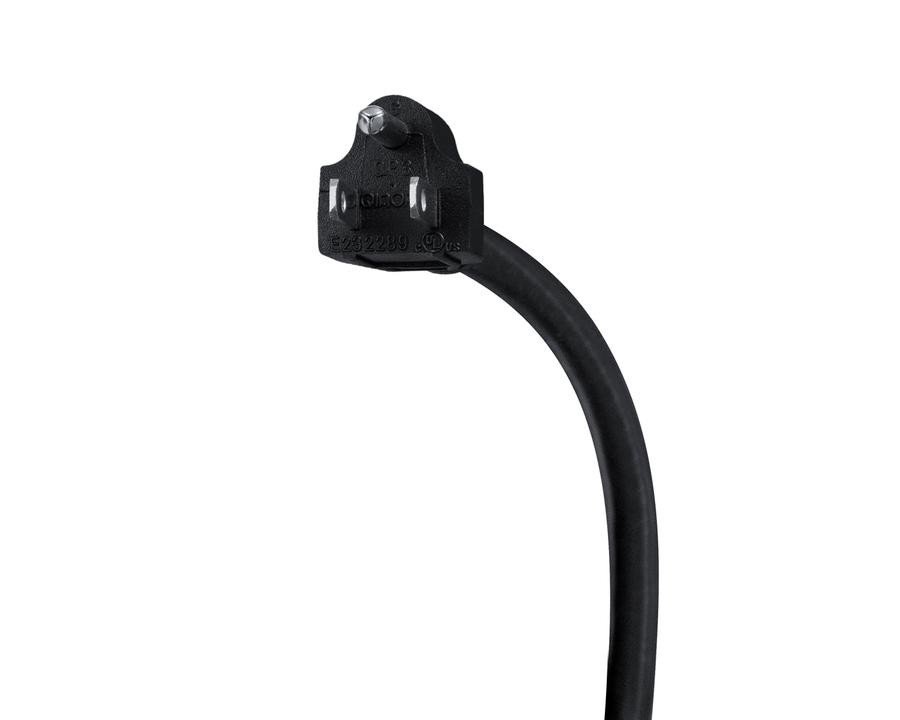

- Cord included
- Pre-installed power cord with 3-prong plug for 115V outlets
- LED lighting (bulbs included)
- Includes two pre-installed LED bulbs to illuminate your cooking surface
- Adjustable height
- Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/2" to 37 1/4"
- Stainless steel finish
- Durable construction in an attractive style with a horizontal grain

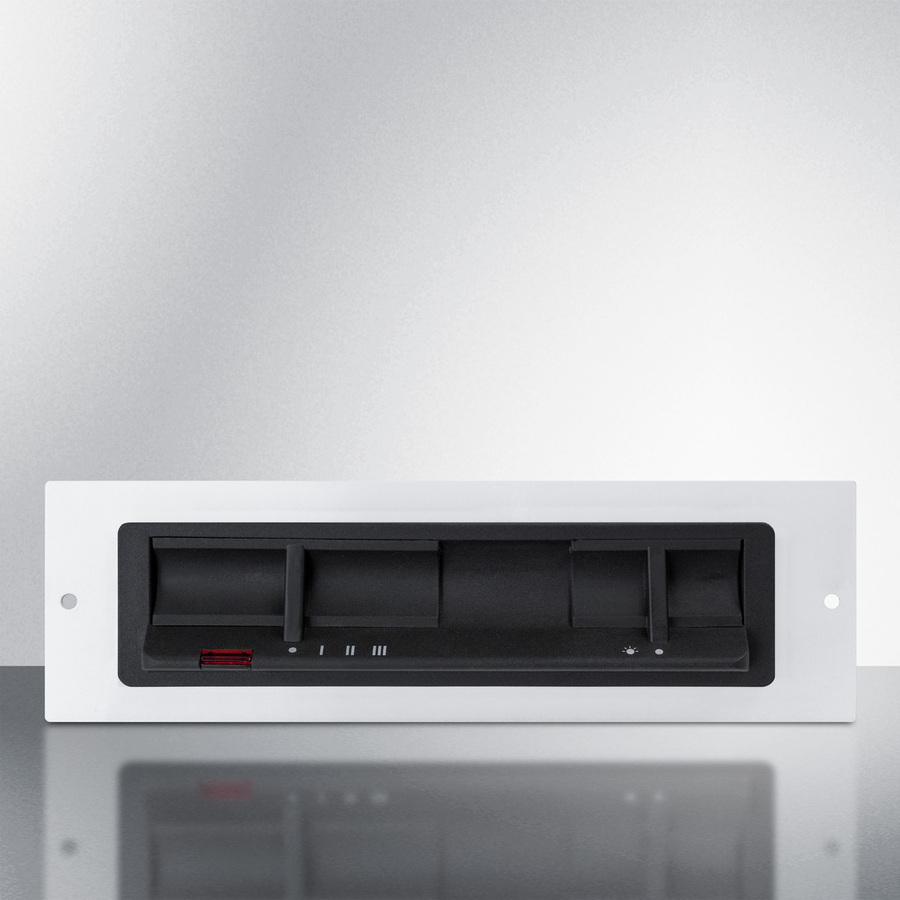

- Slide controls
- Easy and intuitive controls let you adjust your ventilation and lighting as needed
- Multi-speed fan
- Choose from three speeds to provide the proper level of ventilation for your cooking

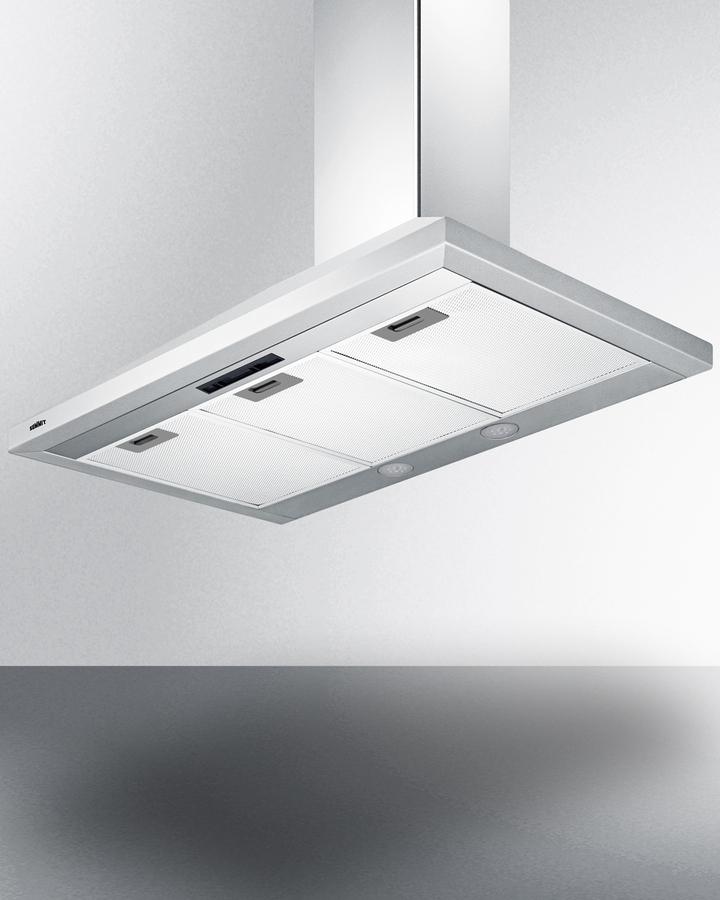

- Removable aluminum cassette filters
- Two mesh filters capture grease particles and are removable for easy cleanup
- 6" round ducting
- Ideal for most kitchen settings
- Classic design
- Popular pyramid shape offers an attractive look to complement any style of kitchen
- European style range hood designed to bring effective ventilation over 36" wide cooking surfaces
- Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
- Choose from three speeds to provide the proper level of ventilation for your cooking
- Two mesh filters capture grease particles and are removable for easy cleanup
- Ideal for most kitchen settings
- Popular pyramid shape offers an attractive look to complement any style of kitchen
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
- 400 CFM blower to effectively remove smoke and cooking odors from your kitchen
- Pre-installed power cord with 3-prong plug for 115V outlets
- Includes two pre-installed LED bulbs to illuminate your cooking surface
- Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/2" to 37 1/4"
- Durable construction in an attractive style with a horizontal grain
- Easy and intuitive controls let you adjust your ventilation and lighting as needed
Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Sized at 36" wide, model SEH1536SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface. The SEH1536SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket. Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.
| Overview | |
| Nominal Height | 38.0" (97 cm) |
| Height of Cabinet | 37.25" (95 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.44" (90 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 19.69" (50 cm) |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Energy Usage/Year | 2.6kWh/year |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 45.0 lbs. (20 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101107271 |
| Range Hood | |
| Installation | Wall-Mounted |
| Venting | Convertible |
| Controls | Slide |
| Light | Yes |
| Number of Lights | 2 |
| Light Type | LED |
| Number of Fan Speeds | 3 |
| Maximum Air Movement | 400.0 CFM |
| Minimum Height | 25.5" (65 cm) |
| Maximum Height | 37.25" (95 cm) |
| Duct Shape | 6" Round |
- European style range hood designed to bring effective ventilation over 36" wide cooking surfaces
- Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
- Choose from three speeds to provide the proper level of ventilation for your cooking
- Two mesh filters capture grease particles and are removable for easy cleanup
- Ideal for most kitchen settings
- Popular pyramid shape offers an attractive look to complement any style of kitchen
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
- 400 CFM blower to effectively remove smoke and cooking odors from your kitchen
- Pre-installed power cord with 3-prong plug for 115V outlets
- Includes two pre-installed LED bulbs to illuminate your cooking surface
- Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/2" to 37 1/4"
- Durable construction in an attractive style with a horizontal grain
- Easy and intuitive controls let you adjust your ventilation and lighting as needed
 | |
|---|---|
