24" Wide Built-in Drawer Refrigerator
Model: SDR24
24" Wide Built-in Drawer Refrigerator
Model: SDR24Quick Specs
24" Wide Built-in Drawer Refrigerator is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 24" wide single drawer refrigerator
- 2 cu.ft. all-refrigerator in a single drawer style
- Commercially approved
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

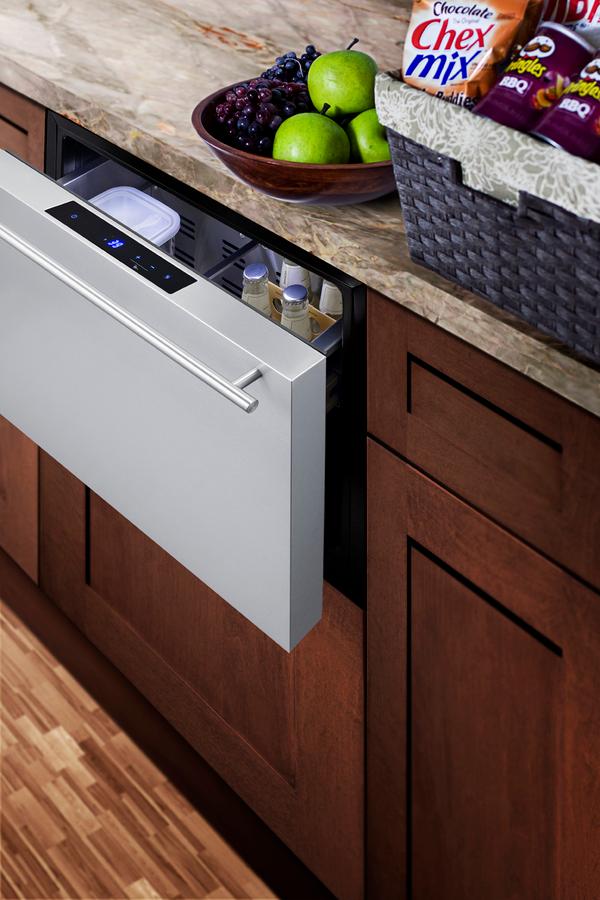

- Built-in capable

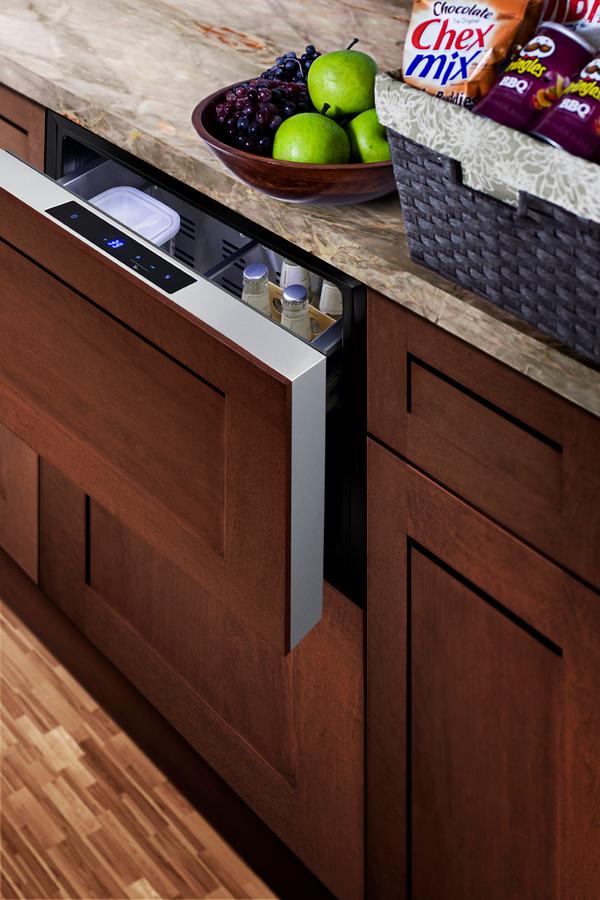

- Front-breathing design allows you to build the drawer into cabinetry

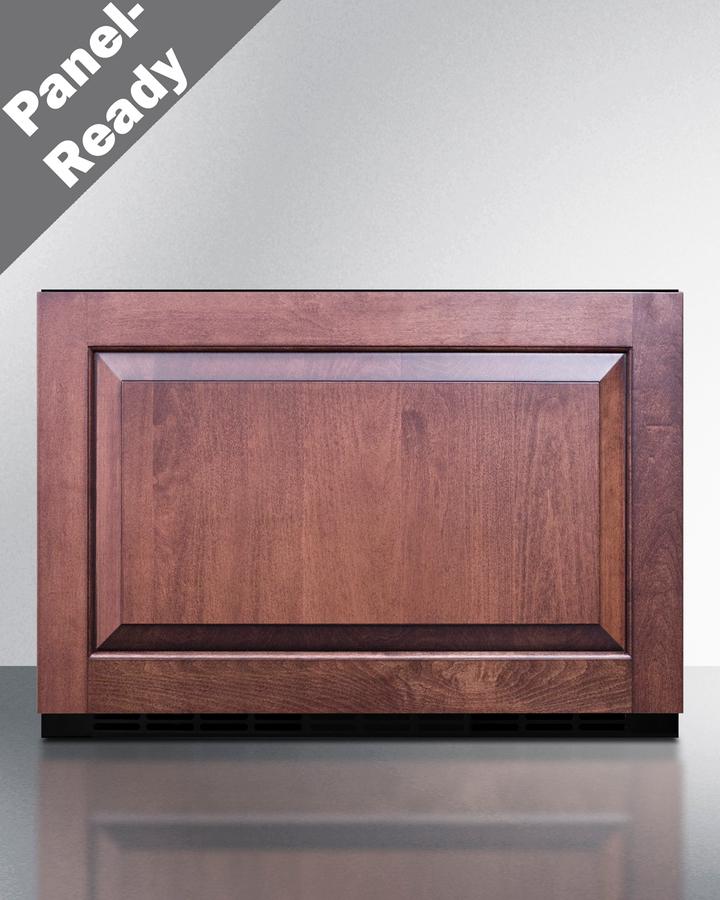

- Panel-ready drawer front

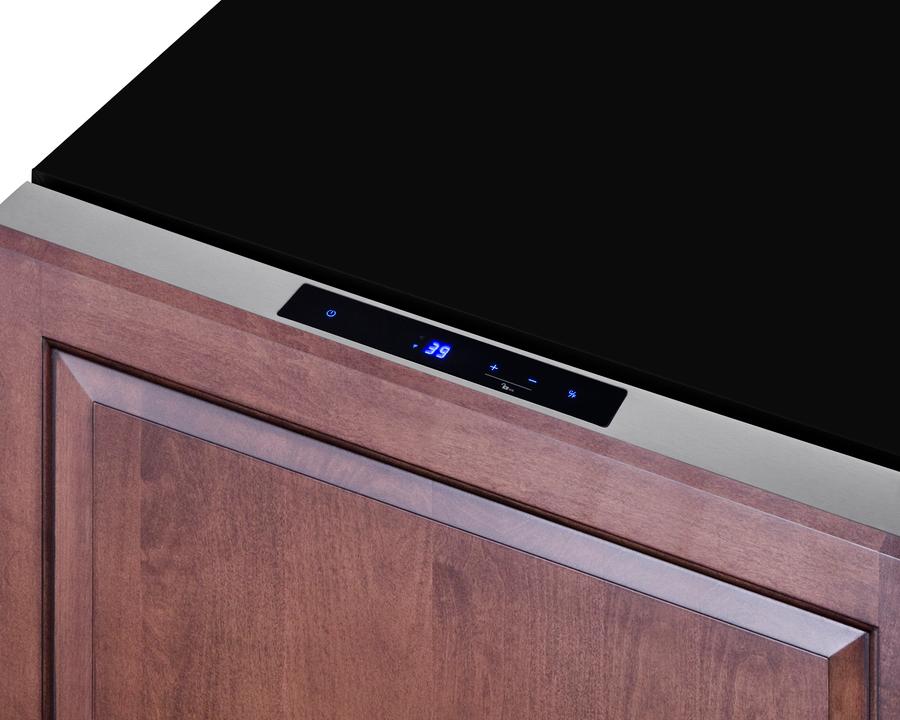

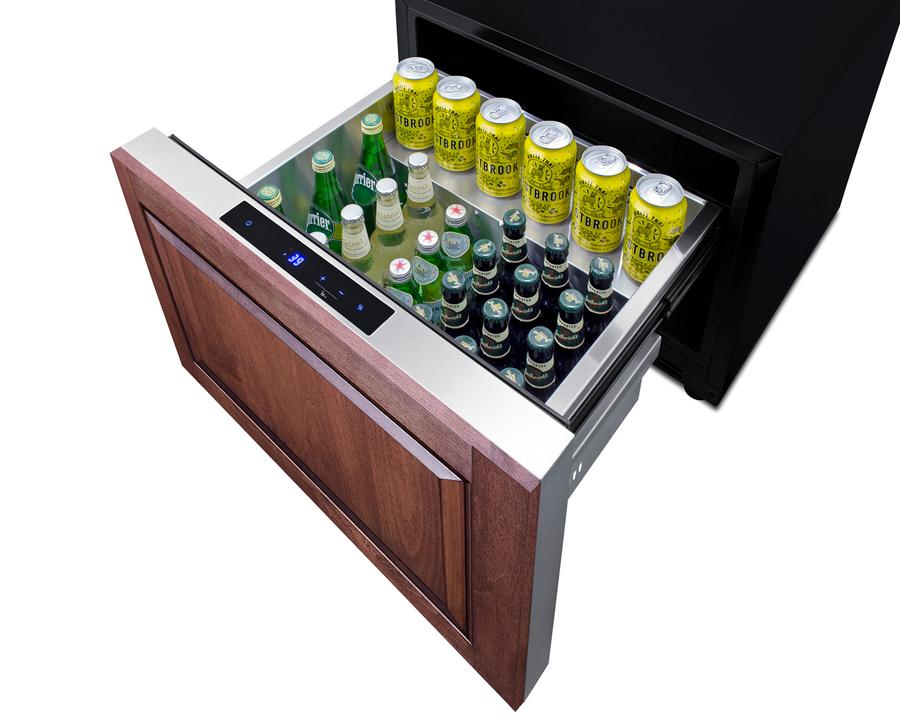

- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)

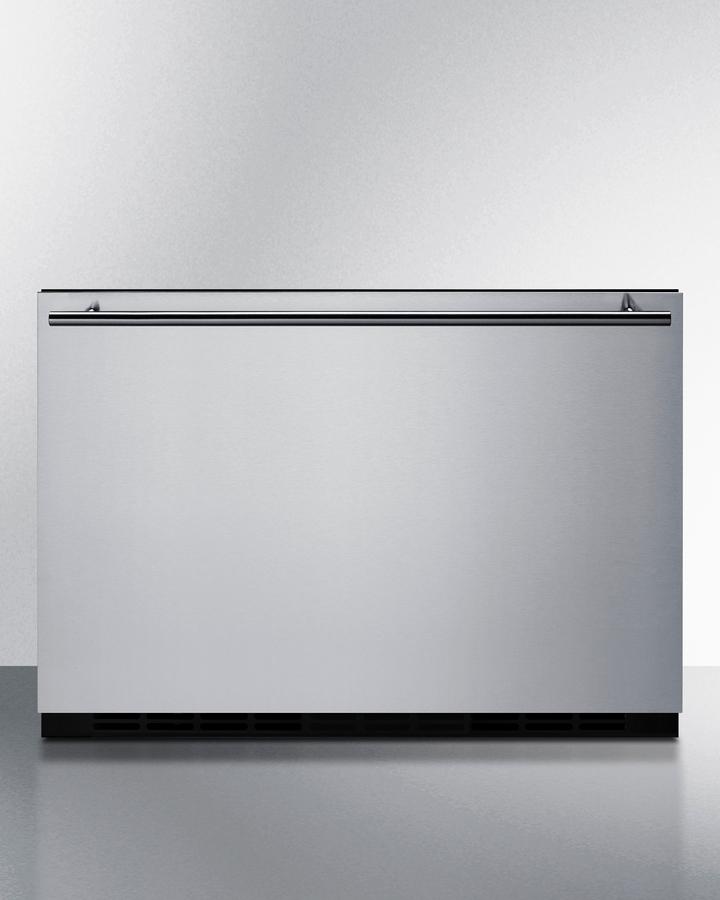

- 304 grade stainless steel drawer
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Frost-free operation
- Minimum user maintenance with a fully no-frost operation system
- Digital thermostat

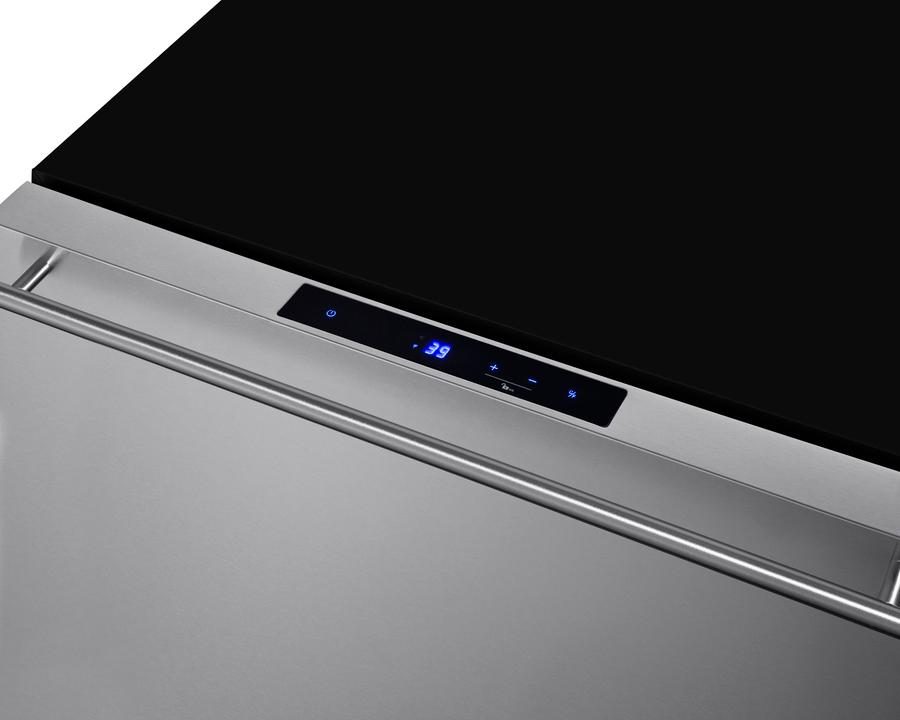

- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- LED lighting
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Drawer divider

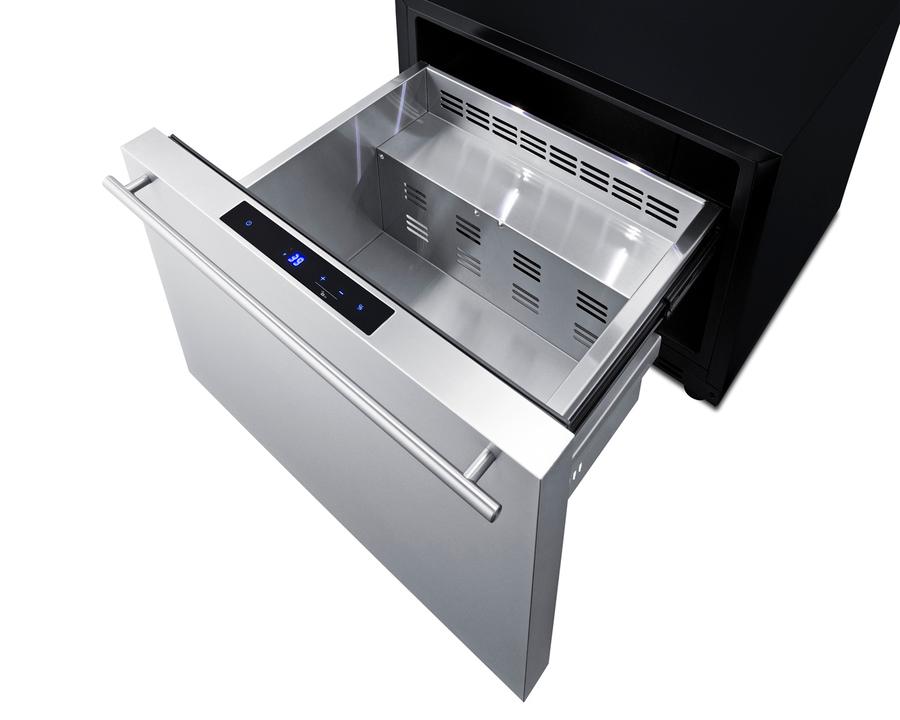

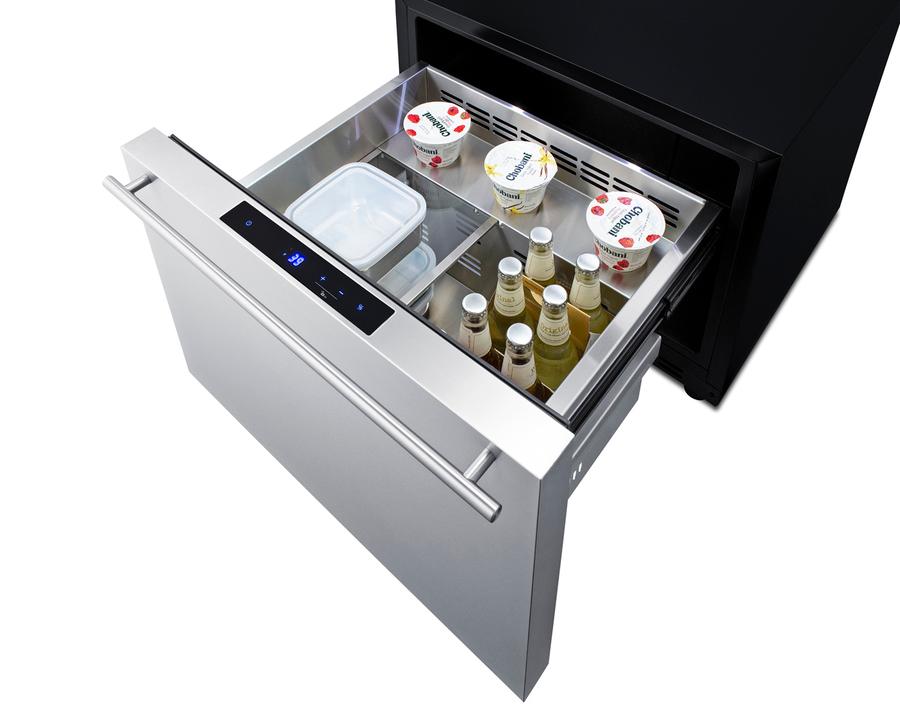

- Removable divider makes it easy to organize stored items
- Glass shelf
- Includes one half-sized shelf that lets you create more separation as needed
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Professional handle
- A sleek stainless steel handle adds an elegant touch to any setting\t
- Temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open drawer alarm
- Audible alarm will sound if the drawer is left open longer than one minute
- Sabbath Mode
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Quiet operation
- Runs at under 33 dB for a quiet performance in any setting
- Child lock
- Disables digital controls after two minutes of activity for added safety
- Sealed back
- Space-saving design with no exposed coils for easier cleanability\t
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth\t
- Fully finished black cabinet\t
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 2 cu.ft. all-refrigerator in a single drawer style
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Fan-forced cooling ensures the unit is evenly cooled
- Unit will retain its last settings when power is restored in the event of power loss
- A sleek stainless steel handle adds an elegant touch to any setting
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Audible alarm will sound if the drawer is left open longer than one minute
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Runs at under 33 dB for a quiet performance in any setting
- Disables digital controls after two minutes of activity for added safety
- Space-saving design with no exposed coils for easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Front-breathing design allows you to build the drawer into cabinetry
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Minimum user maintenance with a fully no-frost operation system
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Removable divider makes it easy to organize stored items
- Includes one half-sized shelf that lets you create more separation as needed
Summit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation. The SDR24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panels (not included) to match existing cabinetry style (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit. Inside, the SDR24 has a 2 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR24 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit slimmer spaces, see the FF1DSS. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
| Overview | |
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.75" (45 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.0" (56 cm) |
| Depth with Handle | 23.5" (60 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 2.0 cu.ft. (57 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 265.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 62.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086590 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43 F |
| Sound Level | 32.6 dB |
| Dimensions | |
| Interior Height | 13.0" (33 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.75" (45 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
