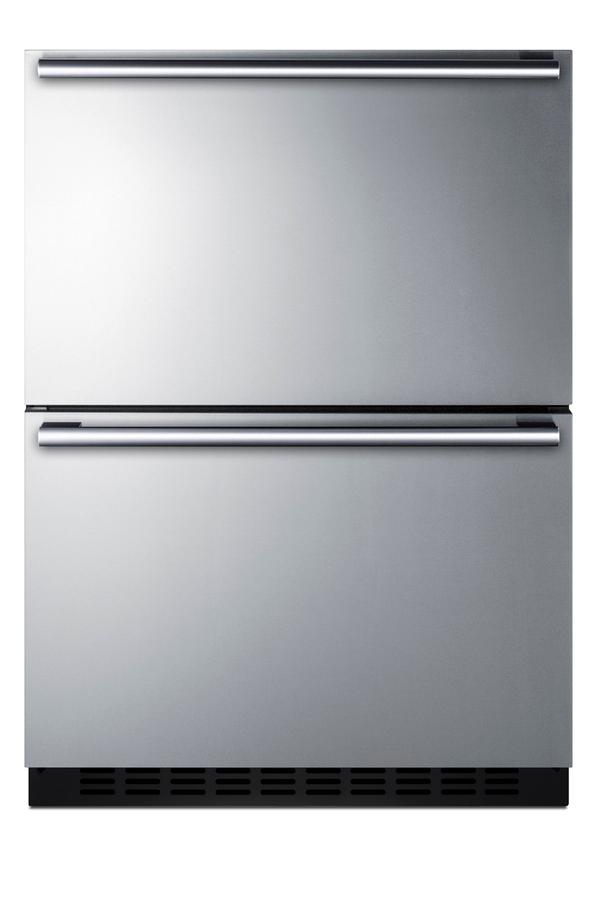

24" Wide 2-drawer Refrigerator-freezer With Icemaker, ADA Compliant

Model: ADRF244IM
Authorized Dealer
Free Shipping
Top Rated Store
Authorized Dealer

24" Wide 2-drawer Refrigerator-freezer With Icemaker, ADA Compliant

Model: ADRF244IM
Free Shipping
Top Rated Store
Quick Specs
Fresh
3.3
Cu Ft
3.3
Size
3.3
ADA
YES
Disp
NO
Ice
YES
Wifi
NO
Estimated to ship in 1-4 weeks
Available to Order
Request Quote

SERVICES AVAILABLE

Quick Specs
Fresh food Capacity
3.3
Capacity (cu ft.)
3.3
Refrigerator Size
3.3
ADA
YES
Dispenser
NO
Icemaker
YES
Wifi Connected
NO
  • 24" Wide 2-Drawer Refrigerator-Freezer
  • Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
  • Factory-installed icemaker
  • Keep a steady supply of ice cubes on hand in the lower drawer's automatic icemaker
  • ADA compliant design
  • Sized just under 32" high to allow installation under lower ADA compliant counters
  • Built-in capable
  • Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
  • Stainless steel drawers
  • Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability and elegant style
  • Panel-ready drawer fronts
  • Drawers accept overlay panels (size: 23 1/8" W x 14 1/8" H" at 3/4" thickness) to let you seamlessly blend the refrigerator into cabinetry design
  • Professional handles
  • Sleek stainless steel handles add an elegant touch to any setting
  • Frost-free operation
  • No-frost operation for minimum user maintenance
  • Digital thermostat
  • Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
  • LED lighting
  • Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior
  • Internal fan
  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Drawer dividers
  • Two adjustable dividers make it simple to organize the drawer interiors
  • Sliding basket
  • Removable chrome basket included for added storage convenience
  • Temperature alarm
  • High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Open drawer alarm
  • Audible alarm will sound if either drawer is left open longer than one minute
  • Sabbath Mode
  • Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Child lock
  • Disables digital controls after two minutes of activity for added safety
  • Temperature memory function
  • Unit will restore the most recent temperature settings after losing power
  • Right angle plug
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
  • Space-saving design with no exposed coils for easier cleanability
  • Fully finished black exterior cabinet
  • Allows the unit to be used freestanding
  • Anti-tip bracket
  • Included and recommended for user-installation to reduce the risk of tipping
  • 100% CFC free
  • Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • STAR-K Certified
  • Complies with kosher requirements for use during the Sabbath and Jewish holidays
  • Lead-free certified
  • Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

  • Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
  • Keep a steady supply of ice cubes on hand in the lower drawer's automatic icemaker
  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Two adjustable dividers make it simple to organize the drawer interiors
  • Removable chrome basket included for added storage convenience
  • High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Audible alarm will sound if either drawer is left open longer than one minute
  • Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Disables digital controls after two minutes of activity for added safety
  • Unit will restore the most recent temperature settings after losing power
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Space-saving design with no exposed coils for easier cleanability
  • Sized just under 32" high to allow installation under lower ADA compliant counters
  • Allows the unit to be used freestanding
  • Included and recommended for user-installation to reduce the risk of tipping
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Complies with kosher requirements for use during the Sabbath and Jewish holidays
  • Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
  • Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
  • Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability and elegant style
  • Drawers accept overlay panels (size: 23 1/8" W x 14 1/8" H" at 3/4" thickness) to let you seamlessly blend the refrigerator into cabinetry design
  • Sleek stainless steel handles add an elegant touch to any setting
  • No-frost operation for minimum user maintenance
  • Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
  • Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior

Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant, customizable style and modern convenience to any ADA compliant space. Sized at just under 24" wide and 32" high, model ADRF244IM is a 2-drawer refrigerator-freezer equipped with a factory-installed icemaker. The 32" height allows easy installation under lower ADA compliant counters. This unit features a front-breathing system for safe built-in use. Stainless steel drawers bring professional style with sleek handles. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.13" W x 14.13" H at 3/4" thickness). Inside, this refrigerator-freezer offers a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. The lower freezer drawer includes an icemaker to keep a steady supply of crescent shaped cubes on hand. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Additional features include audible alarms for high temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. With its premium design and user-friendly features, this unit offers true all-in-one refrigerator-freezer convenience for the home. Additional options are available in all-refrigerator or all-freezer configurations, as well as in standard heights. Browse the complete Summit lineup to discover the perfect drawer refrigerator for your space.

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.38" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with Panel 23.13" (59 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 3.3 cu.ft. (93 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 454.0kWh/year
Amps 1.0
Plug Type NEMA 5-15P (Right Angle)
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145341
Refrigerator-Freezer
Door Swing Drawer
Interior Light Yes
Refrigerator - Interior Height 8.0" (20 cm)
Refrigerator - Interior Width 17.0" (43 cm)
Refrigerator - Interior Depth 14.0" (36 cm)
Refrigerator - Temperature Range 36°F to 43°F
Freezer - Interior Height 8.0" (20 cm)
Freezer - Interior Width 17.0" (43 cm)
Freezer - Interior Depth 14.0" (36 cm)
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Freezer - Temperature Range -11°F to 11°F
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 3.5" (9 cm)
Star-K Certified Yes
Sabbath Mode Yes
  • Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
  • Keep a steady supply of ice cubes on hand in the lower drawer's automatic icemaker
  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Two adjustable dividers make it simple to organize the drawer interiors
  • Removable chrome basket included for added storage convenience
  • High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Audible alarm will sound if either drawer is left open longer than one minute
  • Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Disables digital controls after two minutes of activity for added safety
  • Unit will restore the most recent temperature settings after losing power
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Space-saving design with no exposed coils for easier cleanability
  • Sized just under 32" high to allow installation under lower ADA compliant counters
  • Allows the unit to be used freestanding
  • Included and recommended for user-installation to reduce the risk of tipping
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Complies with kosher requirements for use during the Sabbath and Jewish holidays
  • Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
  • Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
  • Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability and elegant style
  • Drawers accept overlay panels (size: 23 1/8" W x 14 1/8" H" at 3/4" thickness) to let you seamlessly blend the refrigerator into cabinetry design
  • Sleek stainless steel handles add an elegant touch to any setting
  • No-frost operation for minimum user maintenance
  • Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
  • Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior
