20" Wide Built-in Commercial All-freezer, ADA Compliant
Model SCF505SSTBADA
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
20" Wide Built-in Commercial All-freezer, ADA Compliant
Model SCF505SSTBADAQuick Specs
Depth
25"
Height
32"
Freezer
2.47
Cu Ft
2.47
Size
2.47
Shelves
3
ADA
YES
Wifi
NO
20" Wide Built-in Commercial All-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,761.41
Regular price
$2,050.00
Unit price
/
Unavailable
You save 14%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
25"
Height
32"
Freezer Capacity
2.47
Capacity (cu ft.)
2.47
Refrigerator Size
2.47
Refrigerator number of Shelves
3
ADA
YES
Wifi Connected
NO
RPM
-1.0
Energy Star Rated
NO
- Commercially listed
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- ADA compliant design
- 32" height allows easy installation under lower ADA compliant counters
- Built-in capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Professional towel bar handle
- Curved handle in brushed stainless steel offer an easier grip and attractive style\t
- Factory-installed lock
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

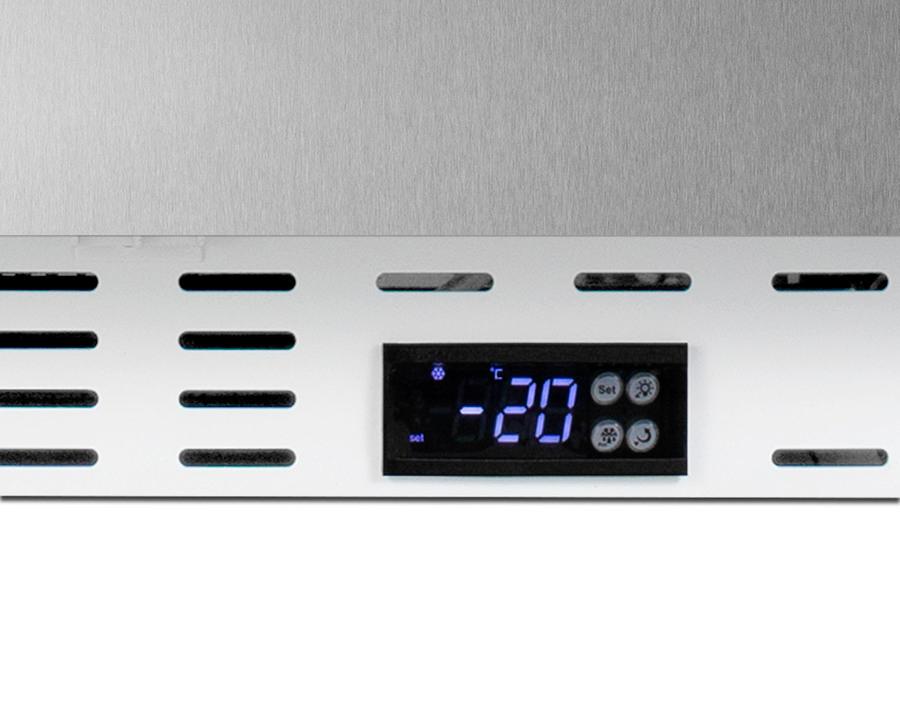

- Adjustable digital thermostat
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
- Basket shelves
- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- 3" thick door
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space\t
- Temperature alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open door alarm
- Audible alarm will sound if the door is left ajar for over a minute
- Hospital grade cord with 'green dot' plug
- Secure three-pronged cord offers a tighter fit in wall sockets\t
- Manual defrost\t
- More temperature stability with an energy efficient manual defrost system
- No internal fans
- Temperature remains more stable with a static cooling system
- Reversible stainless steel door
- User-reversible stainless steel door for added flexibility to best accommodate your setting
- Sealed back
- Space-saving design that offers easier cleanability
- Magnetic door gasket
- Quality door gaskets ensure a tight seal for energy savings and improved performance
- Matching all-refrigerator
- This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set
- Fully finished white cabinet
- Allows the unit to be freestanding
- Access port
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- 32" height allows easy installation under lower ADA compliant counters
- Secure three-pronged cord offers a tighter fit in wall sockets
- More temperature stability with an energy efficient manual defrost system
- Temperature remains more stable with a static cooling system
- User-reversible stainless steel door for added flexibility to best accommodate your setting
- Space-saving design that offers easier cleanability
- Quality door gaskets ensure a tight seal for energy savings and improved performance
- This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set
- Allows the unit to be freestanding
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- Environmentally friendly design without ozone-damaging chemicals
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Curved handle in brushed stainless steel offer an easier grip and attractive style
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Audible alarm will sound if the door is left ajar for over a minute
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25(degree) and -15(degree)C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.47 cu.ft. (70 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086149 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Drawers |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -25° to -15°C |
