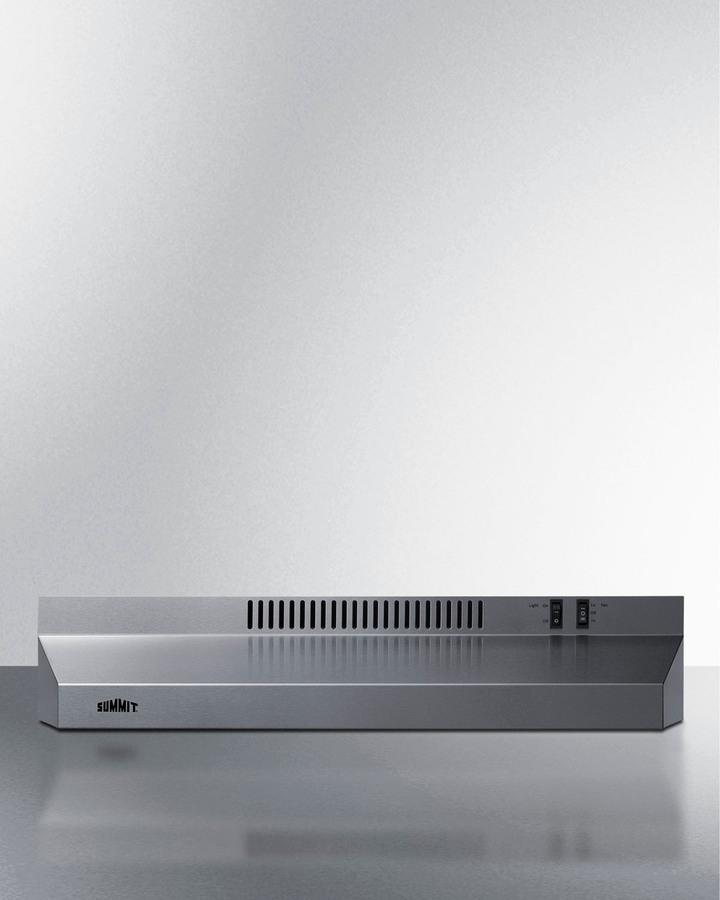

24" Under Cabinet Convertible Range Hood, ADA Compliant
Model H24RSSADA
24" Under Cabinet Convertible Range Hood, ADA Compliant
Model H24RSSADAQuick Specs
24" Under Cabinet Convertible Range Hood, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 24" Wide ADA Compliant Range Hood\t
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines\t
- ADA compliant design

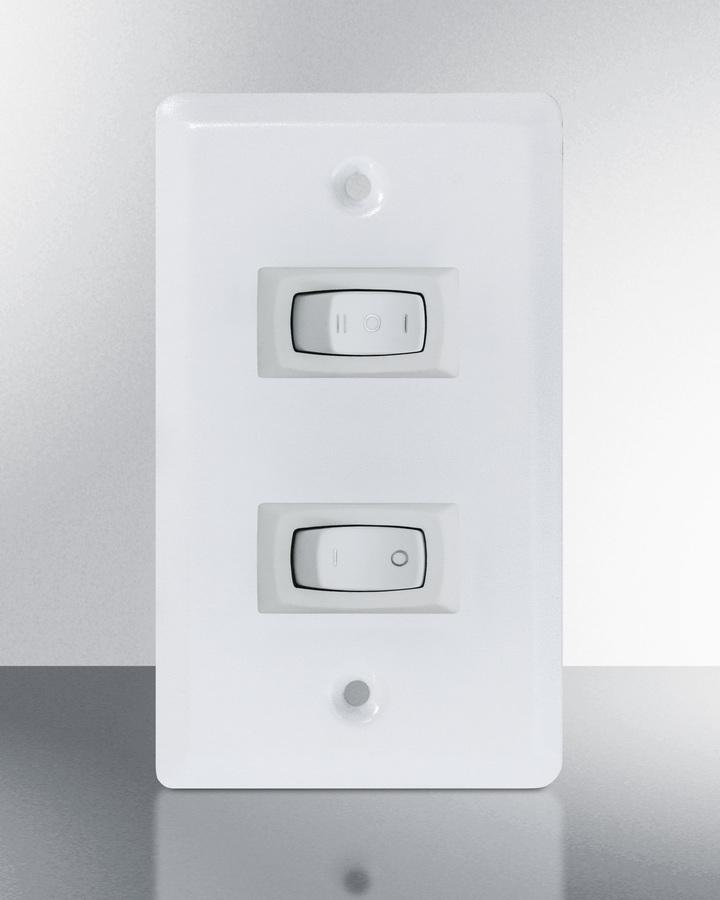

- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included\t
- Under cabinet range hood
- Low profile design offers a classic way to finish your kitchen
- 24 inch width
- Sized for use over 24 inch cooking surfaces (additional sizes available)
- Convertible design
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Easy 1-step conversion
- Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute\t
- Versatile top or rear exhaust
- Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
- Stainless steel finish
- Durable construction in an attractive style with a horizontal grain
- Two-speed fan
- High and low setting to allow proper ventilation of your kitchen as needed
- Light & bulb included
- Includes an incandescent bulb to help illuminate your cooking surface

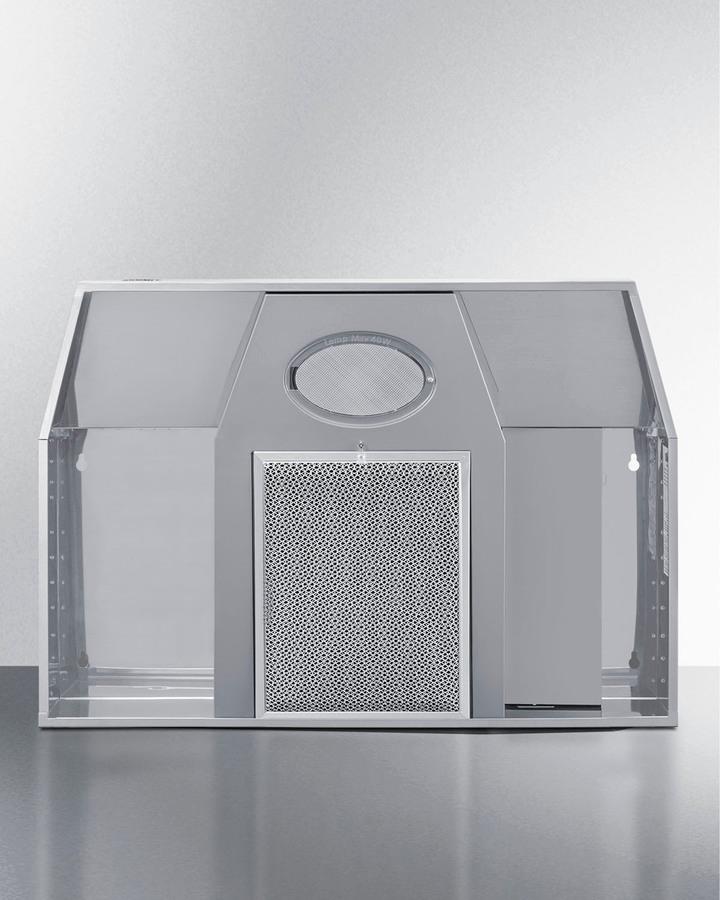

- Removable metal grease filter
- Easy installation and detaching allows you to properly clean the filter for optimum efficiency
- Charcoal filter included
- Helps absorb grease and odors when using the hood in recirculating mode
- Rocker switch controls
- Front-located on/off and high/low switches make it easy to manage the light and fan
- Professional installation
- Designed to be hard-wired by a licensed professional
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
- Easy installation and detaching allows you to properly clean the filter for optimum efficiency
- Helps absorb grease and odors when using the hood in recirculating mode
- Front-located on/off and high/low switches make it easy to manage the light and fan
- Designed to be hard-wired by a licensed professional
- Low profile design offers a classic way to finish your kitchen
- Sized for use over 24 inch cooking surfaces (additional sizes available)
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
- Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
- Durable construction in an attractive style with a horizontal grain
- High and low setting to allow proper ventilation of your kitchen as needed
- Includes an incandescent bulb to help illuminate your cooking surface
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model H24RSSADA is a 24" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It features an attractive stainless steel finish with a horizontal grain. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. This hood ships with a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting. This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional. Additional convertible range hoods are available in 18", 20", 30", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 24" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.
| Overview | |
| Nominal Height | 6.0" (15 cm) |
| Height of Cabinet | 5.13" (13 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.88" (61 cm) |
| Nominal Depth | 19.0" (48 cm) |
| Depth | 18.63" (47 cm) |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 11.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101087382 |
| Range Hood | |
| Venting | Convertible |
| Controls | Dial |
| Light | Yes |
| Number of Lights | 1 |
| Light Type | Incandescent |
| Number of Fan Speeds | 2 |
| Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
- Easy installation and detaching allows you to properly clean the filter for optimum efficiency
- Helps absorb grease and odors when using the hood in recirculating mode
- Front-located on/off and high/low switches make it easy to manage the light and fan
- Designed to be hard-wired by a licensed professional
- Low profile design offers a classic way to finish your kitchen
- Sized for use over 24 inch cooking surfaces (additional sizes available)
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
- Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
- Durable construction in an attractive style with a horizontal grain
- High and low setting to allow proper ventilation of your kitchen as needed
- Includes an incandescent bulb to help illuminate your cooking surface
 | |
|---|---|
