Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTLESS HOOD
- Energy Star Rated : NO
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Low profile design offers a classic way to finish your kitchen
- Sized for use over 24 inch cooking surfaces (additional sizes available)
- Front-located on/off and high/low switches make it easy to manage the light and fan
- Designed to be hard-wired by a licensed professional

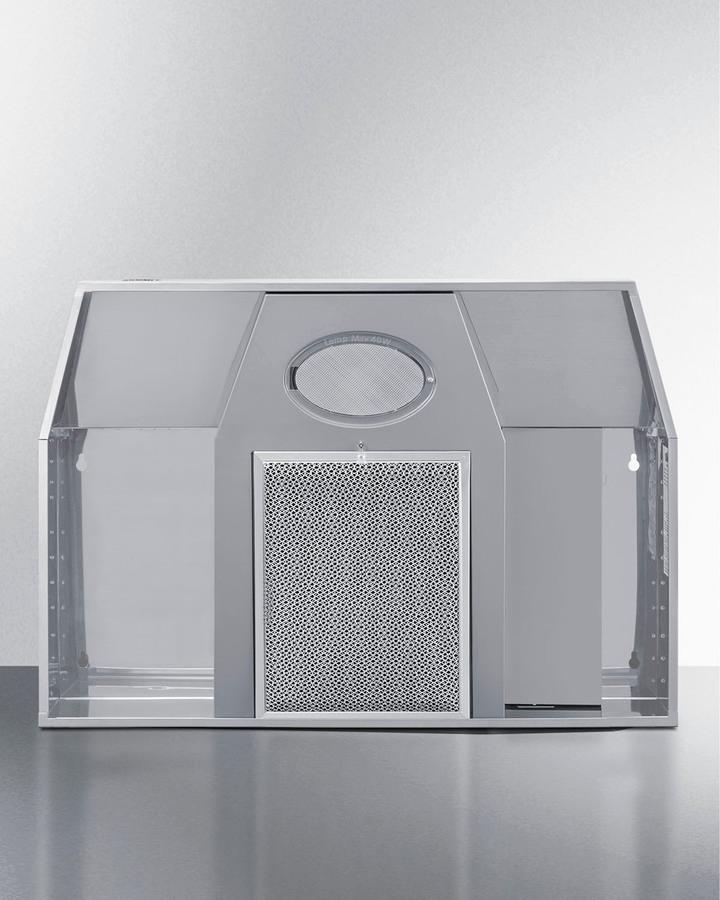

- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
- Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
- Durable construction in an attractive style with a horizontal grain
- High and low setting to allow proper ventilation of your kitchen as needed
- Includes an incandescent bulb to help illuminate your cooking surface

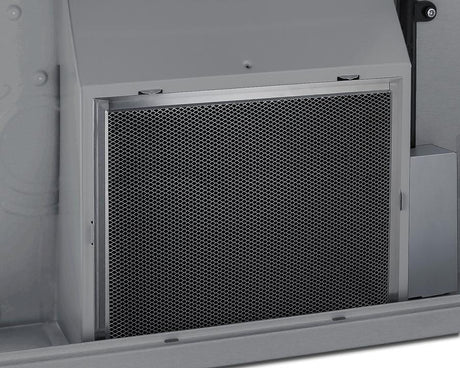

- Easy installation and detaching allows you to properly clean the filter for optimum efficiency
- Helps absorb grease and odors when using the hood in recirculating mode
Overview | |
Nominal Height | 6.0" (15 cm) |
Height of Cabinet | 5.13" (13 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.88" (61 cm) |
Nominal Depth | 19.0" (48 cm) |
Depth | 18.63" (47 cm) |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 11.0 lbs. (5 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101085074 |
Range Hood | |
Venting | Convertible |
Controls | Dial |
Light | Yes |
Number of Lights | 1 |
Light Type | Incandescent |
Number of Fan Speeds | 2 |
Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
