36" Wide Built-in Refrigerator-freezer, ADA Compliant (panels Not Included)
Model FFRF36IFADA
36" Wide Built-in Refrigerator-freezer, ADA Compliant (panels Not Included)
Model FFRF36IFADAQuick Specs
36" Wide Built-in Refrigerator-freezer, ADA Compliant (panels Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Commercially approved
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- ADA compliant design
- 31 5/8 height for use under lower ADA compliant counters
- Built-in capable
- Front-breathing system allows the unit to be used built-in
- All-in-one design
- Separate refrigerator and freezer sections with single compressor operation

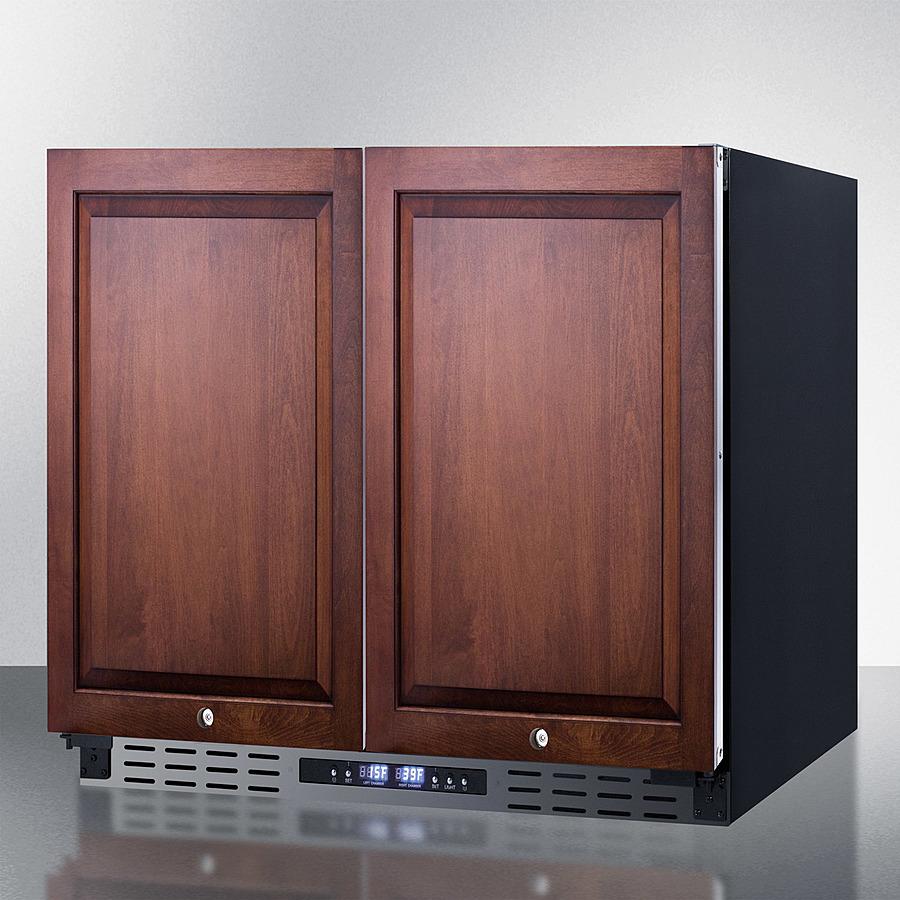

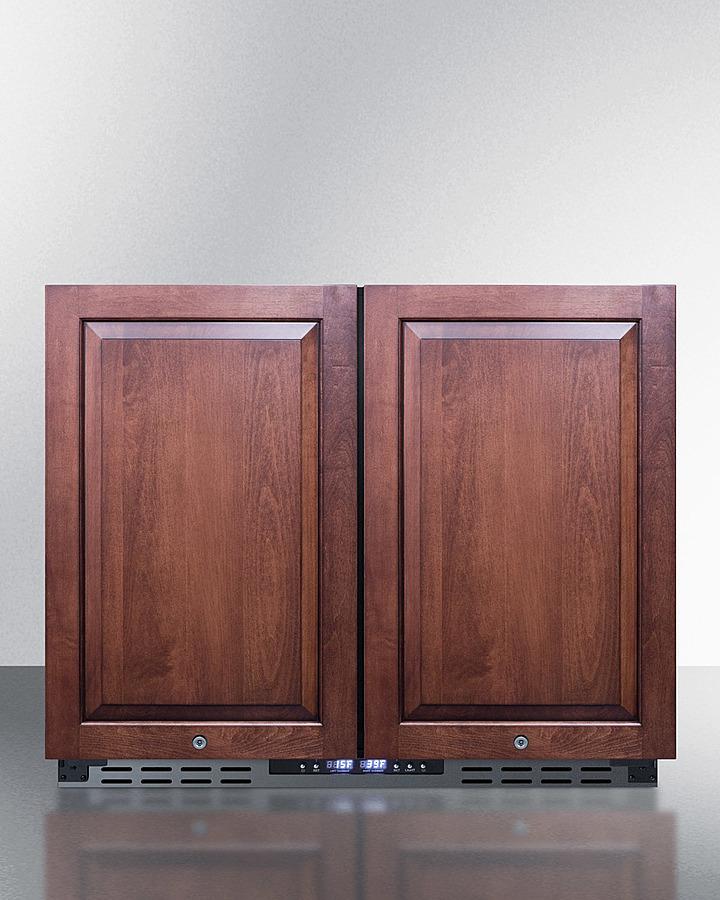

- Panel-ready doors
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Frost-free operation
- No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Digital thermostat
- Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
- LED lighting (refrigerator)
- Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation\t
- Adjustable shelves (5 placement options)
- Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
- Convertible freezer
- Freezer compartment temperature can be set to serve as a second refrigerator as needed
- Internal fans
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Sealed back
- Space-saving design with no exposed coils in the rear offers easy cleanability
- Temperature memory function
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Fully finished cabinet
- Allows the unit to be used freestanding
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Leveling legs
- Two leveling legs ensure the unit is even when placed on uneven surfaces
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- 31 5/8 height for use under lower ADA compliant counters
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Space-saving design with no exposed coils in the rear offers easy cleanability
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Allows the unit to be used freestanding
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Two leveling legs ensure the unit is even when placed on uneven surfaces
- Environmentally friendly design without ozone-damaging chemicals
- Front-breathing system allows the unit to be used built-in
- Separate refrigerator and freezer sections with single compressor operation
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
- Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation
- Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
- Freezer compartment temperature can be set to serve as a second refrigerator as needed

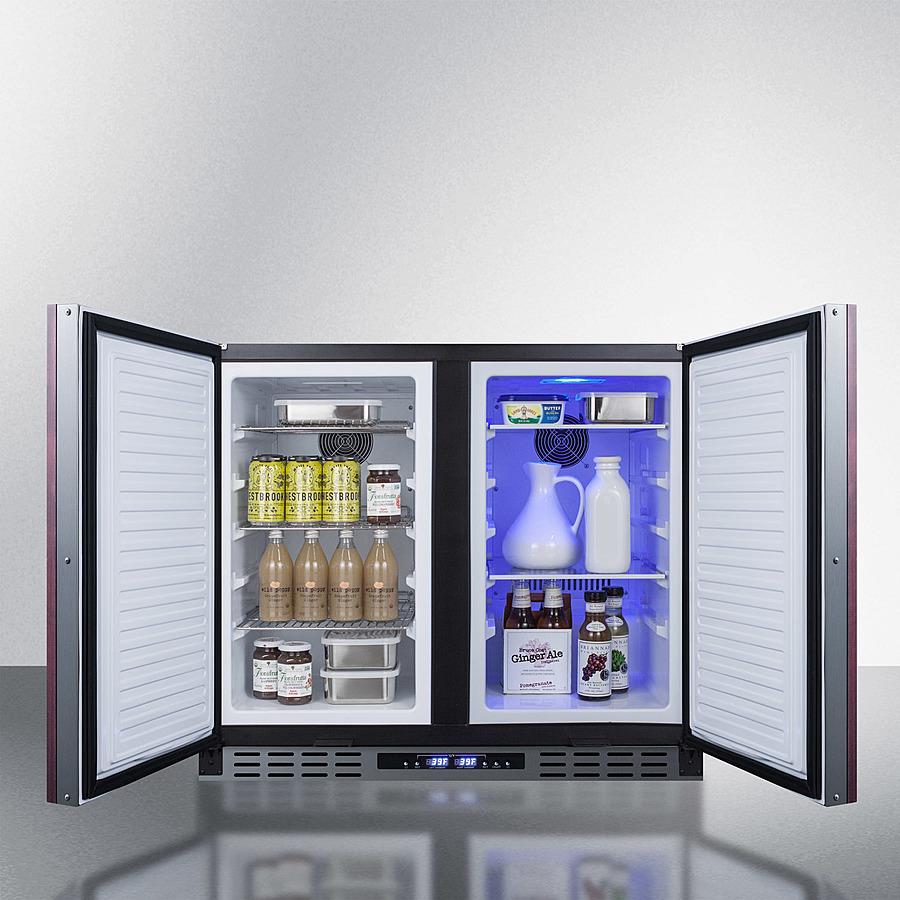

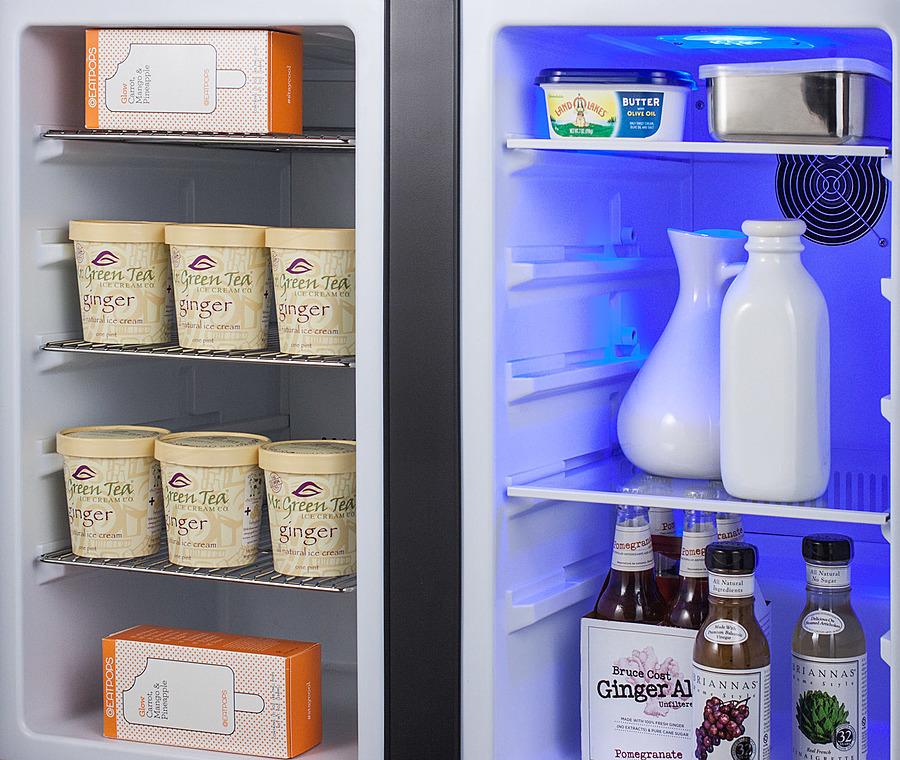

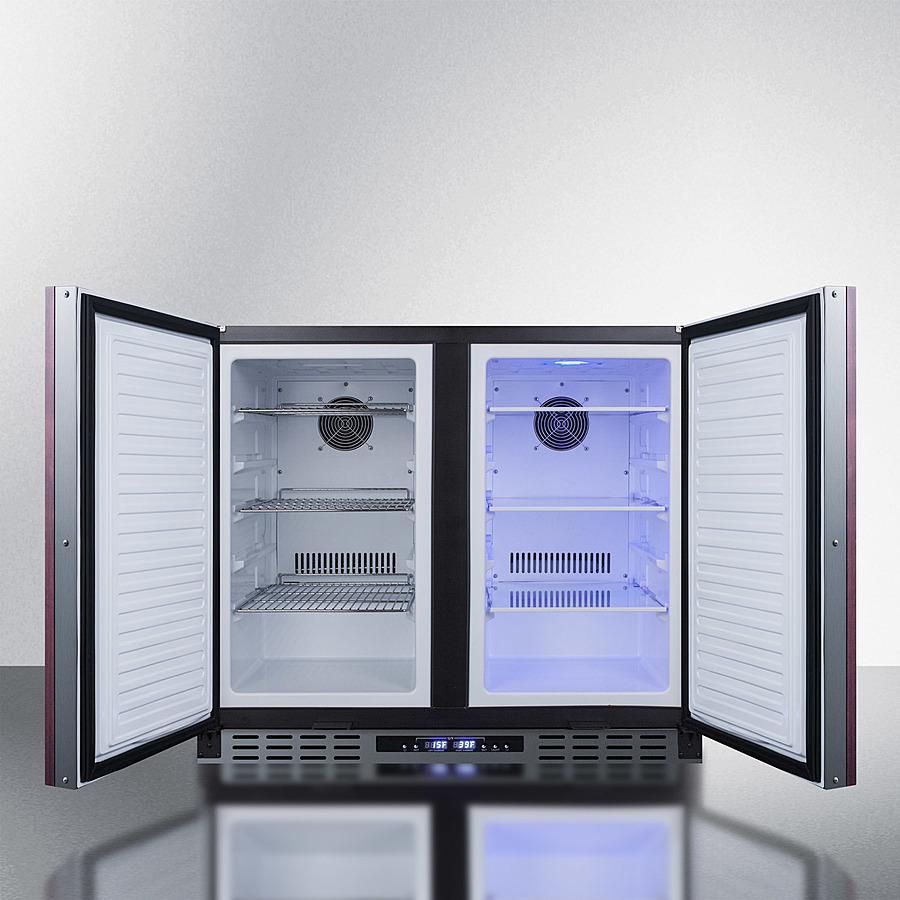

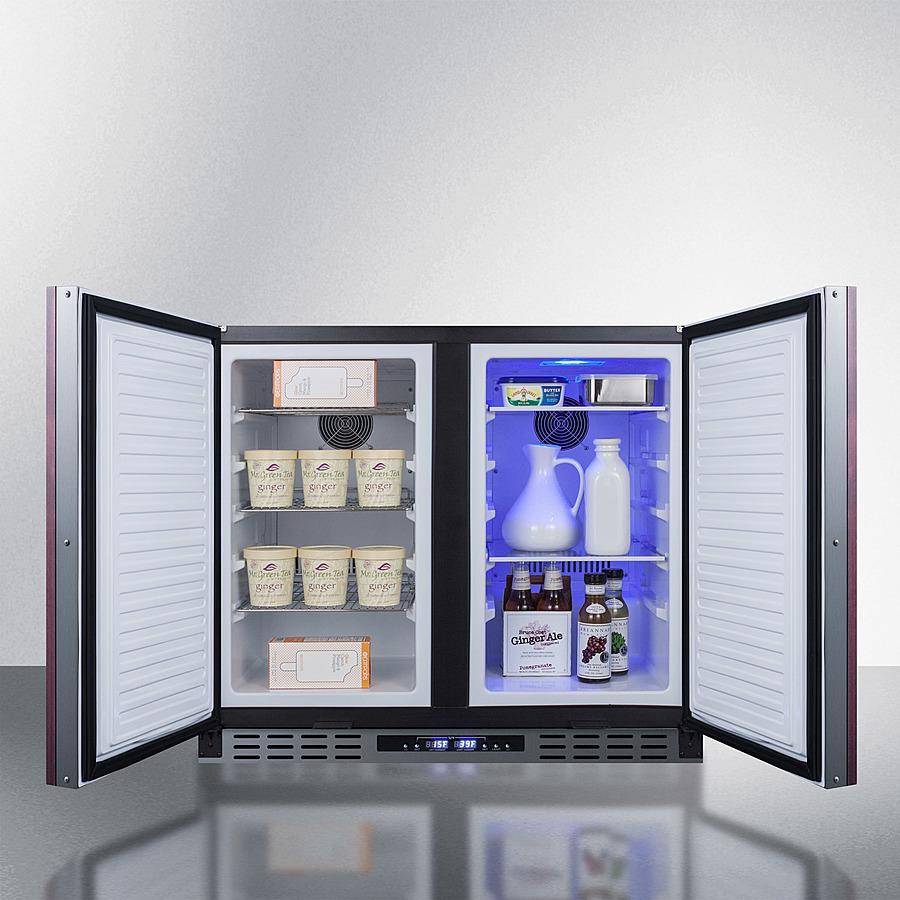

SUMMIT brings quality and value under the counter with the industry s largest collection of ADA compliant built-in refrigeration. The FFRF36IFADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. A stainless steel kickplate adds elegance to any space. The digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36IFADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. The FFRF36ADA is sized at 31 5/8 inches high to fit under lower ADA compliant counters. For this unit in standard height, see the FFRF36IF. NOTE: Due to its larger commercial design, the FFRF36IFADA requires an additional 5/8" of width for each door to open to a full 90 . If placing this unit against a right angle wall, be sure to accommodate this extra space.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.5" (90 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.25" (62 cm) |
| Depth with door at 90° | 42.0" (107 cm) |
| Capacity | 5.8 cu.ft. (164 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 504.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 160.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067940 |
| Refrigerator-Freezer | |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 23.5" (60 cm) |
| Refrigerator - Interior Width | 12.75" (32 cm) |
| Refrigerator - Interior Depth | 16.75" (43 cm) |
| Refrigerator - Capacity | 2.9 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Temperature Range | 36°F to 46°F |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 1.59 oz. |
| Freezer - Interior Height | 23.5" (60 cm) |
| Freezer - Interior Width | 12.75" (32 cm) |
| Freezer - Interior Depth | 16.75" (43 cm) |
| Freezer - Capacity | 2.9 cu.ft |
| Freezer - Shelf Type | Chrome |
| Freezer - Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.59 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Freezer - Temperature Range | -22°F to 46°F |
| Compressor Step Height | 4.75" (12 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.25" (11 cm) |
