24" Wide Built-in Drawer Refrigerator
Model FF1DSS24
24" Wide Built-in Drawer Refrigerator
Model FF1DSS24Quick Specs
24" Wide Built-in Drawer Refrigerator is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Commercially approved
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

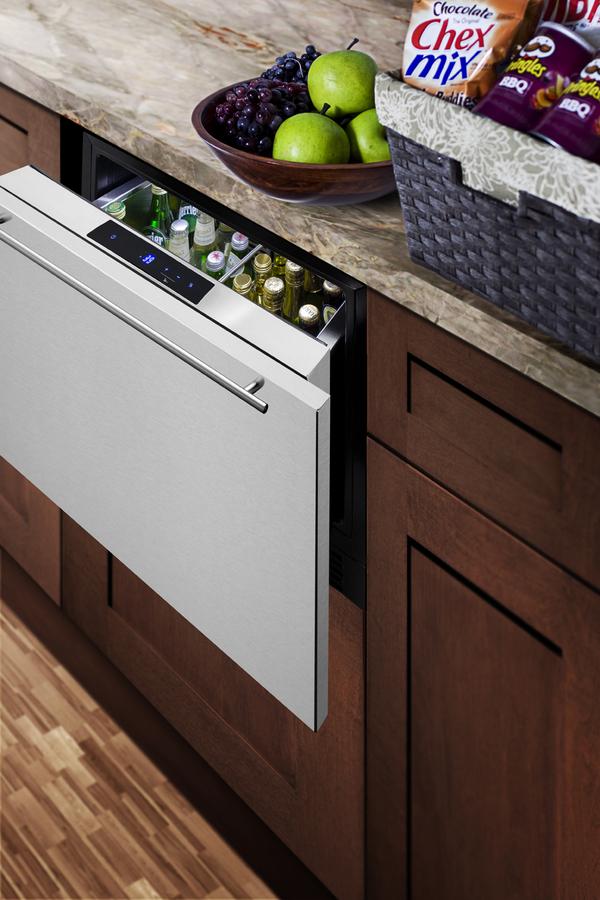

- Built-in capable
- Front-breathing design allows you to build the drawer into cabinetry
- 24" wide drawer front
- Note: cabinet is sized at 21.5" wide, with the oversized stainless steel front panel to cover 24" wide openings

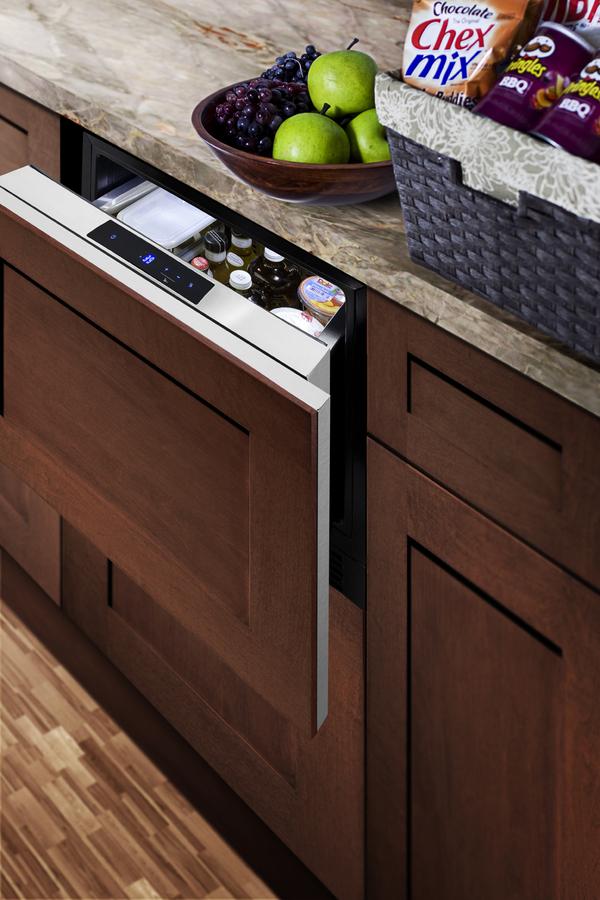

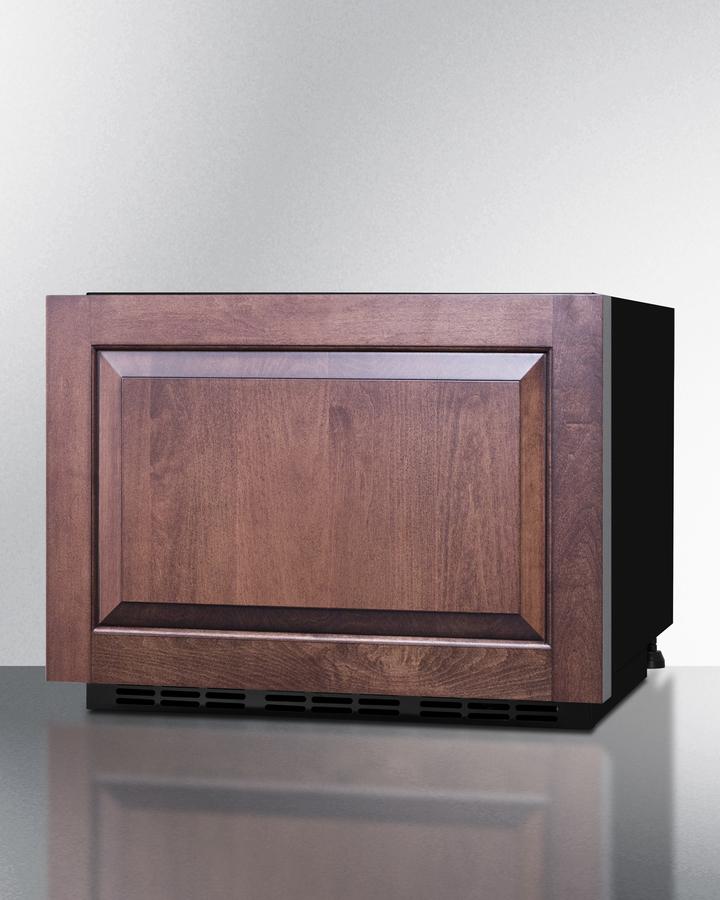

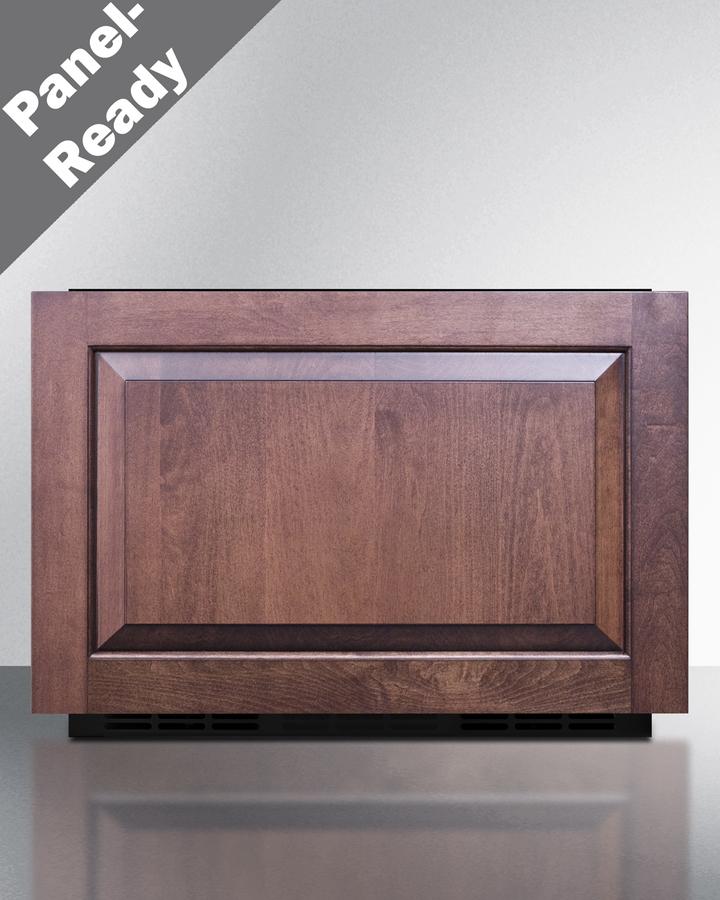

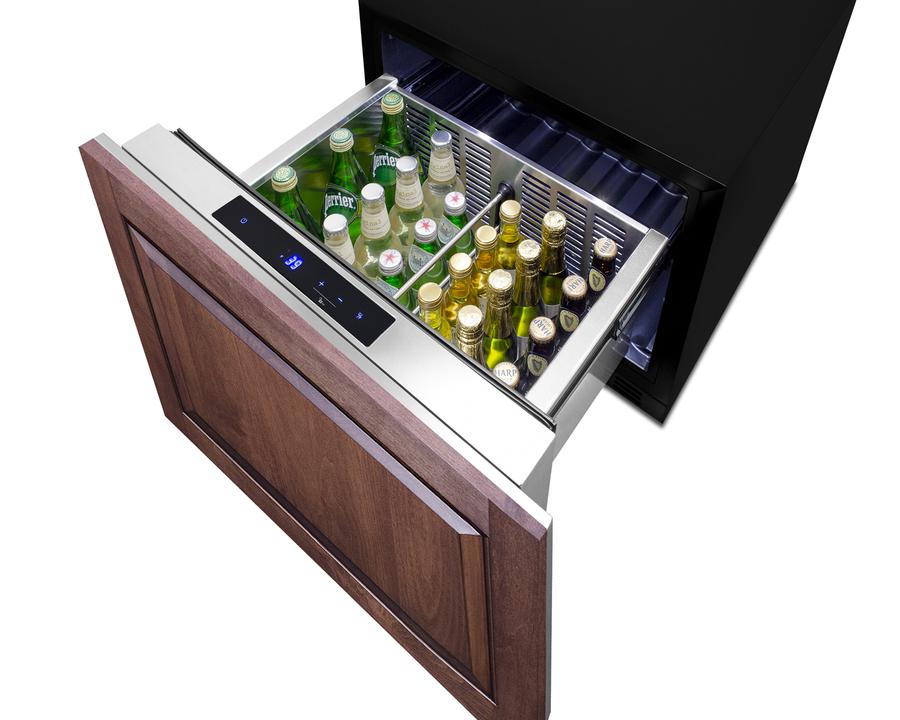

- Panel-ready drawer front
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 21.4" up to 24" W at 3/4" maximum thickness)
- 304 grade stainless steel drawer
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Frost-free operation
- Minimum user maintenance with a fully no-frost operation system

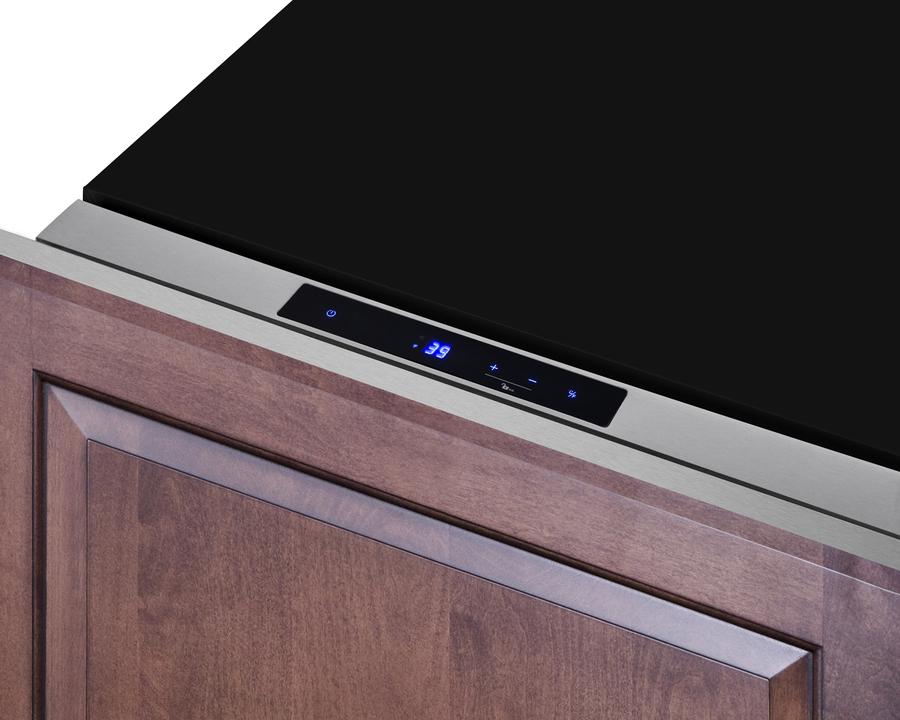

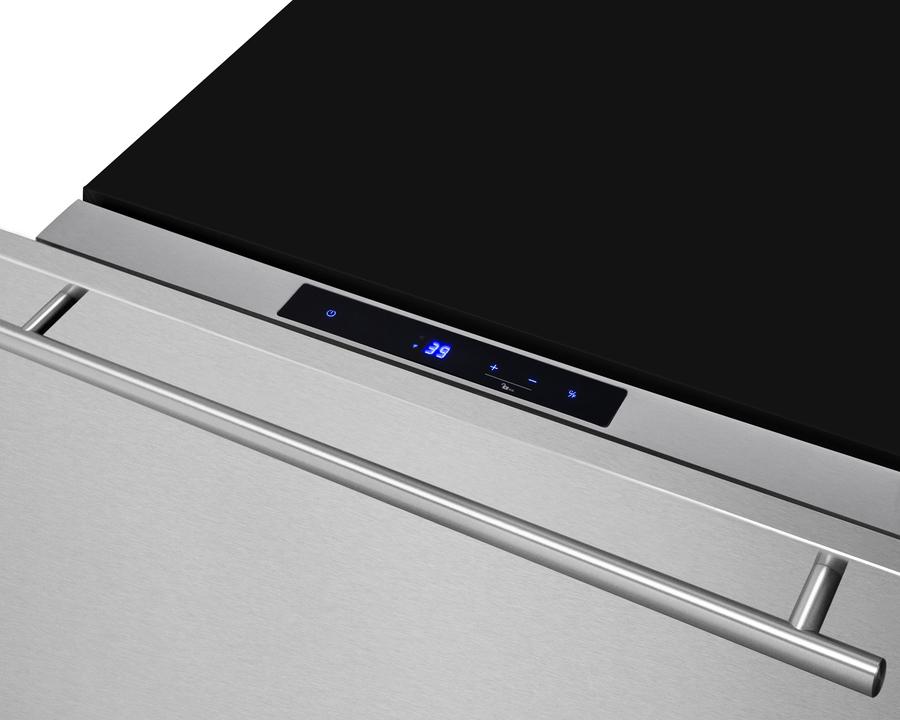

- Digital thermostat
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- LED lighting
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

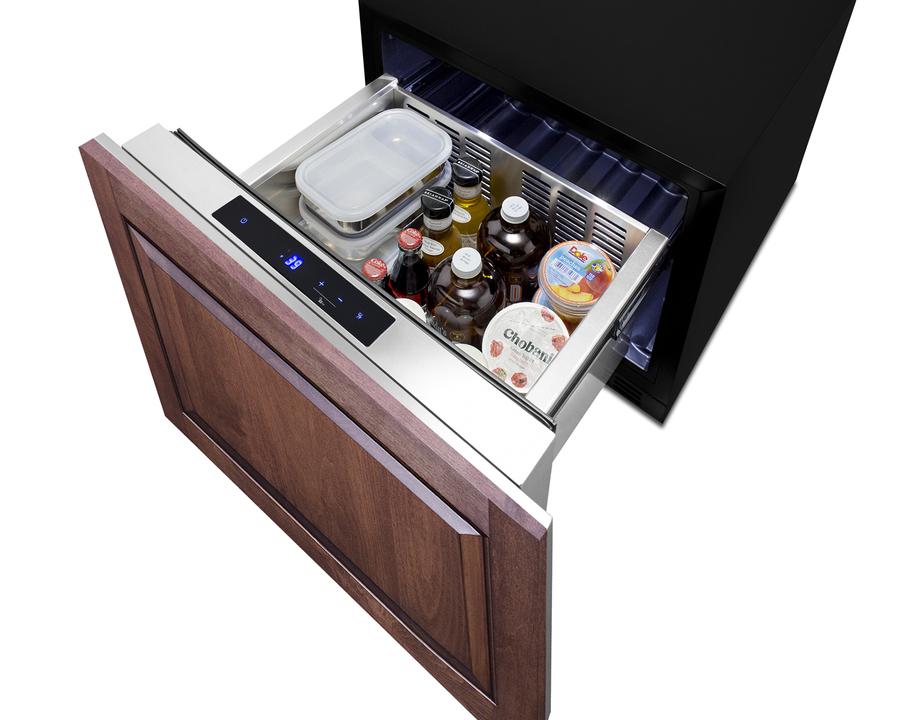

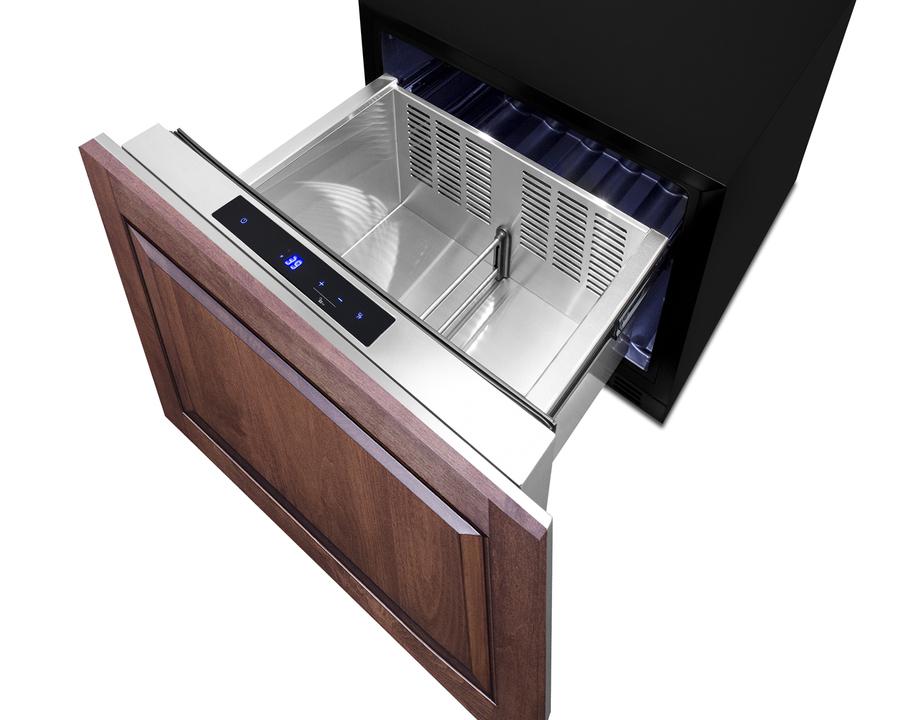

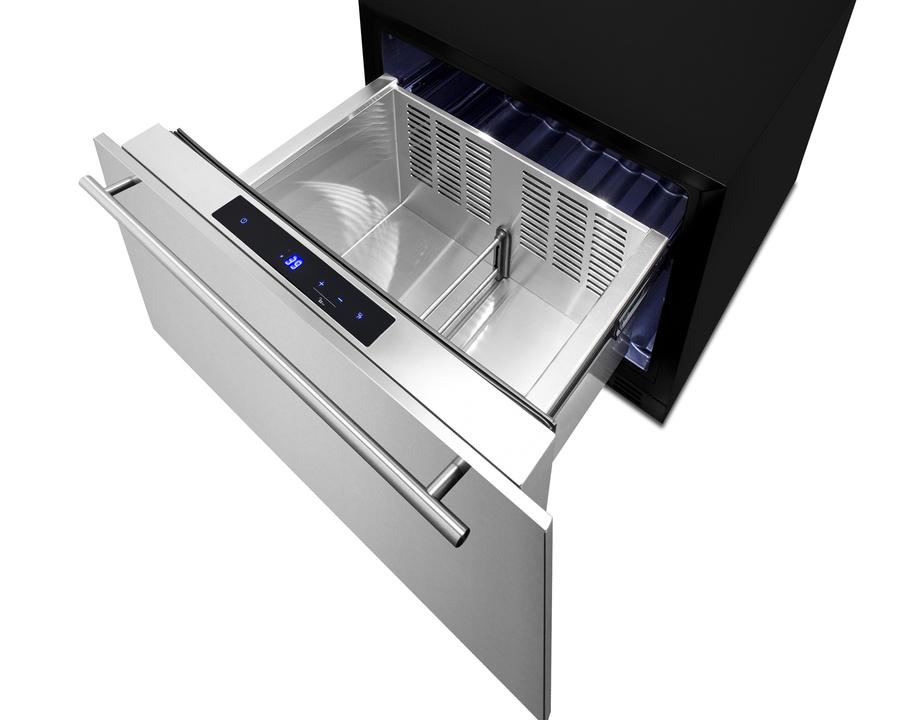

- Drawer dividers
- Two dividers make it simple to organize the drawer interior
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss

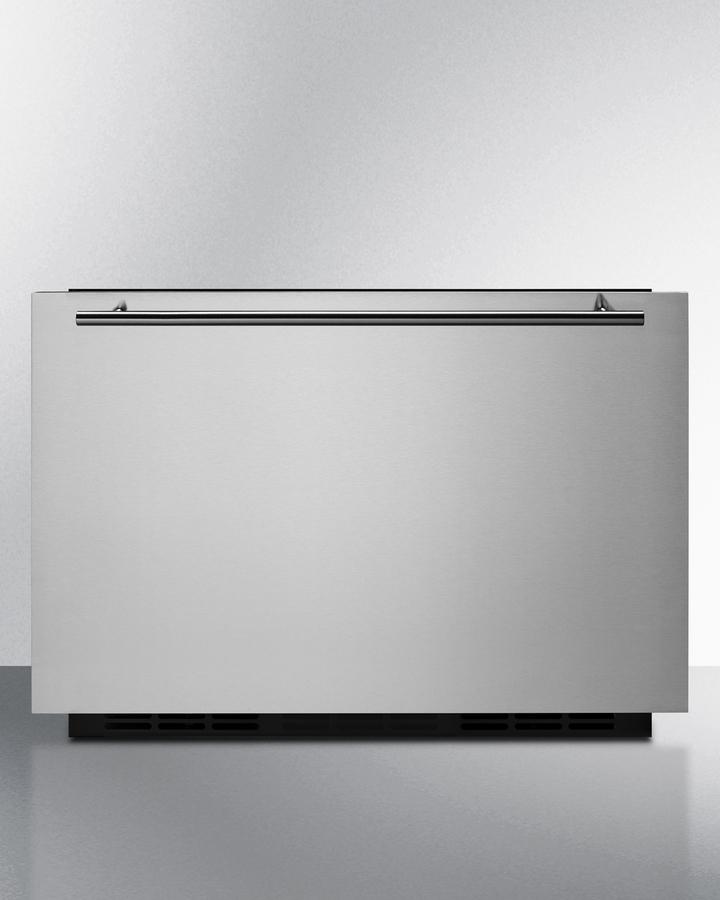

- Professional handle
- A sleek stainless steel handle adds an elegant touch to any setting\t
- Temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open drawer alarm
- Audible alarm will sound if the drawer is left open longer than one minute
- Sabbath Mode
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Quiet operation
- Runs at under 34 dB for a quiet performance in any setting
- Child lock
- Disables digital controls after two minutes of activity for added safety

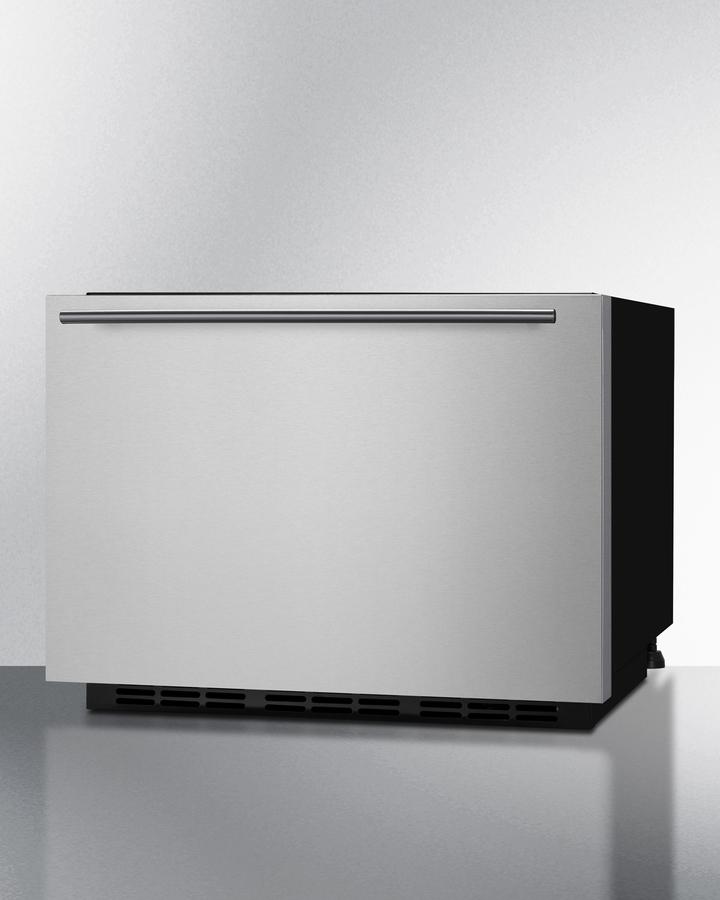

- Fully finished black cabinet\t
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations\t
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Front-breathing design allows you to build the drawer into cabinetry
- Unit will retain its last settings when power is restored in the event of power loss
- A sleek stainless steel handle adds an elegant touch to any setting
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Audible alarm will sound if the drawer is left open longer than one minute
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Runs at under 34 dB for a quiet performance in any setting
- Disables digital controls after two minutes of activity for added safety
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Note: cabinet is sized at 21.5" wide, with the oversized stainless steel front panel to cover 24" wide openings
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 21.4" up to 24" W at 3/4" maximum thickness)
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Minimum user maintenance with a fully no-frost operation system
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Two dividers make it simple to organize the drawer interior
- Fan-forced cooling ensures the unit is evenly cooled

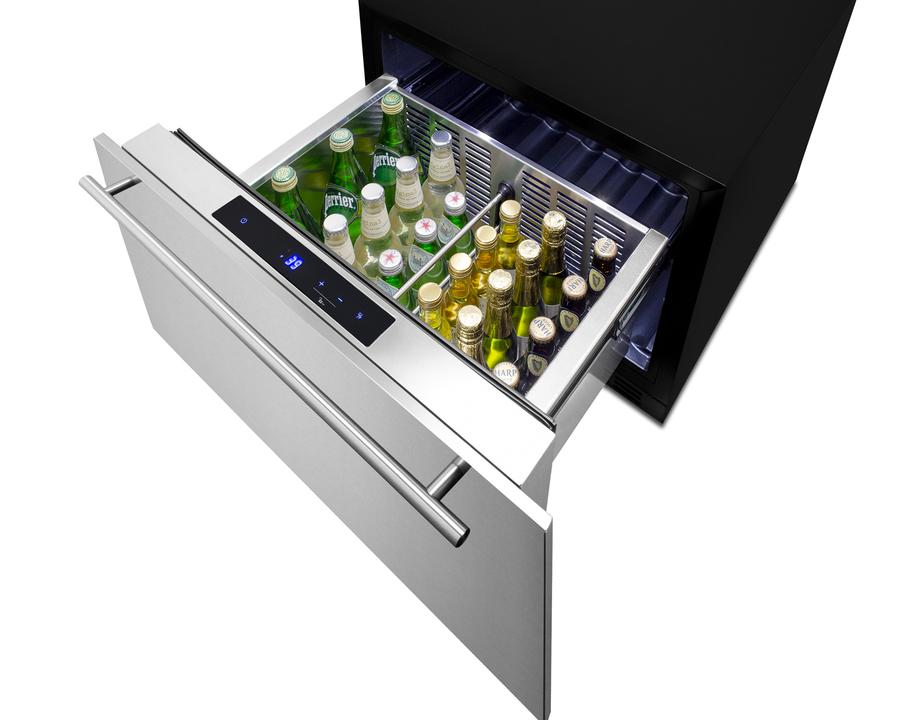

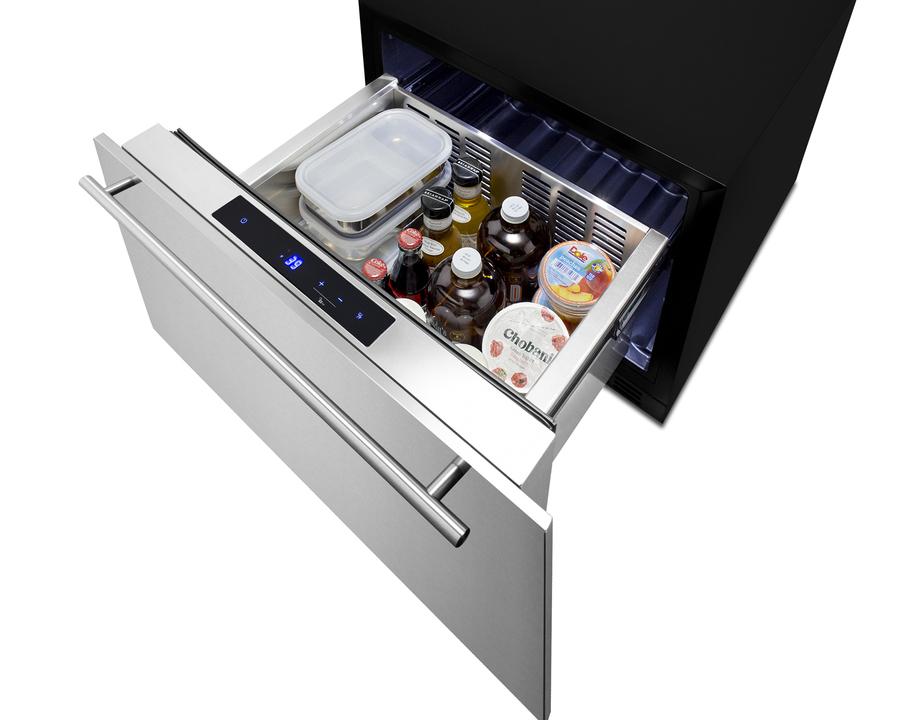

Summit offers a quality line of commercially approved drawer refrigerators fully featured for indoor or outdoor use. The FF1DSS24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. Its front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The cabinet is sized at 21.5" wide, with an oversized pre-installed stainless steel front drawer panel to cover traditional 24" wide openings. The drawer front can be customized with an overlay panel (not included) to match or accent an existing cabinetry design (recommended panel dimensions: 15.6" H x 21.4-24" W at 3/4" maximum thickness). Inside, the FF1DSS24 has a 1.6 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to easily accommodate a variety of sizes. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the FF1DSS24 is the perfect cooling compartment or beverage holder in home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit 21" wide spaces, see the FF1DSS. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
| Overview | |
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.75" (45 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 36.13" (92 cm) |
| Capacity | 1.6 cu.ft. (45 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 273.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 63.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101081519 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43 F |
| Sound Level | 33.3 dB |
| Dimensions | |
| Interior Height | 13.0" (33 cm) |
| Interior Width | 16.0" (41 cm) |
| Interior Depth | 11.5" (29 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 16.0" (41 cm) |
| Compressor Step Depth | 1.0" (3 cm) |
