24" Wide Refrigerator-freezer, ADA Compliant (panel Not Included)
Model CT661WIFADA
24" Wide Refrigerator-freezer, ADA Compliant (panel Not Included)
Model CT661WIFADAQuick Specs
24" Wide Refrigerator-freezer, ADA Compliant (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 24" Wide European Refrigerator-Freezer
- Full capacity for both refrigerated and frozen foods, designed and manufactured in Europe for residential use
- Peak24 Series\t
- European-made collection for recessed installation featuring large capacity interiors, ENERGY STAR certified performances, and versatile style
- ENERGY STAR certified
- Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
- ADA compliant
- 32" high to fit under lower ADA compliant counters
- Slim undercounter dimensions
- Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

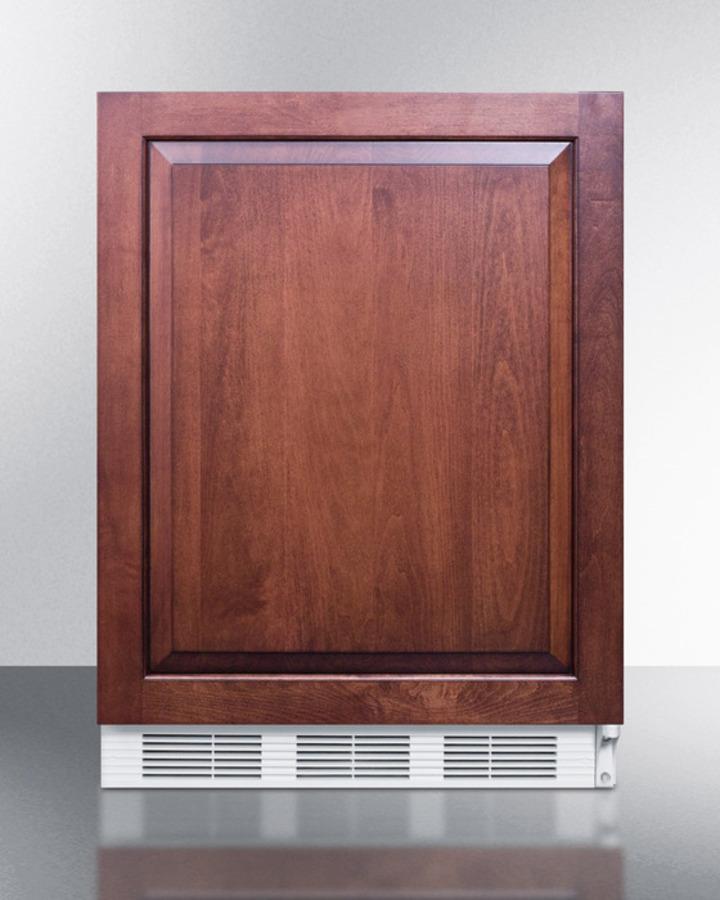

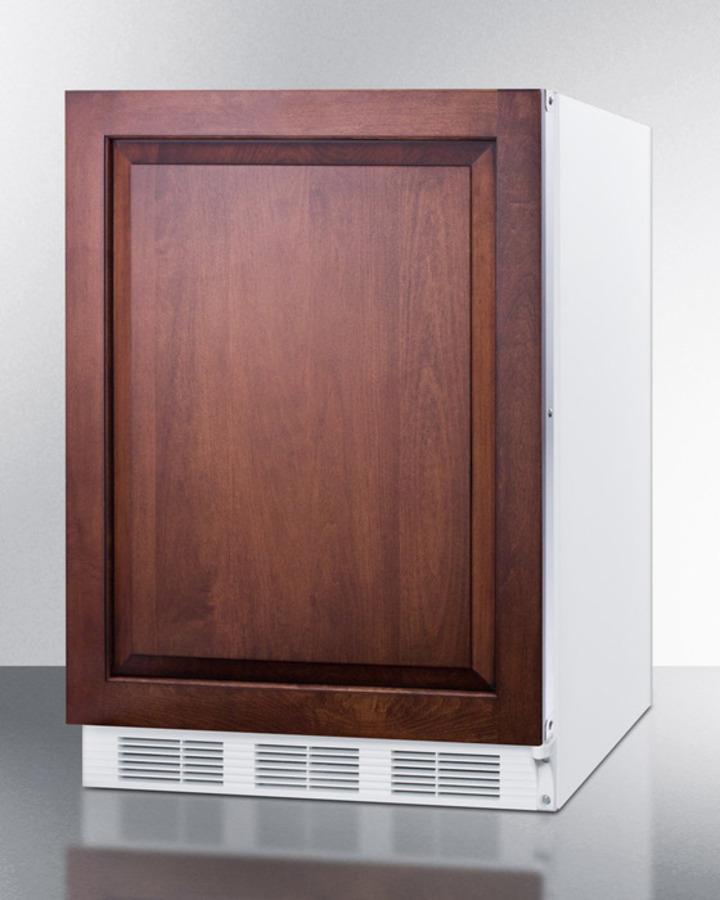

- Panel-ready door
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Cycle defrost
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

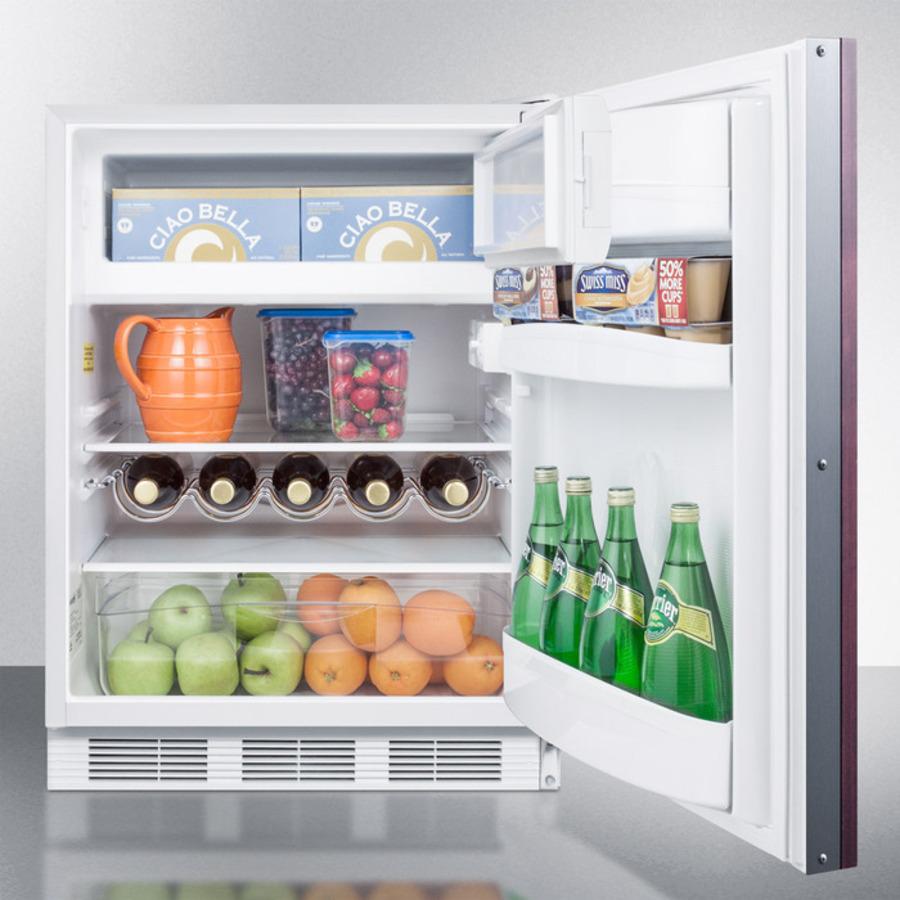

- Adjustable glass shelves
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Clear crisper drawer
- Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Door storage
- Store tall bottles and condiments right on the door for convenient access
- Wine shelf
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Interior light
- Automatically illuminates when you open the door
- Hidden evaporator
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Adjustable thermostat
- Dial thermostat located inside for easy temperature management
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- Full capacity for both refrigerated and frozen foods, designed and manufactured in Europe for residential use
- European-made collection for recessed installation featuring large capacity interiors, ENERGY STAR certified performances, and versatile style
- Store tall bottles and condiments right on the door for convenient access
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Automatically illuminates when you open the door
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Dial thermostat located inside for easy temperature management
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Environmentally friendly design with no ozone-damaging chemicals
- Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
- 32" high to fit under lower ADA compliant counters
- Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Get the longest life and best taste out of produce by storing greens in a bottom crisper
Summit's Peak24 series of undercounter European-made refrigeration features energy efficient, ADA height choices that offer the largest capacity in the industry for recessed installation in 24" openings. Sized with a 24 footprint, the ENERGY STAR certified CT661WIFADA refrigerator-freezer offer a generous 5 cu.ft. storage capacity, larger than many units in this size class. The 32 height allows use in settings complying with ADA guidelines for lower counter height. This unit comes in a white exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle. Inside, the CT661WIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. The CT661WIFADA is UL listed for residential use. With its large capacity and user-friendly features, this unit is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in standard counter height. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.04 cu.ft. (143 L) |
| Defrost Type | Cycle |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 330.0kWh/year |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101109008 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Wine Bottle Shelving | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 18.0" (46 cm) |
| Refrigerator - Interior Width | 21.0" (53 cm) |
| Refrigerator - Interior Depth | 18.0" (46 cm) |
| Refrigerator - Capacity | 4.5 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.25" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Freezer - Capacity | 0.6 cu.ft |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
