30" Wide 208/240v 4-burner Solid Disk Cooktop
Model: CSD4B300
30" Wide 208/240v 4-burner Solid Disk Cooktop
Model: CSD4B300Quick Specs
30" Wide 208/240v 4-burner Solid Disk Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 4-Burner Electric Cooktop
- 30" wide 230V cooktop with four solid disk heating elements
- Solid disk elements
- Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
- Stainless steel finish
- Surface is made from stainless steel for an attractive and easy to clean look
- Durable cast iron design
- Solid metal elements hold up to heavy duty use
- Easier cleanup
- Fully sealed cast iron elements offer easier cleanup than traditional coil elements
- Two 6" elements
- 1000W elements accommodate most lighter cooking needs
- Two 8" elements
- Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
- Push-to-turn controls
- Knobs require a small amount of force to help prevent accidents
- Side knobs
- Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
- Indicator lights
- Operating indicators light up to show which burner is in use
- Designed for built-in installation
- Fits common counter cutout sizes that are 28.5" W x 19 3/4" D
- 230V operation\t
- Professional installation required
- 30" wide 230V cooktop with four solid disk heating elements
- Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
- Fits common counter cutout sizes that are 28.5" W x 19 3/4" D
- Professional installation required
- Surface is made from stainless steel for an attractive and easy to clean look
- Solid metal elements hold up to heavy duty use
- Fully sealed cast iron elements offer easier cleanup than traditional coil elements
- 1000W elements accommodate most lighter cooking needs
- Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
- Knobs require a small amount of force to help prevent accidents
- Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
- Operating indicators light up to show which burner is in use

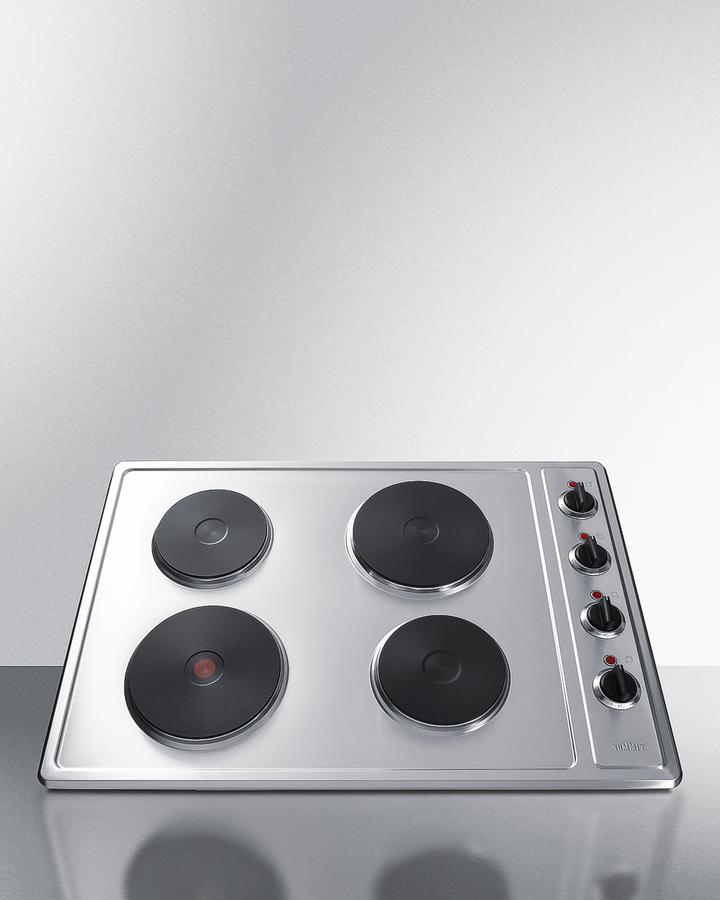

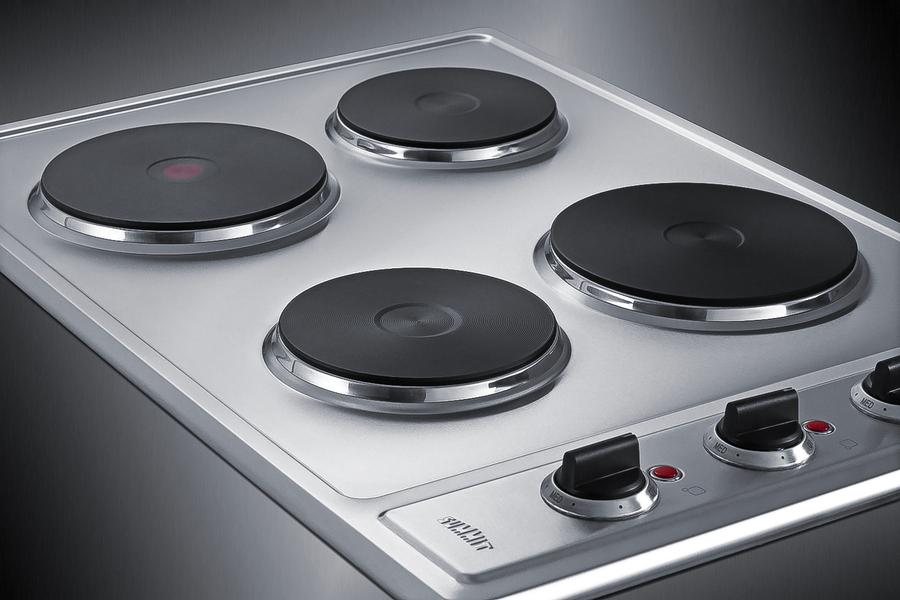

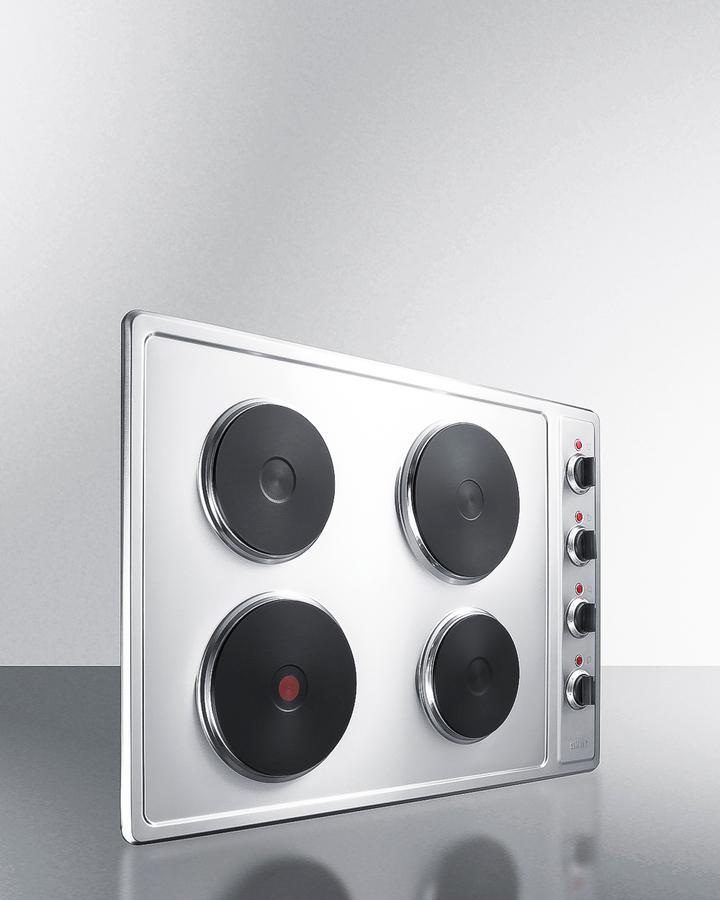

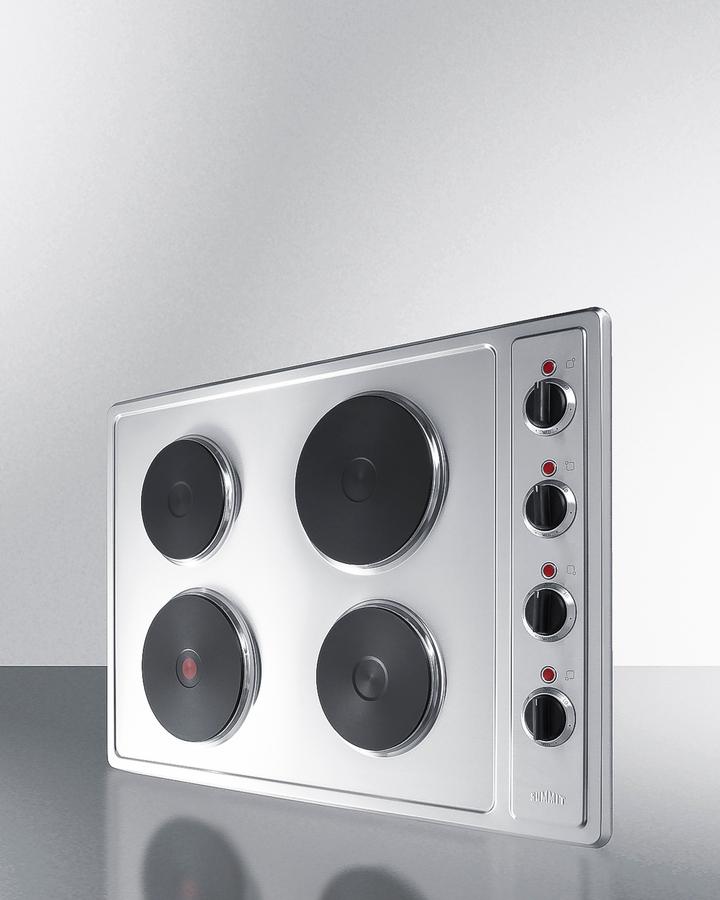

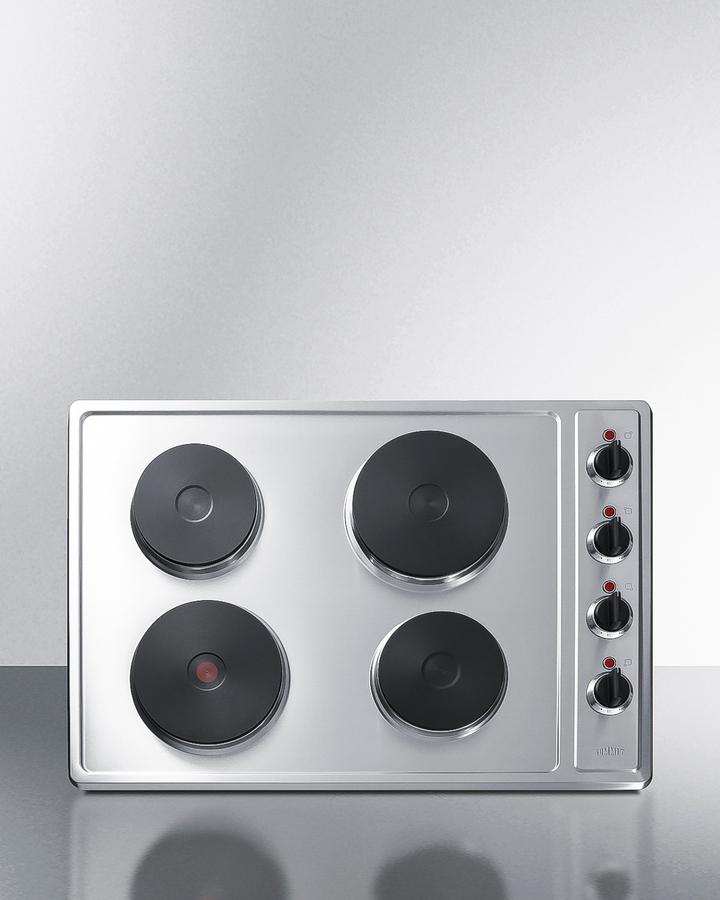

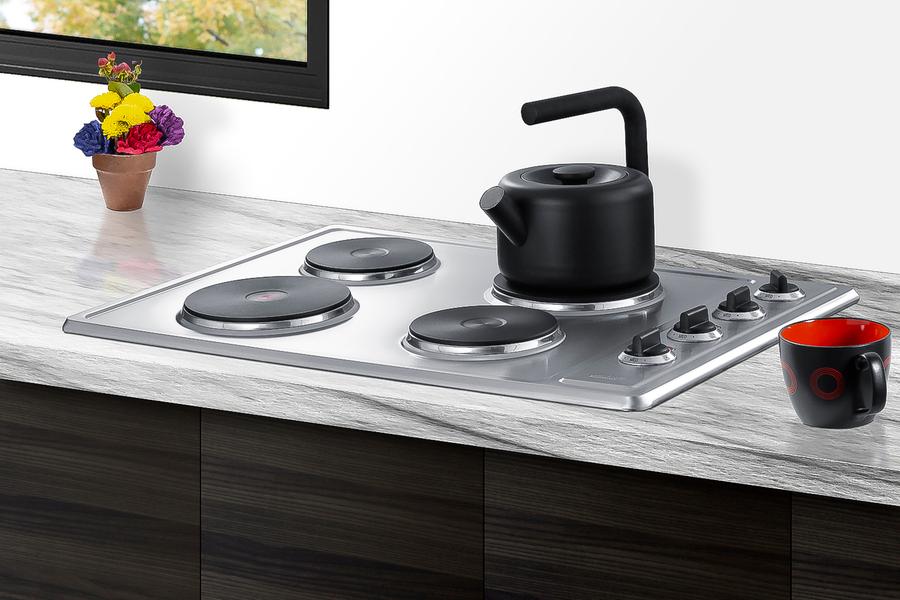

Summit's selection of electric cooktops offers the perfect fit for every application. Sized at 30" wide, the CSD4B300 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety. With its modern style and durable design, the CSD4B300 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. Additional sizes are available in solid disk, as well as traditional radiant, coil, induction, and gas. Browse the full Summit product line to explore your options.
| Overview | |
| Nominal Height | 2.75" (7 cm) |
| Height of Cabinet | 2.75" (7 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.63" (75 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.38" (52 cm) |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 23.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 26.0 lbs. (12 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101089478 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Stainless Steel |
| Element Type | Cast Iron |
| Number of Elements | 4 |
| Controls | Dial |
| Countertop Cutout Height | 4.13" (10 cm) |
| Countertop Cutout Width | 28.5" (72 cm) |
| Countertop Cutout Depth | 19.75" (50 cm) |
| Power Source | 230V |
| Element #1 Size | 8.0" (20 cm) |
| Element #1 Wattage | 2000.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1000.0 |
| Element #3 Size | 8.0" (20 cm) |
| Element #3 Wattage | 1500.0 |
| Element #4 Size | 6.0" (15 cm) |
| Element #4 Wattage | 1000.0 |
| Power Cord Included | No |
- 30" wide 230V cooktop with four solid disk heating elements
- Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
- Fits common counter cutout sizes that are 28.5" W x 19 3/4" D
- Professional installation required
- Surface is made from stainless steel for an attractive and easy to clean look
- Solid metal elements hold up to heavy duty use
- Fully sealed cast iron elements offer easier cleanup than traditional coil elements
- 1000W elements accommodate most lighter cooking needs
- Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
- Knobs require a small amount of force to help prevent accidents
- Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
- Operating indicators light up to show which burner is in use
 | |
|---|---|
