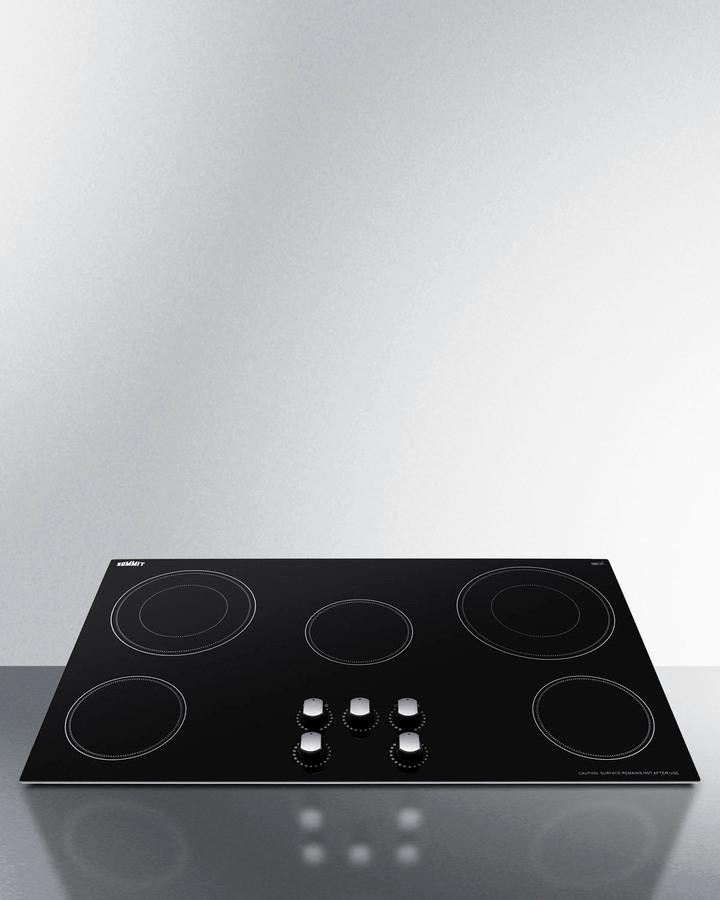

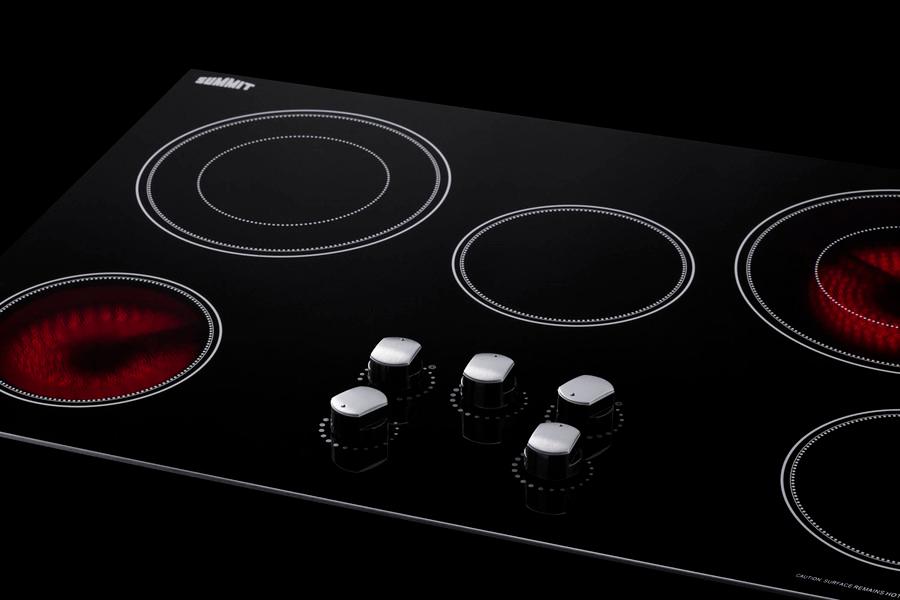

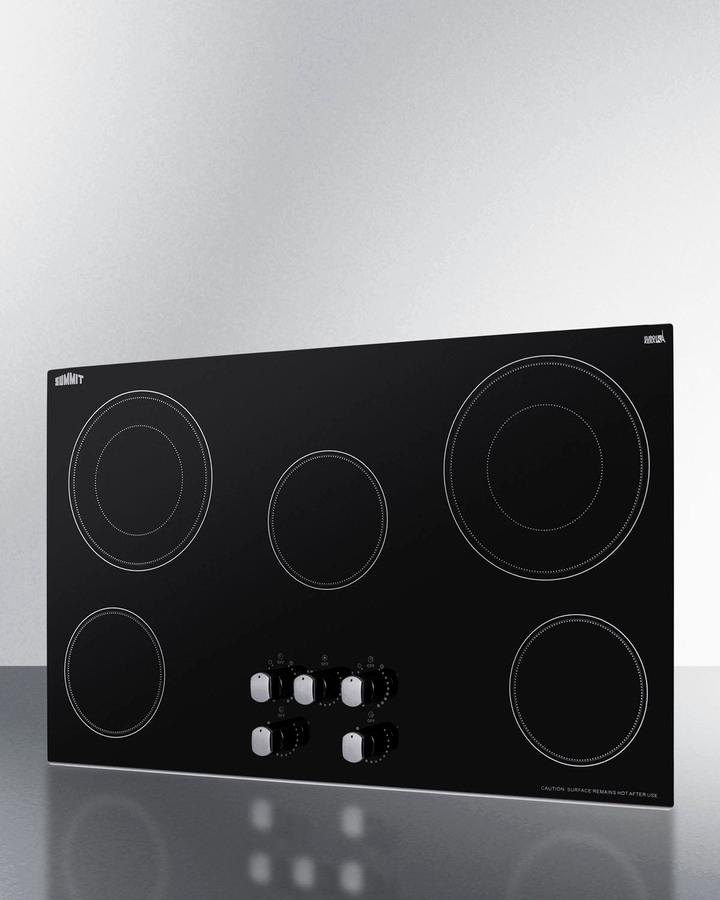

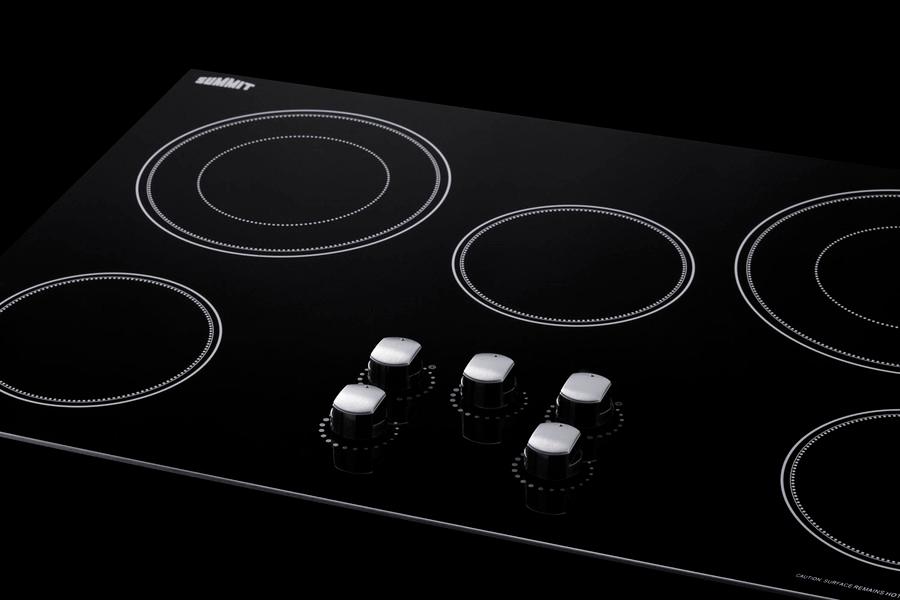

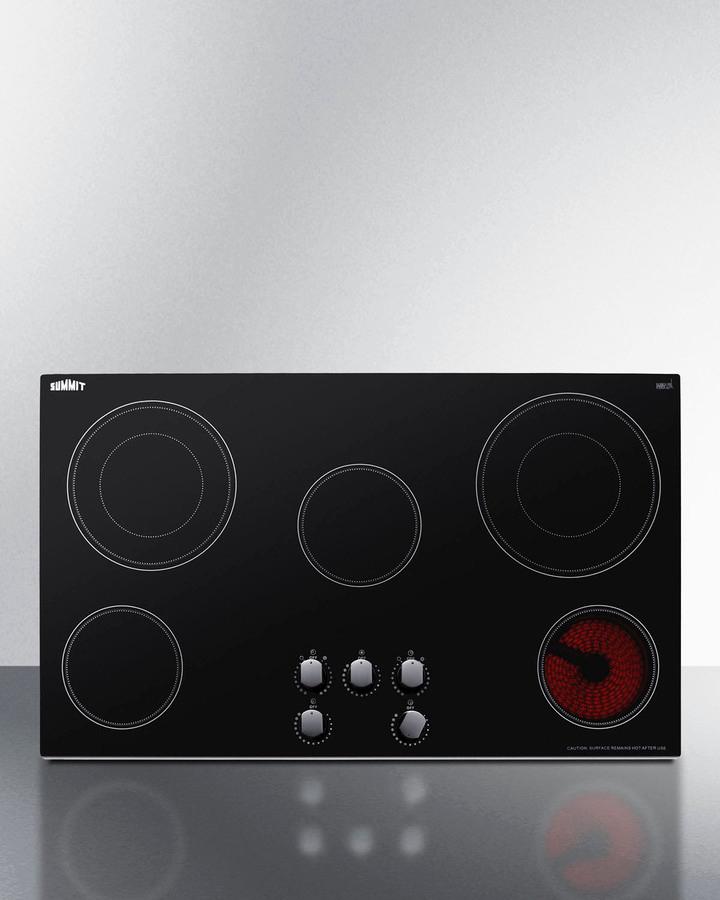

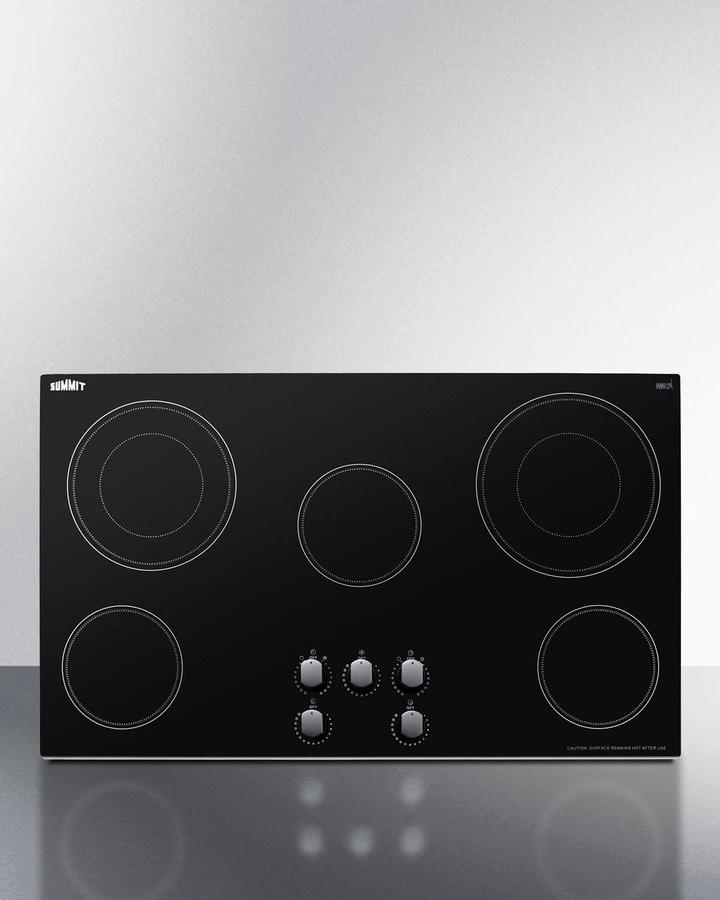

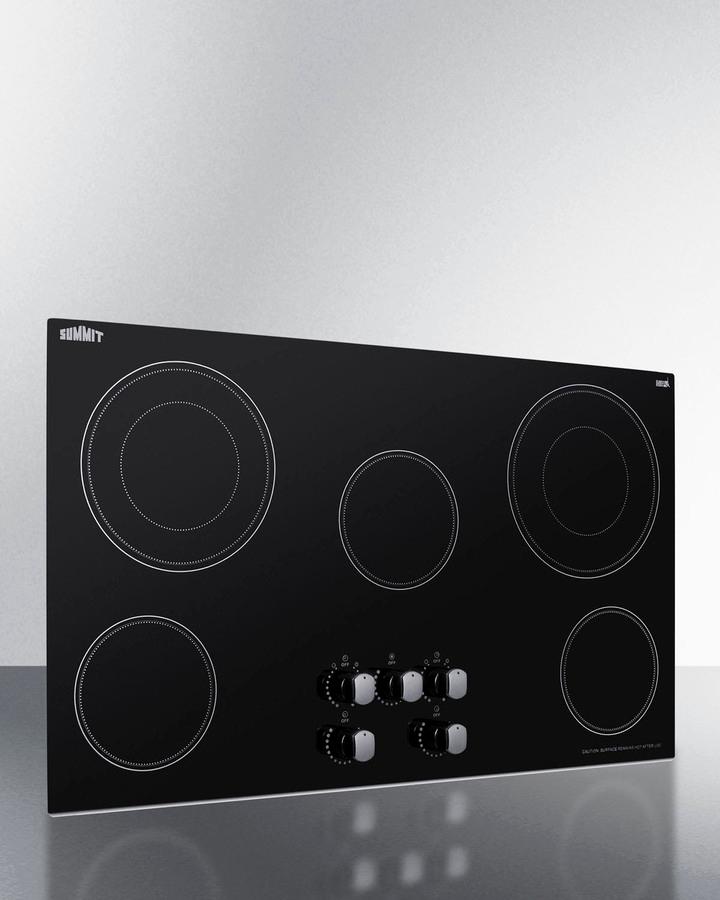

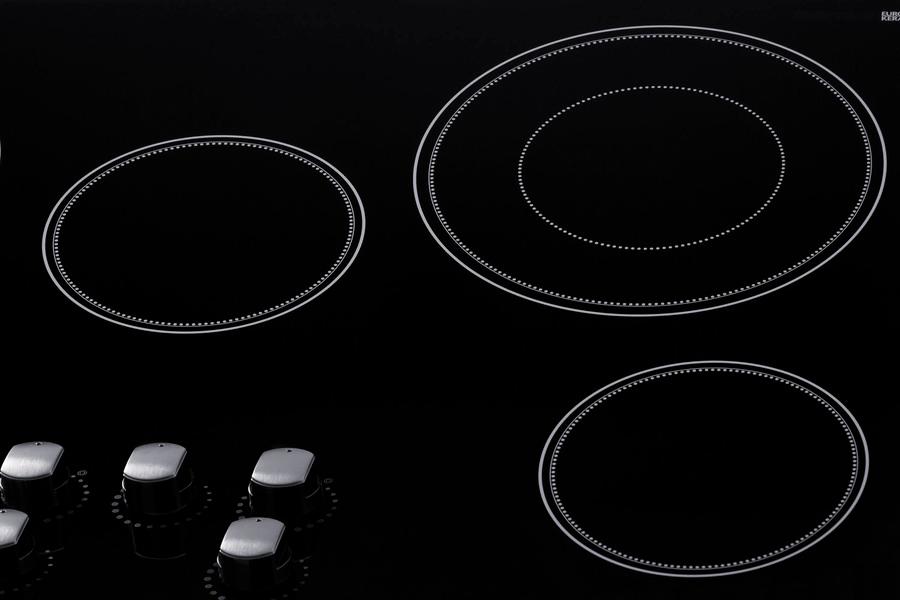

36" Wide 208-240v 5-burner Radiant Cooktop
Model CR5B36MB
36" Wide 208-240v 5-burner Radiant Cooktop
Model CR5B36MBQuick Specs
36" Wide 208-240v 5-burner Radiant Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 36" wide 5-burner radiant cooktop
- 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts
- Jet black glass surface
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish\t
- Extra large 3000W burner
- Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
- Large 2200W burner
- Left rear 2200W element is 9" in diameter to handle larger cooking vessels
- 2 Standard 1200W burners
- Front left and front right burners are 6.5" in diameter to meet most cooking needs

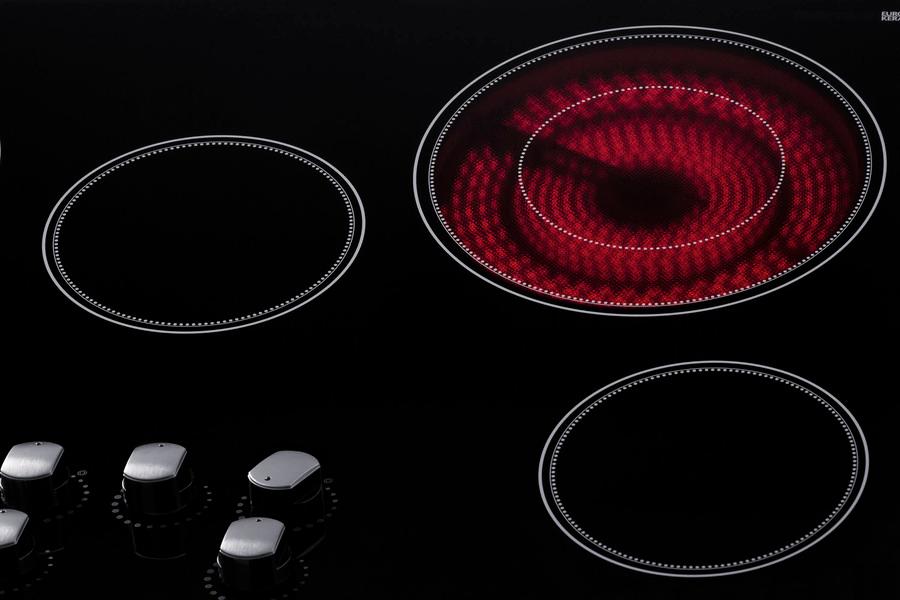

- Dual cooking zones
- Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
- Warming zone
- Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
- Push-to-turn knobs
- Controls require a gentle push to help prevent cooking accidents
- Residual heat light
- Indicator shows when the surface is still hot to touch
- ADA compliant design
- Upfront controls meet ADA guidelines for easier accessibility
- 208-240V operation
- Requires professional hardwired installation (cord not included)
- 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Requires professional hardwired installation (cord not included)
- Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
- Left rear 2200W element is 9" in diameter to handle larger cooking vessels
- Front left and front right burners are 6.5" in diameter to meet most cooking needs
- Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
- Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
- Controls require a gentle push to help prevent cooking accidents
- Indicator shows when the surface is still hot to touch
- Upfront controls meet ADA guidelines for easier accessibility
Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters. The CR5B36MB is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The knob controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. Each knob features a stainless steel look for added style. For added safety, the knobs require a light push-to-turn force to help prevent accidental adjustments. A residual heat indicator light lets you know when the surface is still hot to touch. With its attractive design and smartly designed burner configuration, the CR5B36MB is the perfect choices for convenient cooking. Additional choices are available in 24" and 30" wide sizes, as well as white glass finishes and with touch controls. Browse the full Summit lineup for more.
| Overview | |
| Nominal Height | 2.13" (5 cm) |
| Height of Cabinet | 2.13" (5 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.5" (90 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.5" (52 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 30.0 |
| Voltage/Frequency | 240 V AC/60 Hz |
| Weight | 36.0 lbs. (16 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101077567 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 5 |
| Controls | Dial |
| Countertop Cutout Height | 3.2" (8 cm) |
| Countertop Cutout Width | 34.75" (88 cm) |
| Countertop Cutout Depth | 19.63" (50 cm) |
| Element #1 Size | 6.5" (17 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 9.0" (23 cm) |
| Element #2 Wattage | 2200.0 |
| Element #3 Size | 6.5" (17 cm) |
| Element #3 Wattage | 100.0 |
| Element #4 Size | 9.75" (25 cm) |
| Element #4 Wattage | 3000.0 |
| Element #5 Size | 6.5" (17 cm) |
| Element #5 Wattage | 1200.0 |
| Power Cord Included | No |
- 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Requires professional hardwired installation (cord not included)
- Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
- Left rear 2200W element is 9" in diameter to handle larger cooking vessels
- Front left and front right burners are 6.5" in diameter to meet most cooking needs
- Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
- Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
- Controls require a gentle push to help prevent cooking accidents
- Indicator shows when the surface is still hot to touch
- Upfront controls meet ADA guidelines for easier accessibility
 | |
|---|---|
