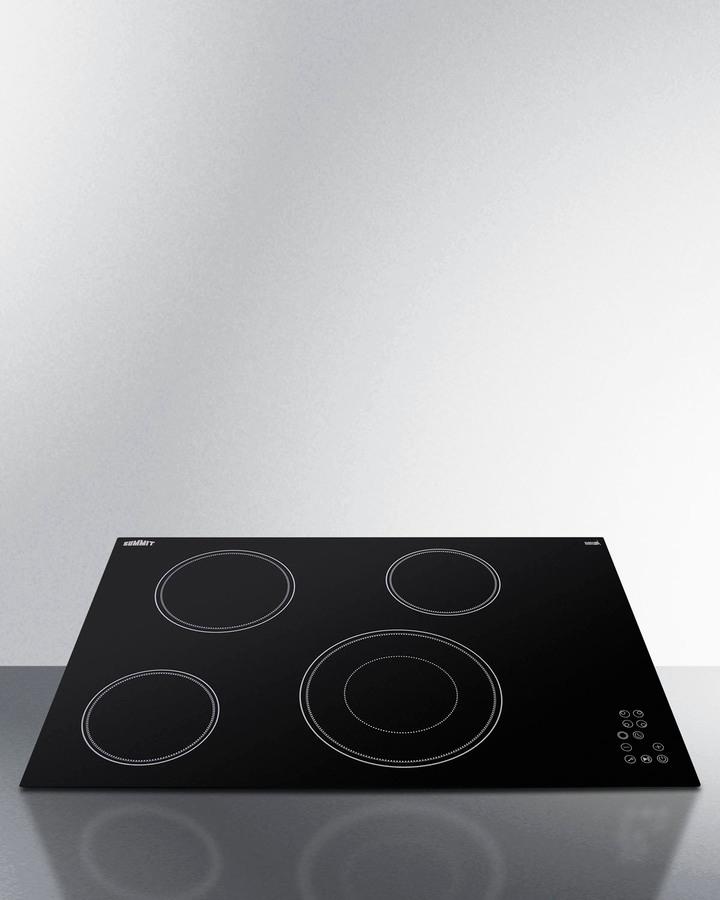

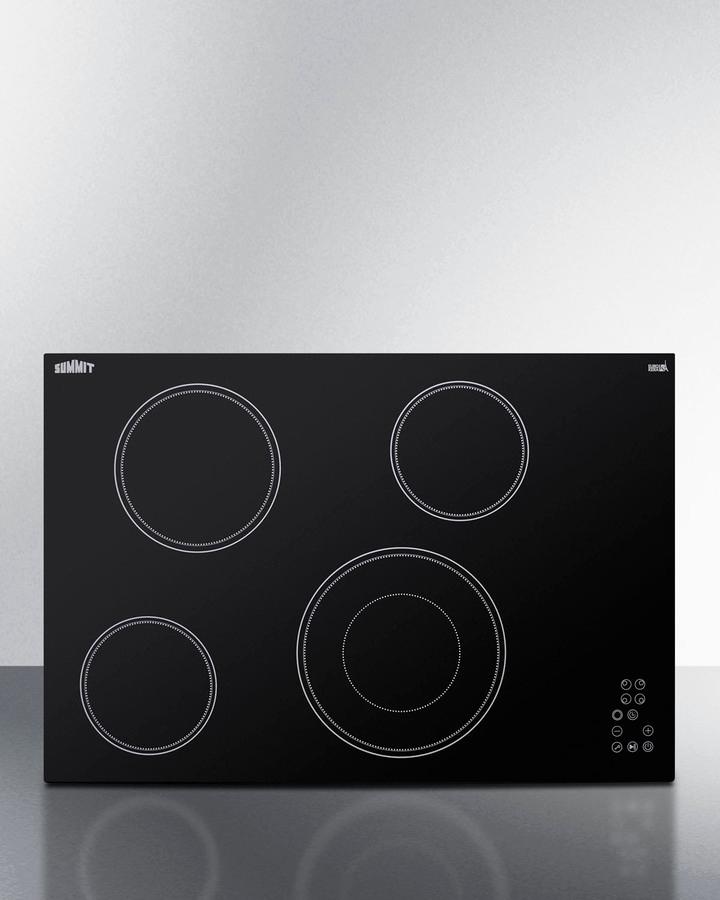

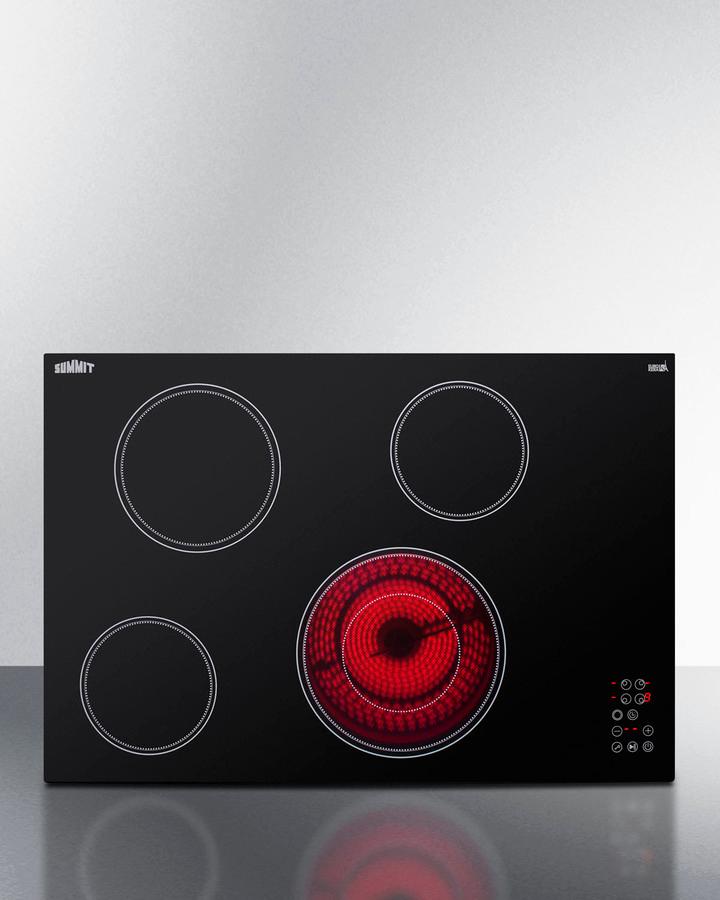

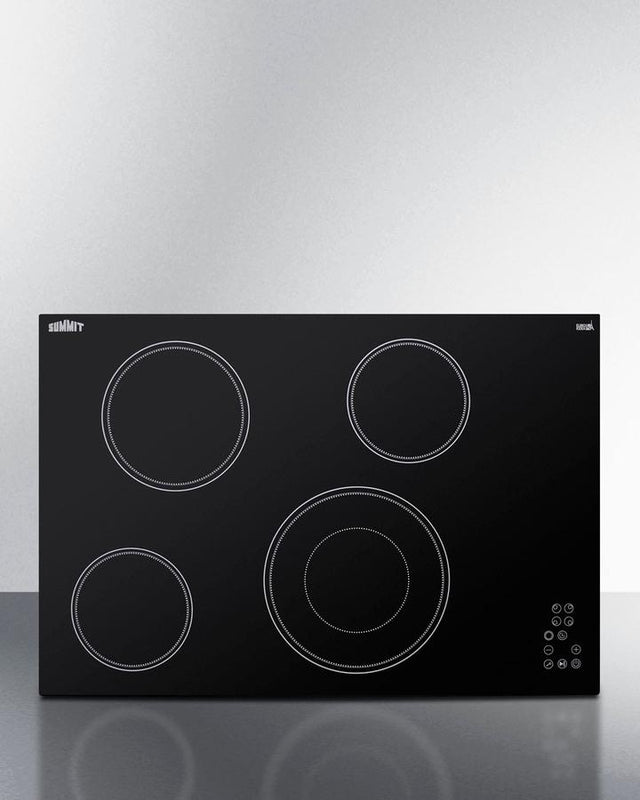

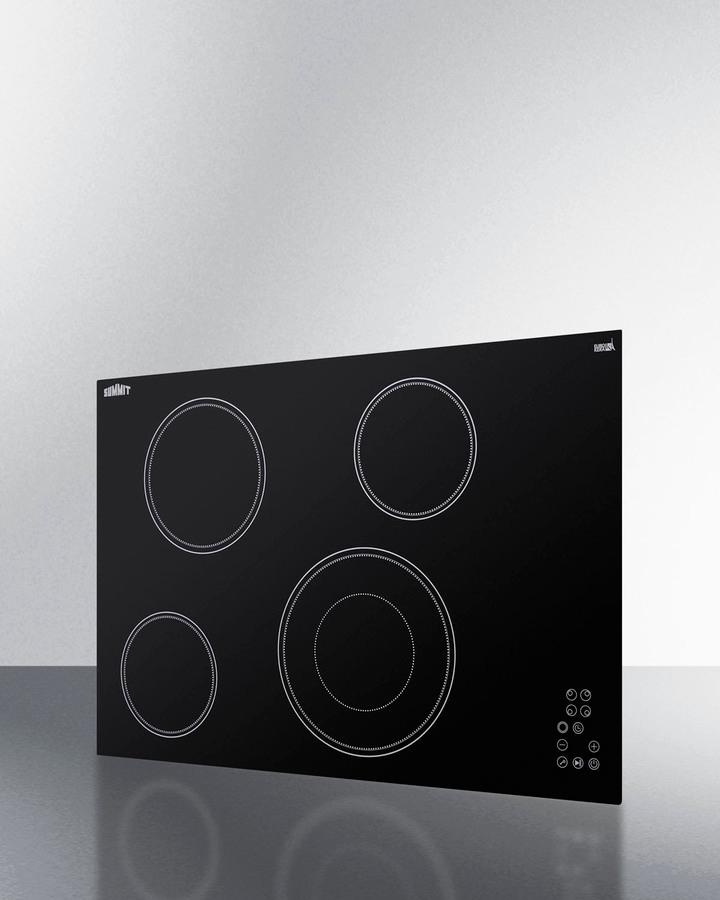

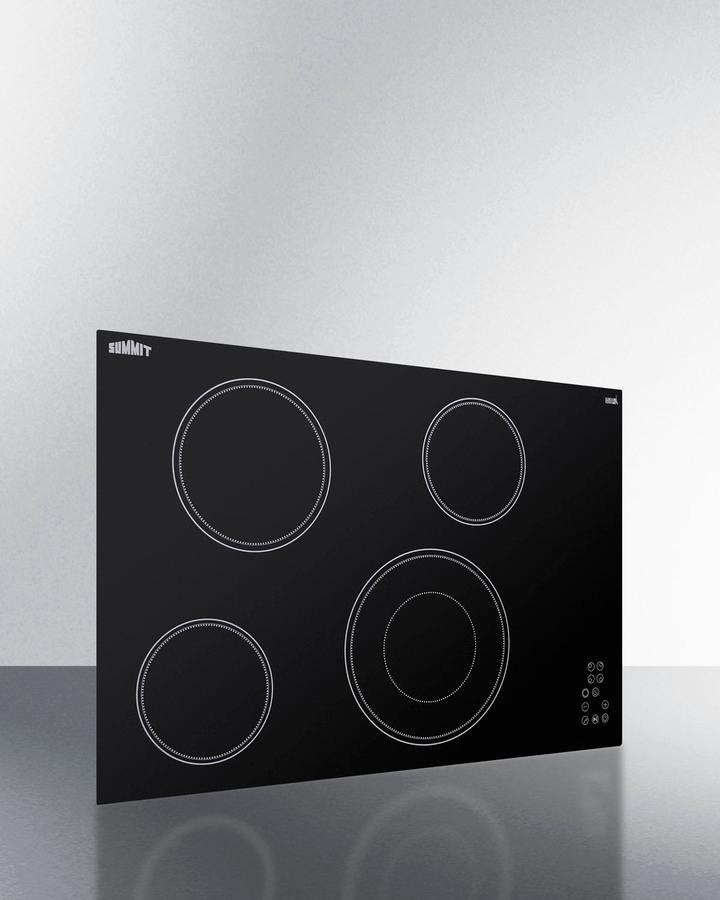

30" Wide 208-240v 4-burner Radiant Cooktop
Model: CR4B30T11B
30" Wide 208-240v 4-burner Radiant Cooktop
Model: CR4B30T11BQuick Specs
30" Wide 208-240v 4-burner Radiant Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 30" wide 4-burner radiant cooktop
- Designed to fit common 29 1/2" x 19 5/8" counter cutouts
- Jet black glass surface
- Elegant style on a smooth, jet black glass surface for a contemporary look that is easier to clean
- Extra large 2500W burner
- Conveniently located front right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
- Large 1800W burner
- 1800W burner located in the left rear is 8" in diameter to handle larger cooking vessels
- 2 Standard 1200W burners
- Front left and rear right burners are 6.5" in diameter to meet most cooking needs
- Dual cooking zone
- Front right burner includes an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware

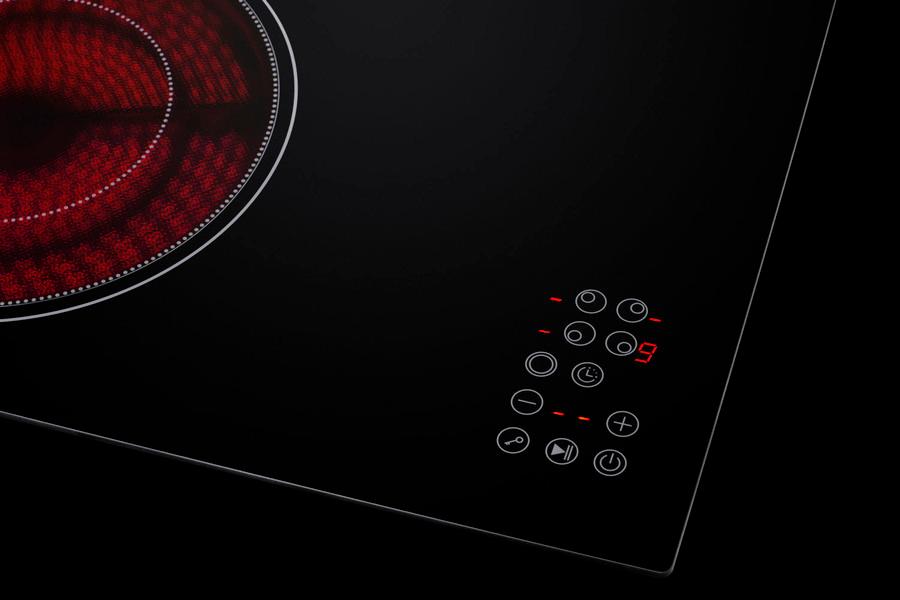

- Digital touch controls
- Easy operation with a digital control panel and digital display, located upfront but towards the side to help prevent any unintended adjustments when cooking
- 9 power levels
- Select and adjust your heating levels at the touch of a button\t
- Timer
- Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
- Residual heat indicator light
- Indicator shows when the surface is still hot to touch
- ADA compliant design
- Upfront controls meet ADA guidelines for easier accessibility
- Child lock
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- Safety cut-off function
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off\t
- Automatic shutoff
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- 208-240V operation
- Requires professional hardwired installation (cord not included)
- Designed to fit common 29 1/2" x 19 5/8" counter cutouts
- Elegant style on a smooth, jet black glass surface for a contemporary look that is easier to clean
- Upfront controls meet ADA guidelines for easier accessibility
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation (cord not included)
- Conveniently located front right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
- 1800W burner located in the left rear is 8" in diameter to handle larger cooking vessels
- Front left and rear right burners are 6.5" in diameter to meet most cooking needs
- Front right burner includes an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
- Easy operation with a digital control panel and digital display, located upfront but towards the side to help prevent any unintended adjustments when cooking
- Select and adjust your heating levels at the touch of a button
- Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
- Indicator shows when the surface is still hot to touch
Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls. The CR4B30T11B is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. Four elements let you meet a variety of cooking needs, with an extra large 2500W 9 3/4" front dual zone element ideal for woks, Dutch ovens, and other larger cooking vessels. The inner element is just 5 1/2", perfect for smaller pots used to melt butter, chocolate, and more. This unit includes an 1800W 8" burner located in the rear left, great for boiling water or heating up sauces in large pans while the front element is also in use. Two 6 1/2" 1200W elements accommodate smaller cookware. The upfront digital controls are located to the right, ensuring you won't have to reach over the controls when adjusting your pots and pans. The temperature is easy to adjust with intuitive touch controls. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B30T11B brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as white glass finishes. Browse the full Summit lineup for more.
| Overview | |
| Nominal Height | 2.13" (5 cm) |
| Height of Cabinet | 2.13" (5 cm) |
| Nominal Width | 31.0" (79 cm) |
| Width | 30.25" (77 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.5" (52 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 25.0 |
| Voltage/Frequency | 240 V AC/60 Hz |
| Weight | 28.0 lbs. (13 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101078793 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 4 |
| Controls | Digital |
| Cooking Timer | Yes |
| Countertop Cutout Height | 3.2" (8 cm) |
| Countertop Cutout Width | 29.5" (75 cm) |
| Countertop Cutout Depth | 19.63" (50 cm) |
| Element #1 Size | 6.5" (17 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 8.0" (20 cm) |
| Element #2 Wattage | 1800.0 |
| Element #3 Size | 6.5" (17 cm) |
| Element #3 Wattage | 1200.0 |
| Element #4 Size | 9.75" (25 cm) |
| Element #4 Wattage | 2500.0 |
| Power Cord Included | No |
- Designed to fit common 29 1/2" x 19 5/8" counter cutouts
- Elegant style on a smooth, jet black glass surface for a contemporary look that is easier to clean
- Upfront controls meet ADA guidelines for easier accessibility
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation (cord not included)
- Conveniently located front right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
- 1800W burner located in the left rear is 8" in diameter to handle larger cooking vessels
- Front left and rear right burners are 6.5" in diameter to meet most cooking needs
- Front right burner includes an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
- Easy operation with a digital control panel and digital display, located upfront but towards the side to help prevent any unintended adjustments when cooking
- Select and adjust your heating levels at the touch of a button
- Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
- Indicator shows when the surface is still hot to touch
 | |
|---|---|
