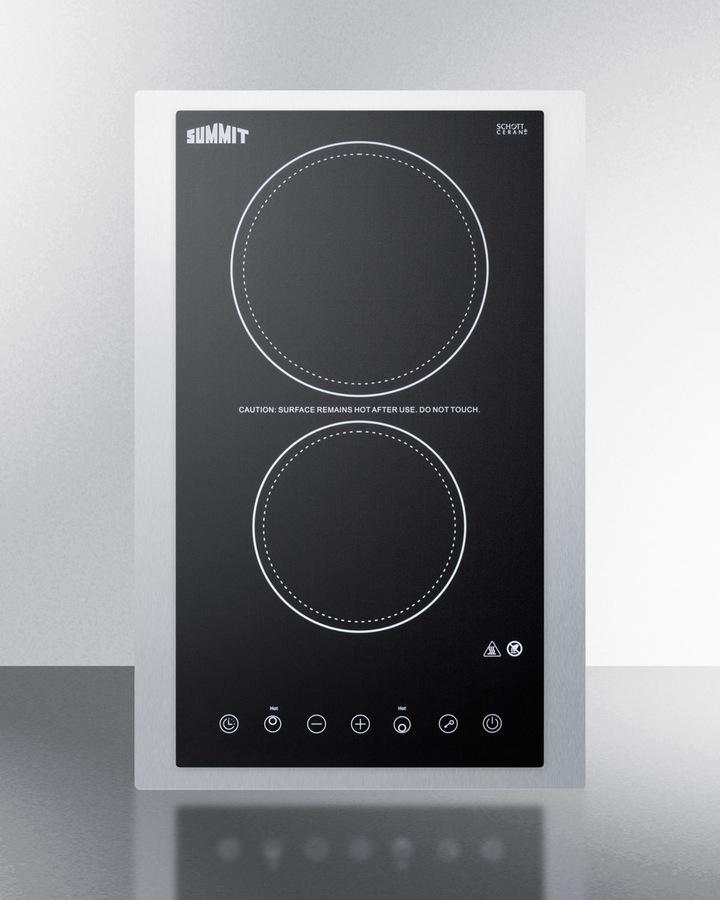

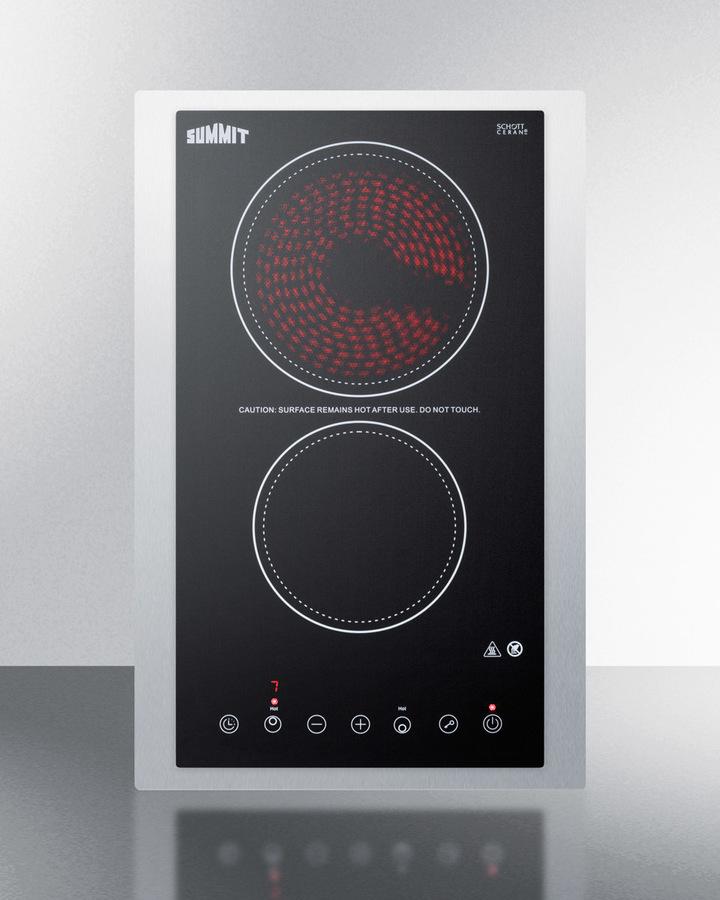

15" Wide 230v 2-burner Radiant Cooktop
Model: CR2B23T3BTK15
15" Wide 230v 2-burner Radiant Cooktop
Model: CR2B23T3BTK15Quick Specs
15" Wide 230v 2-burner Radiant Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 2-Burner Radiant Cooktop
- 230V cooktop with digital controls and a smooth glass surface
- Schott glass surface
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Large 1800W burner
- Rear 7" burner offers 1800W for faster heating of larger cooking vessels
- Standard 1200W burner
- Front burner is 5.5" in diameter to meet most cooking needs
- Digital touch controls
- Easy operation with a digital control panel and digital display
- 9 power levels
- Select and adjust your heating levels at the touch of a button\t
- Residual heat indicator lights
- Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Designed for built-in installation
- Fits counter cutout sizes that are 10.75" wide by 19.9" deep, with a trim kit that allows the cooktop to fill 15" wide openings
- Trim Kit for 15" wide applications
- Ships with a seamless stainless steel exterior trim kit that allows users to install this cooktop in 15" wide cutouts
- ADA compliant design
- Upfront controls meet ADA guidelines for easier accessibilty
- Timer
- Allows you to program either burner to heat at a specified level for up to 99 minutes\t
- Child lock
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- Safety cut-off function
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off\t
- Automatic shutoff
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating\t
- 230V operation
- Requires professional hardwired installation to 230V power supply\t
- 230V cooktop with digital controls and a smooth glass surface
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Allows you to program either burner to heat at a specified level for up to 99 minutes
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation to 230V power supply
- Rear 7" burner offers 1800W for faster heating of larger cooking vessels
- Front burner is 5.5" in diameter to meet most cooking needs
- Easy operation with a digital control panel and digital display
- Select and adjust your heating levels at the touch of a button
- Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Fits counter cutout sizes that are 10.75" wide by 19.9" deep, with a trim kit that allows the cooktop to fill 15" wide openings
- Ships with a seamless stainless steel exterior trim kit that allows users to install this cooktop in 15" wide cutouts
- Upfront controls meet ADA guidelines for easier accessibilty
SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR2B23T3BTK15 is a 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not include a power cord and must be hard-wired by a professional. It ships with a stainless steel trim kit that allows the cooktop to be installed in 15" wide counter cutouts. For true cooking versatility, the CR2B23T3BTK15 features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements. With its attractive design, ideal size, and intuitive touch controls, the CR2B23T3BTK15 brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
| Overview | |
| Nominal Height | 2.0" (5 cm) |
| Height of Cabinet | 2.0" (5 cm) |
| Nominal Width | 16.0" (41 cm) |
| Width | 15.13" (38 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 21.75" (55 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 15.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 10.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101056258 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 2 |
| Controls | Digital |
| Cooking Timer | Yes |
| Countertop Cutout Height | 5.9" (15 cm) |
| Countertop Cutout Width | 10.75" (27 cm) |
| Countertop Cutout Depth | 19.9" (51 cm) |
| Power Source | 230V |
| Element #1 Size | 7.0" (18 cm) |
| Element #1 Wattage | 1800.0 |
| Element #2 Size | 5.5" (14 cm) |
| Element #2 Wattage | 1200.0 |
| Power Cord Included | No |
- 230V cooktop with digital controls and a smooth glass surface
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Allows you to program either burner to heat at a specified level for up to 99 minutes
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation to 230V power supply
- Rear 7" burner offers 1800W for faster heating of larger cooking vessels
- Front burner is 5.5" in diameter to meet most cooking needs
- Easy operation with a digital control panel and digital display
- Select and adjust your heating levels at the touch of a button
- Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Fits counter cutout sizes that are 10.75" wide by 19.9" deep, with a trim kit that allows the cooktop to fill 15" wide openings
- Ships with a seamless stainless steel exterior trim kit that allows users to install this cooktop in 15" wide cutouts
- Upfront controls meet ADA guidelines for easier accessibilty
 | |
|---|---|
