62 Lb. Clear Outdoor/indoor Icemaker
Model BIM68OSGDR
62 Lb. Clear Outdoor/indoor Icemaker
Model BIM68OSGDRQuick Specs
62 Lb. Clear Outdoor/indoor Icemaker is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Outdoor Clear Icemaker
- 15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes\t
- Commercially approved
- ETL-S listed to NSF-12 commercial standards for use in foodservice settings
- Weatherproof design
- Durable construction for safe installation in outdoor kitchens
- 62 lb. production capacity
- Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
- Built-in capable
- Make the best use of space by installing your icemaker under the counter and flush with other cabinets
- Stainless steel wrapped exterior
- Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

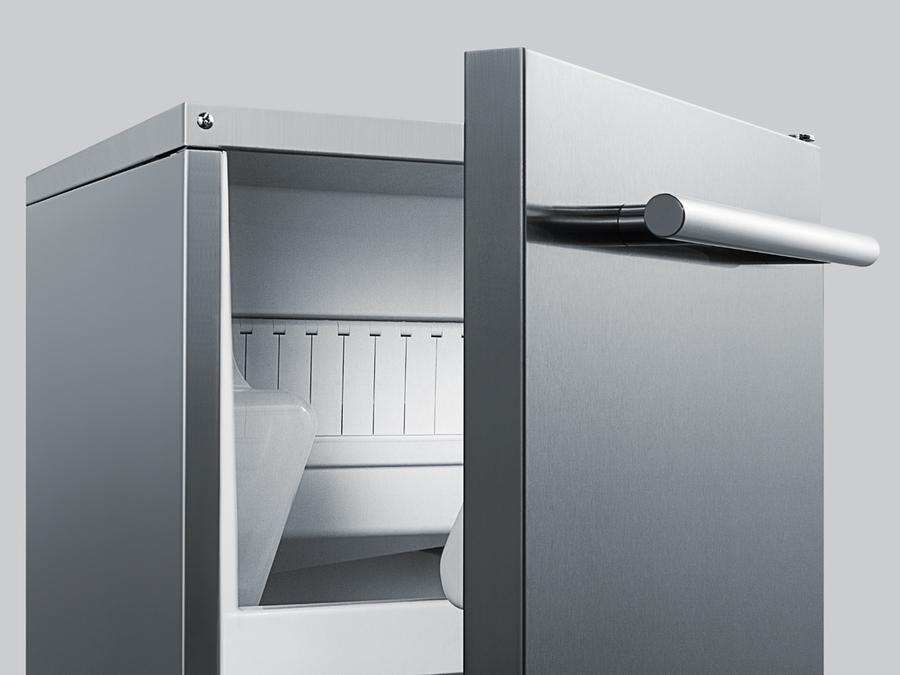

- Professional handle
- Horizontally mounted towel bar style handle in stainless steel

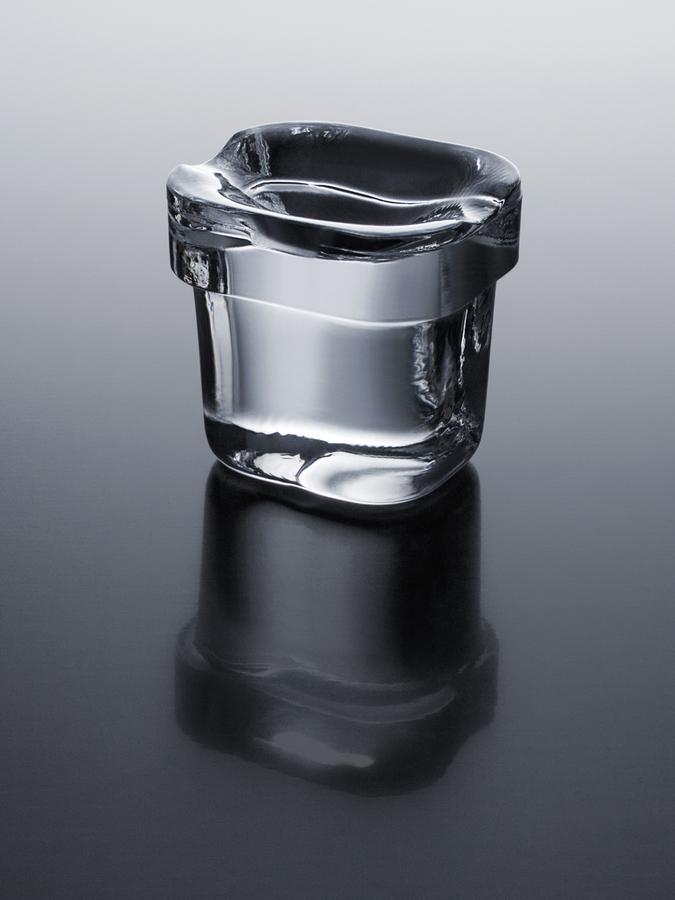

- Clear ice cube production
- Gourmet style rounded dice-style ice cubes
- Frost-free operation
- No-frost operation for minimum user maintenance
- Gravity drain setup
- Requires connection to gravity drain
- Reversible door
- User-reversible door swing for flexible placement
- Standard water hookup
- Operates with a standard 1/4 OD water supply line
- Sealed back
- Space-saving design with easier cleanability
- Fully finished cabinet
- Allows the unit to be used freestanding
- Lead-free certified
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard\t

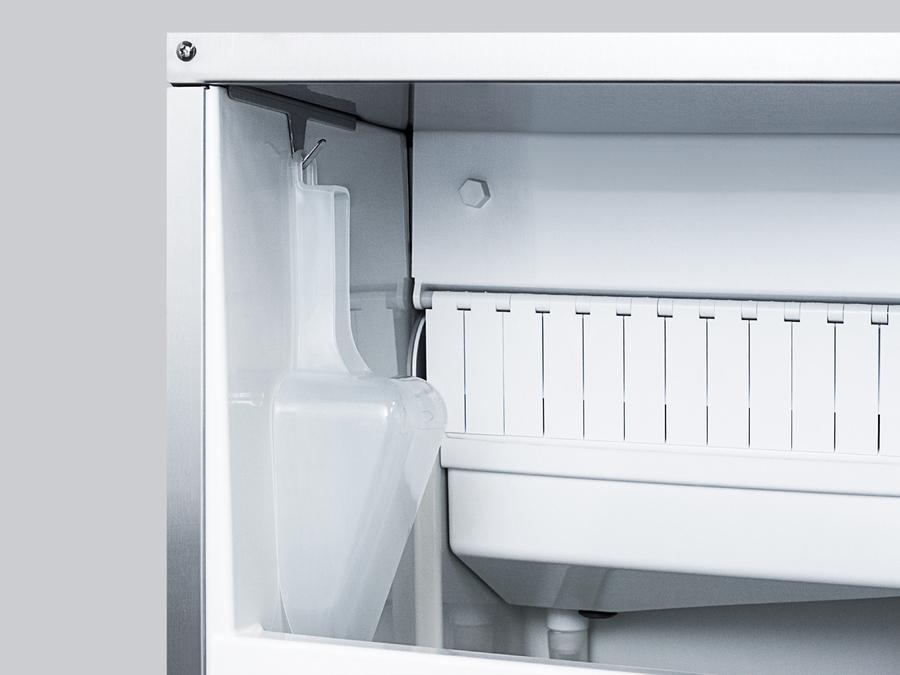

- Ice scoop included
- Interior wall includes hook to hang for easy storage
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- 15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
- ETL-S listed to NSF-12 commercial standards for use in foodservice settings
- User-reversible door swing for flexible placement
- Operates with a standard 1/4 OD water supply line
- Space-saving design with easier cleanability
- Allows the unit to be used freestanding
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
- Interior wall includes hook to hang for easy storage
- Environmentally friendly design without ozone-damaging chemicals
- Durable construction for safe installation in outdoor kitchens
- Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
- Make the best use of space by installing your icemaker under the counter and flush with other cabinets
- Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance
- Horizontally mounted towel bar style handle in stainless steel
- Gourmet style rounded dice-style ice cubes
- No-frost operation for minimum user maintenance
- Requires connection to gravity drain
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location. Sized at 15" wide, the BIM68OSGDR features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. This model utilizes a gravity drain system. The BIM68OSGDR produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSGDR is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSGDRIF) will be available later this year. NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
| Overview | |
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 37.25" (95 cm) |
| Capacity | 0.98 cu.ft. (28 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 4.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101057088 |
| Icemaker | |
| Door Swing | RHD |
| Reversible | Yes |
| Daily Ice Production | 62.0 lbs. (28 kg) |
| Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Ice Shape | Dice |
| Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 7.4 oz. |
| High Side PSI | 210.0 |
| Low Side PSI | 105.0 |
| Interior Height | 12.75" (32 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 9.25" (23 cm) |
| Level Legs | 4 |
