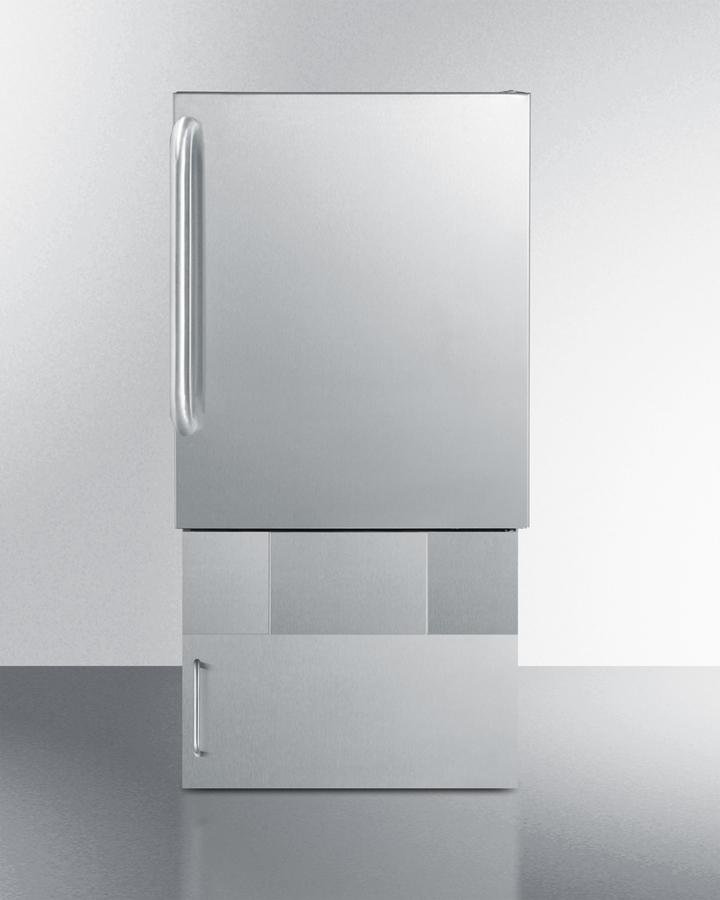

12 Lb. Drain-free Outdoor Icemaker
Model: BIM24OSBASE34
12 Lb. Drain-free Outdoor Icemaker
Model: BIM24OSBASE34Quick Specs
12 Lb. Drain-free Outdoor Icemaker is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Weatherproof design rated safe for outdoor operation
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Allows the unit to be used freestanding
- Durable exterior with lasting elegance
- A curved stainless steel handle provides generous room for a comfortable grip
- Ice maintains solid crescent shape longer in cold storage bin
- No exposed electrical components
- Stainless steel base includes drawer
- Environmentally friendly design without ozone-damaging chemicals
SUMMIT brings a convenient freeze to the outdoors with the BIM24OSBase34, a compact icemaker with U.L. approval for outdoor use. Fully wrapped in 304 grade stainless steel, the BIM24OSBase34 is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure. The BIM24OSBase34 is designed for built-in installation under counters but can also function freestanding. It is mounted on a lower base that raises the unit height to be adjustable between 33" and 34 3/4" high. This stainless steel cabinet offers convenient options for storing icemaker accessories and other outdoor utensils inside the drawer. The BIM24OSBase34 can produce and store up to 12 pounds of crescent shaped cubes in a day cycle, with a carefully insulated storage bin. Operation does not require a drain. Our signature 12" towel bar handle completes the package.
| Overview | |
| Height of Cabinet | 33.25" (84 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Width | 15.13" (38 cm) |
| Depth | 20.63" (52 cm) |
| Depth with Handle | 23.13" (59 cm) |
| Depth with door at 90° | 34.25" (87 cm) |
| Capacity | 1.0 cu.ft. (28 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Shipping Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101038759 |
| Icemaker | |
| Door Swing | RHD |
| Reversible | No |
| Daily Ice Production | 12.0 lbs. (5 kg) |
| Ice Storage Capacity | 12.0 lbs. (5 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.63 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 110.0 |
| Interior Height | 11.75" (30 cm) |
| Interior Width | 10.0" (25 cm) |
| Interior Depth | 13.0" (33 cm) |
| Level Legs | 4 |
- Weatherproof design rated safe for outdoor operation
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Allows the unit to be used freestanding
- Durable exterior with lasting elegance
- A curved stainless steel handle provides generous room for a comfortable grip
- Ice maintains solid crescent shape longer in cold storage bin
- No exposed electrical components
- Stainless steel base includes drawer
- Environmentally friendly design without ozone-damaging chemicals
