18" 8 Lb. Drain-free Icemaker, ADA Compliant (panel Not Included)
Model BIM18IFADA
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
18" 8 Lb. Drain-free Icemaker, ADA Compliant (panel Not Included)
Model BIM18IFADAQuick Specs
Width
17.75"
Depth
25.75"
Height
31.38"
Freezer
2.7
Cu Ft
2.7
Size
2.7
Shelves
3
ADA
YES
18" 8 Lb. Drain-free Icemaker, ADA Compliant (panel Not Included) is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,124.56
Regular price
$2,680.00
Unit price
/
Unavailable
You save 20%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
17.75"
Depth
25.75"
Height
31.38"
Freezer Capacity
2.7
Capacity (cu ft.)
2.7
Refrigerator Size
2.7
Refrigerator number of Shelves
3
ADA
YES
Wifi Connected
NO
RPM
-1.0
Energy Star Rated
NO
- ADA compliant
- Sized just under 32" high for installation under lower ADA compliant counters

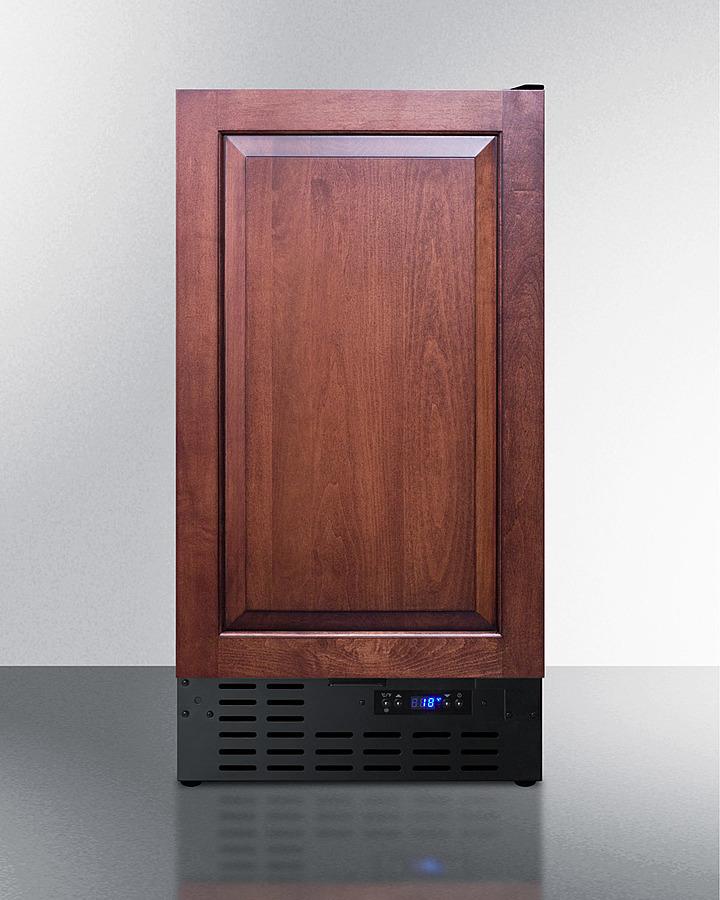

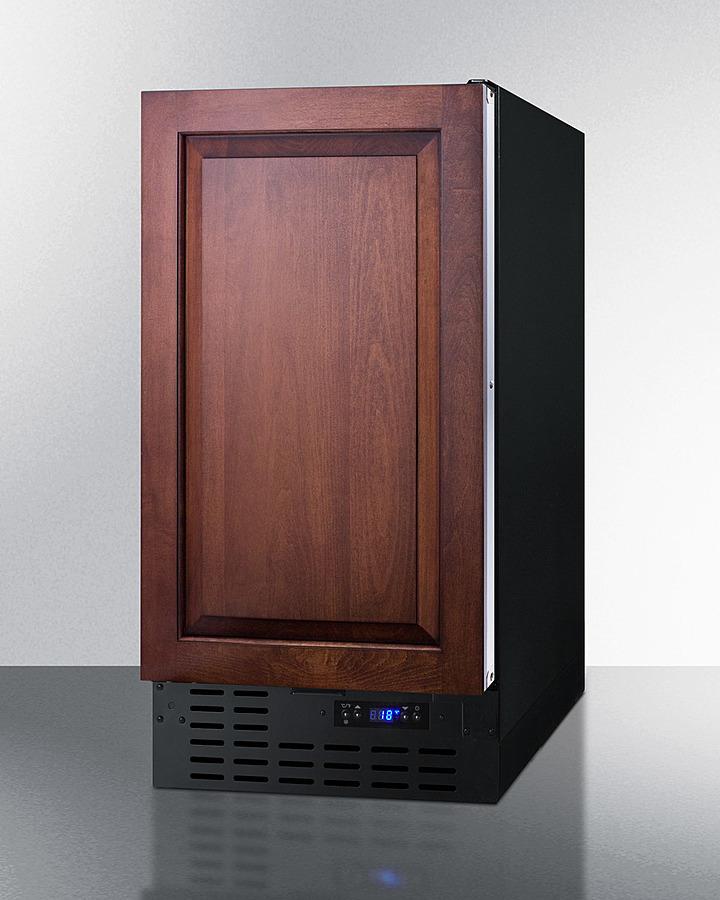

- Integrated door frame
- Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
- Built-in capable
- Make the best use of space by installing your appliance under the counter
- No pump or drain required
- Convenient design allows more flexibility in positioning the unit

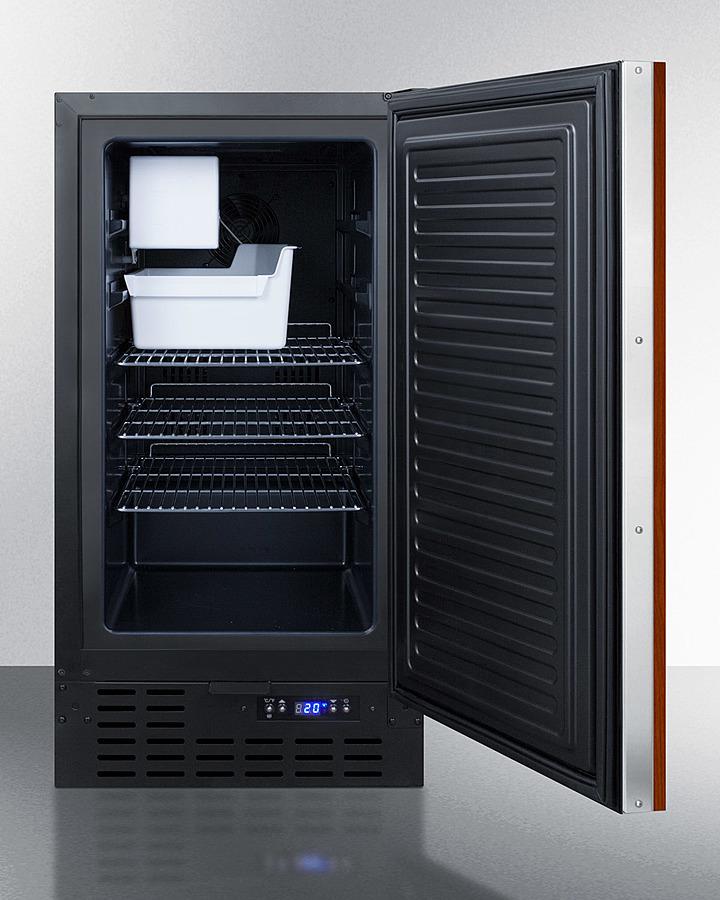

- Ice production
- Makes and stores up to 8 lbs. of crescent cubes
- Removable bin
- Bucket can be removed for fast and easy cleaning
- Digital thermostat
- Electronic controls for precise temperature management.
- Digital display
- Temperature readout can be shown in Celsius or Fahrenheit
- Frost-free operation
- Eliminates the need to manually defrost the interior
- Extra shelves
- Adjustable chrome shelves included to accommodate additional items
- Flush back
- Space saving design with easier cleanability
- Fully finished black cabinet
- Allows the unit to be used freestanding
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- Lead-free certified
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard\t
- Sized just under 32" high for installation under lower ADA compliant counters
- Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
- Space saving design with easier cleanability
- Allows the unit to be used freestanding
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Environmentally friendly design with no ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
- Make the best use of space by installing your appliance under the counter
- Convenient design allows more flexibility in positioning the unit
- Makes and stores up to 8 lbs. of crescent cubes
- Bucket can be removed for fast and easy cleaning
- Electronic controls for precise temperature management.
- Temperature readout can be shown in Celsius or Fahrenheit
- Eliminates the need to manually defrost the interior
- Adjustable chrome shelves included to accommodate additional items
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings. Sized just under 18 inches wide and 32 inches high, the BIM18IFADA is ideal for use under lower counters following ADA compliant guidelines. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit. Inside, the BIM18IFADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance. With its ideal size and customizable design, the BIM18IFADA is a great solution to keeping a steady supply of ice on hand in smaller ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.38" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 2.7 cu.ft. (76 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 82.0 lbs. (37 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063751 |
| Icemaker | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Daily Ice Production | 8.0 lbs. (4 kg) |
| Ice Storage Capacity | 8.0 lbs. (4 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 103.0 |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | -22 to 14 F |
