24" Wide Built-in All-refrigerator, ADA Compliant
Model AR5BS
24" Wide Built-in All-refrigerator, ADA Compliant
Model AR5BSQuick Specs
24" Wide Built-in All-refrigerator, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- ADA compliant
- 32" height to fit under lower ADA compliant counters
- Slim undercounter dimensions
- Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
- Built-in capable
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Stainless steel wrapped door
- Durable design with lasting elegance
- Professional horizontally mounted handle
- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Automatic defrost
- Reduced maintenance with auto defrost system
- Adjustable glass shelves
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Door shelves
- Store tall bottles and condiments right on the door for convenient access
- Wine shelf
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Interior light
- Automatically illuminates when you open the door
- One piece interior liner
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior

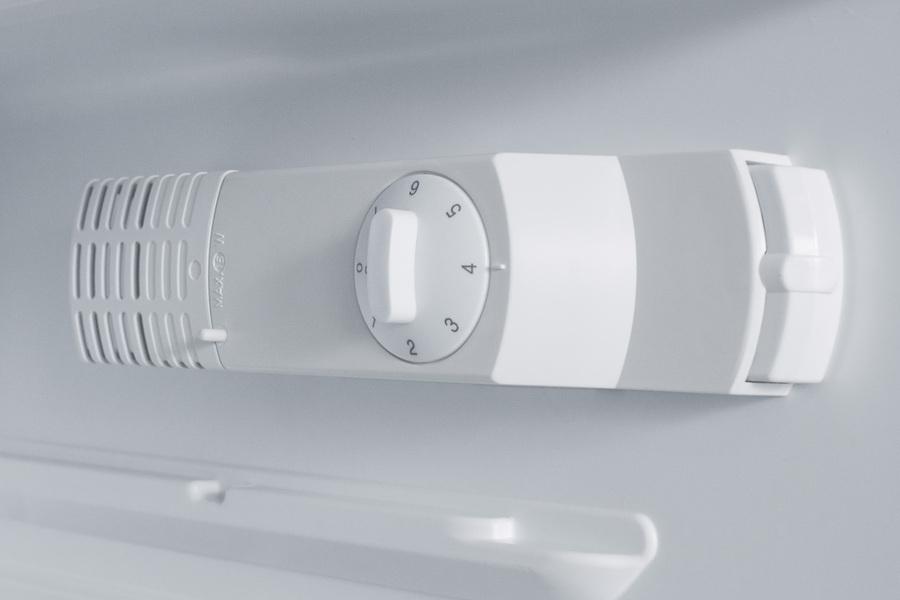

- Adjustable dial thermostat
- Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
- Reversible door
- User-reversible door swing for added flexibility
- Fully finished black cabinet
- Allows the unit to be used freestanding
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- 32" height to fit under lower ADA compliant counters
- Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
- User-reversible door swing for added flexibility
- Allows the unit to be used freestanding
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Environmentally friendly design without ozone-damaging chemicals
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Durable design with lasting elegance
- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Reduced maintenance with auto defrost system
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Store tall bottles and condiments right on the door for convenient access
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Automatically illuminates when you open the door
SUMMIT offers the industry s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24 footprint and 32 height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mounted horizontally across the top of the door. Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068268 |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
