Quick Specifications
Quick Specifications
- Type : FREEZERS
- Style : UPRIGHT FREEZERS
- Width : 23.63"
- Height : 32"
- Depth : 24.13"
- Energy Star Rated : NO
- Wifi Connected : NO
- Refrigerator Size : 3.7
- Freezer Capacity : 3.7
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- 32" height allows easy installation under lower ADA compliant counters
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Added touch of style to complement the handle and complete the look
- Space-saving design with no exposed coils for easier cleanability
- Pair with the AL54Y for a matching side-by-side set under lower ADA compliant counters
- Allows the freezer to be used as a freestanding model
- Environmentally friendly design without ozone-damaging chemicals
- No-frost convenience eliminates the need to manually defrost the unit
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Bright yellow door finish with a slight gloss to elevate your undercounter space

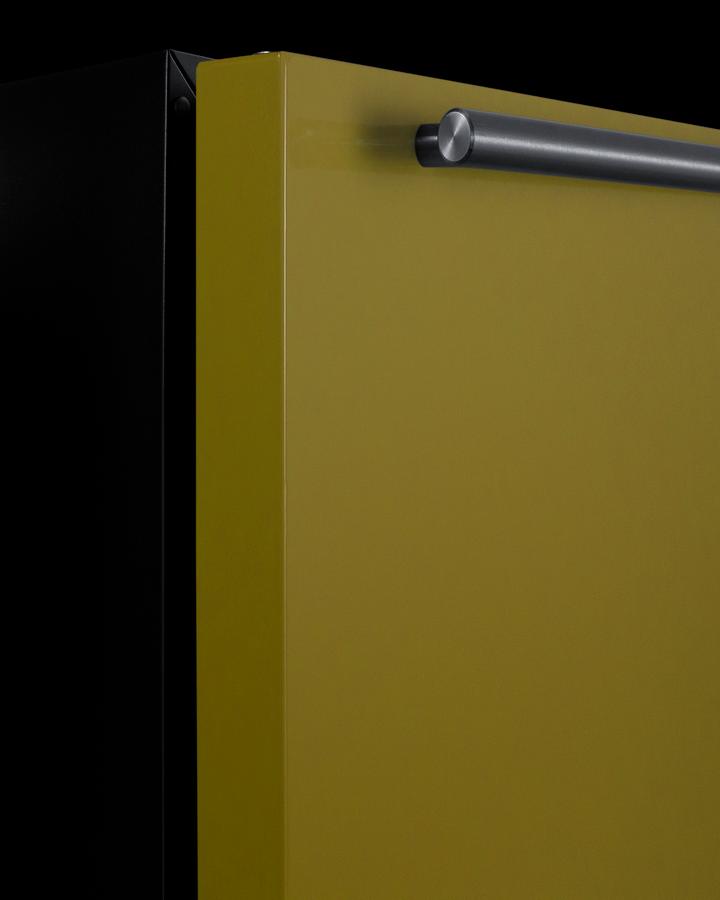

- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Electronic controls offer easy and intuitive temperature management
- Elegant lighting with an on/off switch located on the control panel
- User-reversible door swing for added flexibility

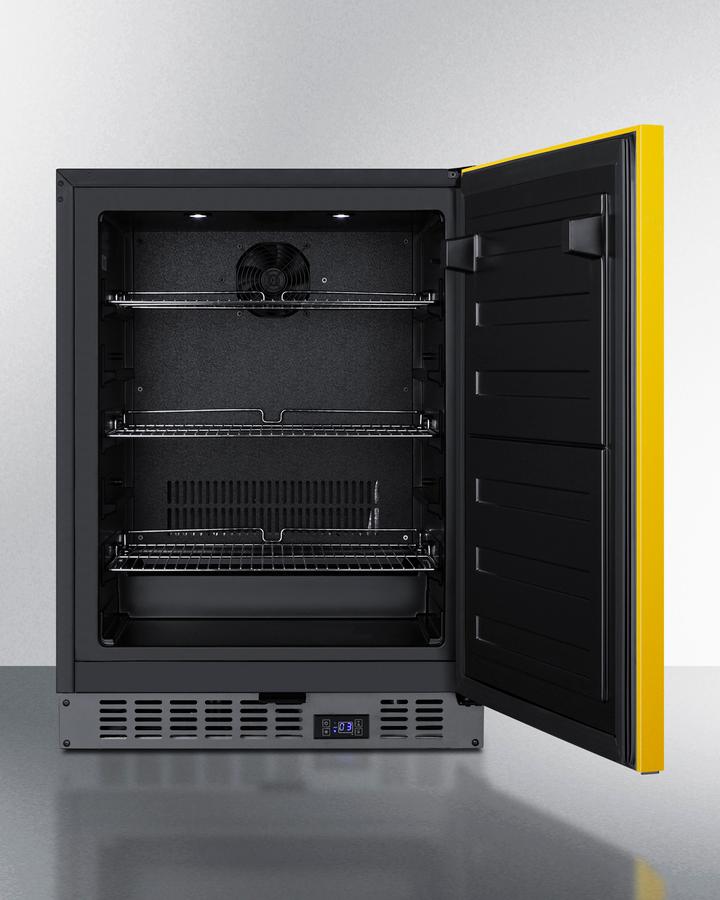

- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Keyed lock for a secure interior (2 keys included)
Overview | |
Height of Cabinet | 32.0" (81 cm) |
Width | 23.63" (60 cm) |
Depth | 22.63" (57 cm) |
Depth with Handle | 24.13" (61 cm) |
Depth with door at 90° | 45.0" (114 cm) |
Capacity | 3.7 cu.ft. (105 L) |
Defrost Type | Frost-Free |
Door | Yellow |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 345.0kWh/year |
Amps | 1.5 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 92.0 lbs. (42 kg) |
Shipping Weight | 125.5 lbs. (57 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101087641 |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 23.5" (60 cm) |
Interior Width | 18.75" (48 cm) |
Interior Depth | 15.5" (39 cm) |
Shelf Type | Chrome |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.31 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs | 4 |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 18.75" (48 cm) |
Compressor Step Depth | 4.5" (11 cm) |
Temperature Range | -11°F to 11°F |
Sabbath Mode | Yes |
Sound Level | 33.7 dB |
