24" Wide Built-in All-freezer, ADA Compliant
Model ALFZ53KSHH
24" Wide Built-in All-freezer, ADA Compliant
Model ALFZ53KSHHQuick Specs
24" Wide Built-in All-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 32" height allows easy installation under lower ADA compliant counters
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Keyed lock for a secure interior (2 keys included)
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability

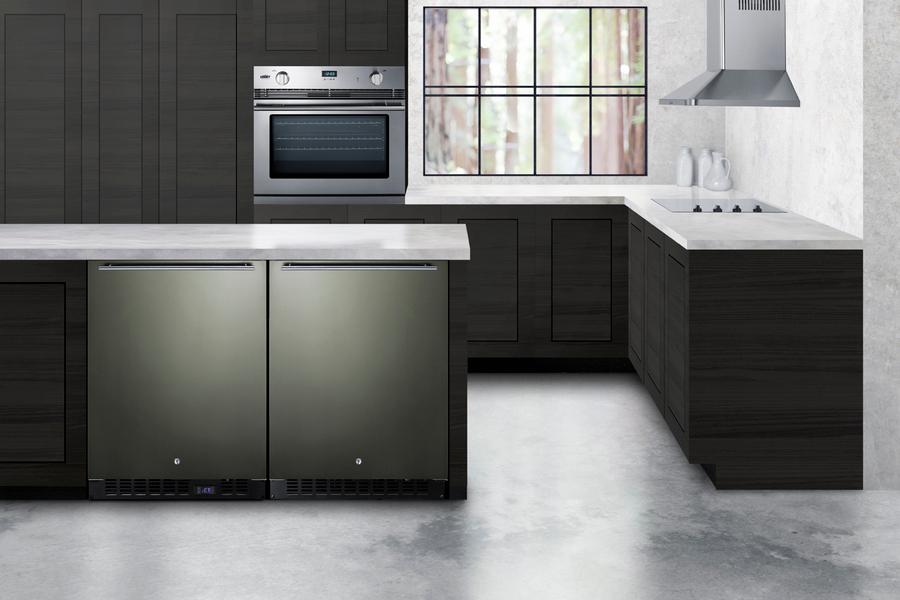

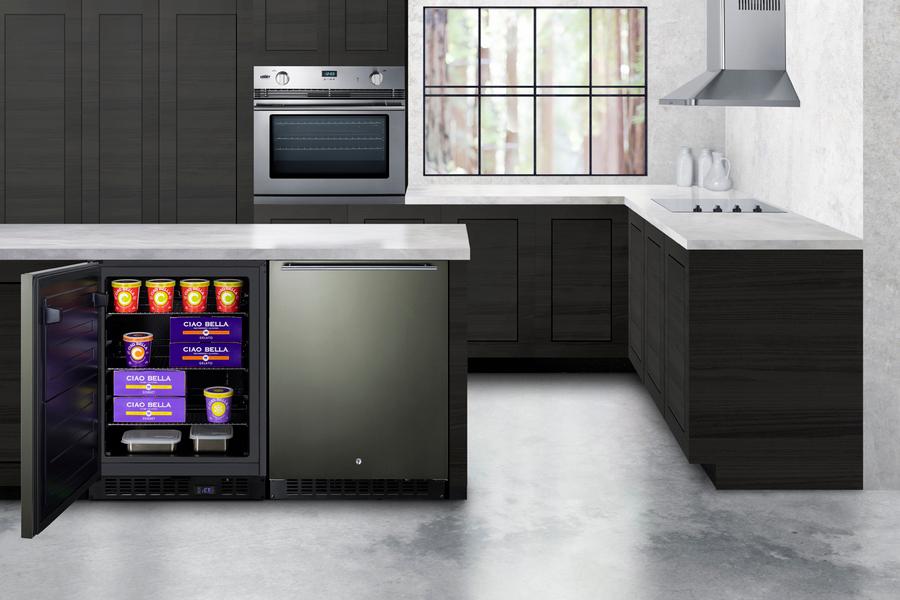

- Pair with the AL54KSHH for a matching side-by-side set under lower ADA compliant counters
- ETL-S listed to NSF-7 commercial standards
- Allows the freezer to be used as a freestanding model
- No-frost convenience eliminates the need to manually defrost the unit
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions
- Black stainless steel door front hides most smudges and wipes clean easily with a dry cloth

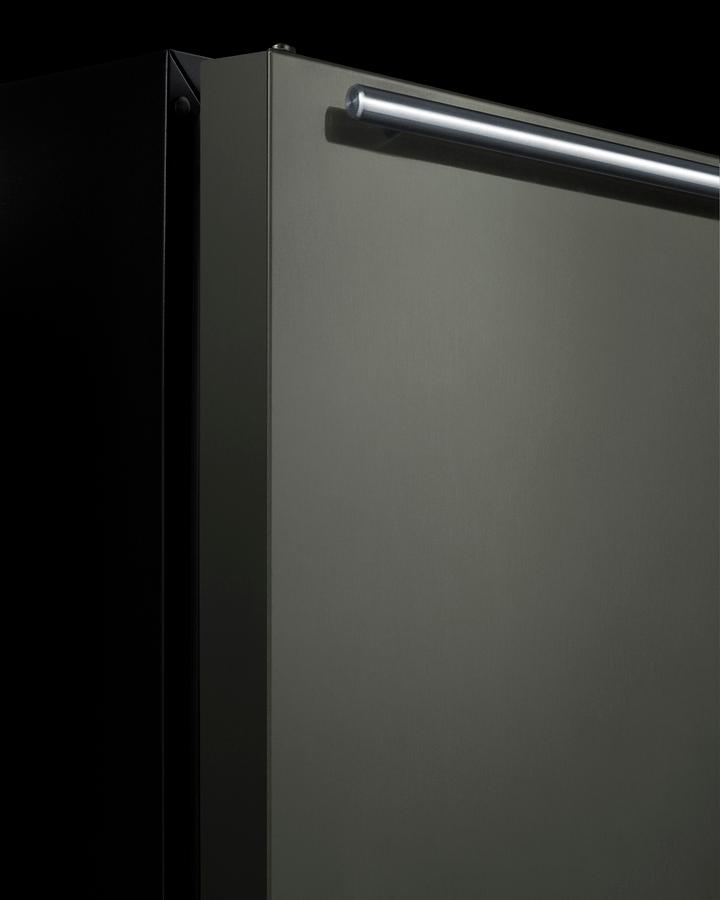

- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Electronic controls offer easy and intuitive temperature management

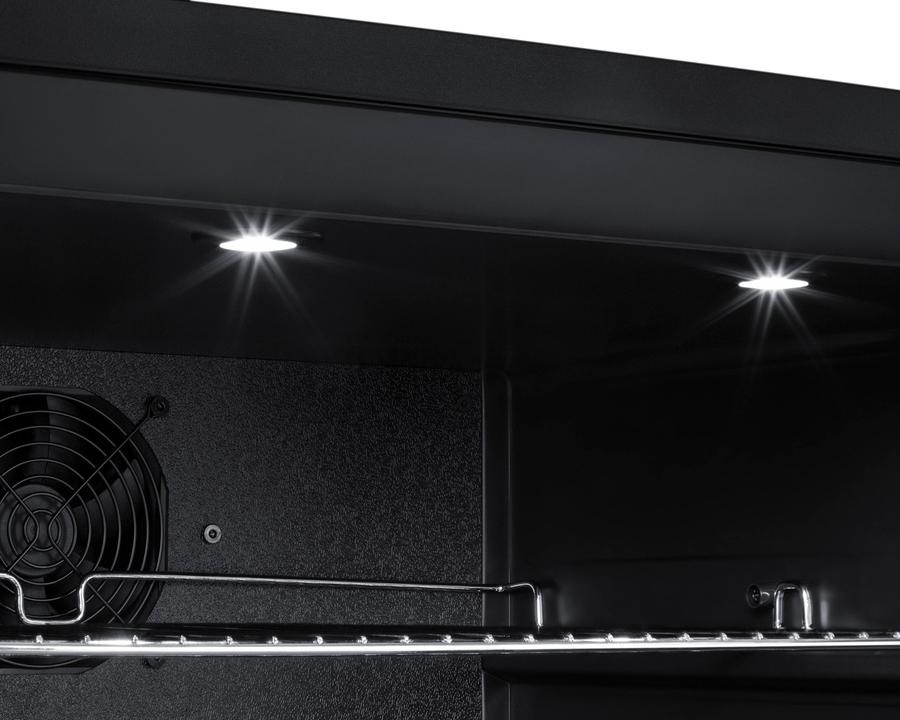

- Elegant lighting with an on/off switch located on the control panel
- User-reversible door swing for added flexibility

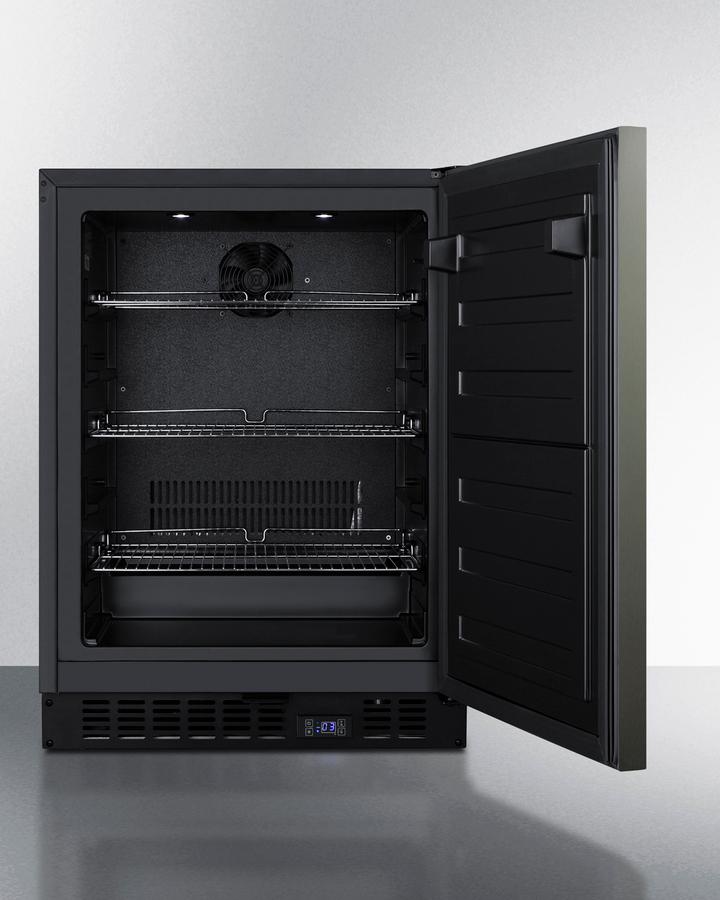

- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53KSHH is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This model's reversible door comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look. This unit has a flush back for easy cleaning and a right angle cord for added space savings. A front lock offers added security. Inside, the ALFZ53KSHH utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate. The ALFZ53KSHH freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54KSHH all-refrigerator. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options. NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.63" (60 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Black Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 92.0 lbs. (42 kg) |
| Shipping Weight | 125.5 lbs. (57 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088044 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
- 32" height allows easy installation under lower ADA compliant counters
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Keyed lock for a secure interior (2 keys included)
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability
- Pair with the AL54KSHH for a matching side-by-side set under lower ADA compliant counters
- ETL-S listed to NSF-7 commercial standards
- Allows the freezer to be used as a freestanding model
- No-frost convenience eliminates the need to manually defrost the unit
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions
- Black stainless steel door front hides most smudges and wipes clean easily with a dry cloth
- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Electronic controls offer easy and intuitive temperature management
- Elegant lighting with an on/off switch located on the control panel
- User-reversible door swing for added flexibility
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
