24" Wide Built-in All-freezer, ADA Compliant (panel Not Included)
Model ALFZ51IF
24" Wide Built-in All-freezer, ADA Compliant (panel Not Included)
Model ALFZ51IFQuick Specs
24" Wide Built-in All-freezer, ADA Compliant (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- ADA compliant\t
- 32 height allows for installation within ADA compliant spaces\t
- Commercially approved\t
- ETL-S listed to NSF-7 commercial standards\t
- Built-in capable\t
- Front-breathing design allows the unit to be built-in under counters\t

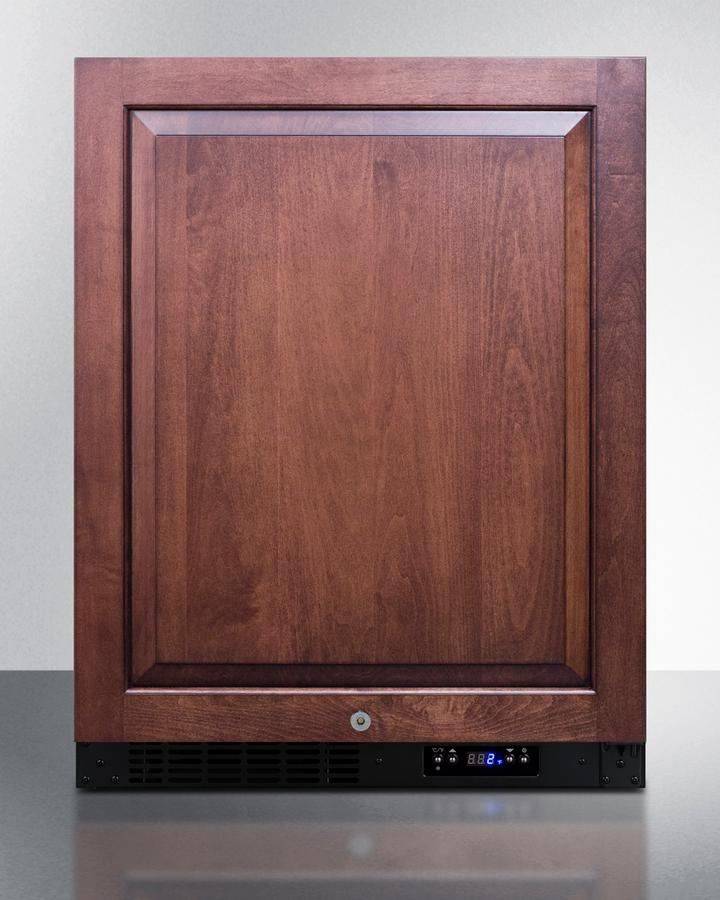

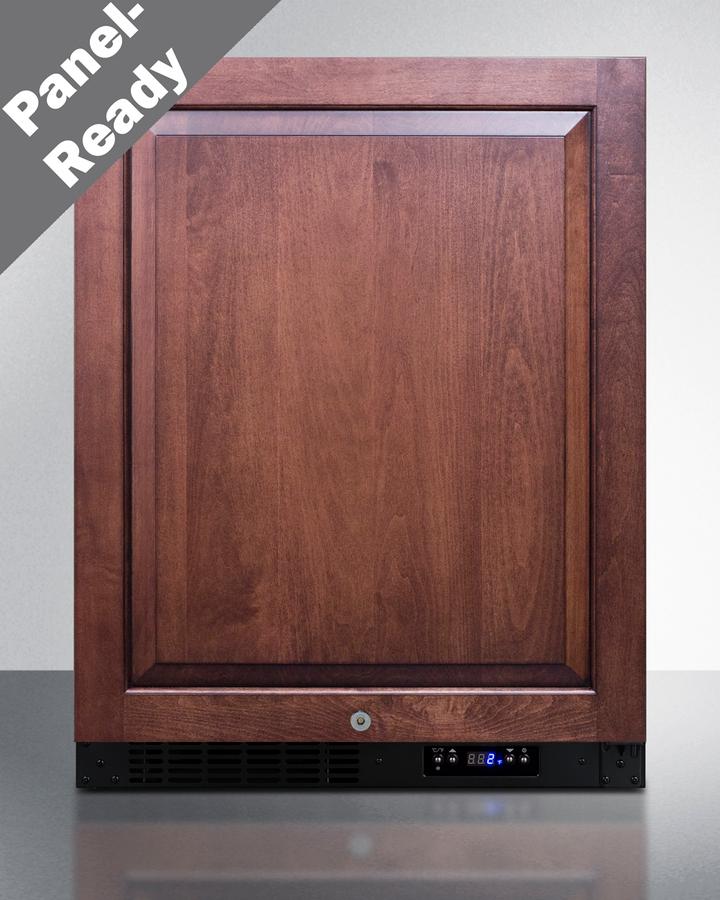

- Panel-ready door
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles\t
- Digital control panel\t
- Makes for easy temperature reading/management with electronic controls inside\t
- Factory installed lock\t
- Keyed lock for secure interior, with two keys included\t

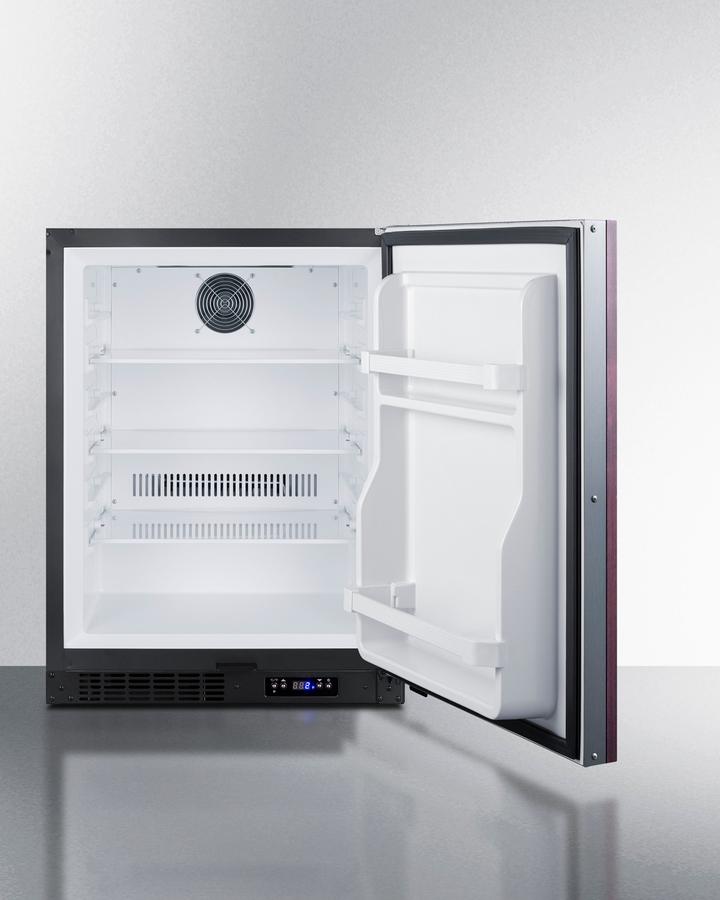

- White interior
- Classic interior allows for easy cleaning and viewing of products

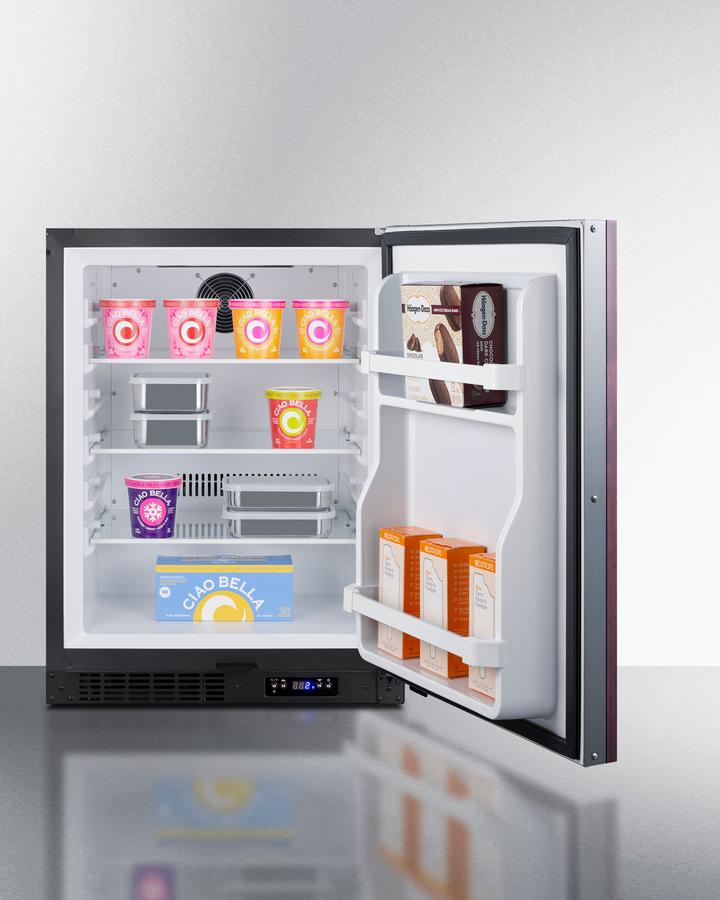

- Adjustable shelving\t
- Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior s contents
- Brake shelving system
- Provides added safety when loading and unloading the unit's 3 shelves \t
- Automatic defrost\t
- Reduced maintenance with auto defrost system\t
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom\t
- Temperature alarm\t
- Alarm sounds if temperature goes out of recommended range after 2 hours\t
- Sabbath mode\t
- Optional feature disables alarms, interior light, and displays for up to 96 hours\t
- Reversible door\t
- User-reversible door swing makes it easy to best accommodate your setting\t

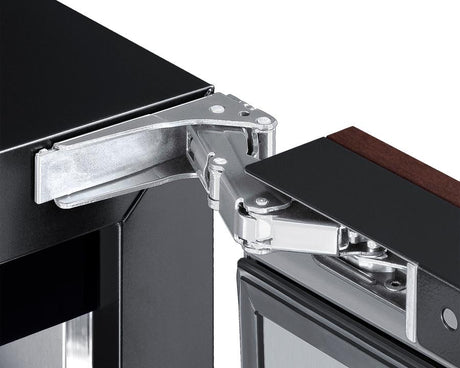

- Integrated hinge
- Flat stainless steel hinge ensures no added height is needed when installing under a counter

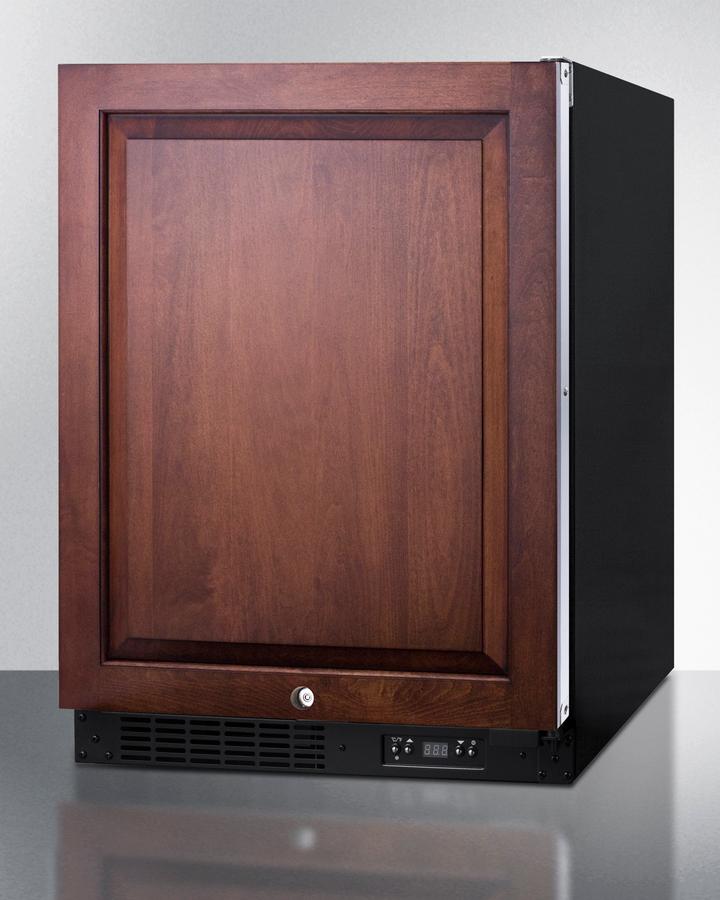

- Fully finished black cabinet\t
- Allows unit to be used freestanding\t
- Matching refrigerator
- Pair with Summit AL55IF to create a matching ADA height set
- \t100% CFC free
- Environmentally friendly design with no ozone-damaging chemicals\t
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 32 height allows for installation within ADA compliant spaces
- ETL-S listed to NSF-7 commercial standards
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Alarm sounds if temperature goes out of recommended range after 2 hours
- Optional feature disables alarms, interior light, and displays for up to 96 hours
- User-reversible door swing makes it easy to best accommodate your setting
- Flat stainless steel hinge ensures no added height is needed when installing under a counter
- Allows unit to be used freestanding
- Pair with Summit AL55IF to create a matching ADA height set
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Front-breathing design allows the unit to be built-in under counters
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Makes for easy temperature reading/management with electronic controls inside
- Keyed lock for secure interior, with two keys included
- Classic interior allows for easy cleaning and viewing of products
- Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior s contents
- Provides added safety when loading and unloading the unit's 3 shelves
- Reduced maintenance with auto defrost system
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. The ALFZ51IF is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. This unit has a flush back for easy cleaning and a right angle plug for a better fit. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled. Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach. With its advanced user features and versatile design, the ALFZ51IF is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55IF refrigerator.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.63" (80 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Capacity | 4.0 cu.ft. (113 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 380.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101089010 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 18.5" (47 cm) |
| Interior Depth | 16.75" (43 cm) |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 4 |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 18.5" (47 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 40.1 dB |
