20" Wide Built-in All-freezer, ADA Compliant
Model ALFZ37B
20" Wide Built-in All-freezer, ADA Compliant
Model ALFZ37BQuick Specs
20" Wide Built-in All-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- ADA compliant design
- 32" height allows easy installation under lower ADA compliant counters
- Built-in capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Adjustable thermostat
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
- Door shelves

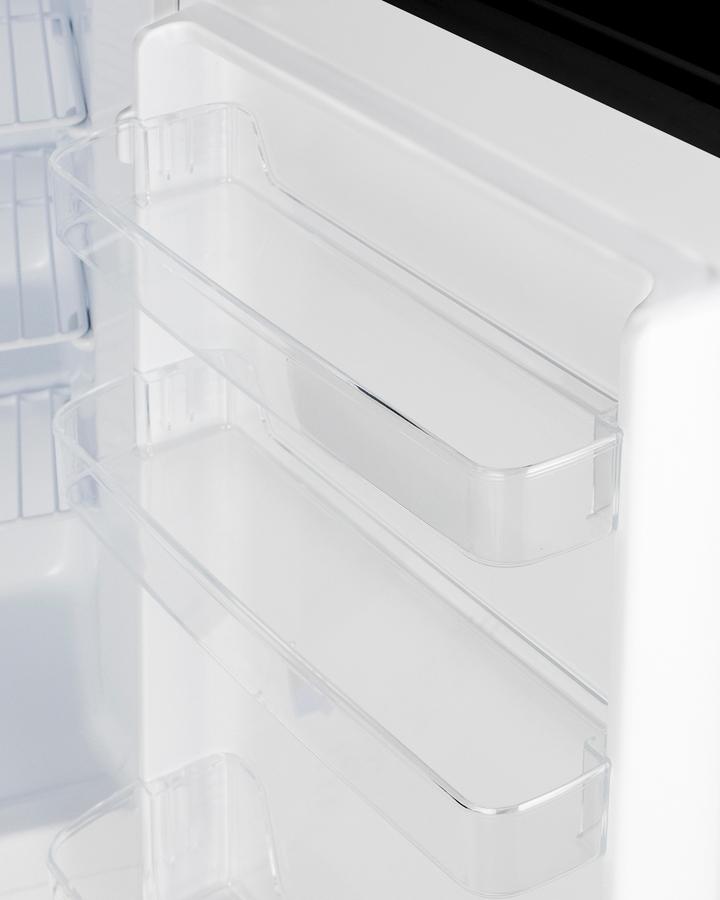

- Three removable door racks for additional storage of larger items
- Adjustable shelves
- Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- Reversible door
- User-reversible door swing for added flexibility to best accommodate your setting
- 3" thick door
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
- Temperature alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open door alarm
- Audible alarm will sound if the door is left ajar for over a minute
- Sealed back
- Space-saving design that offers easier cleanability
- Right-angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Manual defrost
- More temperature stability with an energy efficient manual defrost system
- Matching all-refrigerator

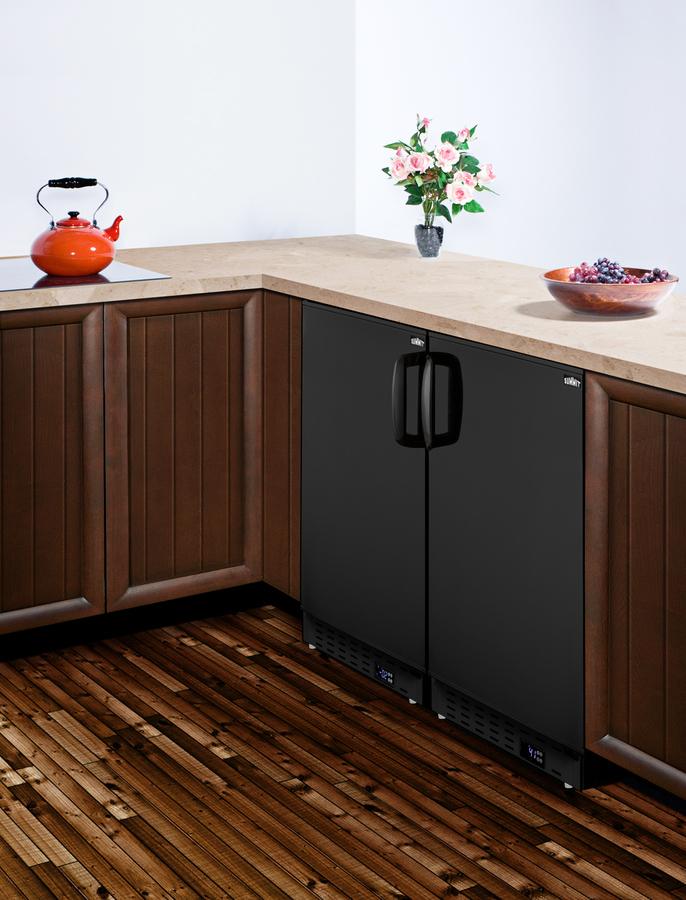

- This unit can be paired with the ALR47B all-refrigerator for a complete set
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- More temperature stability with an energy efficient manual defrost system
- This unit can be paired with the ALR47B all-refrigerator for a complete set
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
- Three removable door racks for additional storage of larger items
- Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- User-reversible door swing for added flexibility to best accommodate your setting
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Audible alarm will sound if the door is left ajar for over a minute
- Space-saving design that offers easier cleanability

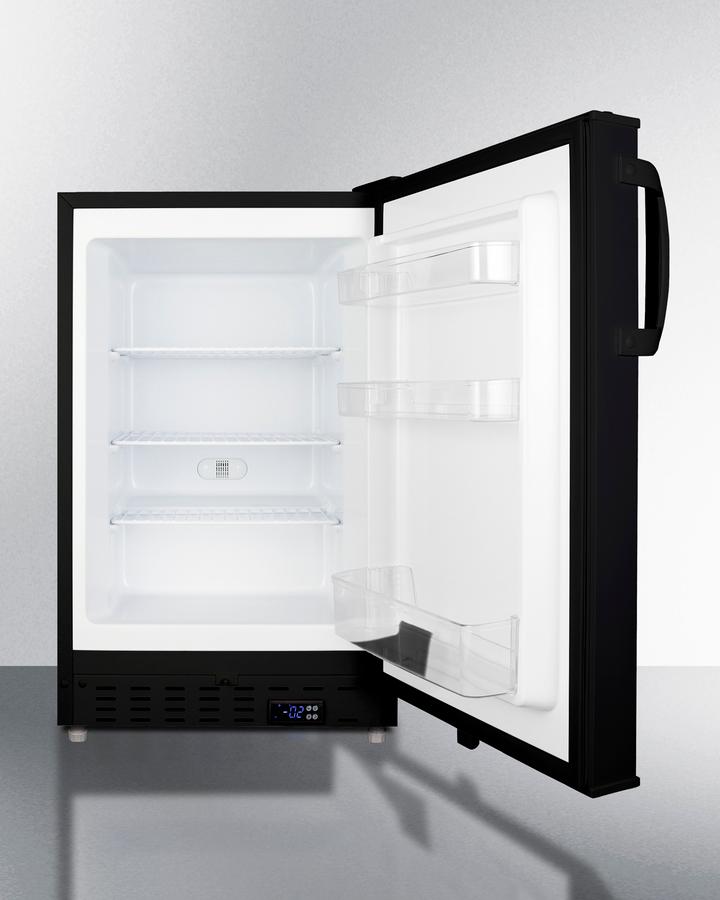

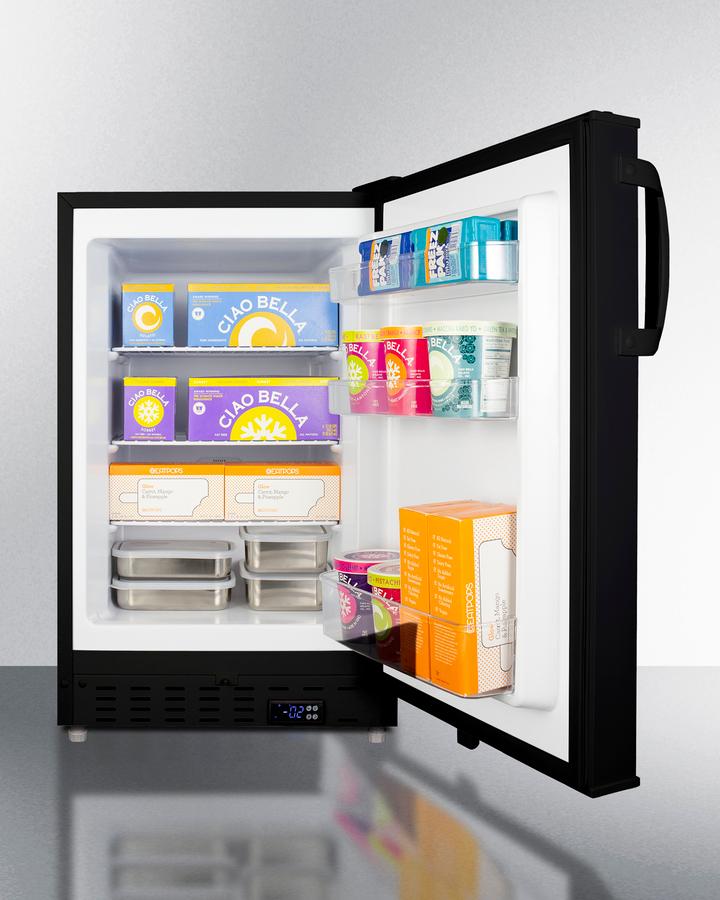

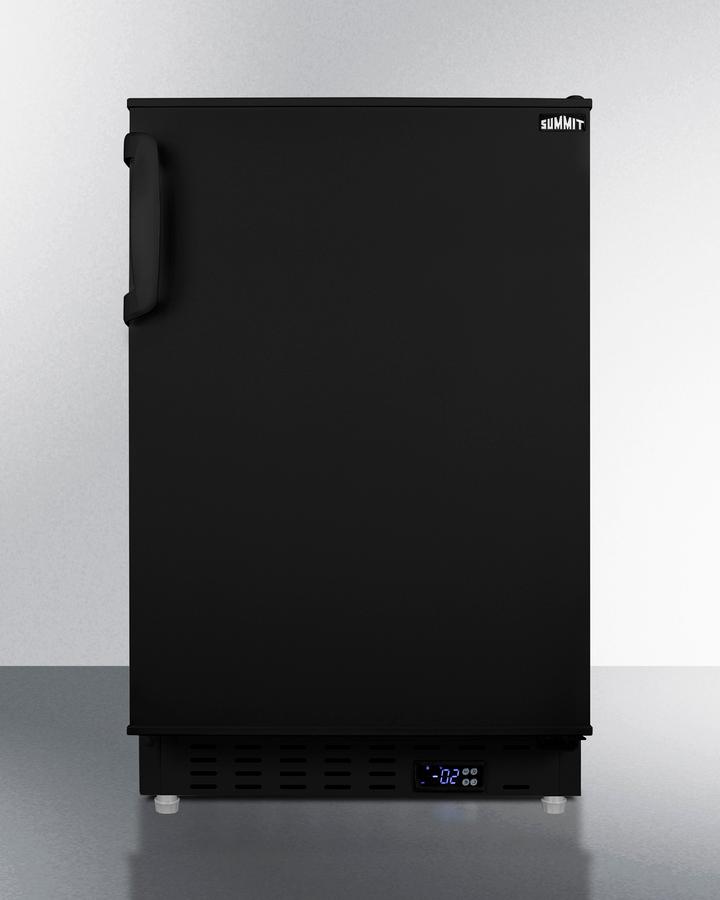

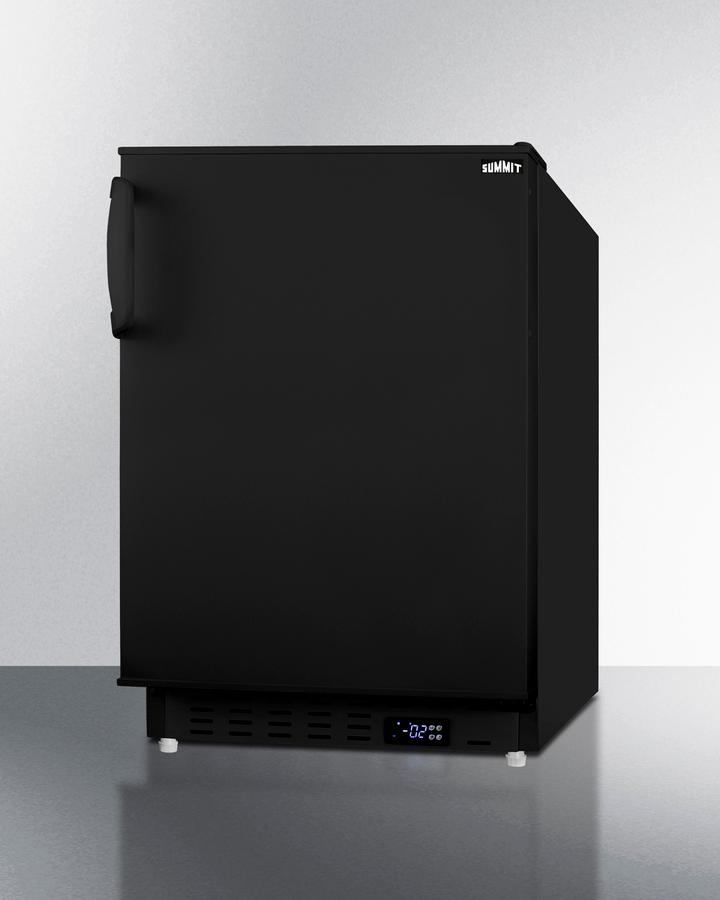

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ37B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ37B features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 20" wide, the ALFZ37B is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47B all-refrigerator. Additional choices with a stainless steel cabinet and panel-ready styles are available.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 266.0kWh/year |
| Amps | 0.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101074016 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Full Door Shelves | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.83 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Wheels | 2 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -13 to 5 F |
| Sound Level | 33.1 dBa |
