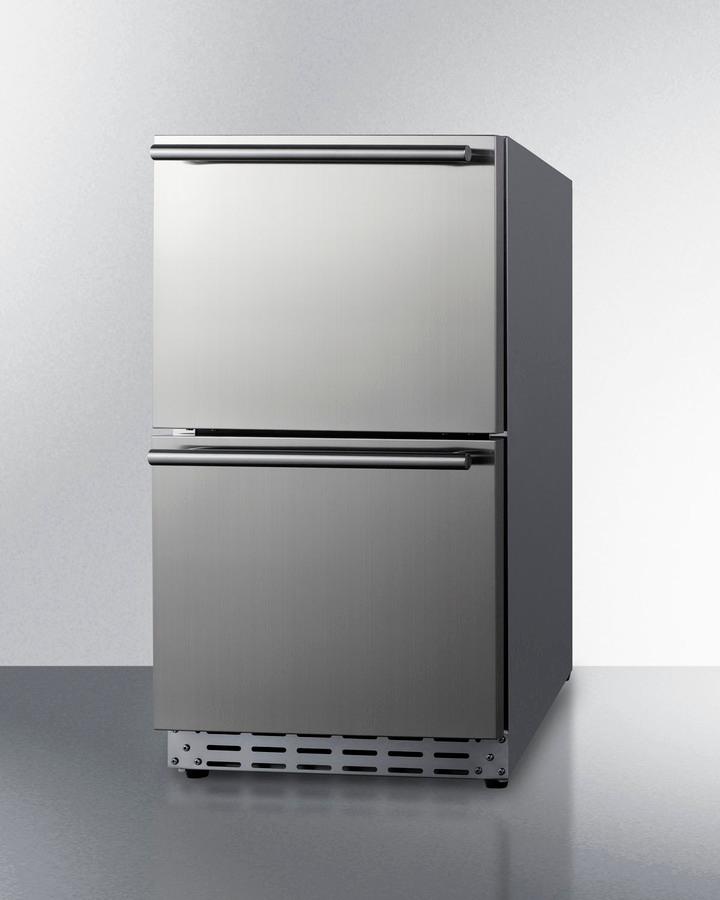

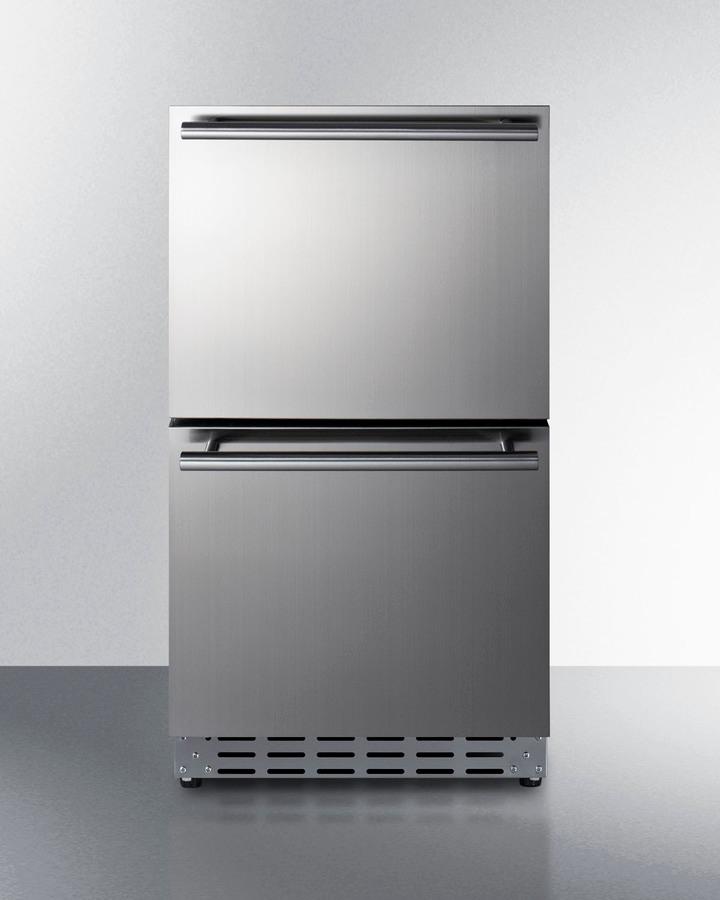

18" Wide 2-drawer All-refrigerator, ADA Compliant (panels Not Included)
Model: ADRD18PNR
18" Wide 2-drawer All-refrigerator, ADA Compliant (panels Not Included)
Model: ADRD18PNRQuick Specs
18" Wide 2-drawer All-refrigerator, ADA Compliant (panels Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 18" wide drawer refrigerator
- Two-drawer design in a unique 18" width ideal for undercounter spaces
- Commercially approved
- ETL-S listed to NSF-7 standards for commercial use
- ADA compliant
- 32 height allows for installation under lower ADA compliant counters\t

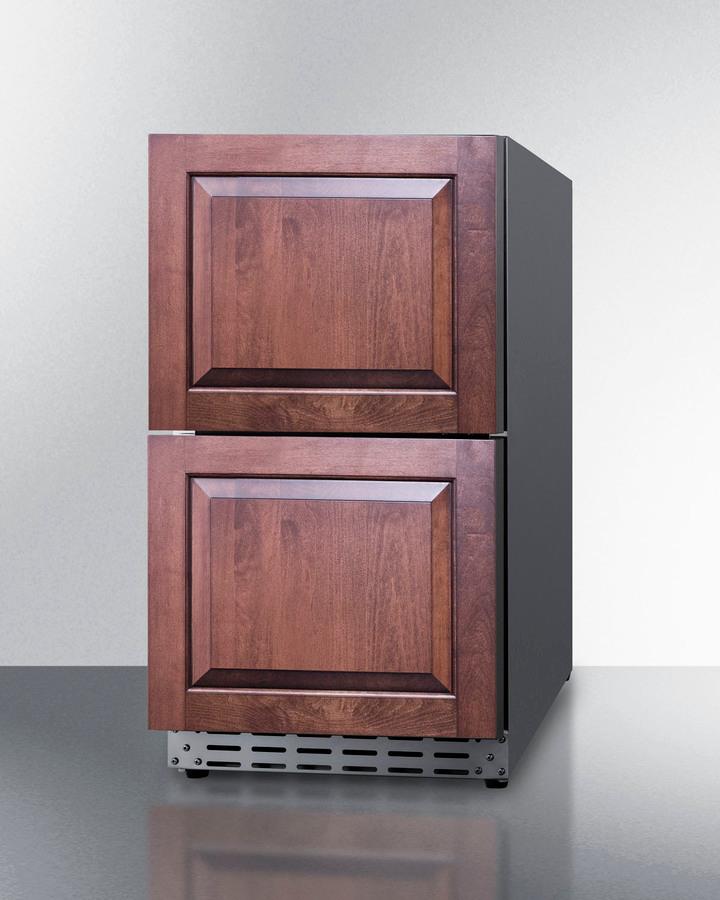

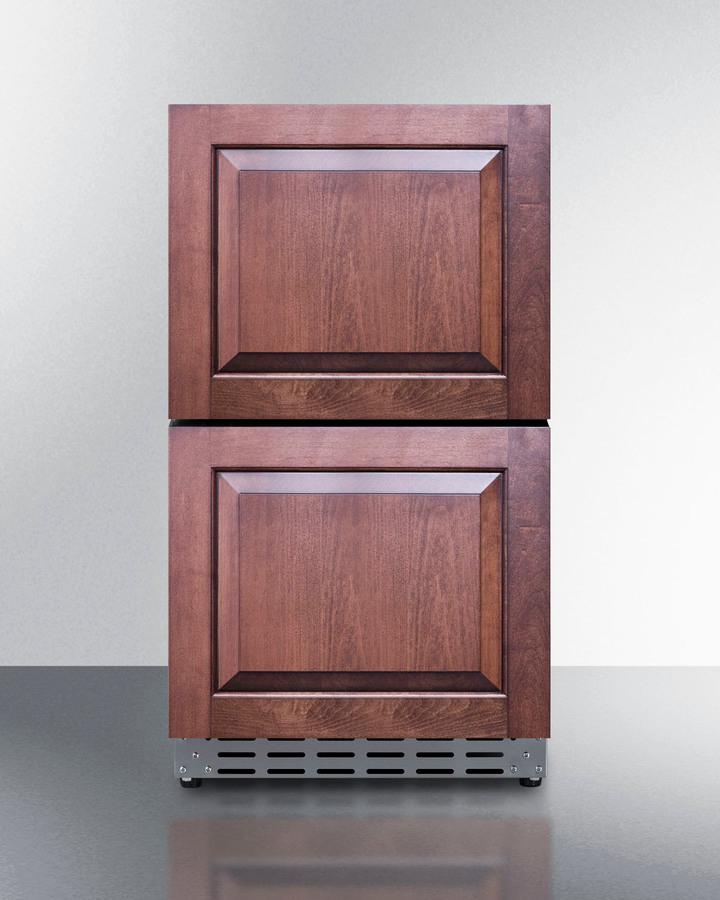

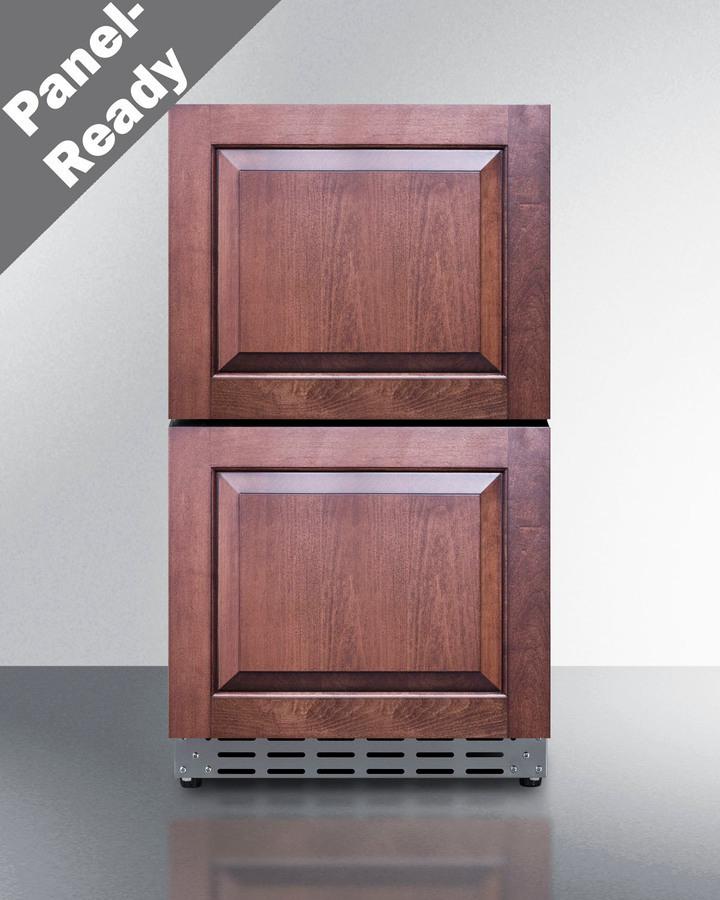

- Panel-ready drawer fronts
- Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
- Built-in capable
- Front-breathing design allows the unit to be built-in under counters
- Stainless steel construction
- Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
- Indoor/Outdoor compatible
- Durable, weatherproof construction designed to hold up to the elements

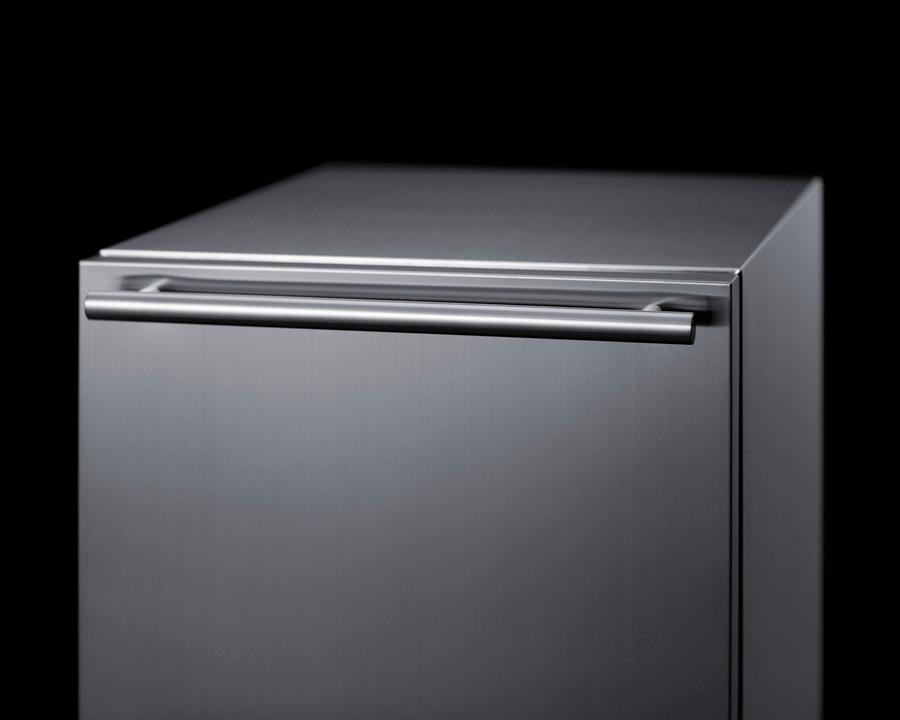

- Professional handles
- Stainless steel handles add style to any setting
- Frost-free
- No-frost operation for minimal user maintenance
- Interior lighting
- Soft LED lighting makes for easy viewing of each drawer s contents

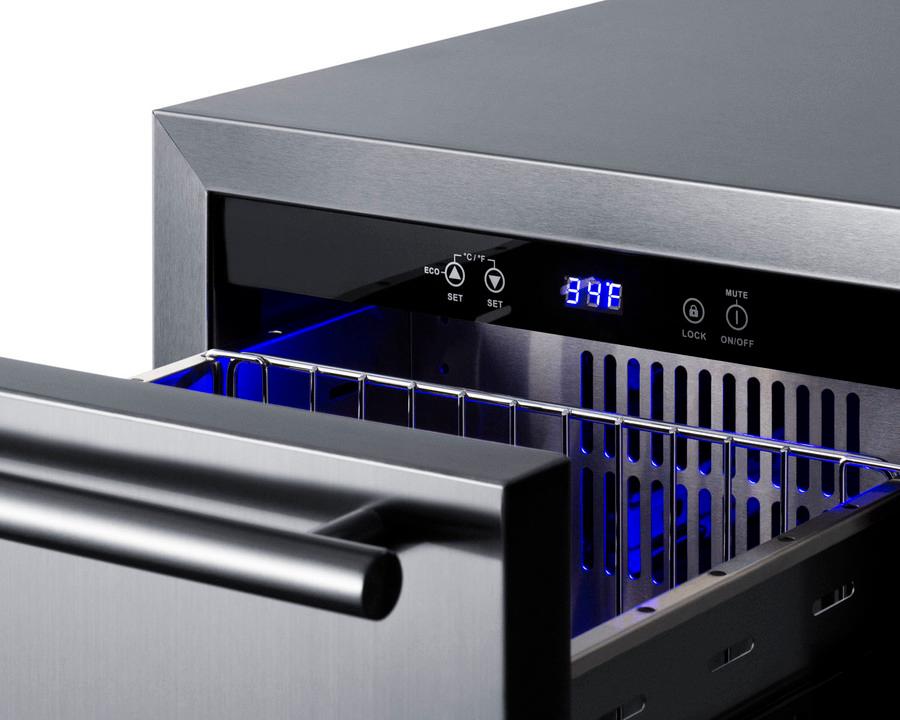

- Digital thermostat
- Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
- Digital display
- Large display allows for easy readability and unit control
- Temperature alarm
- Alarm alerts you if the unit s temperature goes beyond recommended high and low temperature ranges
- Open drawer alarm
- Audible alarm sounds if the drawers are left open for more than five minutes
- Sabbath mode
- Optional feature disables alarms, interior light, and displays for up to 96 hours

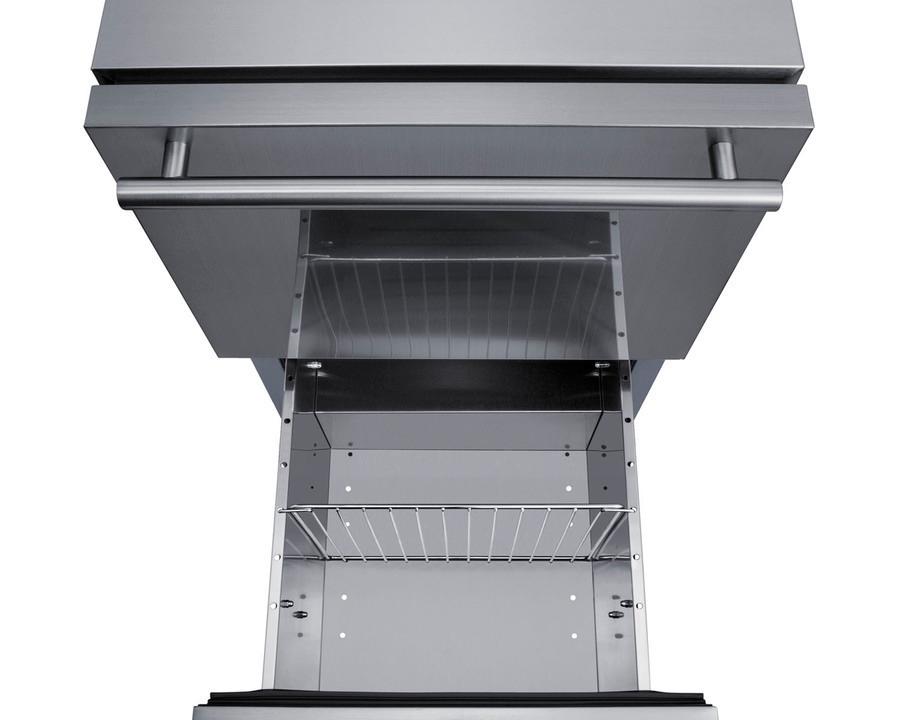

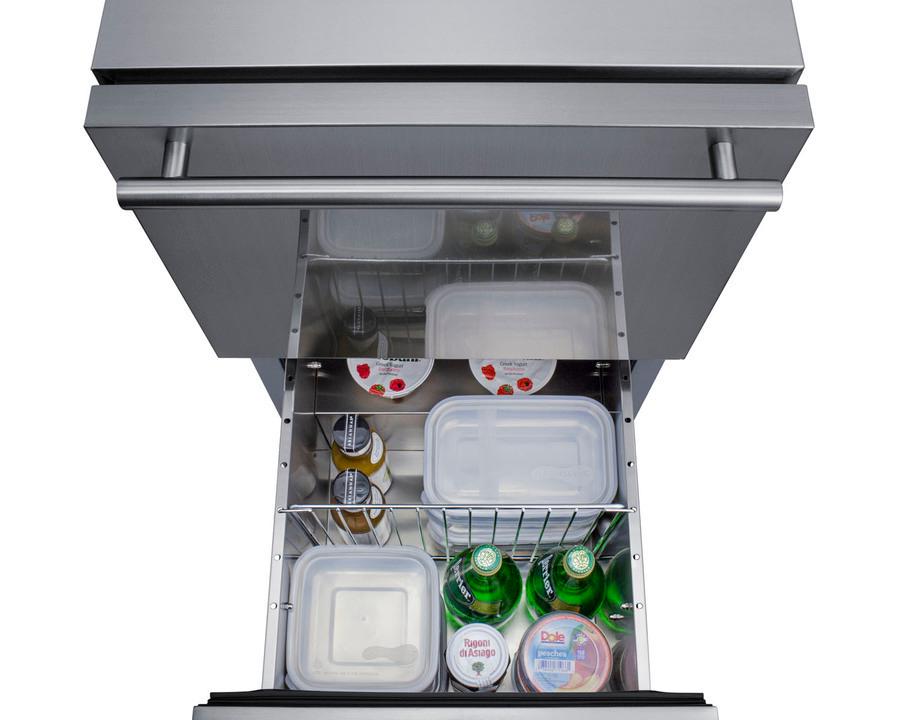

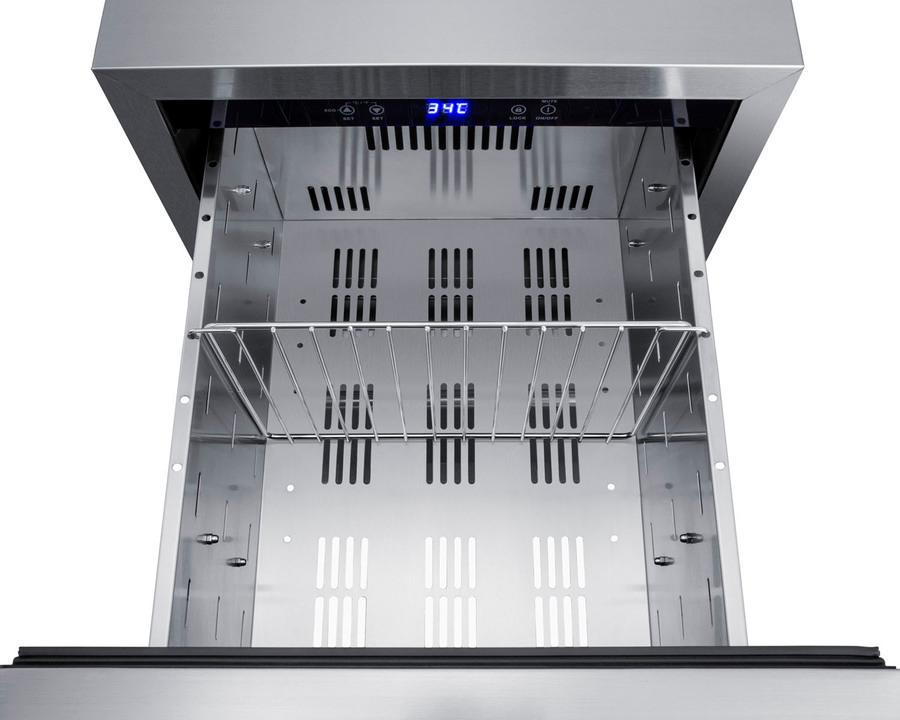

- Drawer dividers
- Each drawer includes an adjustable divider to allow easier organization of your storage

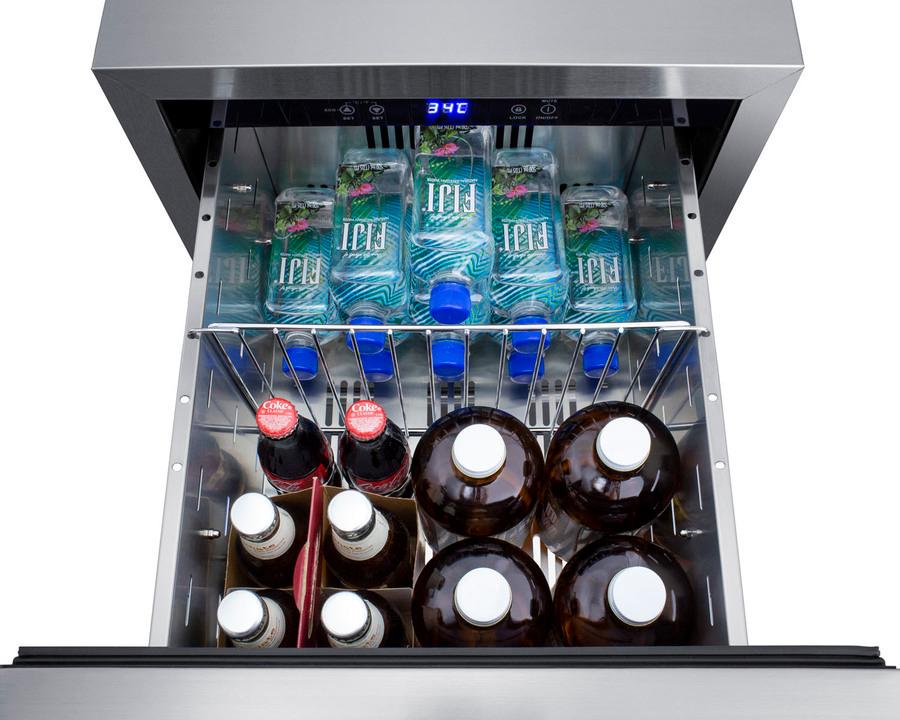

- Holds tall bottles
- Lower drawer has a 10.5" height to accommodate taller bottles as needed
- Right-angle plug
- Space-saving plug allows unit to sit flush against the wall
- Sealed back
- Ensures easier cleanup and a better fit with no exposed coils in the rear
- Fan-forced cooling
- Provides for efficient, even cooling of the entire unit
- Soft-close drawers
- Anti-slam drawers allow you to gently push to close
- Anti-tip bracket
- Included bracket recommended for installation to help prevent tipping for added safety
- Fully finished cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Two-drawer design in a unique 18" width ideal for undercounter spaces
- ETL-S listed to NSF-7 standards for commercial use
- Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
- Large display allows for easy readability and unit control
- Alarm alerts you if the unit s temperature goes beyond recommended high and low temperature ranges
- Audible alarm sounds if the drawers are left open for more than five minutes
- Optional feature disables alarms, interior light, and displays for up to 96 hours
- Each drawer includes an adjustable divider to allow easier organization of your storage
- Lower drawer has a 10.5" height to accommodate taller bottles as needed
- Space-saving plug allows unit to sit flush against the wall
- Ensures easier cleanup and a better fit with no exposed coils in the rear
- Provides for efficient, even cooling of the entire unit
- 32 height allows for installation under lower ADA compliant counters
- Anti-slam drawers allow you to gently push to close
- Included bracket recommended for installation to help prevent tipping for added safety
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
- Front-breathing design allows the unit to be built-in under counters
- Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
- Durable, weatherproof construction designed to hold up to the elements
- Stainless steel handles add style to any setting
- No-frost operation for minimal user maintenance
- Soft LED lighting makes for easy viewing of each drawer s contents
Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. The ADRD18PNR is a two-drawer all-refrigerator sized just under 32 inches high for installation under lower ADA compliant counters. The front-breathing design and finished 304 grade stainless steel cabinet allow for built-in or freestanding use. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 17.7" W x 14" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. Soft close glides allow you to gently close each drawer with a light touch. The stainless steel kickplate and stylish handles complete the look. This unit features a right angle cord and sealed rear for added space spacings. Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings. Model ADRD18PNR is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. This unit is also approved for use in outdoor kitchens. Additional 18" wide options are available in front-opening styles as refrigerators, freezers, icemakers, beverage centers, and wine cellars. Browse the complete Summit lineup for more options.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 37.0" (94 cm) |
| Capacity | 3.4 cu.ft. (96 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088709 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 34 to 65°F |
| Drawer Dimensions | |
| Interior Height 1 | 8.75" (22 cm) |
| Interior Width 1 | 12.75" (32 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Interior Height 2 | 10.5" (27 cm) |
| Interior Width 2 | 12.75" (32 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
| Dimensions | |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
