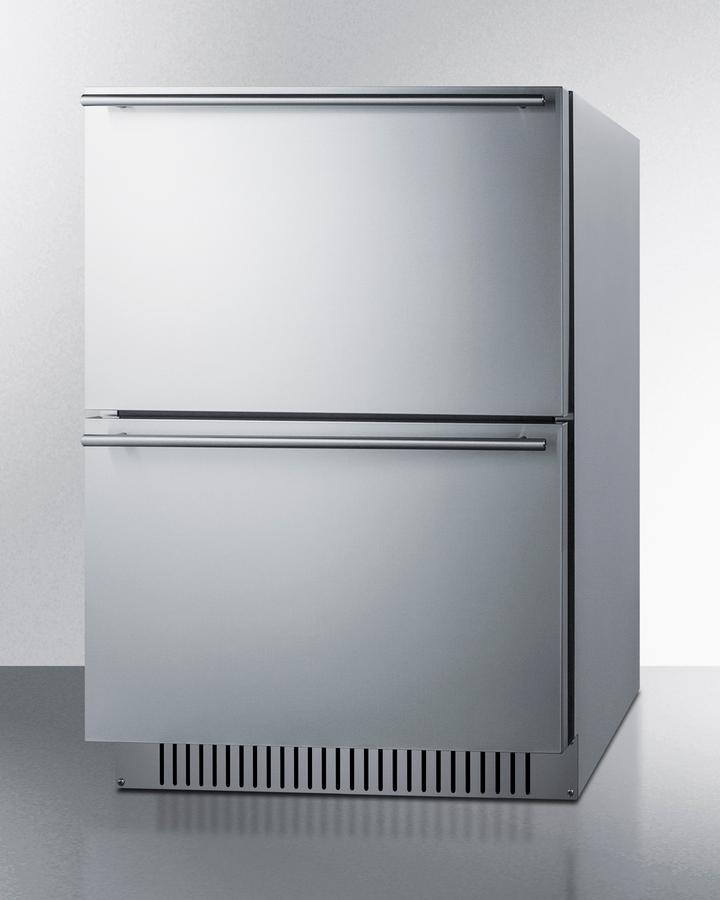

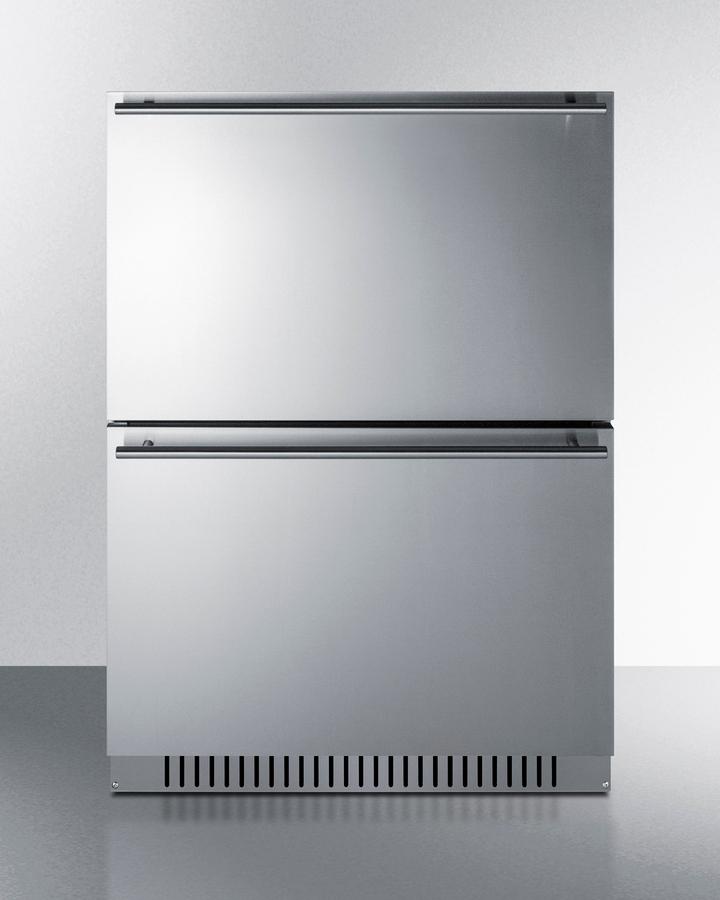

    24" Wide 2-drawer All-freezer, ADA Compliant

    Model ADFD243CSS
    Authorized Dealer
    Free Shipping
    Top Rated Store
    Authorized Dealer

    24" Wide 2-drawer All-freezer, ADA Compliant

    Model ADFD243CSS
    Free Shipping
    Top Rated Store
    Quick Specs
    Width
    23.38"
    Depth
    23.88"
    Height
    31.88"
    Freezer
    3.7
    Cu Ft
    3.7
    Size
    3.7
    ADA
    YES
    Wifi
    NO
    This item qualifies for free delivery
    Ships Out Within: 2 - 4 Business Days
    Shipping Date By: 06/29/2026
    Sale Price
    Sale price $2,759.31 Regular price $3,515.00
    You save 21%

    SERVICES AVAILABLE

    Out of stock
    Notify When Restocked
    Quick Specs
    Width
    23.38"
    Depth
    23.88"
    Height
    31.88"
    Freezer Capacity
    3.7
    Capacity (cu ft.)
    3.7
    Refrigerator Size
    3.7
    ADA
    YES
    Wifi Connected
    NO
    RPM
    -1.0
    Energy Star Rated
    NO

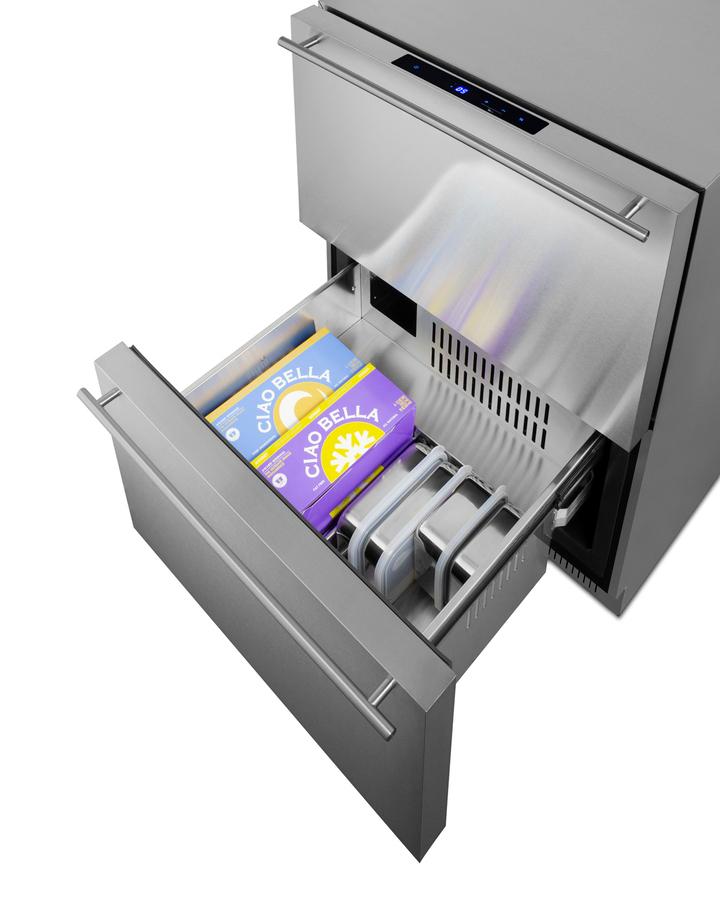

    • 2-Drawer All-Freezer

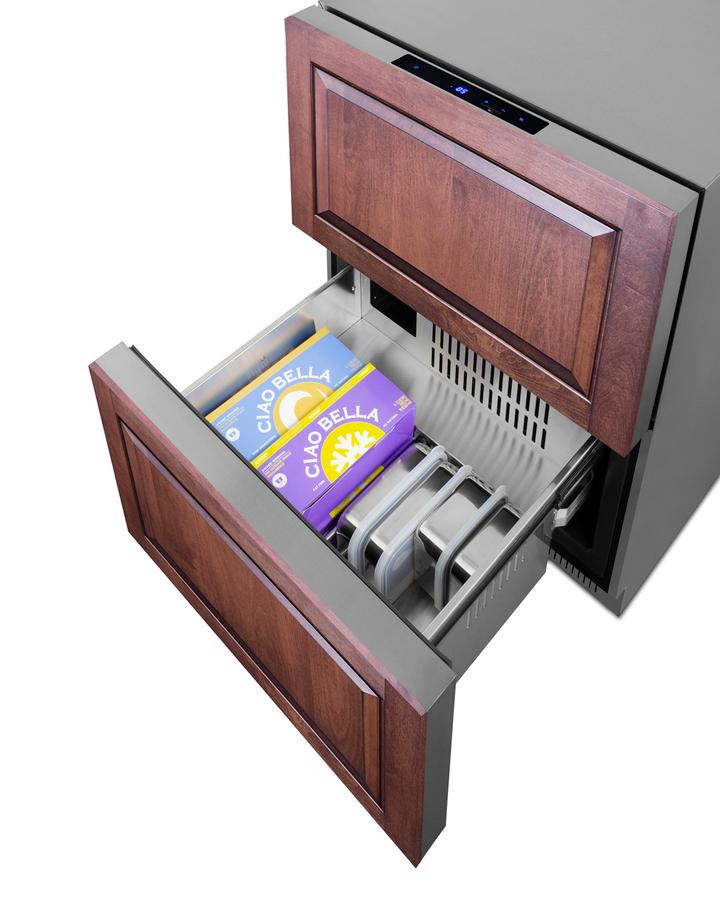

    • 24" wide 3.7 cu.ft. freezer with two gliding drawers\t
    • ADA compliant design
    • Sized just under 32" high to allow installation under lower ADA compliant counters\t
    • Built-in capable
    • Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
    • Indoor/Outdoor compatible
    • Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior\t
    • Stainless steel drawers
    • Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style\t

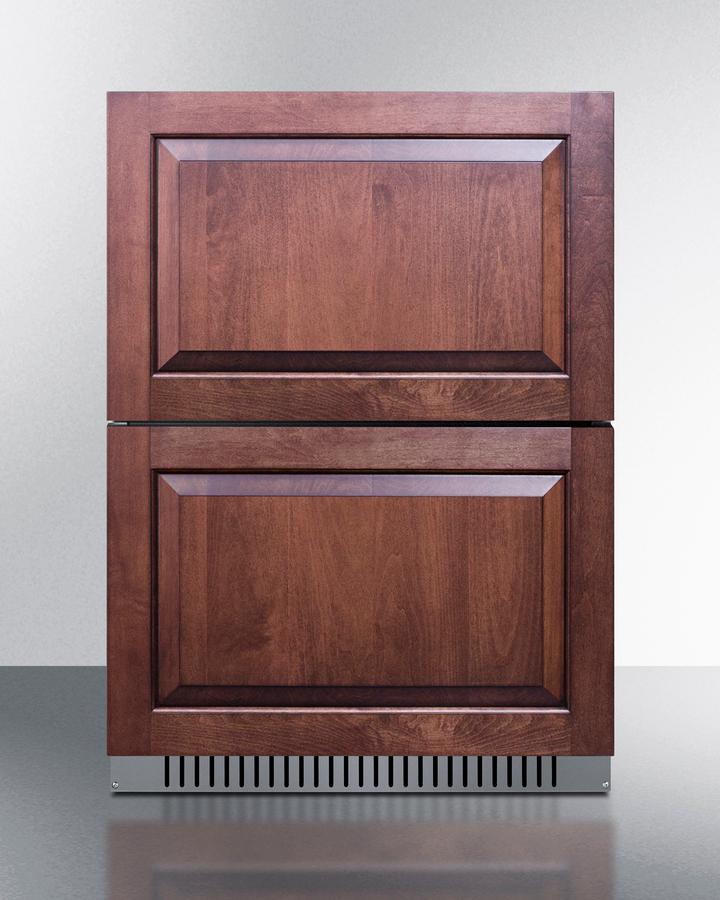

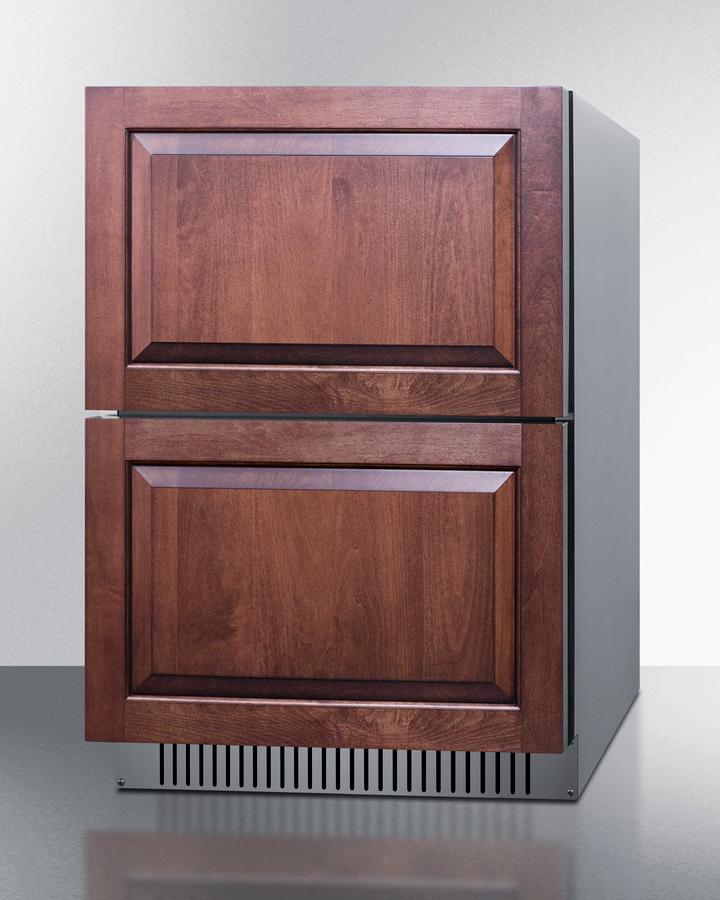

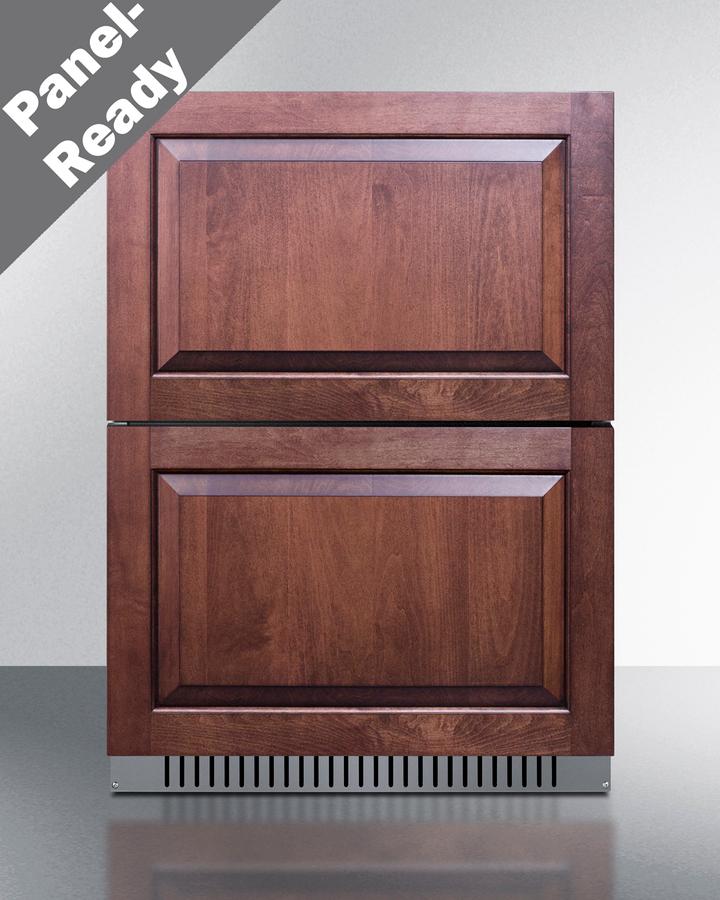

    • Panel-ready drawer fronts
    • Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design\t
    • Professional handles
    • Sleek stainless steel handles add an elegant touch to any setting
    • Frost-free operation
    • No-frost operation for minimum user maintenance

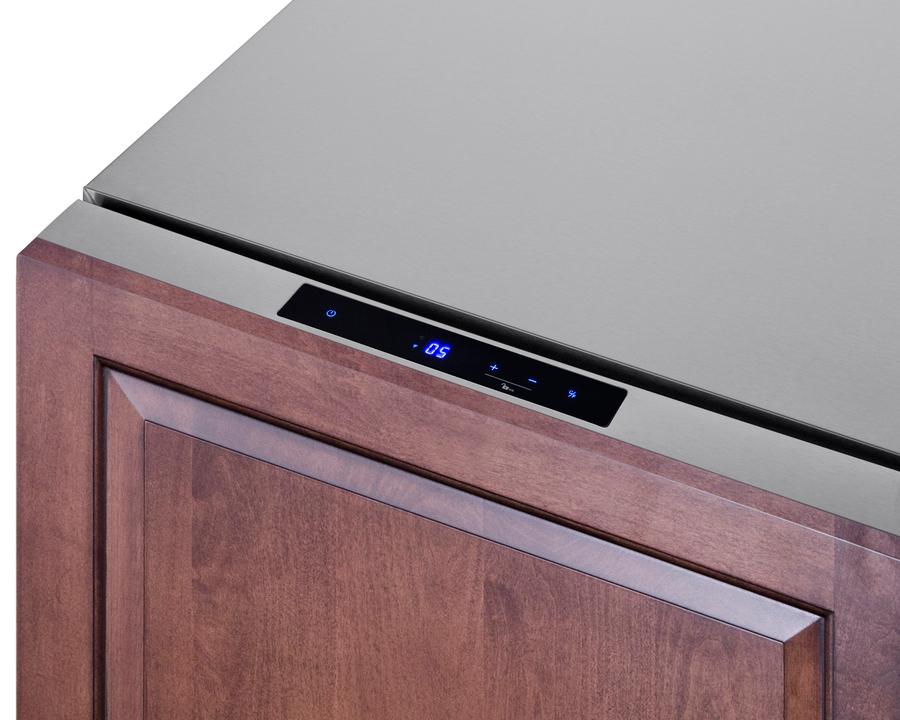

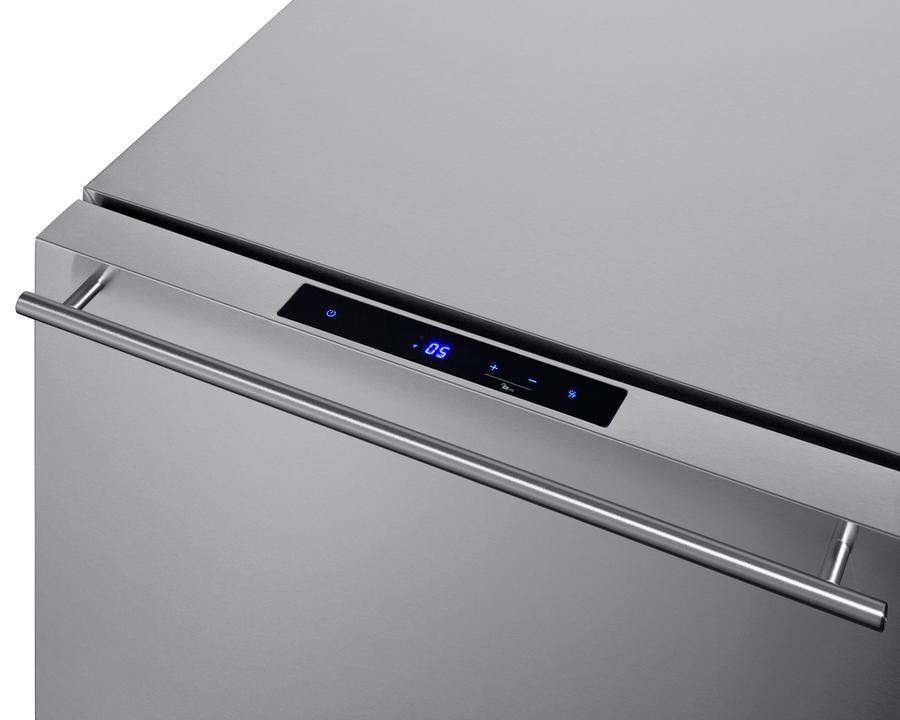

    • Digital thermostat
    • Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button\t
    • LED lighting
    • Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior\t
    • Internal fan
    • Fan-forced cooling ensures even temperature distribution from top to bottom

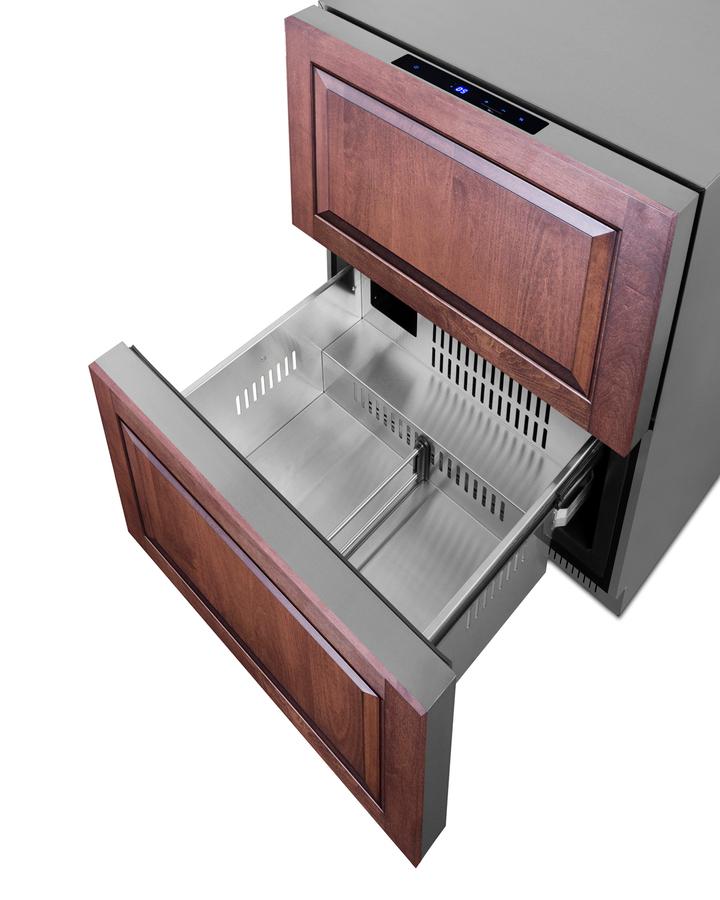

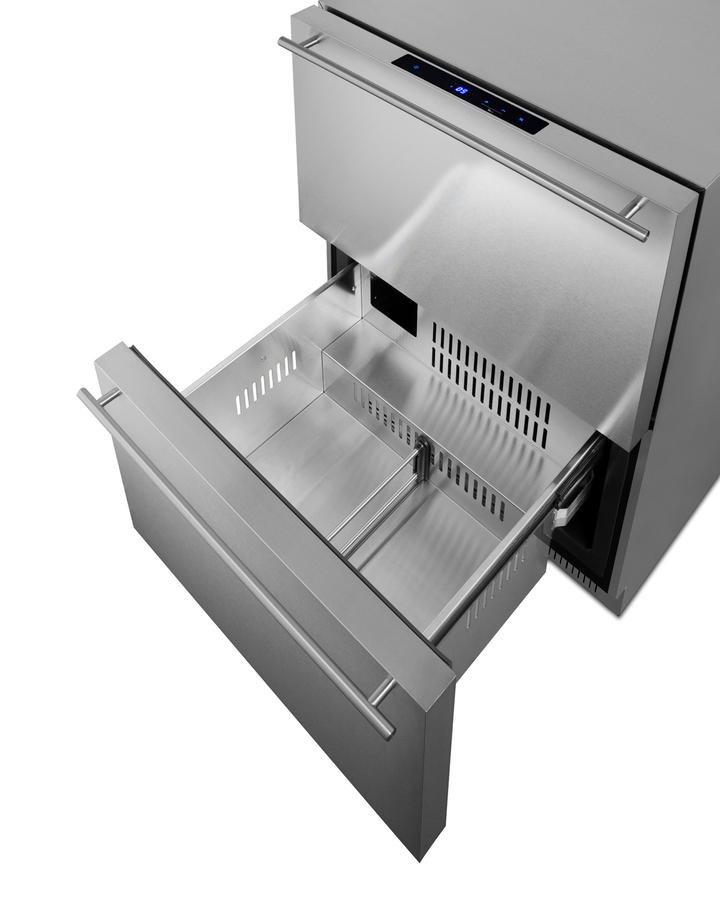

    • Drawer dividers
    • Two adjustable dividers make it easier to organize the drawer interiors

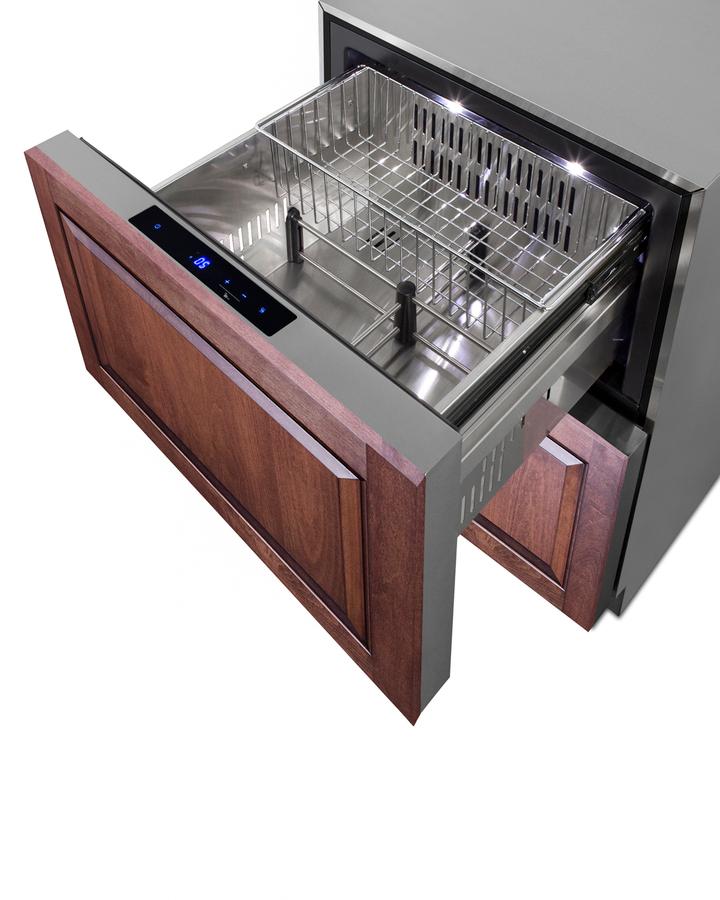

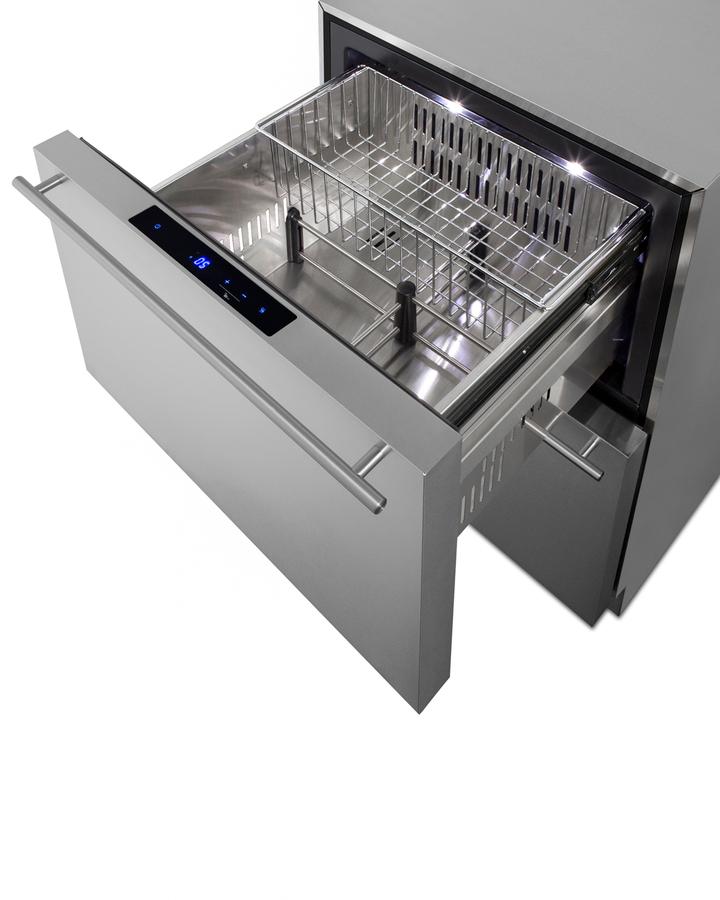

    • Sliding basket
    • Removable chrome basket included for added storage convenience
    • Temperature alarm
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Open drawer alarm
    • Audible alarm will sound if either drawer is left open longer than one minute
    • Sabbath Mode
    • Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
    • SuperFreezer function
    • Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
    • Child lock
    • Disables digital controls after two minutes of activity for added safety\t
    • Temperature Memory Function
    • Unit will restore the most recent temperature settings after losing power
    • Right angle plug
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Sealed back
    • Space-saving design with no exposed coils for easier cleanability and added protection from the elements\t
    • Stainless steel wrapped cabinet
    • 304 grade stainless steel construction around the exterior for true luxury in the home\t
    • Stainless steel kickplate
    • Completes the look right down to the toe kick\t
    • Anti-tip bracket
    • Included and recommended for user-installation to reduce the risk of tipping\t
    • Commercially approved
    • ETL-S listed to NSF-7 standards to allow use in commercial establishments\t
    • Matching refrigerator
    • Pair with the ADRD241CSS refrigerator to create a complete 2-drawer undercounter set
    • 100% CFC free
    • Environmentally friendly design without ozone-damaging chemicals
    • CARB Compliant
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    • 24" wide 3.7 cu.ft. freezer with two gliding drawers
    • Sized just under 32" high to allow installation under lower ADA compliant counters
    • Fan-forced cooling ensures even temperature distribution from top to bottom
    • Two adjustable dividers make it easier to organize the drawer interiors
    • Removable chrome basket included for added storage convenience
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Audible alarm will sound if either drawer is left open longer than one minute
    • Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
    • Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
    • Disables digital controls after two minutes of activity for added safety
    • Unit will restore the most recent temperature settings after losing power
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
    • Space-saving design with no exposed coils for easier cleanability and added protection from the elements
    • 304 grade stainless steel construction around the exterior for true luxury in the home
    • Completes the look right down to the toe kick
    • Included and recommended for user-installation to reduce the risk of tipping
    • ETL-S listed to NSF-7 standards to allow use in commercial establishments
    • Pair with the ADRD241CSS refrigerator to create a complete 2-drawer undercounter set
    • Environmentally friendly design without ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
    • Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
    • Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
    • Sleek stainless steel handles add an elegant touch to any setting
    • No-frost operation for minimum user maintenance
    • Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
    • Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

    Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADFD243CSS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The cabinet and drawers are constructed from weatherproof stainless steel for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. A stainless steel kickplate and sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADFD243CSS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243CSS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241CSS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244CSS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.

    Overview
    Nominal Height 32.0" (81 cm)
    Height of Cabinet 31.88" (81 cm)
    Nominal Width 24.0" (61 cm)
    Width 23.38" (59 cm)
    Nominal Depth 23.0" (58 cm)
    Depth 22.5" (57 cm)
    Depth with Handle 23.88" (61 cm)
    Depth with door at 90° 34.25" (87 cm)
    Capacity 3.7 cu.ft. (105 L)
    Defrost Type Frost-Free
    Door Stainless Steel/Panel-Ready
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Energy Usage/Year 395.0kWh/year
    Amps 1.5
    Voltage/Frequency 115 V AC/60 Hz
    Weight 136.0 lbs. (62 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101088235
    Freezer
    Door Swing Drawer
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.31 oz.
    High Side PSI 270.0
    Low Side PSI 105.0
    Level Legs 4
    Interior Drawers Yes
    Drawers Qty 2
    Interior Height - Drawer 1 8.0" (20 cm)
    Interior Width - Drawer 1 17.0" (43 cm)
    Interior Depth - Drawer 1 14.5" (37 cm)
    Interior Height - Drawer 2 8.0" (20 cm)
    Interior Width - Drawer 2 17.0" (43 cm)
    Interior Depth - Drawer 2 14.5" (37 cm)
    Compressor Step Height 4.0" (10 cm)
    Compressor Step Width 17.0" (43 cm)
    Compressor Step Depth 3.5" (9 cm)
    Temperature Range -11°F to 11°F
    Sabbath Mode Yes
    Sound Level 33.8 dB
    • 24" wide 3.7 cu.ft. freezer with two gliding drawers
    • Sized just under 32" high to allow installation under lower ADA compliant counters
    • Fan-forced cooling ensures even temperature distribution from top to bottom
    • Two adjustable dividers make it easier to organize the drawer interiors
    • Removable chrome basket included for added storage convenience
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Audible alarm will sound if either drawer is left open longer than one minute
    • Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
    • Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
    • Disables digital controls after two minutes of activity for added safety
    • Unit will restore the most recent temperature settings after losing power
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
    • Space-saving design with no exposed coils for easier cleanability and added protection from the elements
    • 304 grade stainless steel construction around the exterior for true luxury in the home
    • Completes the look right down to the toe kick
    • Included and recommended for user-installation to reduce the risk of tipping
    • ETL-S listed to NSF-7 standards to allow use in commercial establishments
    • Pair with the ADRD241CSS refrigerator to create a complete 2-drawer undercounter set
    • Environmentally friendly design without ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
    • Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
    • Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
    • Sleek stainless steel handles add an elegant touch to any setting
    • No-frost operation for minimum user maintenance
    • Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
    • Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
