24" Wide Built-in All-freezer, ADA Compliant
Model ACF48WSSHVADA
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
24" Wide Built-in All-freezer, ADA Compliant
Model ACF48WSSHVADAQuick Specs
Width
23.63
Depth
23.5
Height
32.25"
Freezer
3.1
Cu Ft
3.1
Size
3.1
Shelves
2
ADA
YES
24" Wide Built-in All-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$2,541.04
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
23.63
Depth
23.5
Height
32.25"
Freezer Capacity
3.1
Capacity (cu ft.)
3.1
Refrigerator Size
3.1
Refrigerator number of Shelves
2
ADA
YES
Wifi Connected
NO
RPM
-1.0
Energy Star Rated
NO
- ADA compliant
- 32" height is designed to fit under lower ADA compliant counters
- Slim undercounter dimensions
- Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Built-in capable
- Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Frost-free operation
- Low maintenance design ensures no frost buildup inside the unit
- Digital temperature control
- Electronic controls located in the exterior kickplate for precise temperature management
- Stainless steel wrapped door
- Durable design with easy cleanability
- Professional stainless steel handle
- Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
- Factory installed lock
- Keyed lock for added security, located towards the top of the door to ensure convenient access
- Removable shelves
- Includes two slide-out shelves made from durable steel
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Flat door liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Hospital grade cord
- Secure three-pronged cord for added unit safety
- Fully finished white cabinet
- Allows the unit to be used freestanding
- Matching refrigerator available
- Pair with the FF7LBISSHVADA to create a matching set
- Foamed-in-place cabinet
- Quality design ensures efficiently insulated interior
- Commercially approved
- Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- 100% CFC free
- Environmentally friendly design does not contain ozone-damaging chemicals
- 32" height is designed to fit under lower ADA compliant counters
- Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Secure three-pronged cord for added unit safety
- Allows the unit to be used freestanding
- Pair with the FF7LBISSHVADA to create a matching set
- Quality design ensures efficiently insulated interior
- Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- Environmentally friendly design does not contain ozone-damaging chemicals
- Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Low maintenance design ensures no frost buildup inside the unit
- Electronic controls located in the exterior kickplate for precise temperature management
- Durable design with easy cleanability
- Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
- Keyed lock for added security, located towards the top of the door to ensure convenient access
- Includes two slide-out shelves made from durable steel
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom

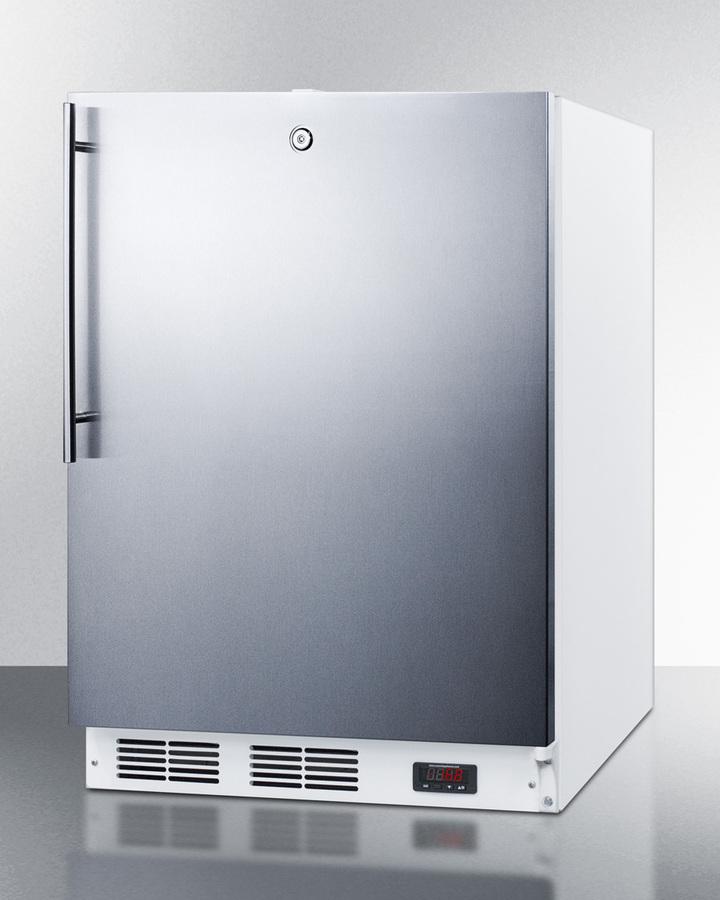

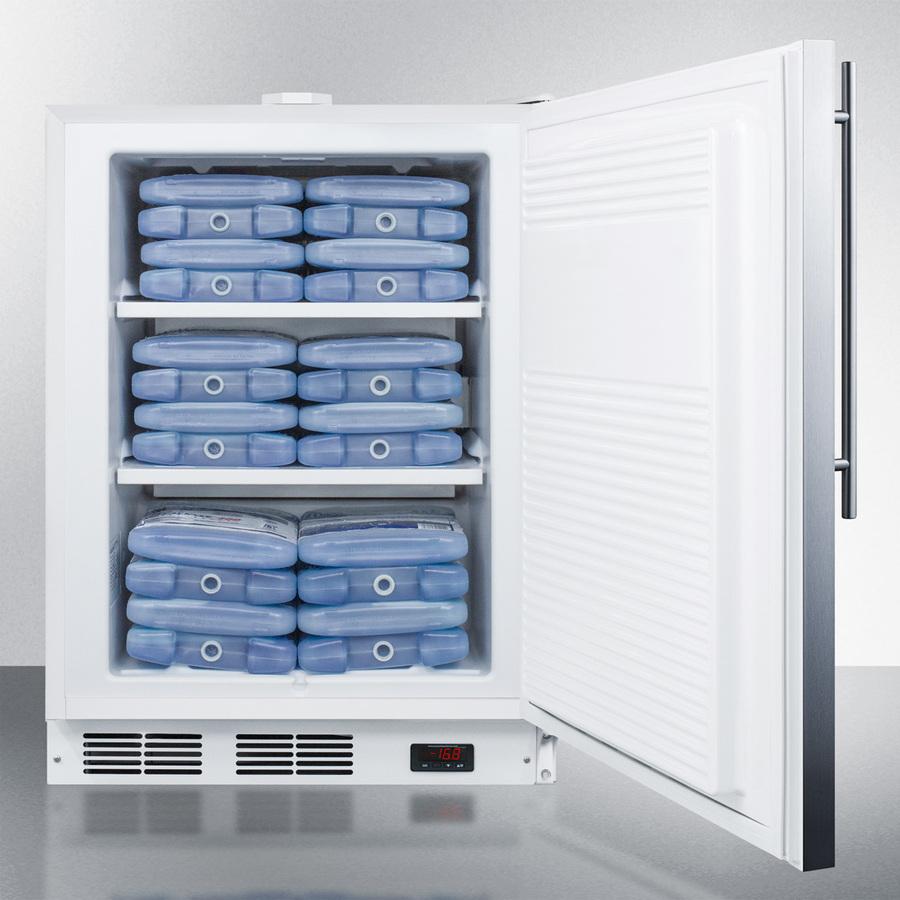

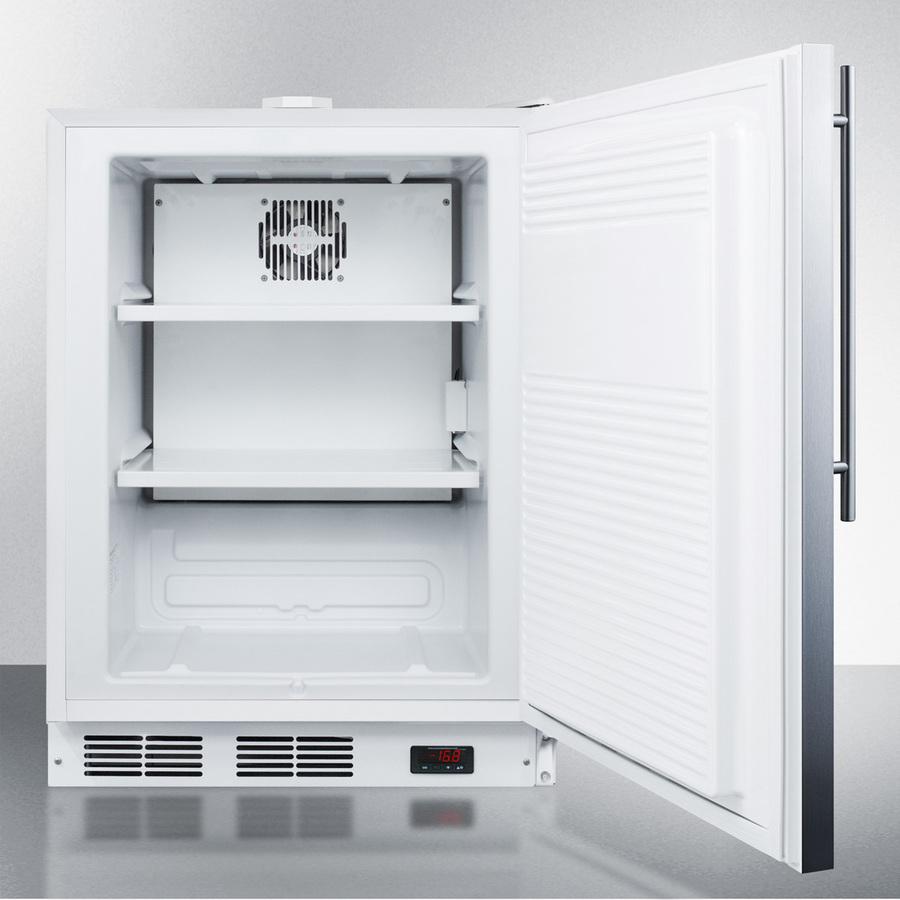

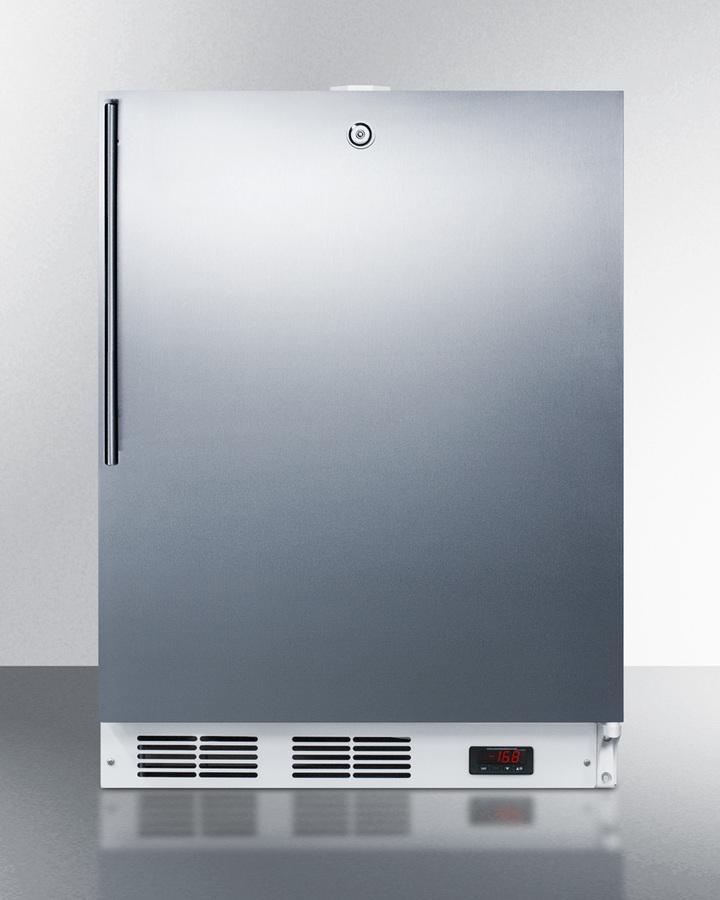

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter. At 24" wide and 32" high, the ACF48WSSHVADA is ideally sized for various institutional settings with ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The door includes a factory installed keyed lock for added security. This model comes with a white cabinet and stainless steel wrapped door with a thin pro style handle. It includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas. Full frost-free operation ensures low maintenance operation, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves. Made in the USA, the ACF48WSSHVADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101052427 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Steel |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.2 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Temperature Range | -5 to 10 F/-20 to -12 C |
