24" Wide Built-in All-freezer
Model: ACF48W
24" Wide Built-in All-freezer
Model: ACF48WQuick Specs
24" Wide Built-in All-freezer is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Slim undercounter dimensions
- Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Built-in capable
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Frost-free operation
- Low maintenance design ensures no frost buildup inside the unit
- Digital temperature control
- Electronic controls located in the exterior kickplate for precise temperature management
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Factory installed lock
- Keyed lock for added security, located towards the top of the door to ensure convenient access
- Removable shelves
- Includes two slide-out shelves made from durable steel
- One piece interior liner
- Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Reversible door
- User-reversible door swing for added flexibility
- Hospital grade cord
- Secure three-pronged cord for added unit safety
- Flat door liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Fully finished white cabinet
- Allows the unit to be used freestanding
- Matching refrigerator available
- Pair with the FF7LBI to create a matching set
- Foamed-in-place cabinet
- Quality design ensures efficiently insulated interior
- Commercially approved
- Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Allows the unit to be used freestanding
- Pair with the FF7LBI to create a matching set
- Quality design ensures efficiently insulated interior
- Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- Environmentally friendly design without ozone-damaging chemicals
- Low maintenance design ensures no frost buildup inside the unit
- Electronic controls located in the exterior kickplate for precise temperature management
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Keyed lock for added security, located towards the top of the door to ensure convenient access
- Includes two slide-out shelves made from durable steel
- Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- User-reversible door swing for added flexibility
- Secure three-pronged cord for added unit safety

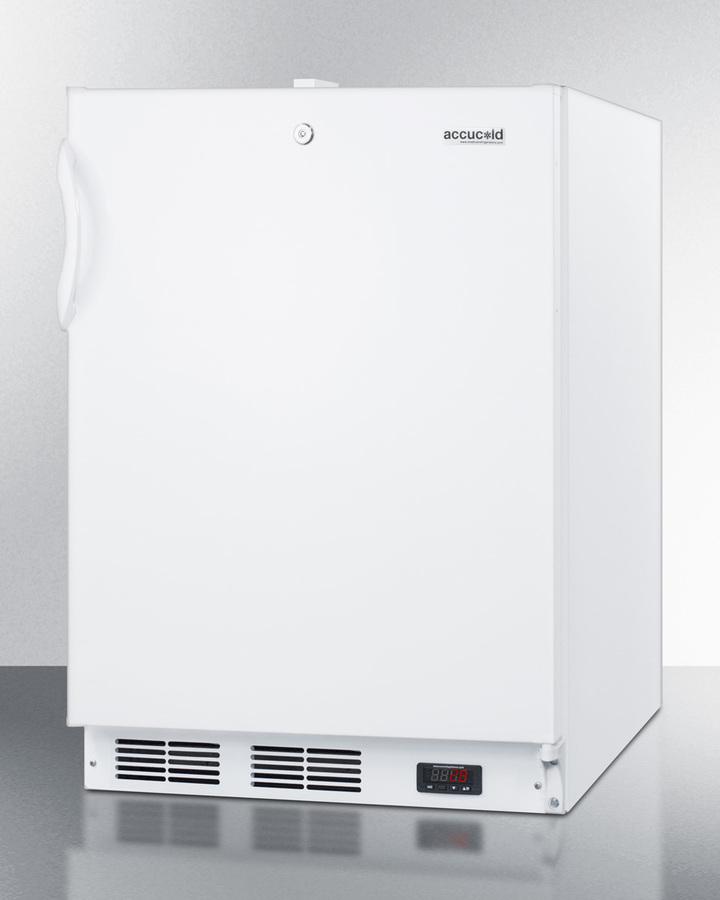

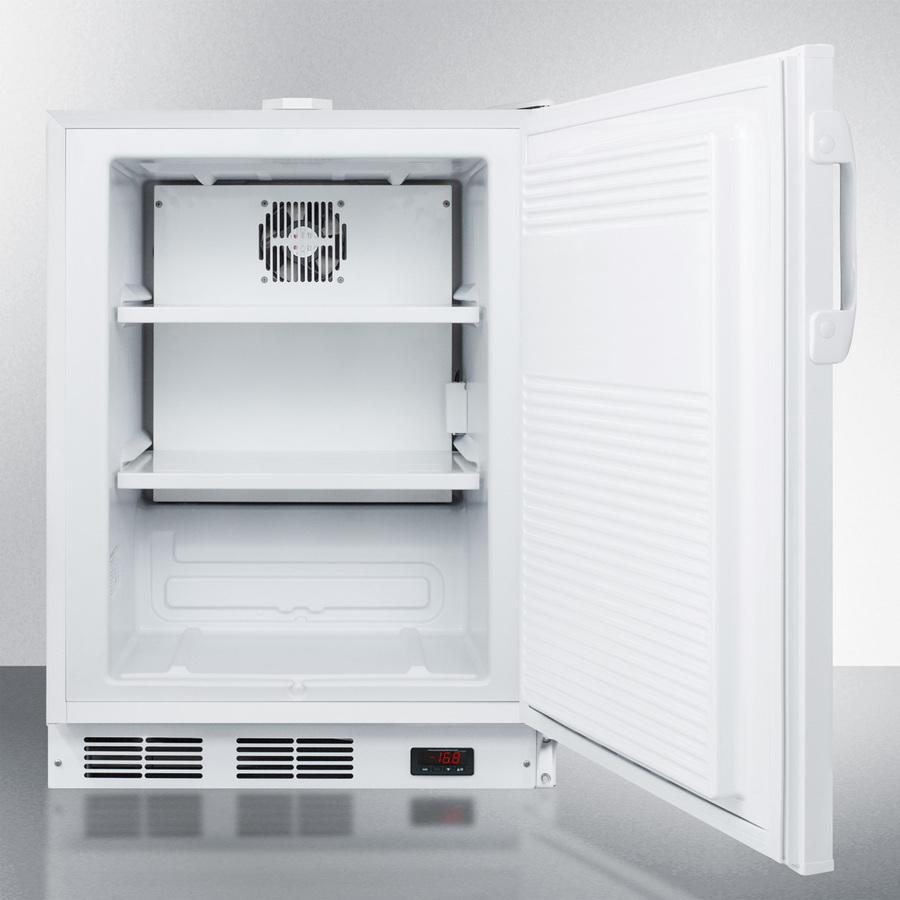

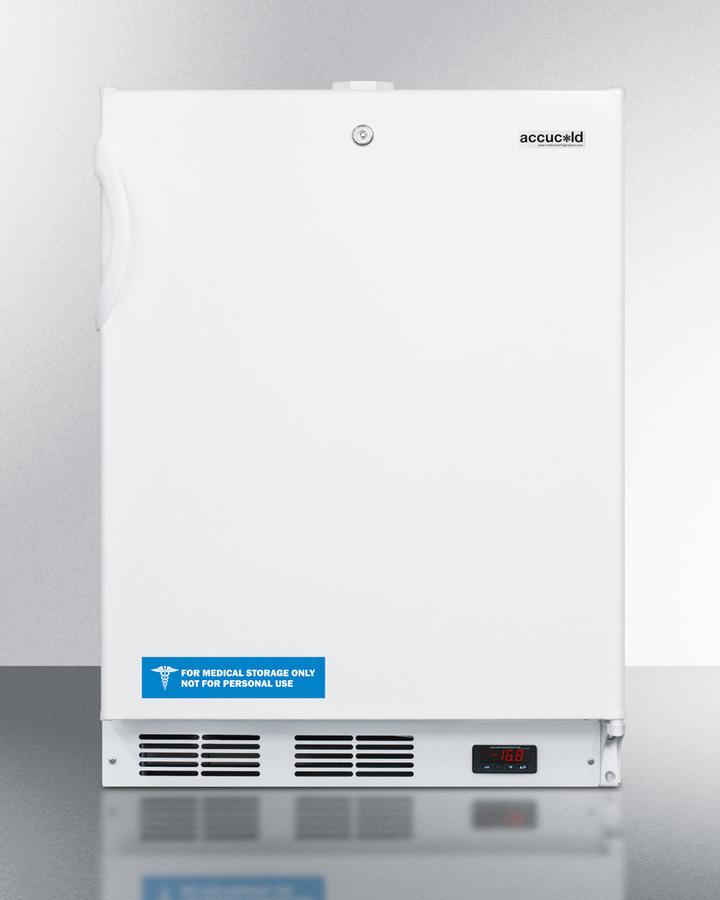

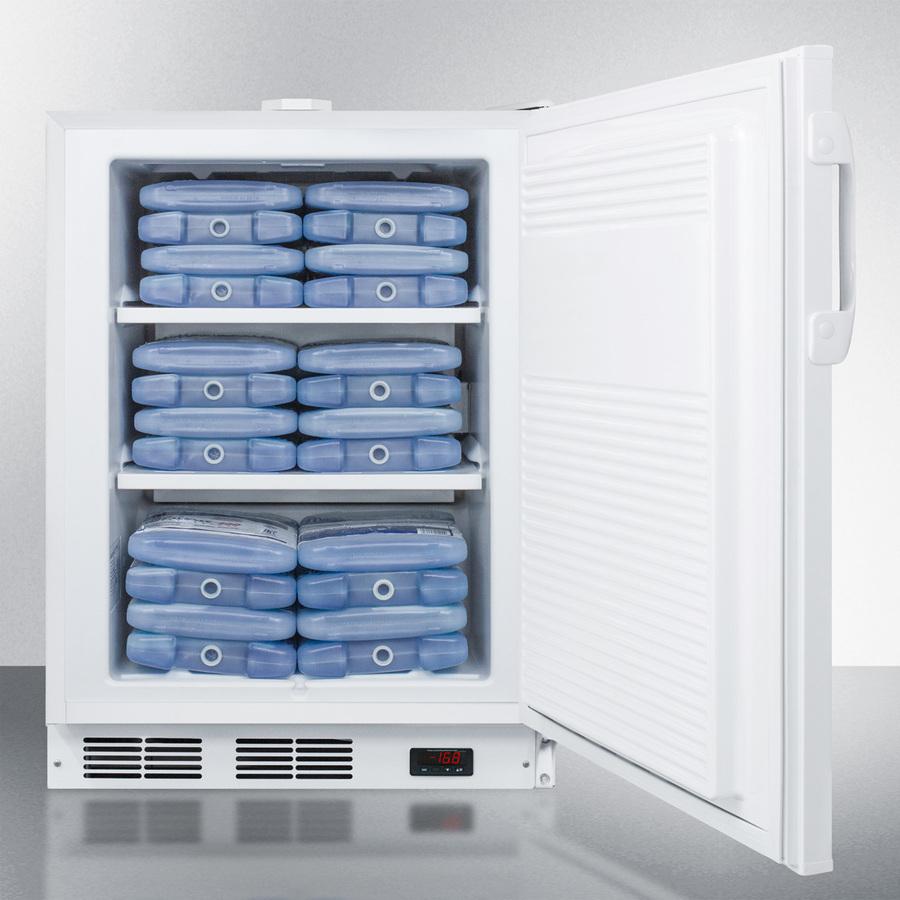

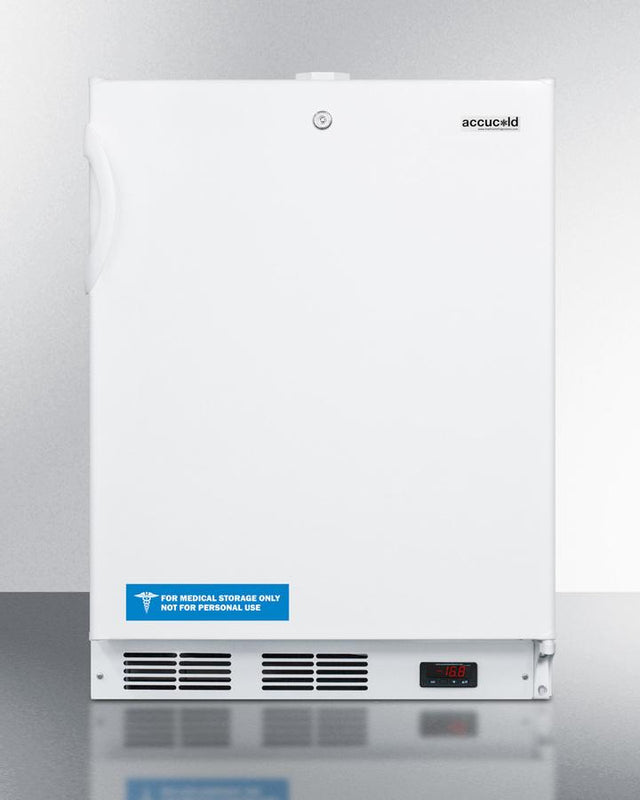

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter. At 24" wide, the ACF48W is ideally sized for various institutional or laboratory settings. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas. Full frost-free operation ensures low maintenance operation, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves. Made in the USA, the ACF48W offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. For this unit sized for use under ADA compliant counters, see the ACF48WADA. Additional door finishes are available. This model can also be paired with the matching FF7LWBI all-refrigerator.
| Overview | |
| Nominal Height | 33.0" (84 cm) |
| Height of Cabinet | 33.0" (84 cm) |
| Height to Hinge Cap | 33.5" (85 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 21.63" (55 cm) |
| Depth with Handle | 23.5" (60 cm) |
| Depth with door at 90° | 44.25" (112 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.5 |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101051345 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | 33" to 34.5" |
| Interior Height | 24.5" (62 cm) |
| Interior Width | 17.5" (44 cm) |
| Interior Depth | 14.5" (37 cm) |
| Shelf Type | Steel |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.2 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 3.0" (8 cm) |
| Temperature Range | -5 to 10 F/-20 to -12 C |
