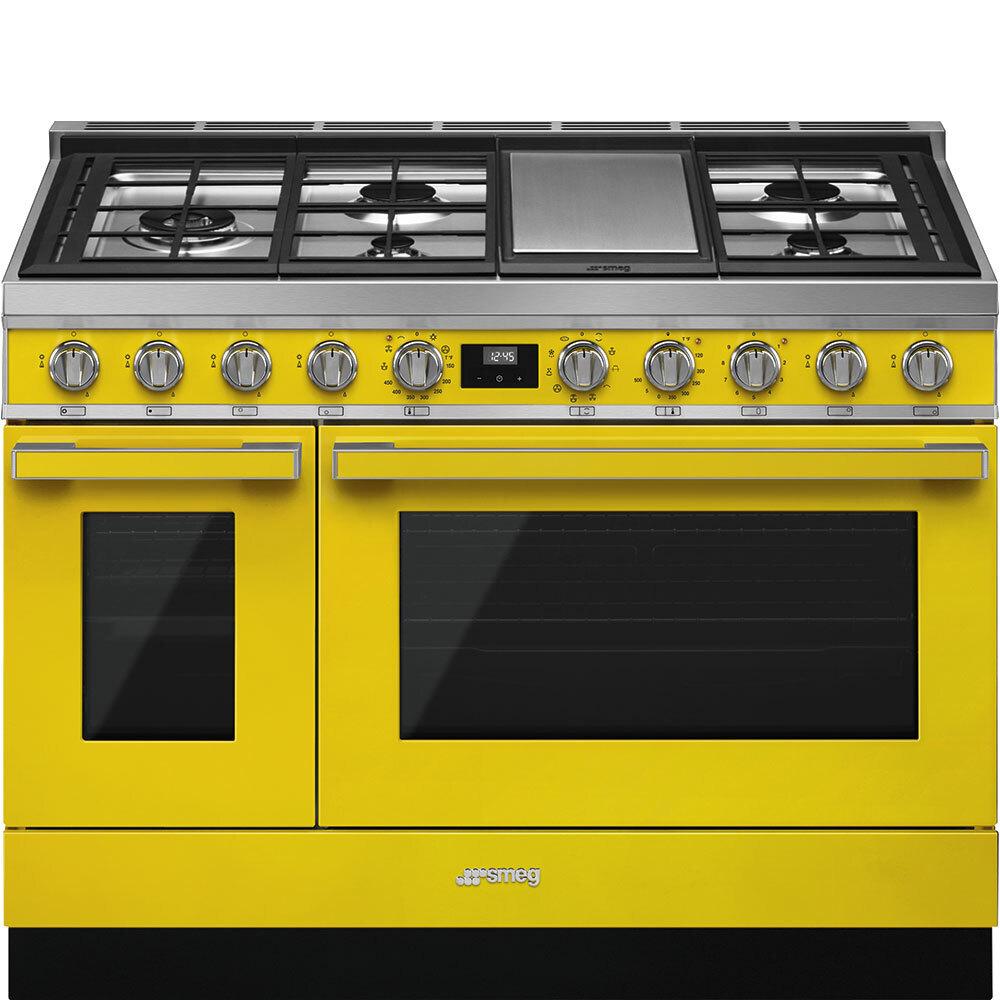

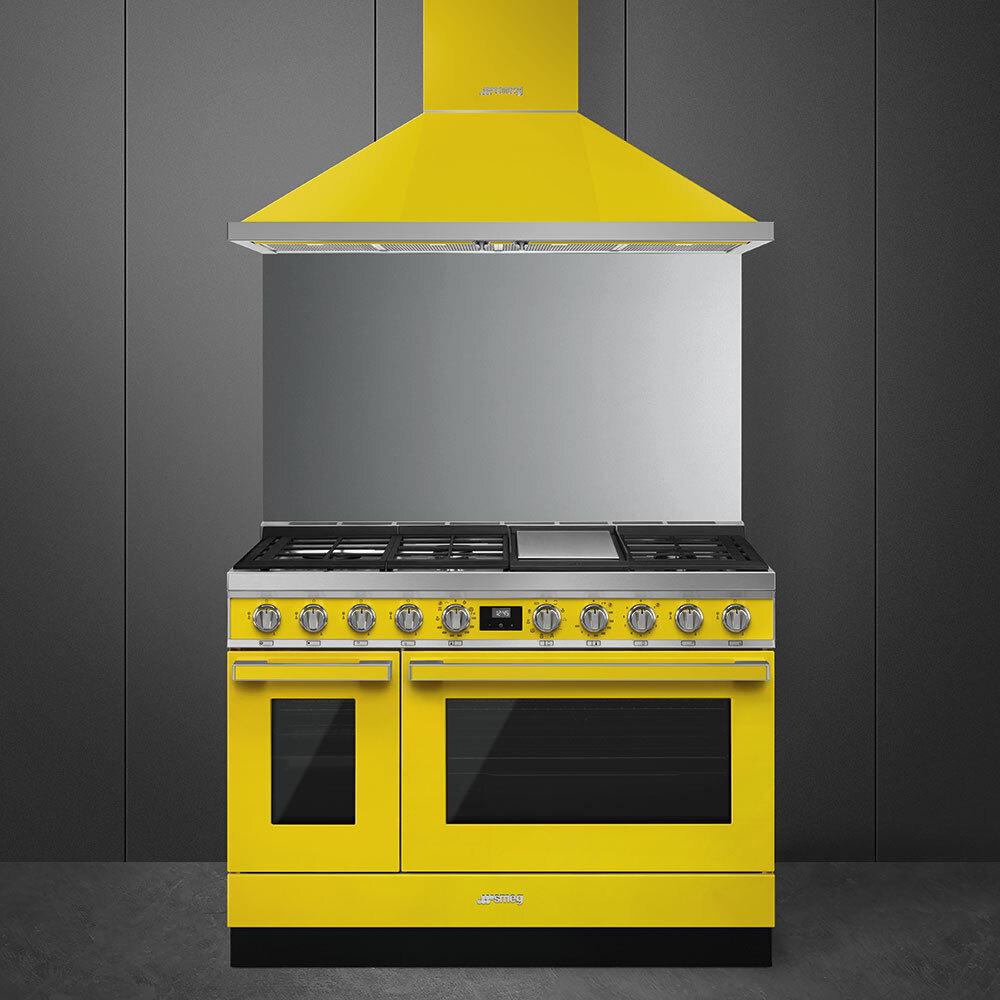

Range Yellow CPF48UGMYW
Model CPF48UGMYW
Range Yellow CPF48UGMYW
Model CPF48UGMYWQuick Specs
Color
Range Yellow CPF48UGMYW is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Product family: Range
- Range size: 48"
- Aesthetics: Portofino
- Color: Yellow
- Main oven: Thermo-ventilated
- Secondary oven: Static
(P)(B)PORTOFINO STYLE(/B)(/P)(P)Stainless steel control knobs(/P)(P)(B)Thermoseal cavity, energy efficiency best-in-class(/B) (/P)(P)(B)Soft close oven door(/B)(/P)(P)Full-width continuous grates(/P)(P)Storage compartment with inner drawer(/P)(P)(B)MULTIFUNCTION ELECTRIC OVEN:(/B)(/P)(P)10 cooking modes including Pizza Function (/P)(P)Vapor-clean function(/P)(P)Programmable timer with touch display (/P)(P)Adjustable thermostat 120(degree) - 500(degree)F (/P)(P)Air-cooled triple-glazed removable door(/P)(P)(B)True European triple convection(/B)(/P)(P)Oven capacity: 4.5 cu. ft.(/P)(P)(B)Ever Clean enameled interior cavity(/B)(/P)(P)5 shelf positions(/P)(P)2 x halogen oven lights(/P)(P)Bake element 1.7kW(/P)(P)Broil element 2.9kW(/P)(P)Convection element 1.5kW(/P)(P)(B)MULTIFUNCTION ELECTRIC OVEN - SECONDARY OVEN(/B)(/P)(P)4 cooking modes(/P)(P)(B)True European convection(/B)(/P)(P)Adjustable thermostat 120(degree) - 440(degree)F(/P)(P)"Ever-Clean" enamelled oven interior(/P)(P)Air-cooled triple-glazed removable door (/P)(P)Removable inner glass for easy cleaning(/P)(P)Oven capacity: 1.45 Cu.Ft(/P)(P)5 shelf positions(/P)(P)2 x halogen oven lights(/P)(P)Bake element 750W(/P)(P)Broil element 2,05kW(/P)(P)Convection element 1.5kW(/P)(P)(B)GAS RANGETOP:(/B)(/P)(P)5 gas burners with Electric Griddle(/P)(P)Center-rear 1200 BTUs(/P)(P)Center-front 4500 BTUs(/P)(P)Right-rear 12000 BTUs(/P)(P)Right-front 8000 BTUs(/P)(P)(B)Left double-inset super burner 20000 BTUs(/B)(/P)(P)Heavy-duty cast iron grates(/P)(P)Automatic electric ignition(/P)(P)LP gas conversion kit included(/P)(P)(B)SAFETY:(/B)(/P)(P)Gas safety valves(/P)(P)Air-cooled door to prevent overheating(/P)(P)Connected load nominal power: 240/120V - 17 Amps(/P)(P)Voltage rating: 240/120V 60Hz(/P)(P)(B)ACCESSORIES INCLUDED:(/B)(/P)(P)1 wok ring(/P)(P)1 rotisserie kit(/P)(P)1 deep oven tray(/P)(P)1 total-extraction telescopic guide(/P)(P)2 chrome shelves(/P)(P)1 black toe kick(/P)
| Type | |
| Product family | Range |
| Range size | 48" |
| Range fuel | Dual-fuel |
| N. of ovens | 2 |
| Main oven | Thermo-ventilated |
| Secondary oven | Static |
| EAN code | 8017709266776 |
| Aesthetic | |
| Color | Yellow |
| Aesthetics | Portofino |
| Design | Flush mounted |
| Material | Painted metal |
| Cooktop color | Stainless steel |
| Handle | Portofino |
| Display | Touch |
| Grates | Cast Iron |
| No. of controls | 10 |
| Plinth | Black |
| Storage compartment | Storage drawer |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Secondary oven functions | |
| Minimum Temperature | 120 °F |
| Maximum temperature | 450 °F |
| Cooktop technical features | |
| Cooking zones | 6 |
| Zone 1 - Power | 5.3 kW |
| Zone 1 - Power | 18000 BTU |
| Zone 2 - Power | 3.5 kW |
| Zone 2 - Power | 12000 BTU |
| Zone 3 - Power | 1.31 kW |
| Zone 3 - Power | 4500 BTU |
| Zone 4 - Power | 3.5 kW |
| Zone 4 - Power | 12000 BTU |
| Zone 5 - Power | 2.34 kW |
| Zone 5 - Power | 8000 BTU |
| Zone 6 - Power | 1.90 kW |
| Zone 6 - Power | 6500 BTU |
| Zone 7 - Power | 1.60 (BBQ) kW |
| Zone 7 - Power | 5500 (BBQ) BTU |
| Burner caps | Enameled matte black |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.16 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 3 |
| Time setting | Start and end |
| Light on when door is open | Yes |
| Removable door | Yes |
| Total no. of door glasses | 3 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Electric |
| Grill power | 1700 W |
| Large grill - Power | 2900 W |
| Bottom heating element - Power | 1700 W |
| Upper heating element - Power | 1200 W |
| Circular heating element - Power | 1500 W |
| Soft Close system | Yes |
| Secondary oven - Technical specifications | |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Lighting | Halogen |
| Light Power | 40 W |
| Fan number | 1 |
| Light on when oven door is open | Yes |
| Removable door | Yes |
| No. total door glasses | 3 |
| Security Thermostat | Yes |
| Cooling system | Tangential |
| Large grill - Power | 2050 W |
| Lower heating element - power | 750 W |
| Electrical Connection | |
| Electrical connection rating | 8000 W |
| Current | 50 A |
| Voltage | 240/208 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20 Natural gas |
| Logistic Information | |
| Dimensions | 900x1200x600 mm |
| Width | 47 1/4 " |
| Height | 35 7/16 " |
| Depth | 23 5/8 " |
| Packaged dimensions | 1060X1280X735 mm |
| Gross weight | 412 lbs |
| Net weight | 338 lbs |
| Packaged width | 50 3/8 " |
| Packaged depth | 28 15/16 " |
| Packaged height | 41 3/4 " |
| Maximum stackability | 2 |
| Packaging | Cardboard box |
| Packaging composition - Paper | 13 lbs |
| Packaging composition - Polystyrene | 5 lbs |
| Packaging composition - Wood | 55 lbs |
| Packaging composition - Plastics | 1 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| TOP Oven grid with back stop | 2 |
| 1.6"-deep tray | 1 |
| Telescopic Guide rails, total Extraction | 1 |
| Accessories included - Secondary oven | |
| Wide baking tray | 1 |
| Rack with back and side stop | 1 |
| Grill mesh | 1 |
| Telescopic Guide rails, total Extraction | 1 |
- Product family: Range
- Range size: 48"
- Aesthetics: Portofino
- Color: Yellow
- Main oven: Thermo-ventilated
- Secondary oven: Static
