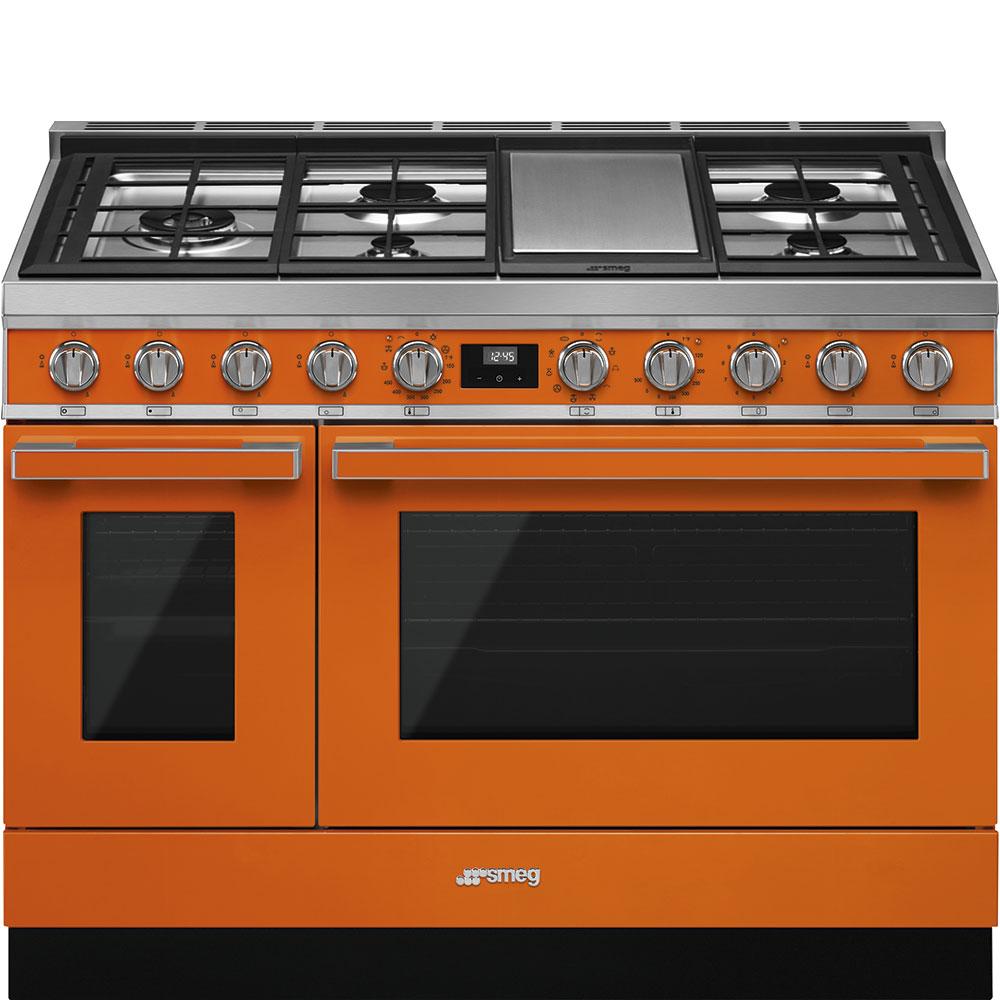

Range Orange CPF48UGMOR
Model CPF48UGMOR
Authorized Dealer
Loading...
Authorized Dealer
Range Orange CPF48UGMOR
Model CPF48UGMORQuick Specs
Depth
23.62"
Height
35.43"
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Storage
YES
Warming
NO
Color
Range Orange CPF48UGMOR is backordered and will ship as soon as it is back in stock.
Regular price
$7,282.16
Unit price
/
Unavailable
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
23.62"
Height
35.43"
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
YES
Self Clean
NO
Oven Rack Type
ROLLER
Downdraft Ventilation
NO
Drawer Proof Mode
NO
Dual Fuel
YES
Oven Ignition Type
ELECTRONIC
- Easy oven cleaning thanks to special pyrolytic enamel
- Easy and intuitive timer setting with a single touch
- New cooling system with tangential fan and airflow from the door to the splashback
- The best cooking performances guaranteed by ventilated circular flow. - True-convection
- Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
- The door is equipped with a specific system for silent closing
- More space thanks to the lower compartment, ideal for storing accessories or cooking utensils
True-convection
| General information | |
| Product family | Range |
| Range size | 48" |
| Range type | Dual fuel |
| Cooktop | Mixed |
| N. of ovens | 2 |
| Main oven | Thermo-ventilated |
| Secondary oven | Static |
| EAN code | 8017709266738 |
| General information | |
| Installation positioning of the appliance | Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1 |
| Aesthetic | |
| Color | Orange |
| Design | Flush mounted |
| Aesthetics | Portofino |
| Material | Painted metal |
| Cooktop color | Stainless steel |
| Grates | Cast Iron |
| Control setting type | Control knobs |
| No. of controls | 10 |
| Display | Touch |
| Handle | Portofino |
| Storage compartment | Storage drawer |
| Plinth | Black |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Secondary oven functions | |
| Minimum Temperature | 120 °F |
| Maximum temperature | 450 °F |
| Cooktop technical features | |
| Cooking zones | 6 |
| Zone 1 - Position | Left |
| Zone 2 - Position | Rear-center |
| Zone 3 - Position | Front-center |
| Zone 4 - Position | Rear-right |
| Zone 5 - Position | Front-right |
| Zone 6 - Position | Center |
| Zone 1 - Power | 5300 W |
| Zone 2 - Power | 3500 W |
| Zone 3 - Power | 1310 W |
| Zone 4 - Power | 3500 W |
| Zone 5 - Power | 2340 W |
| Zone 6 - Power | 1900 W |
| Zone 7 - Power | 1.60 (BBQ) W |
| Burner caps | Enameled matte black |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.16 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 3 |
| Time setting | Start and end |
| Light on when door is open | Yes |
| Removable door | Yes |
| Total no. of door glasses | 3 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Tiliting grill | Yes |
| Grill power | 1700 W |
| Large grill - Power | 2900 W |
| Bottom heating element - Power | 1700 W |
| Upper heating element - Power | 1200 W |
| Circular heating element - Power | 1500 W |
| Soft Close system | Yes |
| Secondary oven - Technical specifications | |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Lighting | Halogen |
| Light Power | 40 W |
| Fan number | 1 |
| Light on when oven door is open | Yes |
| Door opening | Drop-down |
| Removable door | Yes |
| No. total door glasses | 3 |
| Security Thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Electric |
| Tiliting grill | Yes |
| Large grill - Power | 2050 W |
| Lower heating element - power | 750 W |
| Electrical Connection | |
| Electrical connection rating | 8000 W |
| Current | 50 A |
| Voltage | 240/208 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20 Natural gas |
| Logistic Information | |
| Dimensions | 900x1200x600 mm |
| Width | 47 1/4 " |
| Height | 35 7/16 " |
| Depth | 23 5/8 " |
| Packaged dimensions | 1060X1280X735 mm |
| Gross weight | 412 lbs |
| Net weight | 339 lbs |
| Packaged width | 50 3/8 " |
| Packaged depth | 28 15/16 " |
| Packaged height | 41 3/4 " |
| Packaging | Cardboard box |
| Packaging composition - Paper | 13 lbs |
| Packaging composition - Polystyrene | 5 lbs |
| Packaging composition - Wood | 54 lbs |
| Packaging composition - Plastics | 1 lbs |
| Included accessories | |
| Cast iron wok support | 1 |
| TOP Oven grid with back stop | 2 |
| 1.6"-deep tray | 1 |
| Telescopic Guide rails, total Extraction | 1 |
| Accessories included - Secondary oven | |
| Wide baking tray | 1 |
| Rack with back and side stop | 1 |
| Grill mesh | 1 |
| Telescopic Guide rails, total Extraction | 1 |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
- Easy oven cleaning thanks to special pyrolytic enamel
- Easy and intuitive timer setting with a single touch
- New cooling system with tangential fan and airflow from the door to the splashback
- The best cooking performances guaranteed by ventilated circular flow. - True-convection
- Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
- The door is equipped with a specific system for silent closing
- More space thanks to the lower compartment, ideal for storing accessories or cooking utensils
