Monogram 36" Wall-Mounted Vent Hood
Model: ZV950SDSSQuick Specs

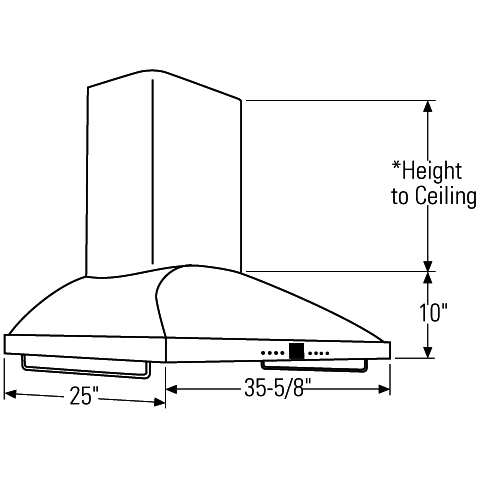

Width
35 5/8"
Depth
25"
Height
10"
Energy
NO
Monogram 36" Wall-Mounted Vent Hood is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,256.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35 5/8"
Depth
25"
Height
10"
Energy Star Rated
NO
- For 30"-36" cooktop surfaces
- Electronic touch controls
- 4 halogen lamps with 6 levels of intensity
- 3 removable filters with filter cleaning reminder
- 690 CFM vertical exhaust blower rating
- Time delay shut-off
- Dual blowers with 4 blower levels
- For 30"-36" cooktop surfaces
- Electronic touch controls
- 4 halogen lamps with 6 levels of intensity
- 3 removable filters with filter cleaning reminder
- 690 CFM vertical exhaust blower rating
- Time delay shut-off
- Dual blowers with 4 blower levels
(B)For 30"-36" cooktop surfaces(/B)(BR)(BR)(B)Electronic touch controls(/B)(BR)(BR)(B)4 halogen lamps with 6 levels of intensity(/B)(BR)(BR)(B)3 removable filters with filter cleaning reminder(/B)(BR)(BR)(B)690 CFM vertical exhaust blower rating(/B)(BR)(BR)(B)Time delay shut-off(/B)(BR)(BR)(B)Dual blowers with 4 blower levels(/B)(BR)(BR)
| APPEARANCE | |
| Design Style | Chimney |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Hertz | 60 |
| Amp Rating at 120V | 4.3 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Externally Vented |
| ACCESSORIES | |
| 10' to 14' Ceiling Extension Duct Cover | ZX14SDSS |
| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 36 in |
| Net Weight | 71 lb |
| Overall Depth | 25 in |
| Approximate Shipping Weight | 105 lb |
| Overall Height | 10 in |
| Overall Width | 35.625 in |
| FEATURES | |
| Cooktop Lighting | 4 Halogen |
| Max CFM | 690 |
| Short Description | 36" Wall-Mounted Vent Hood |
| CFM/ Sones Rating | 690/6.0 |
| Filter Cleaning Reminders | Yes |
| Time Delay Shut-Off | Yes |
| Exhaust Options | 8" Round Duct |
| Product Type | Wall-Mount Hood |
| Vertical Exhaust Blower Rating (CFM) | 690 |
| Variable Speed Fan | Yes |
| Control Type | Electronic Pushbutton |
| Dual Blowers | Yes |
| Lighting Levels | 6 |
| Removable Filter | Yes |
| Blower Type | Internal |
| Recirculating Capable | No |
| Blower Levels | 4 |
- For 30"-36" cooktop surfaces
- Electronic touch controls
- 4 halogen lamps with 6 levels of intensity
- 3 removable filters with filter cleaning reminder
- 690 CFM vertical exhaust blower rating
- Time delay shut-off
- Dual blowers with 4 blower levels
