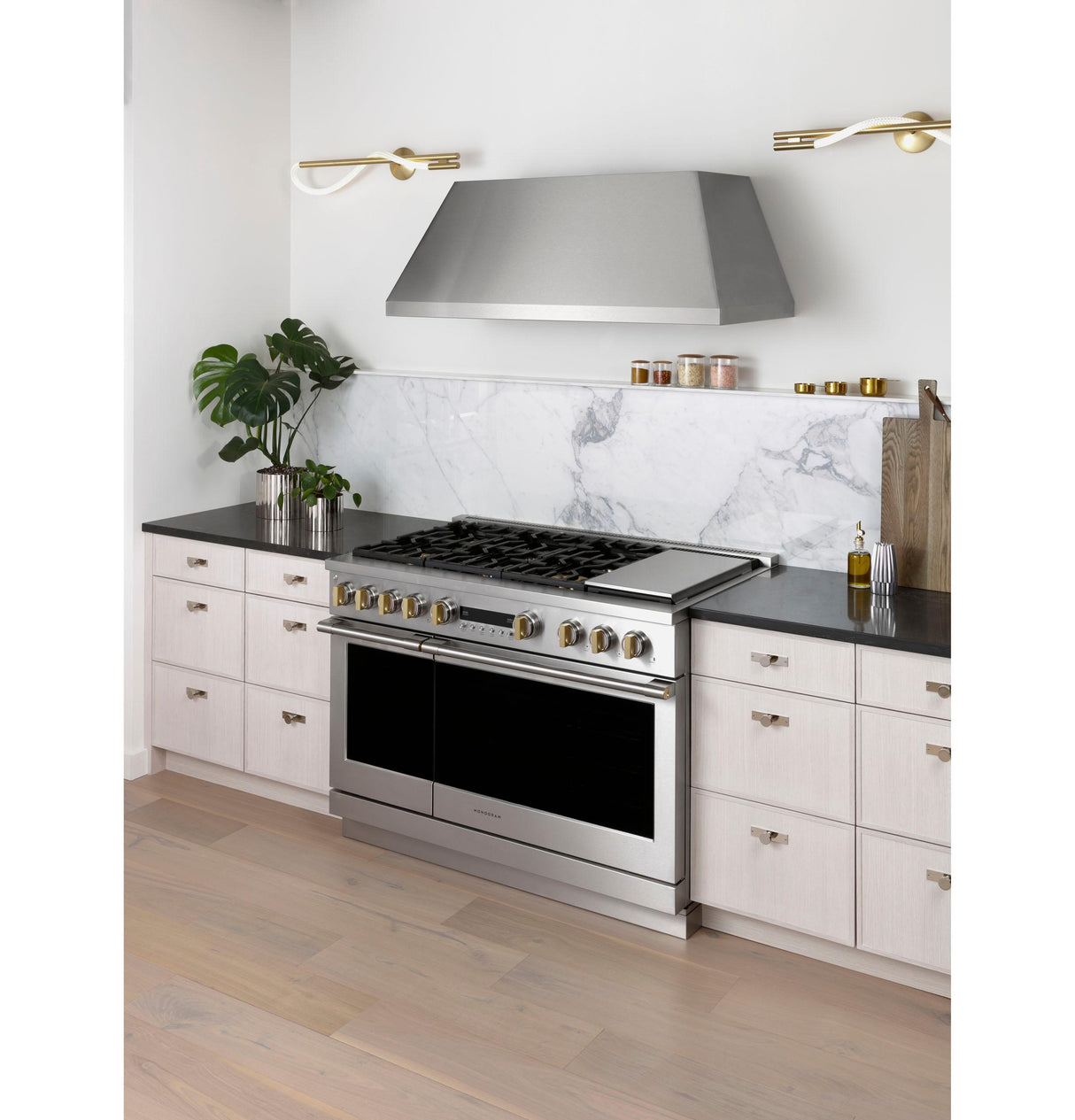

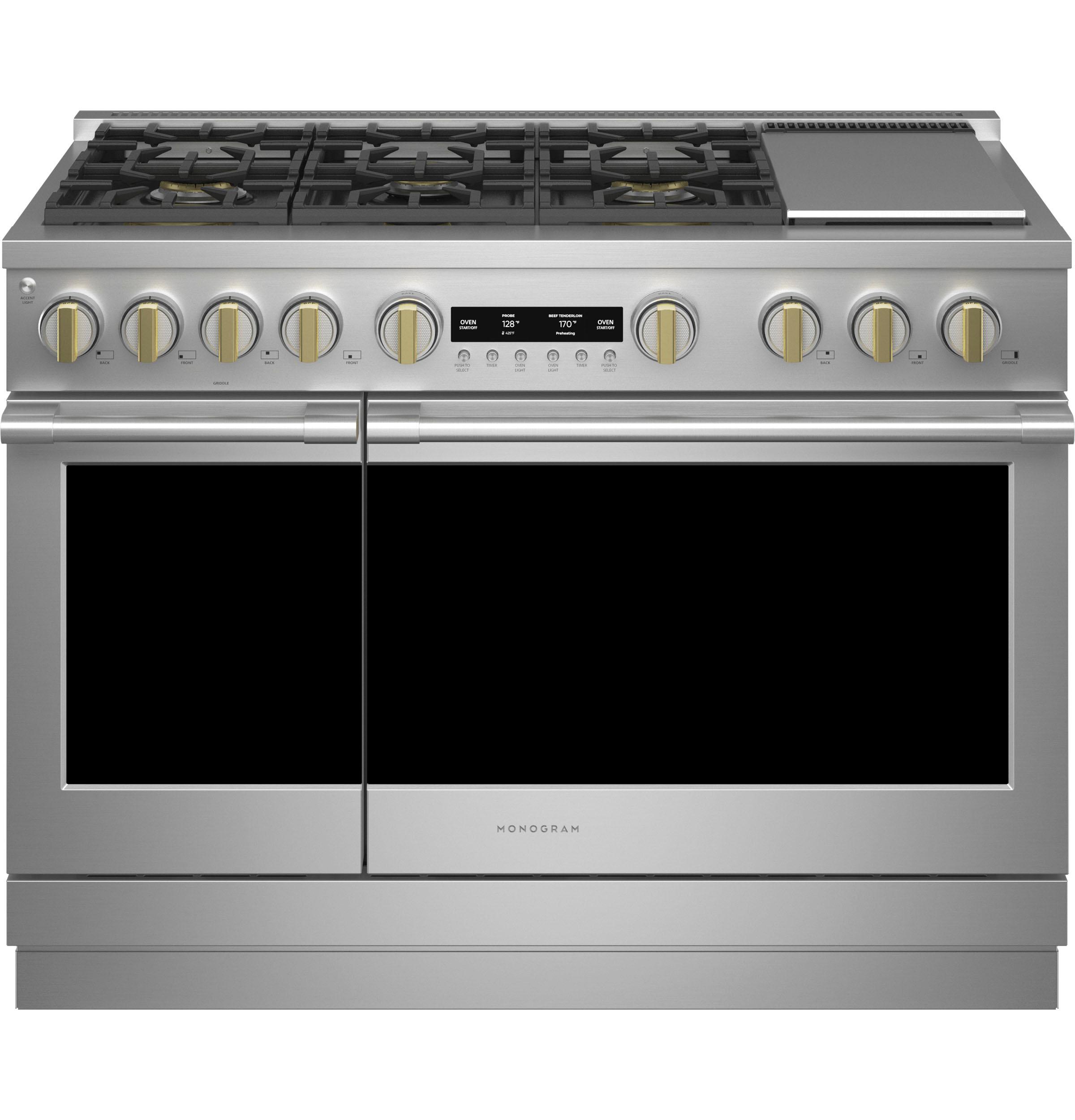

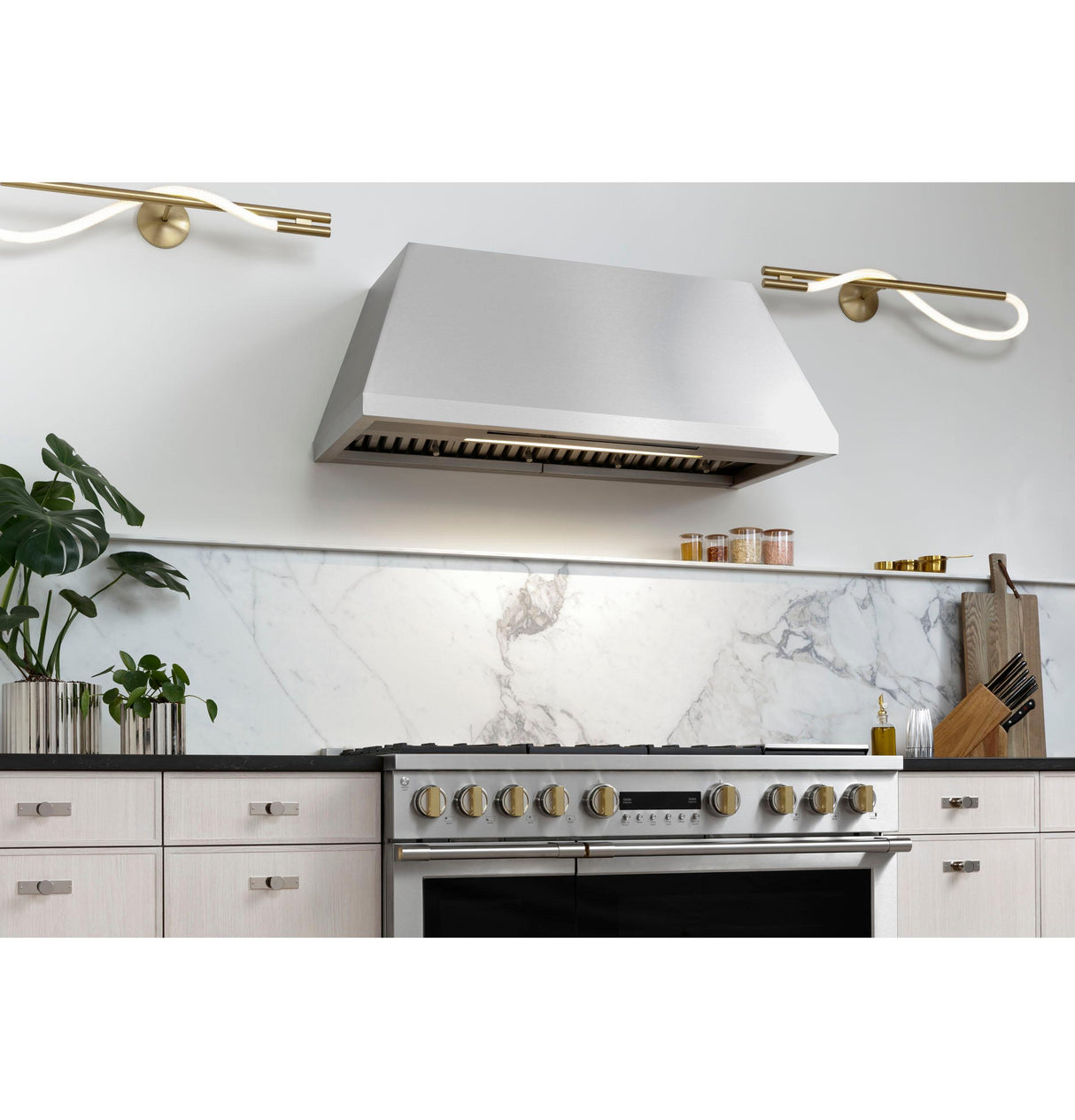

Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle
Model ZDP486NDTSS
Authorized Dealer
1
of
22
Loading...
Authorized Dealer
Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle
Model ZDP486NDTSSQuick Specs
Width
47.875"
Depth
28.5"
Height
35.25"
Sabbath
YES
ADA
NO
Wifi
YES
Burner
Sealed
Storage
NO
Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$16,900.00
Regular price
$18,590.00
Unit price
/
Unavailable
You save 9%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
47.875"
Depth
28.5"
Height
35.25"
Sabbath Mode
YES
ADA
NO
Wifi Connected
YES
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
6
Cooking First Oven Capacity
8.25
Continuous Grate
YES
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Downdraft Ventilation
NO
Nominal Width
48.0
RPM
-1.0
Drawer Proof Mode
YES
Dual Fuel
YES
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

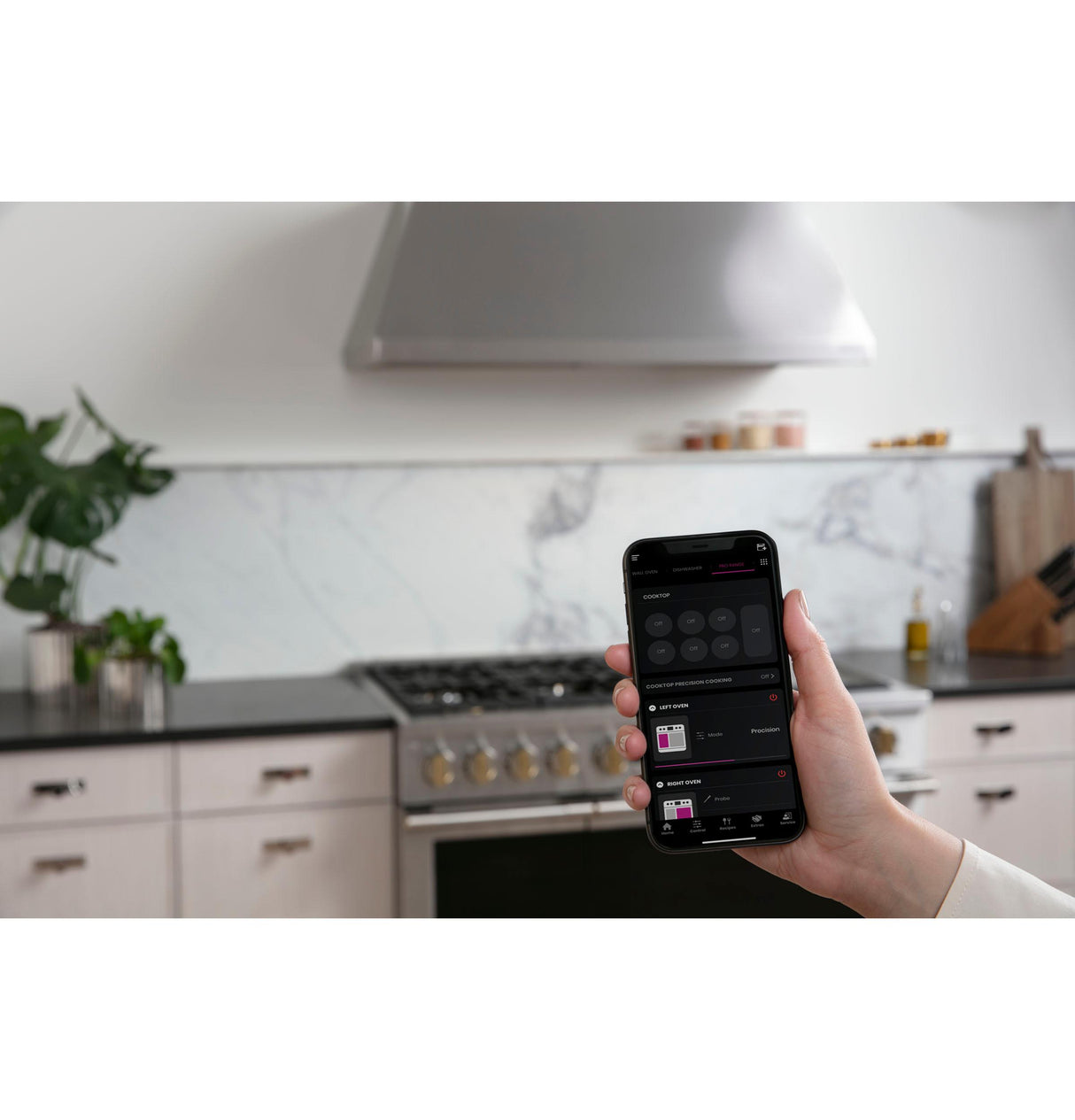

WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

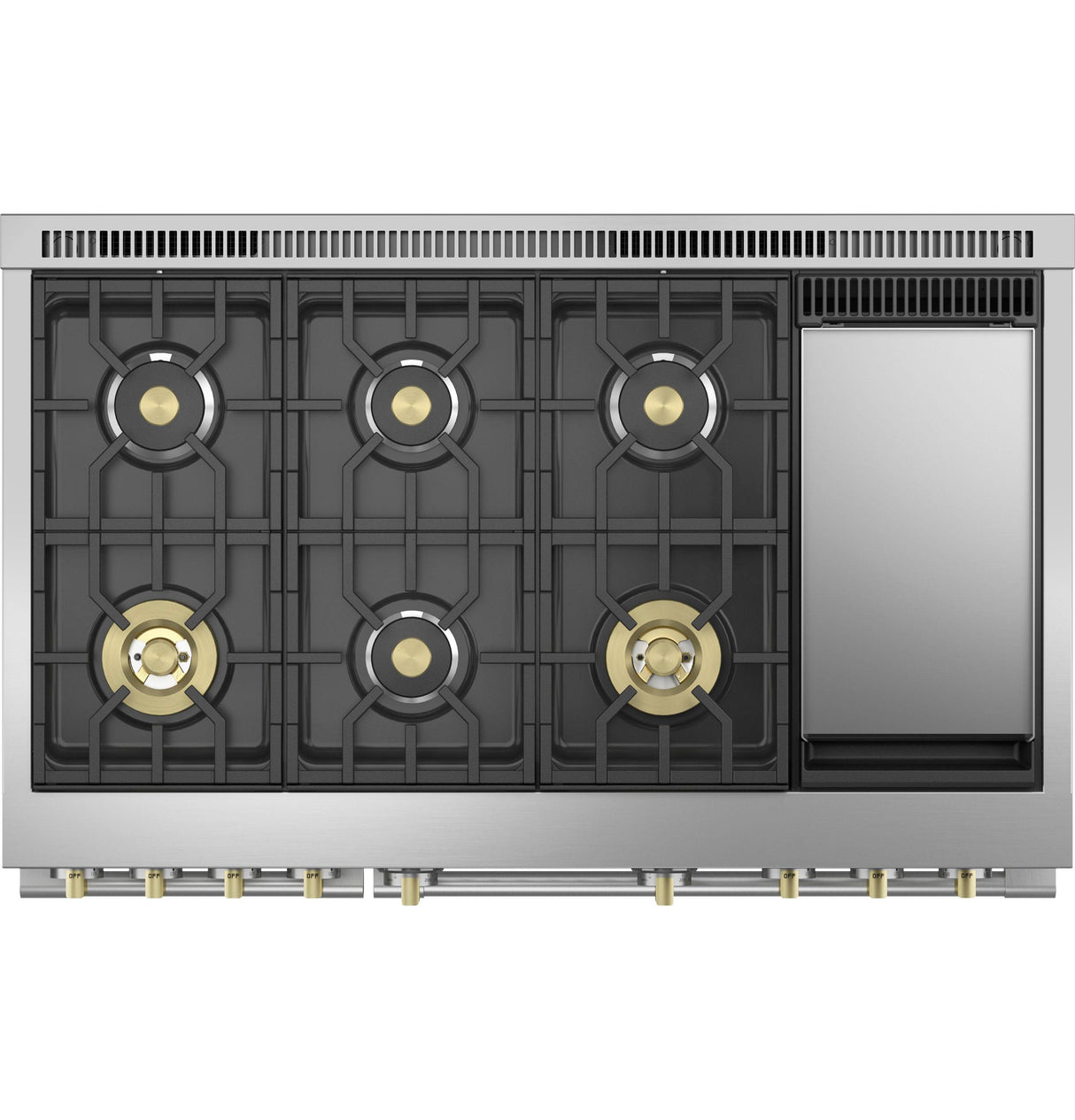

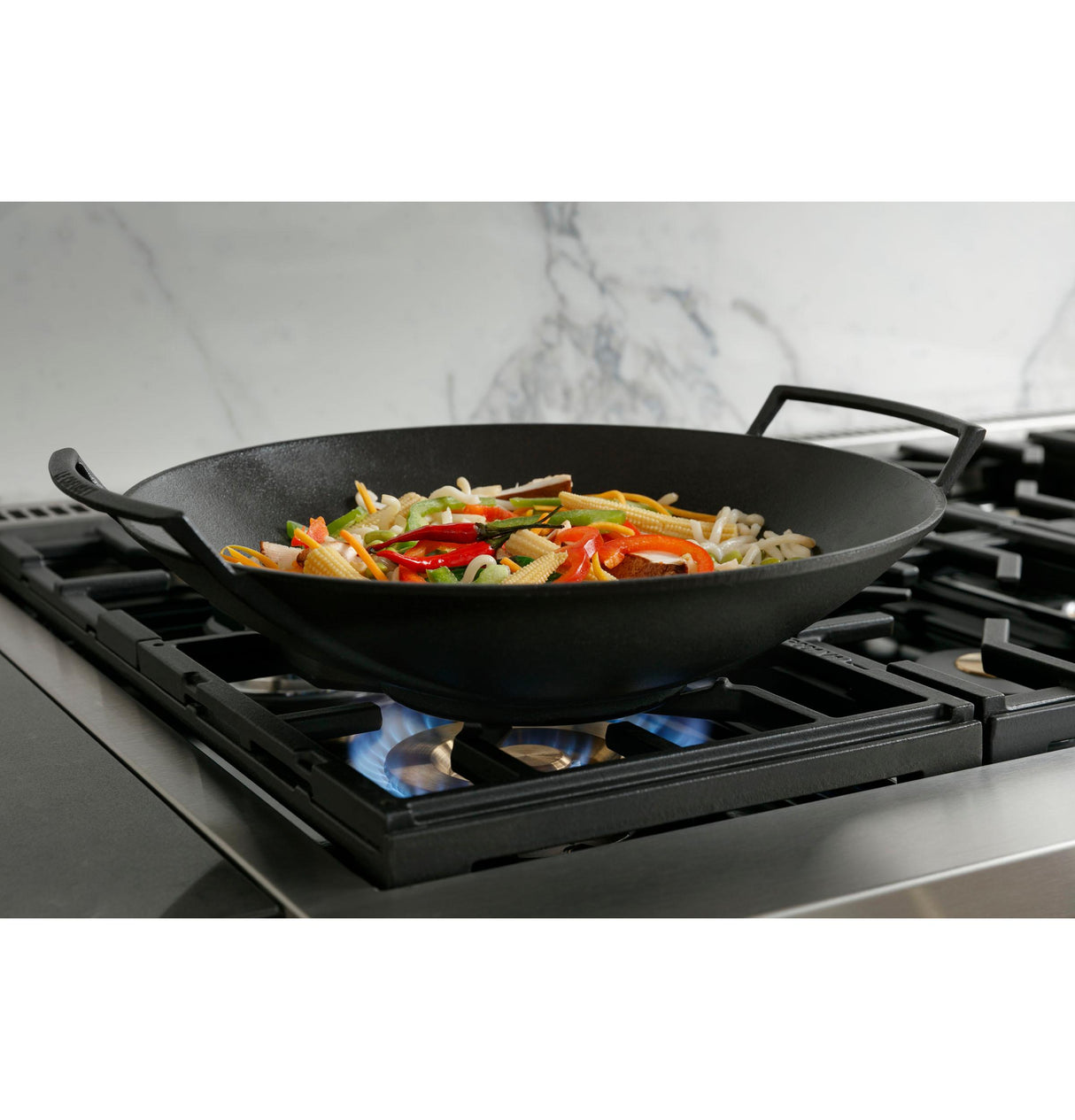

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

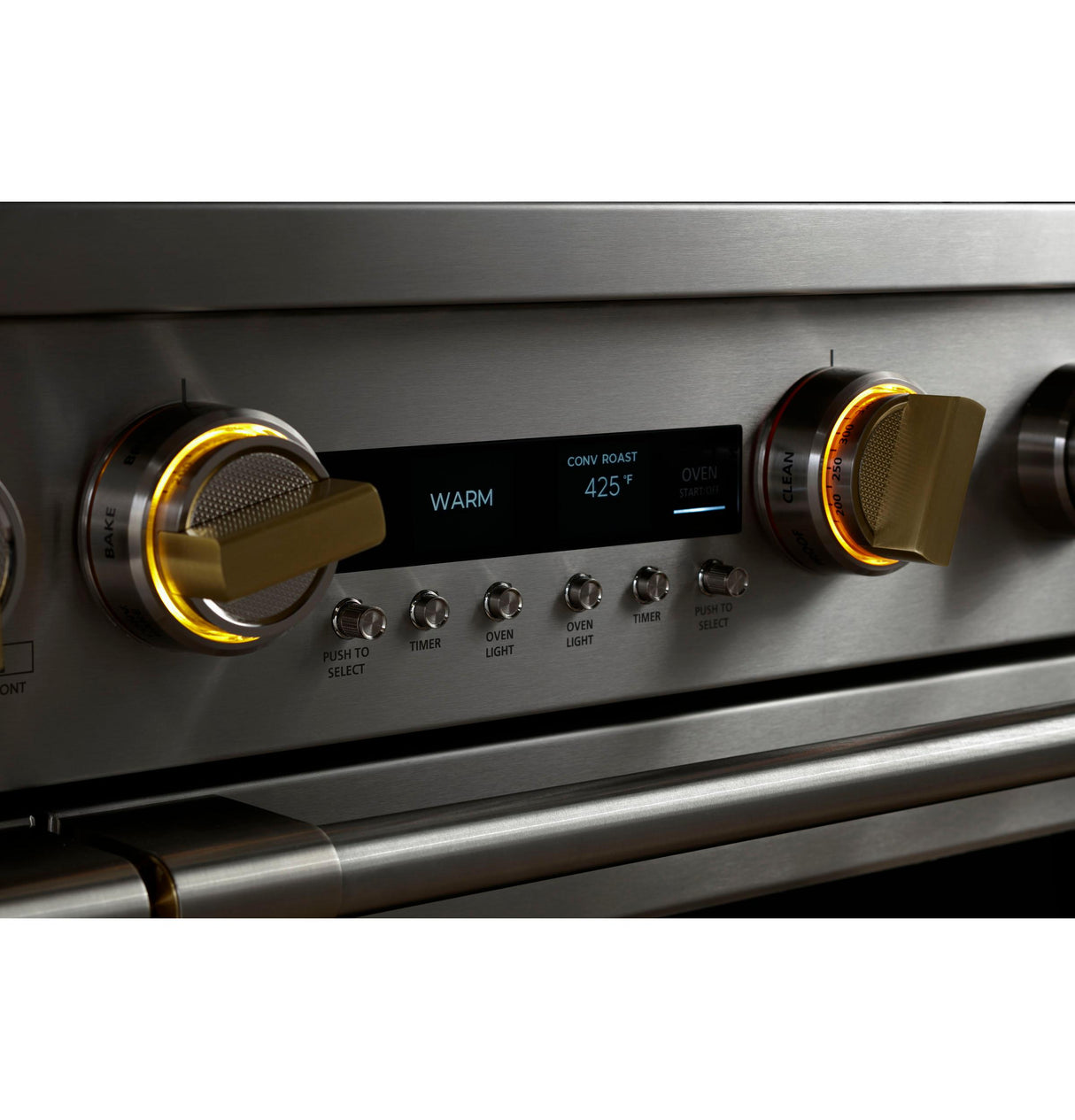

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

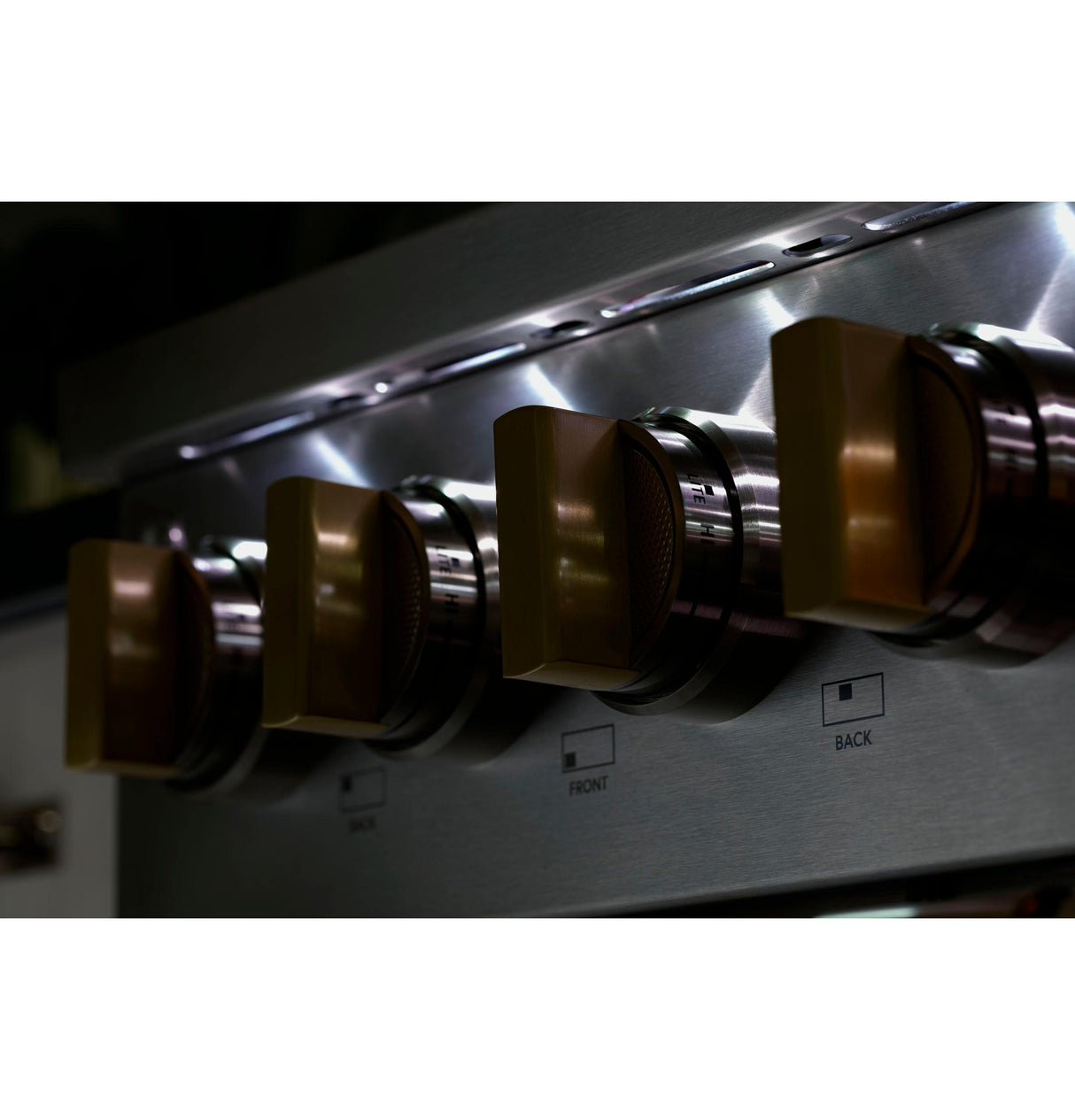

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

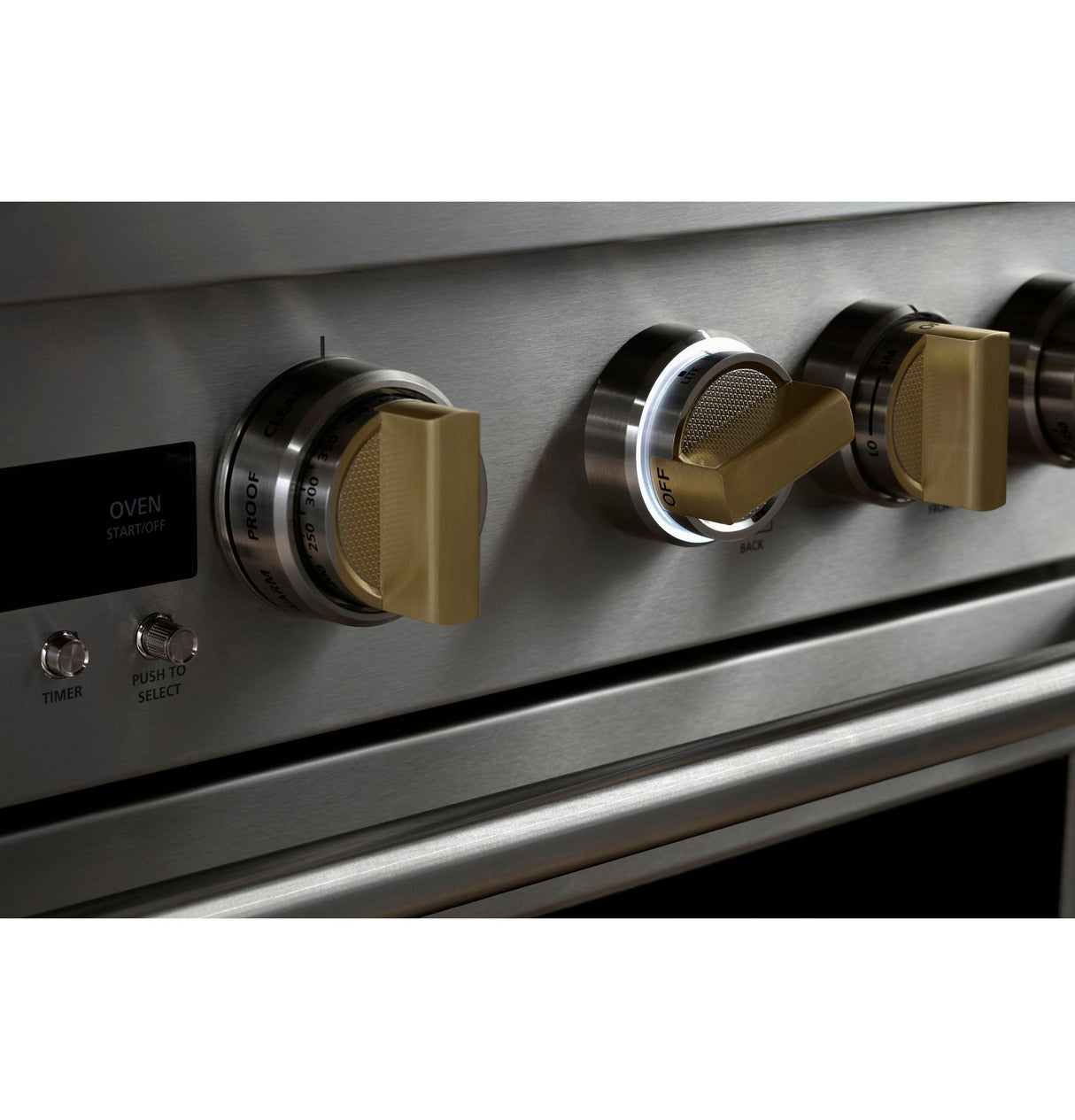

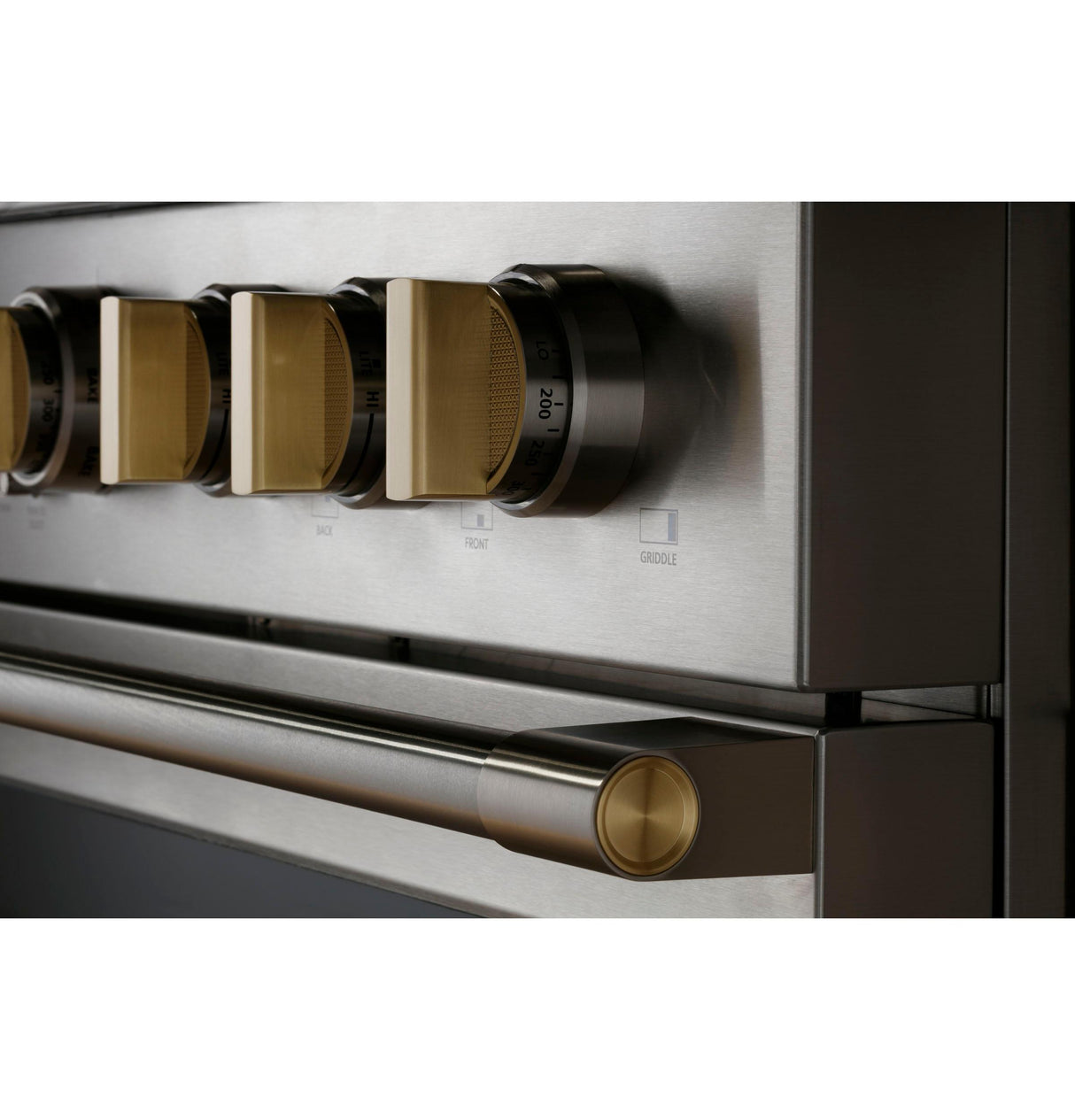

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

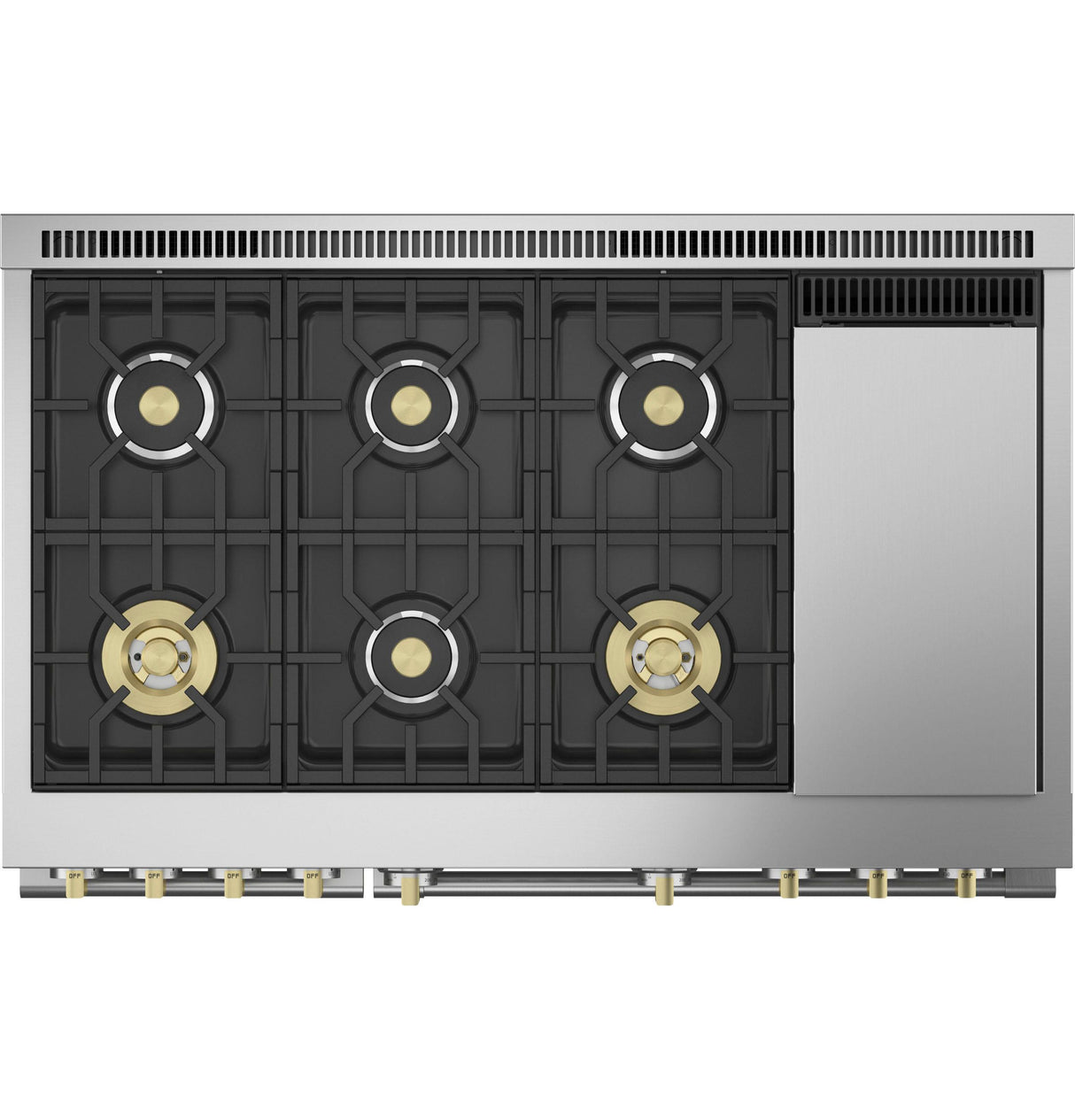

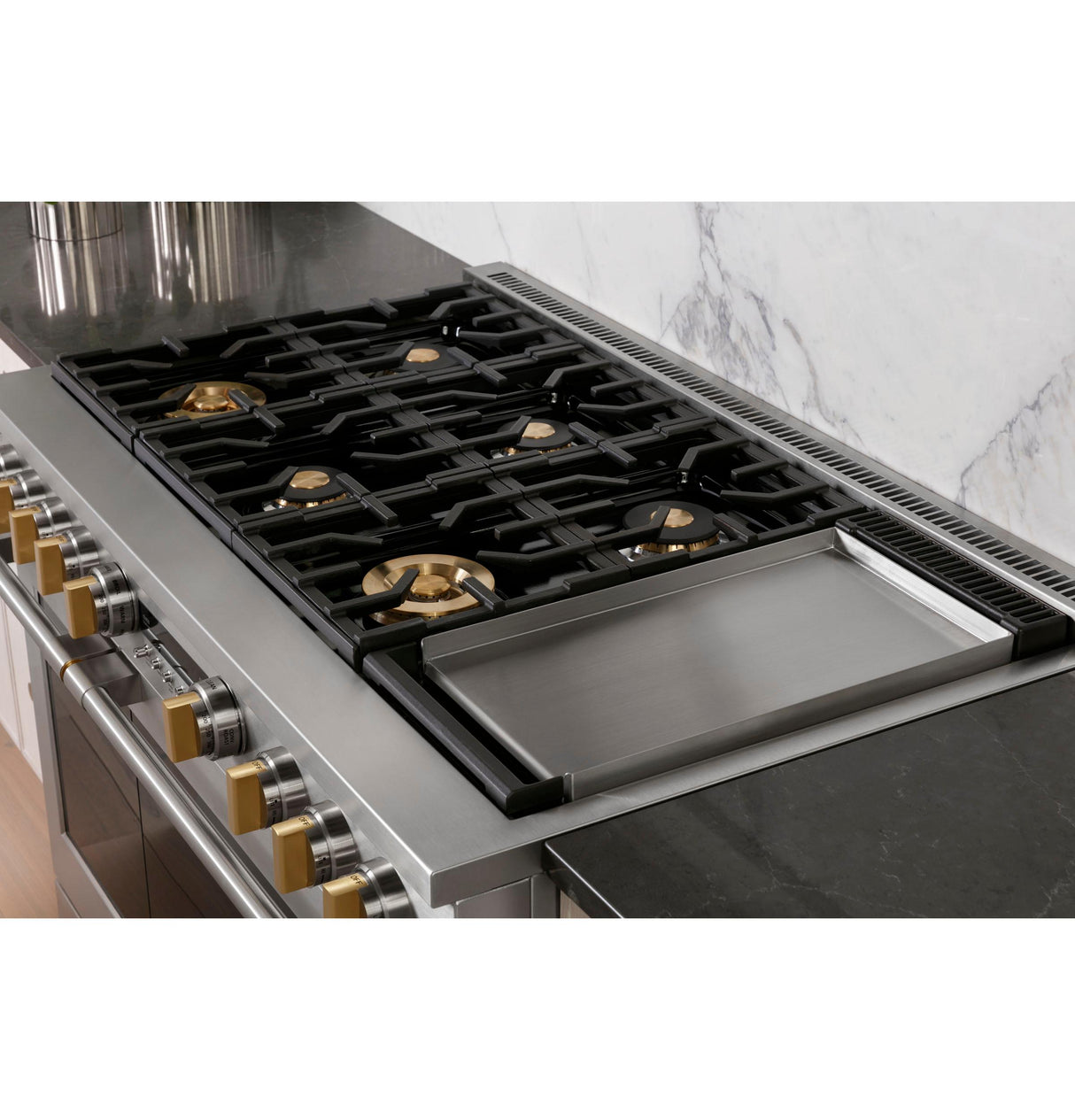

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
- Versatile Gas Burner Configuration
- Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
- 3-Piece Grates with Reversible Wok Feature
- Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
- Dynamic Oven LCD
- Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
- Solid Brass Burners
- Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
- Chef Connect
- Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
- Industry Exclusive-Custom Color LED Accent Lighting
- For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance
- Ring-Lit Knobs
- Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
- Solid Brass Blades on Precision Machined Knobs
- With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
- Seamless Stainless Top Frame
- Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
- Soft-Close Hinges
- Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

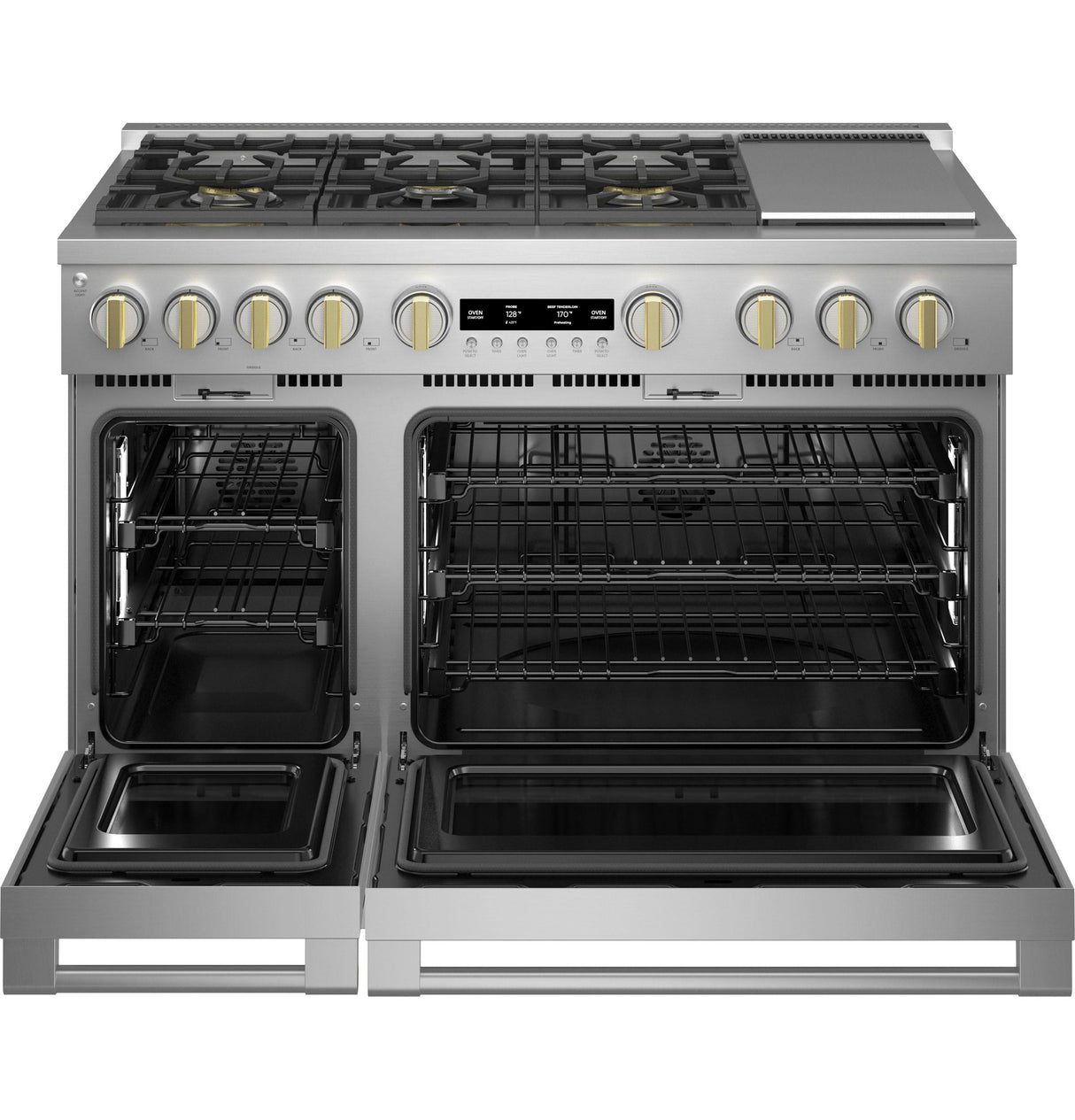

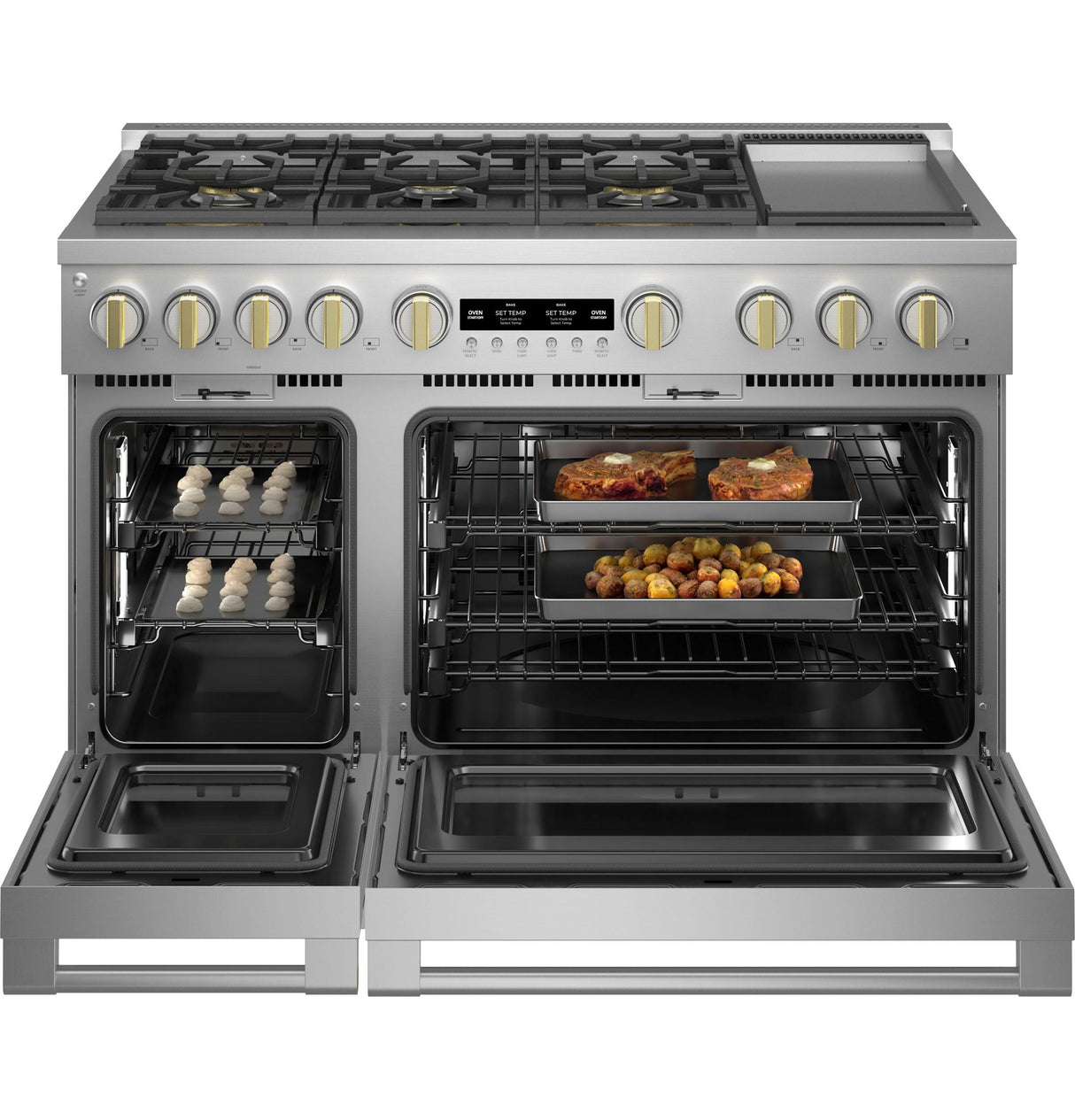

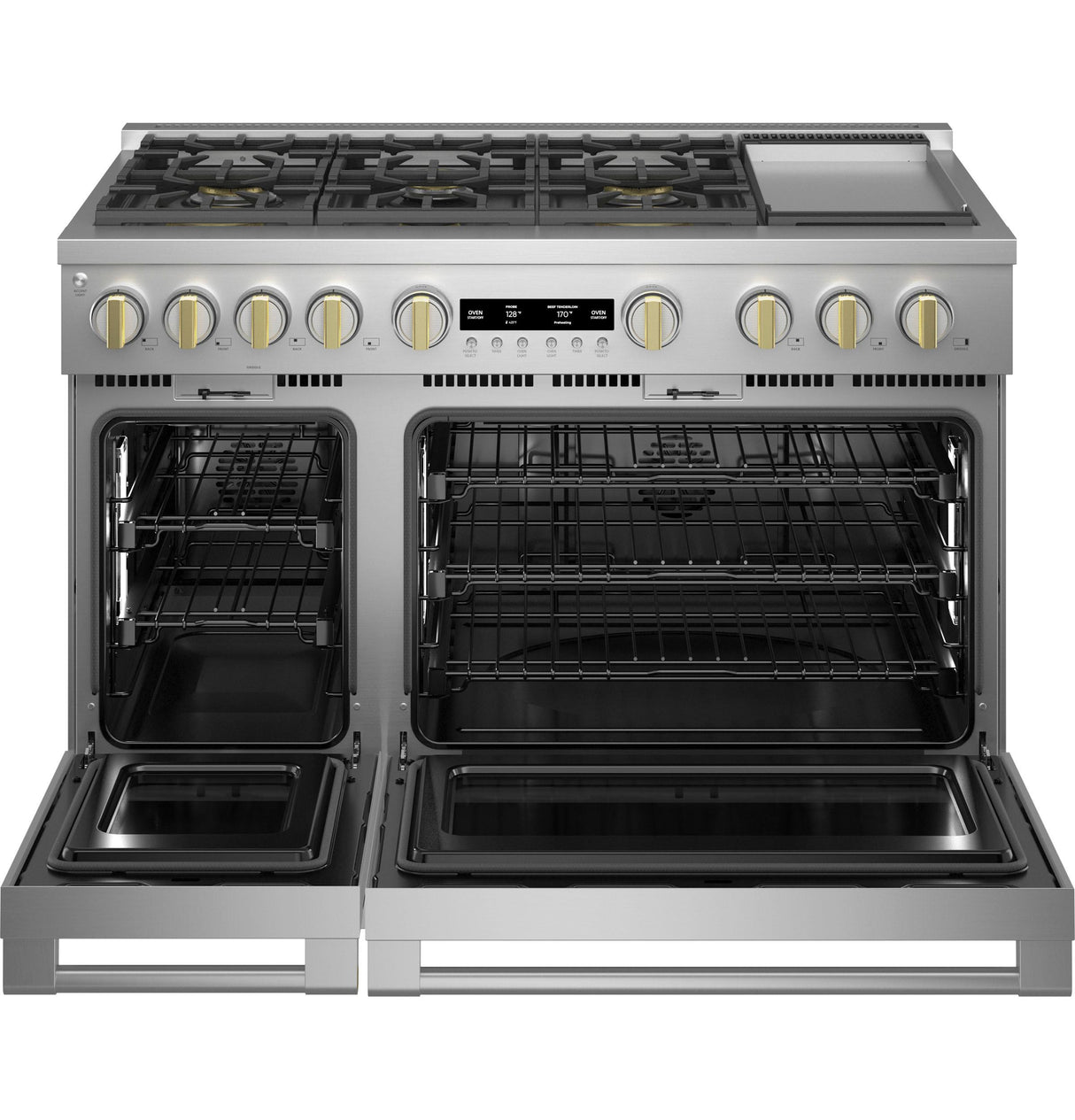

- 5 Oven Racks (Full-Extension)
- Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle
- Precision Oven Modes with SmartHQ™ app
- Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- Soft-Close Hinges
- 5 Oven Racks (Full-Extension)
- Precision Oven Modes with SmartHQ(TM) app
- WiFi Monitoring and Remote Control with the SmartHQ(TM) app
- Dynamic Oven LCD
- Solid Brass Burners
- Chef Connect
- Industry Exclusive-Custom Color LED Accent Lighting
- Ring-Lit Knobs
- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 cu ft |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| APPEARANCE | |
| Toe kick | Included |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
| Convection Wattage | 2500W (Main Oven); 1500W (Companion Oven) |
| Bake/Broil Wattage - Main Oven | 2700/4000W |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Bake/Broil Wattage - Companion Oven | 1600/2750W |
| Hertz | 60 |
| WARRANTY | |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| 48" Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| Optional Backguard | 12" stainless steel backsplash (UX12BS48PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Reversible Griddle/Grill Accessory | UXPRRGG |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |

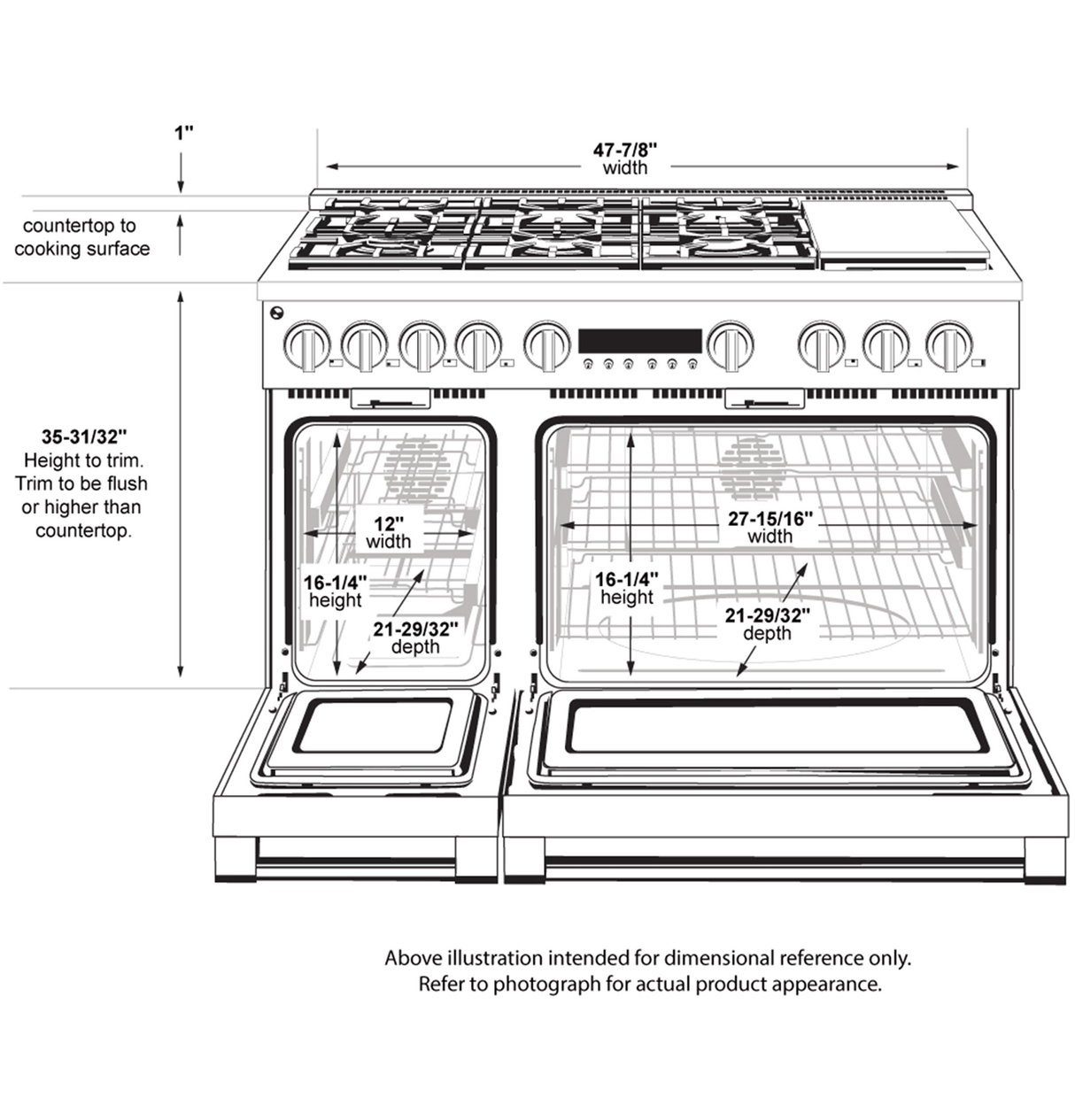

| WEIGHTS & DIMENSIONS | |
| Net Weight | 576 lb |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 672 lb |
| Overall Width | 47.875 in |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Height With Legs Retracted | 35.25 in |
| FEATURES | |
| Cooking System | Reverse Air Convection True European Convection |
| Cleaning Time | 3-5 Hours (Both Ovens) |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Chef Connect Cook Time C° or F° Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Sabbath Mode (* additional purchase required) Self & Steam Clean Modes Timer WiFi Connect |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | 2 |
| Oven Cleaning Type | Self-Clean (Both Ovens) Steam Clean (Both Ovens) |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Connected Capabilities | Amazon Alexa Bluetooth Google Home Innit |
| Product Type | Professional Range |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Cooktop Type | 6 Burners Griddle |
| Fuel Type | Dual Fuel (with natural gas) |
| Indicator Lights | Burner "On" |
| Short Description | 48" Pro Range - Dual Fuel with 6 Burners and Griddle |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Control Type | Digital Temperature LCD Display (Both Ovens) with Timer Display |
| Lighting | LED Bullnose Task Lighting |
| Collection | Statement |
| Cooking Technology | Convection |
| Oven Features | 4-Pass Bake Element (Everyday Oven) 4-Pass Broil Element (Everyday Oven) 8-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Oven Cooking Modes | Convection Bake Multi-Rack (Both Ovens) Convection Broil Hi/Lo (Both Ovens) Convection Crisp Convection Roast (Both Ovens) No-Preheat Air Frying (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens) |
| Cooktop Burner Type | 2 Sealed, Dual Flame Stacked (Removable Brass Accents) 4 Sealed, Dual Flame Stacked |
| Removable Grease Trough | (1) Beneath Griddle |
| Cooktop Surface | Porcelain-Enamel |
| Stainless Steel Grill / Griddle Covers | 1 |
| Oven Rack Positions (Single or Upper/Lower) | 5 / 4 |
| Self-Clean Oven Door Lock | Automatic |
