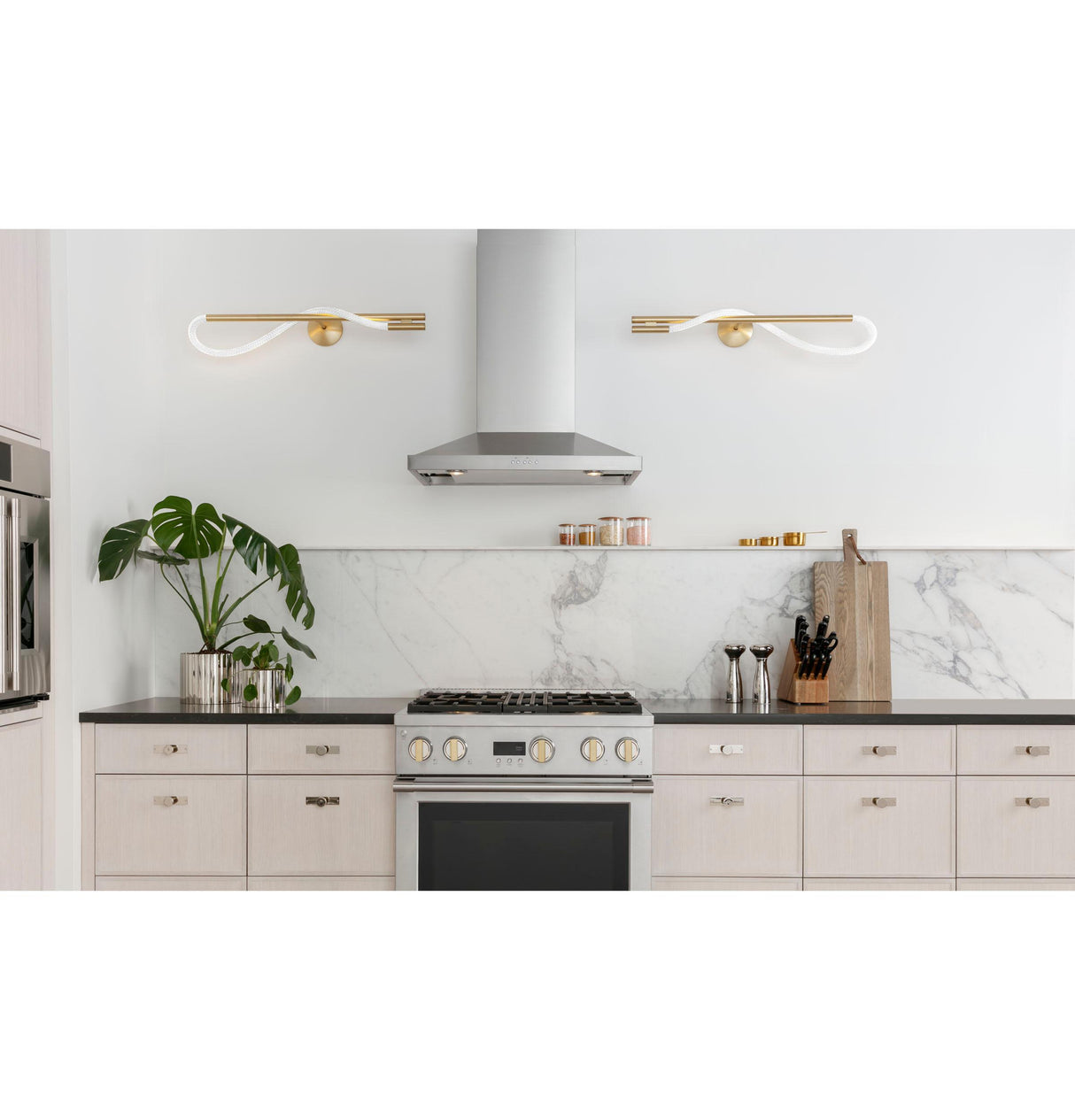

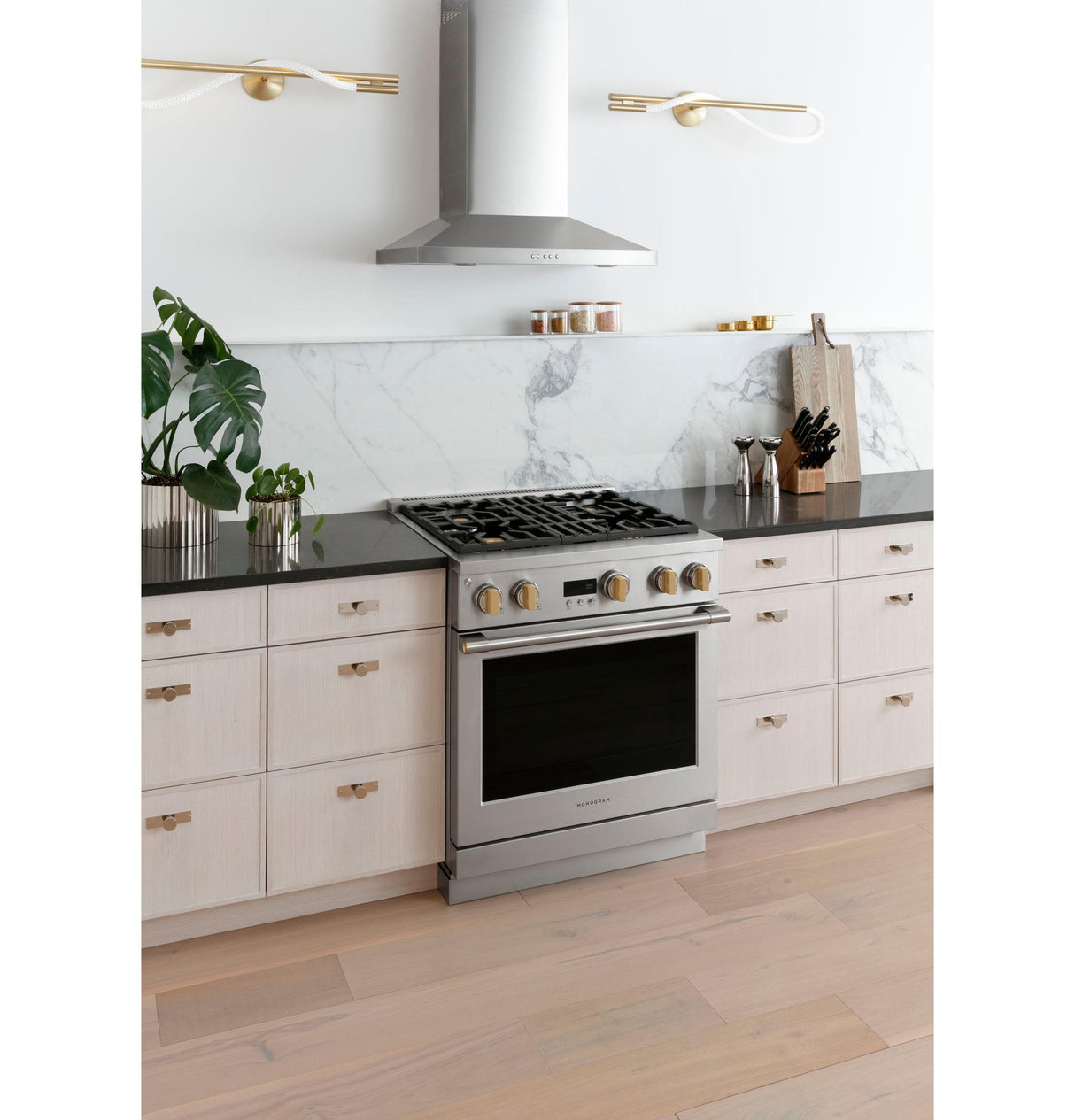

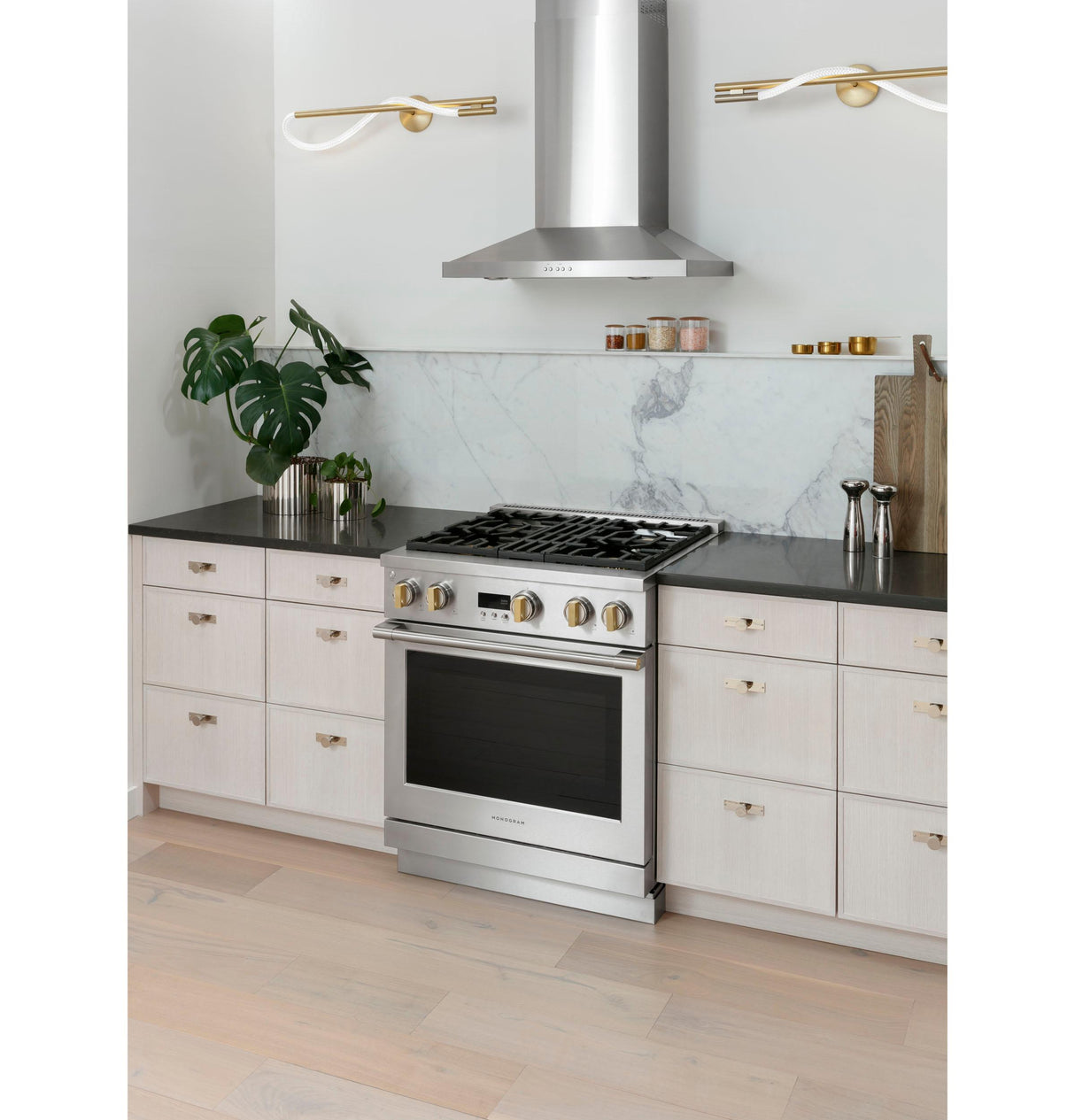

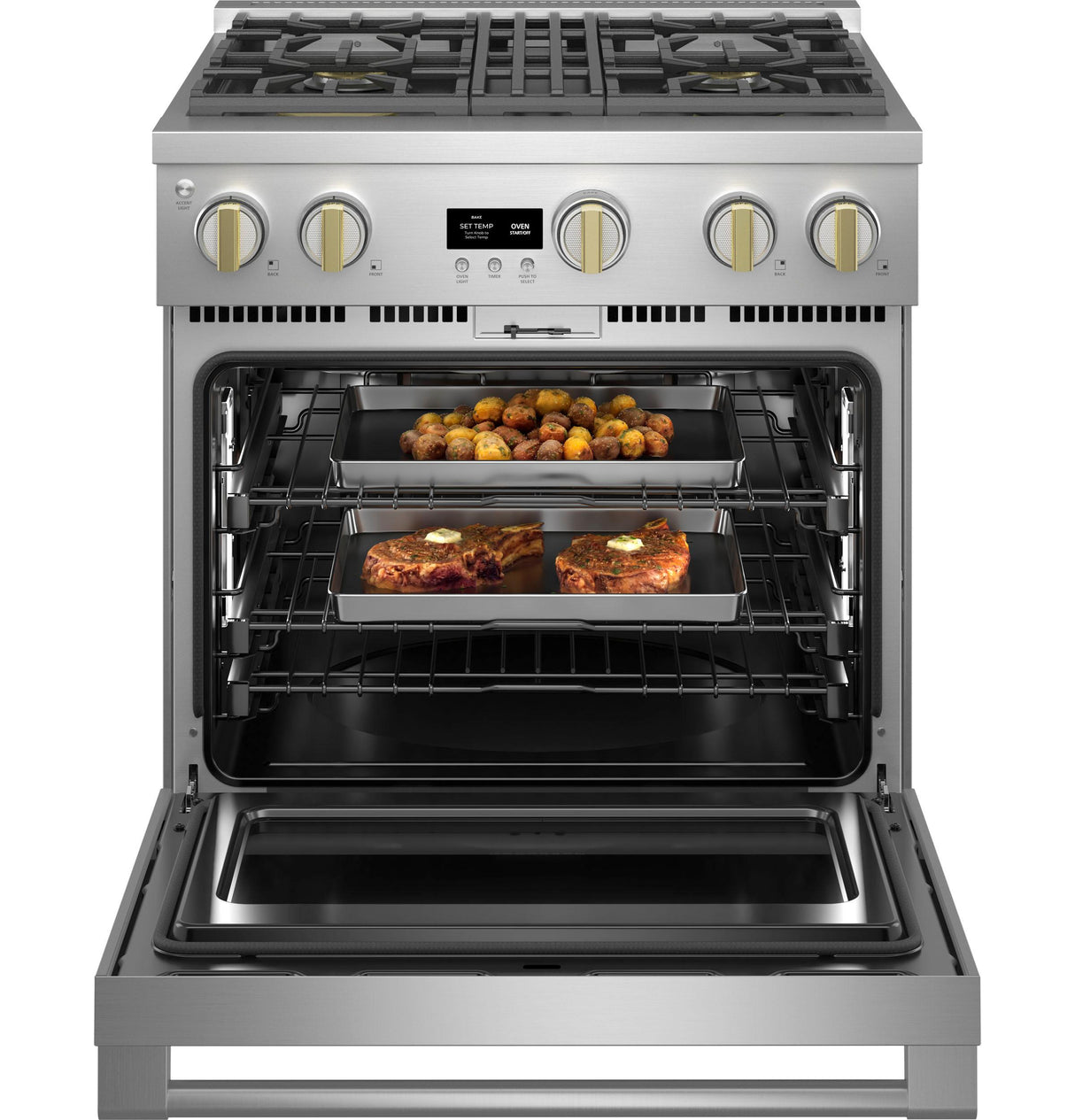

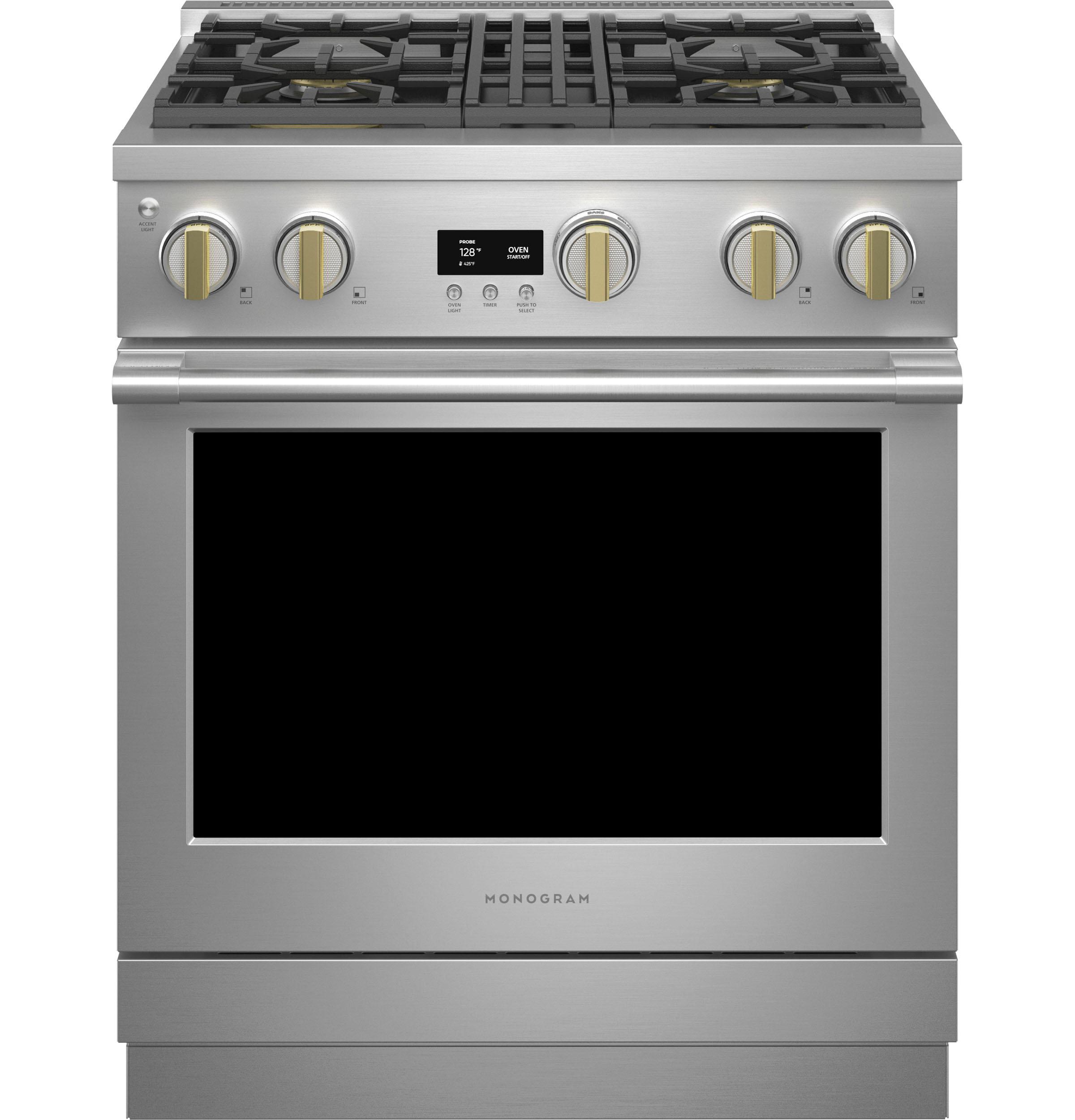

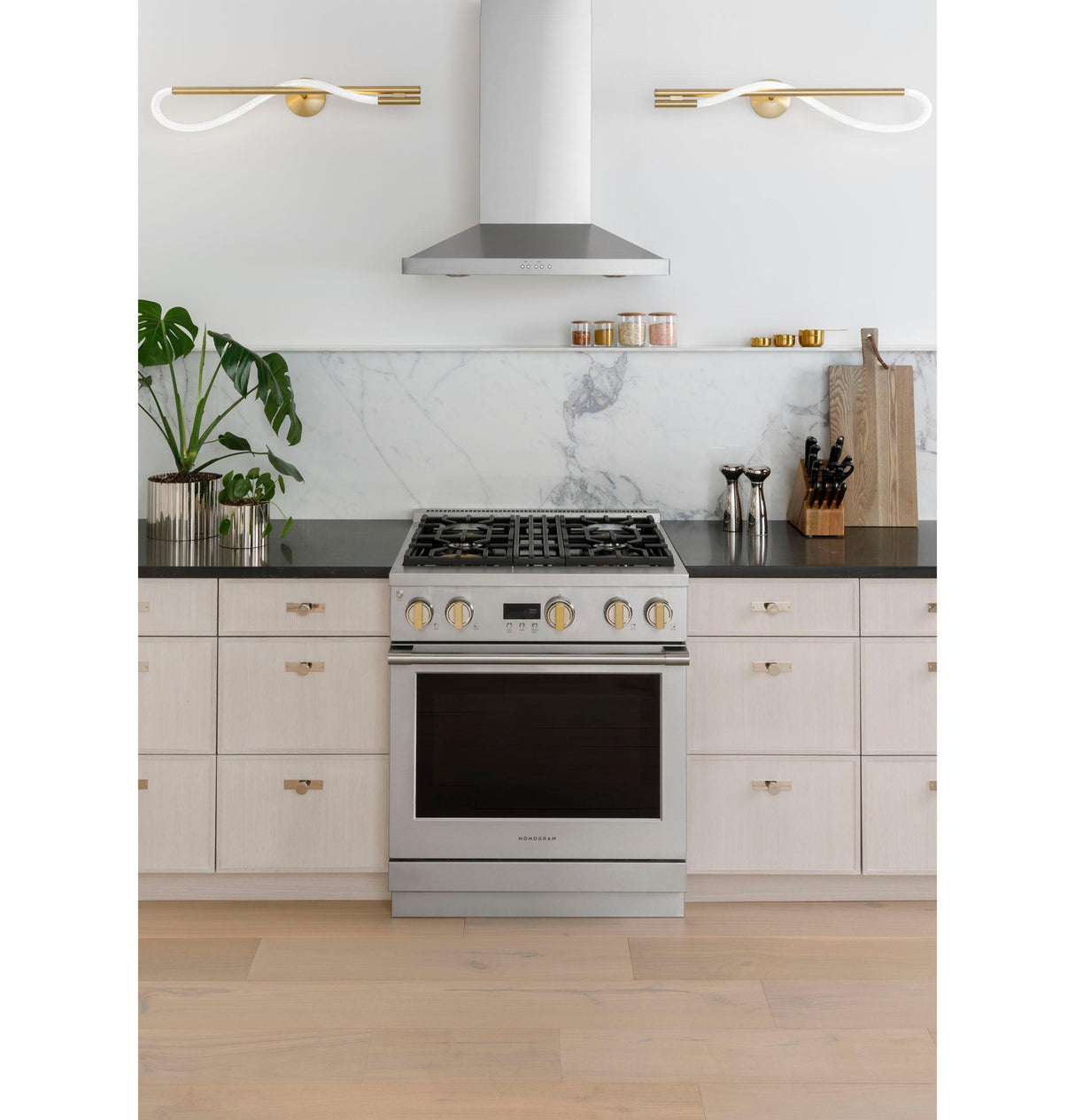

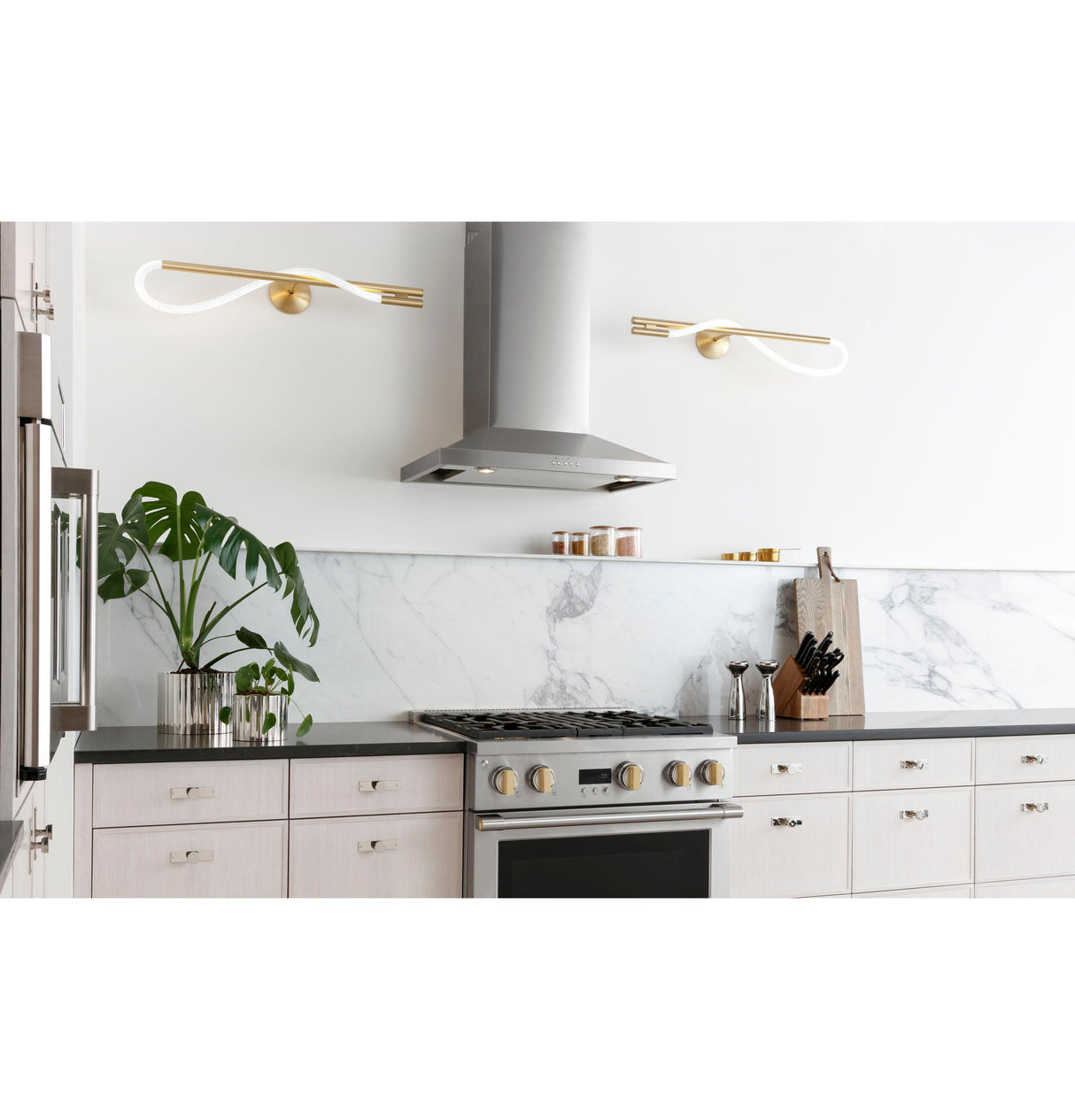

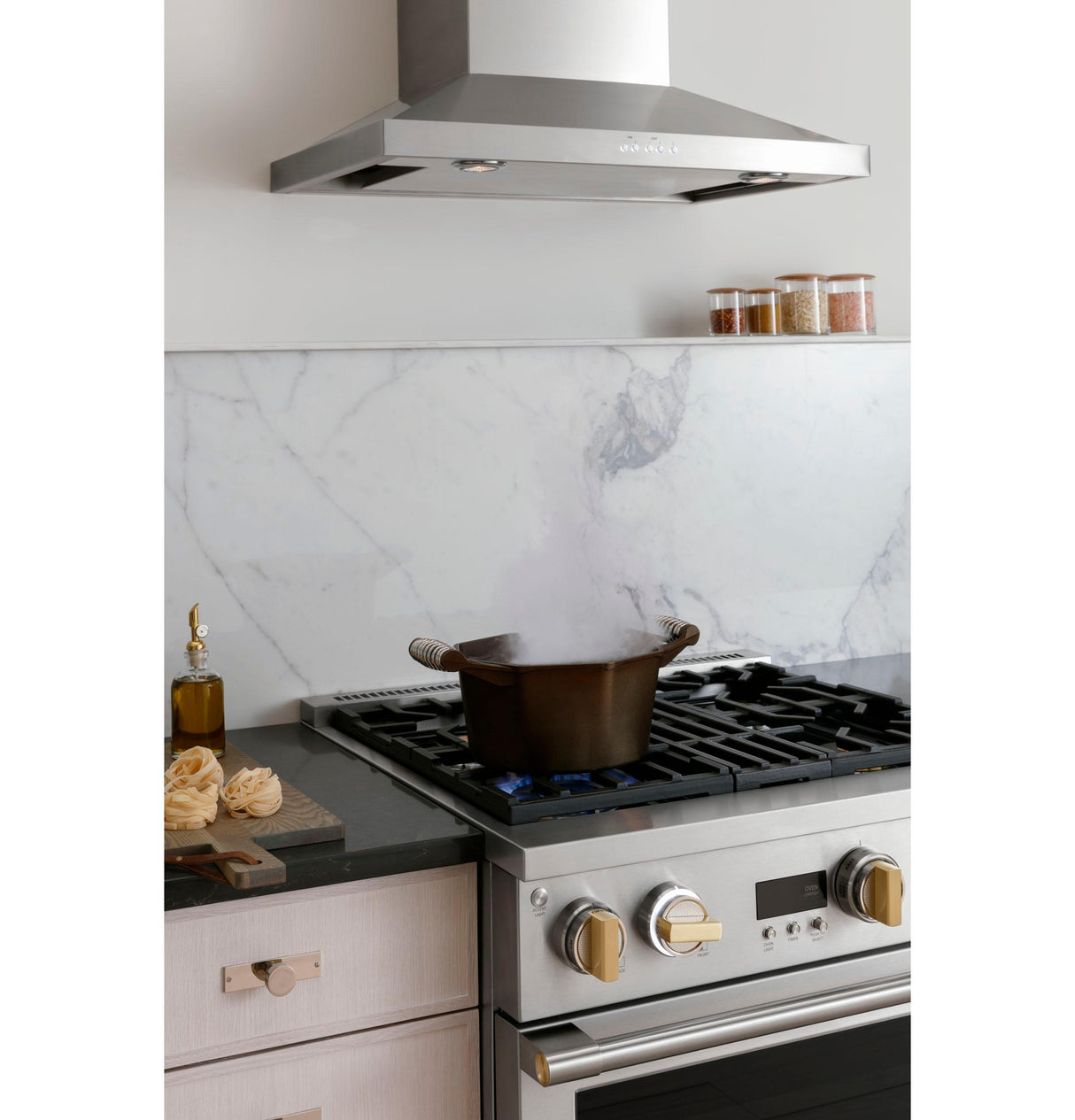

Monogram 30" Dual-Fuel Professional Range with 4 Burners
Model ZDP304NTSS
Monogram 30" Dual-Fuel Professional Range with 4 Burners
Model ZDP304NTSSQuick Specs
Monogram 30" Dual-Fuel Professional Range with 4 Burners is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

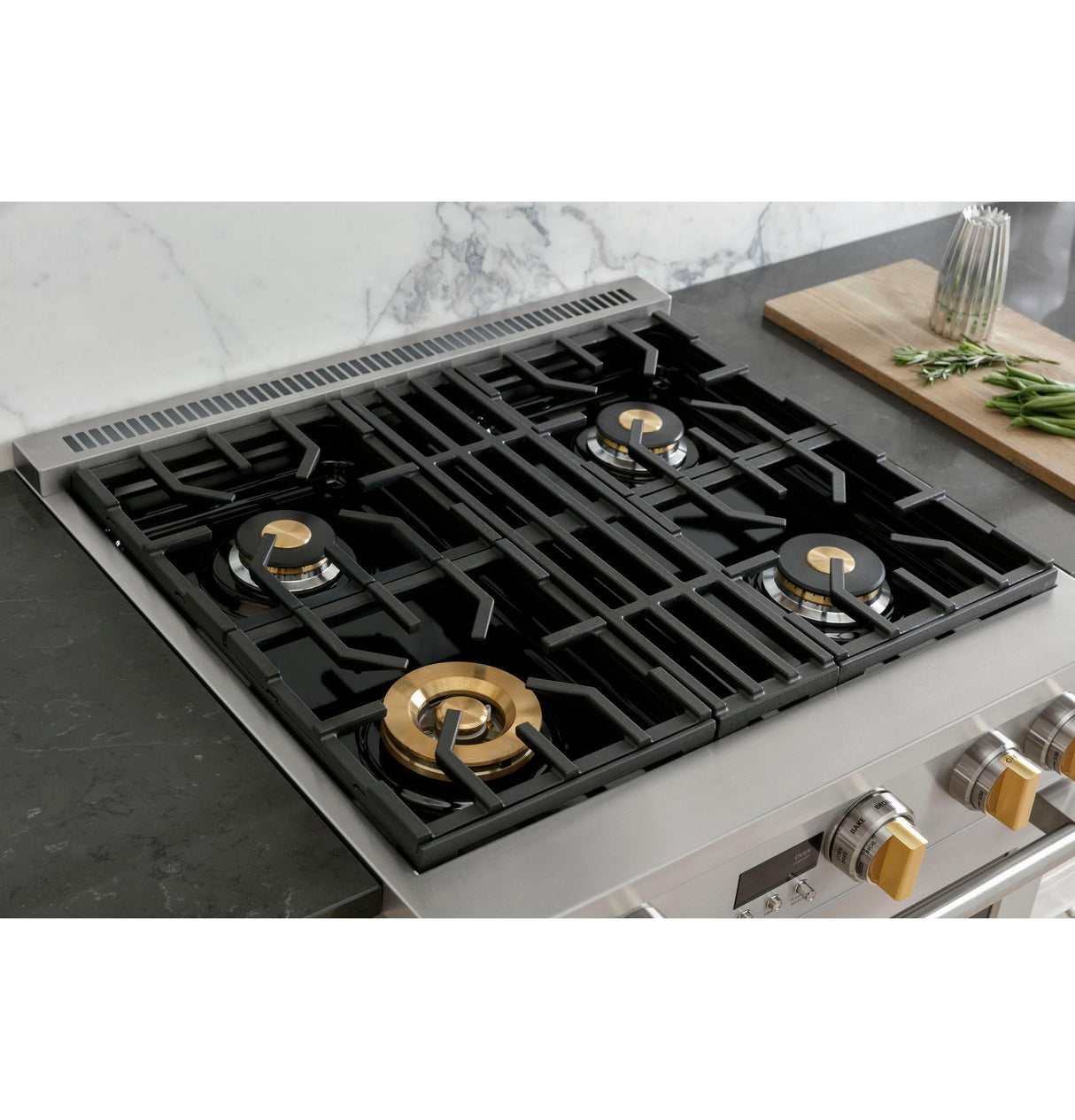

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

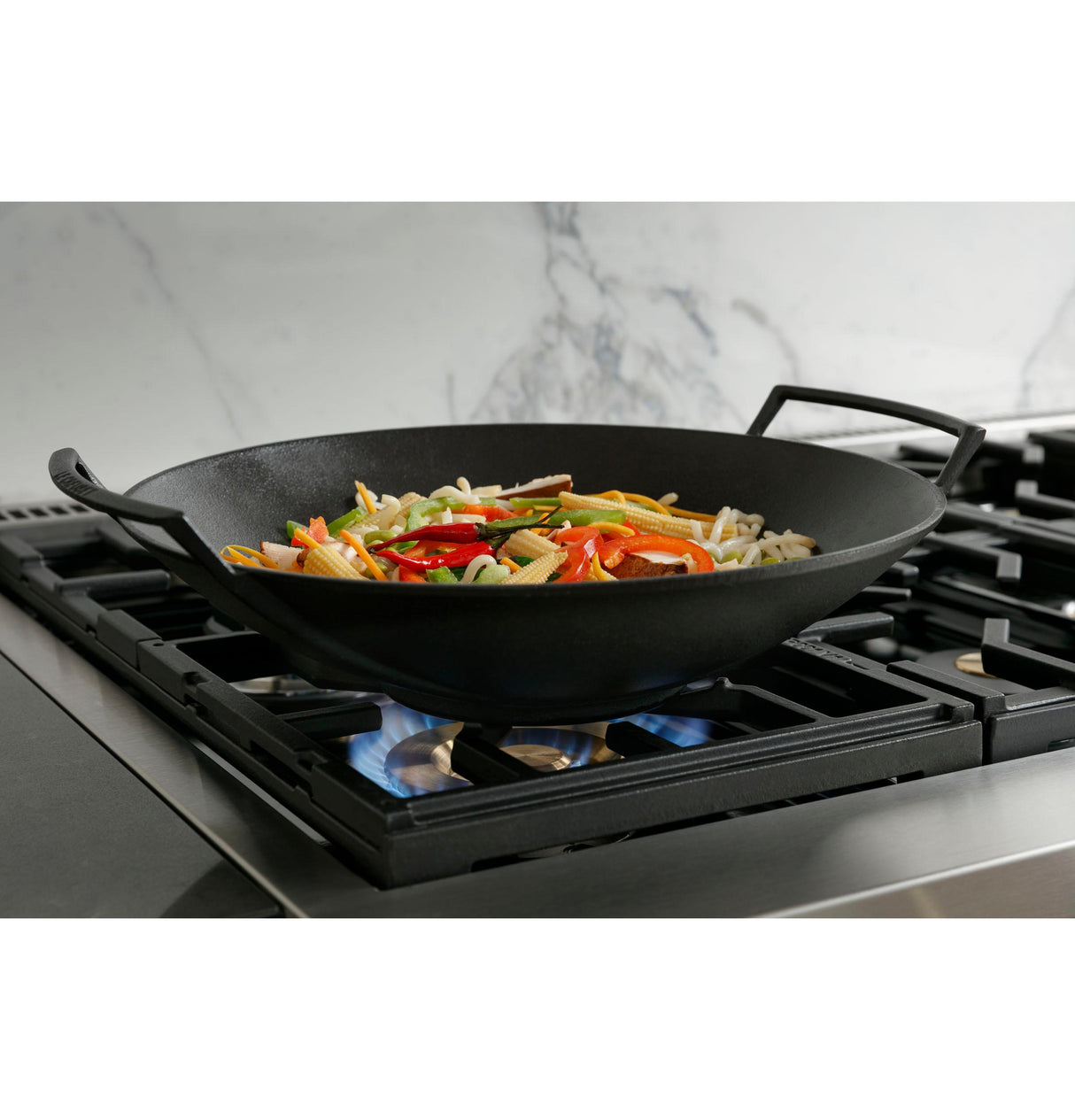

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

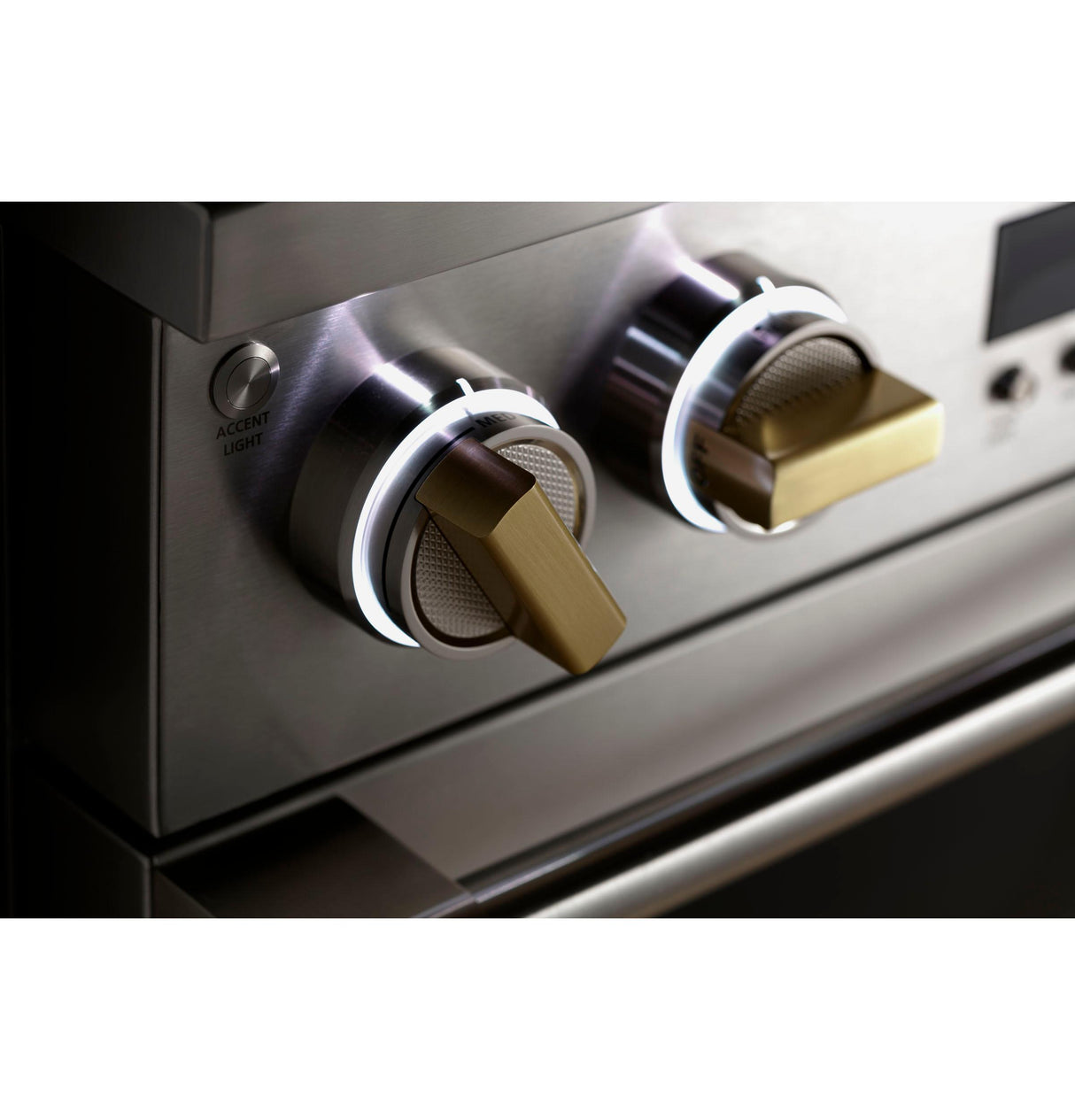

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

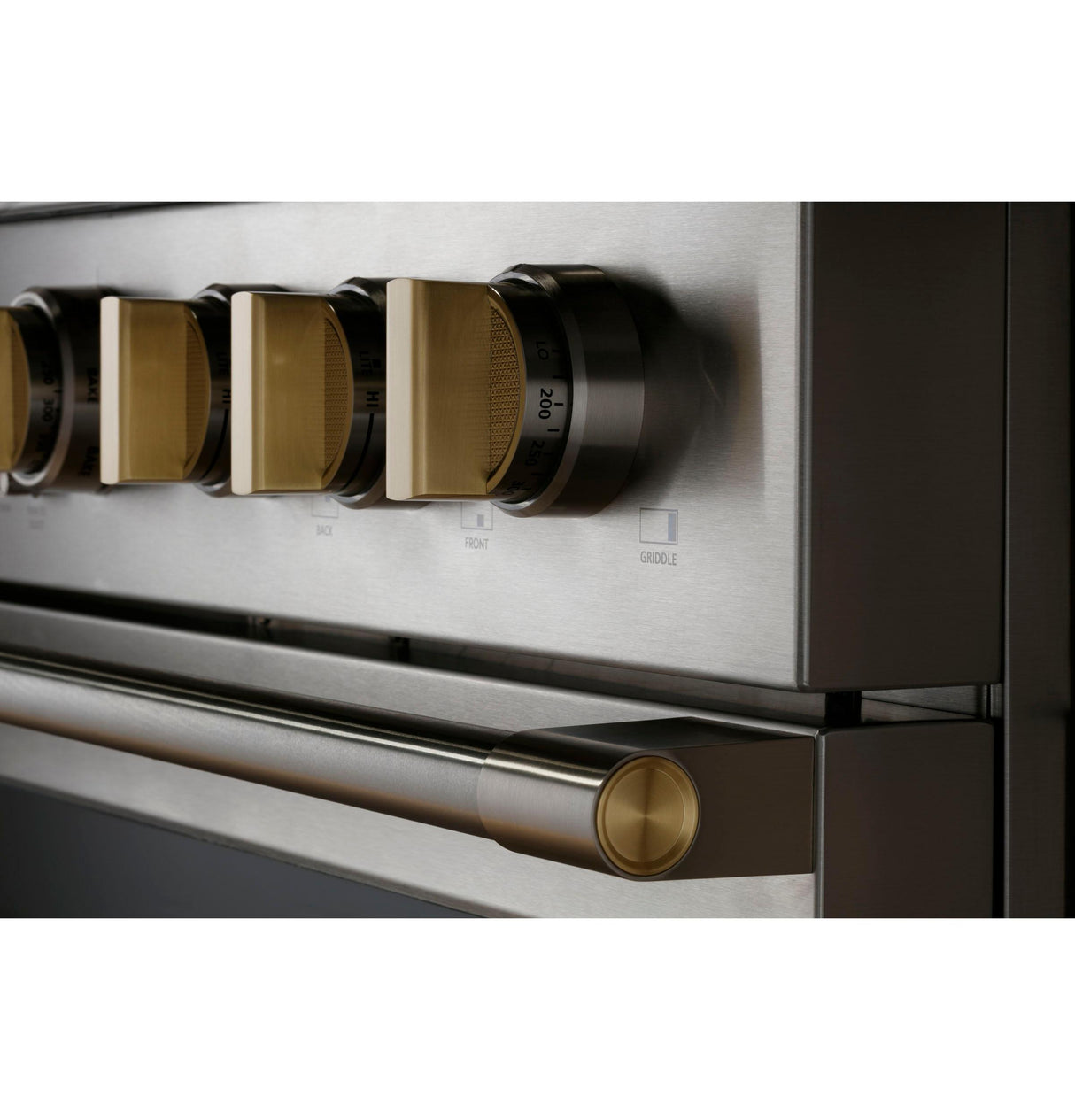

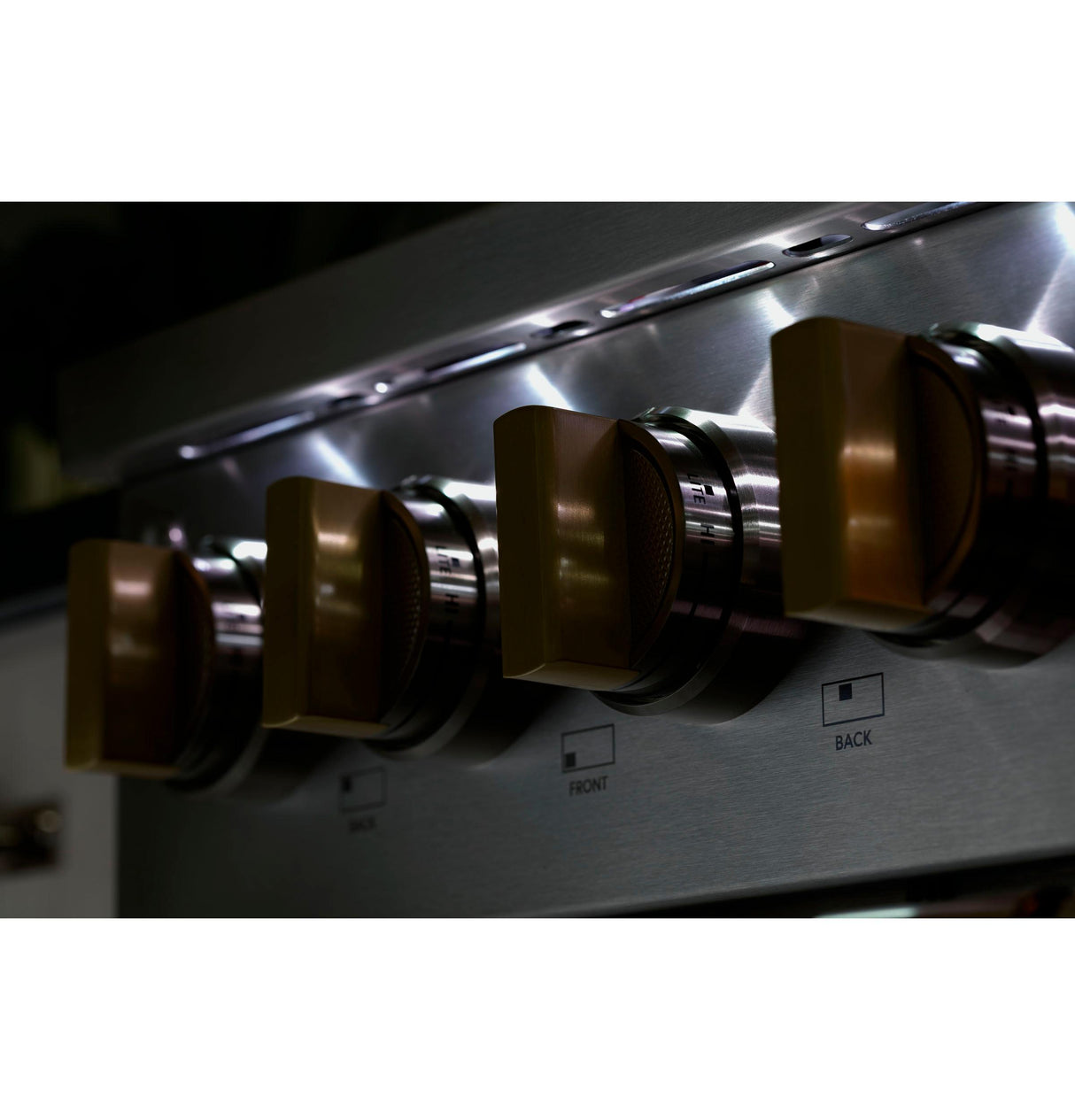

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

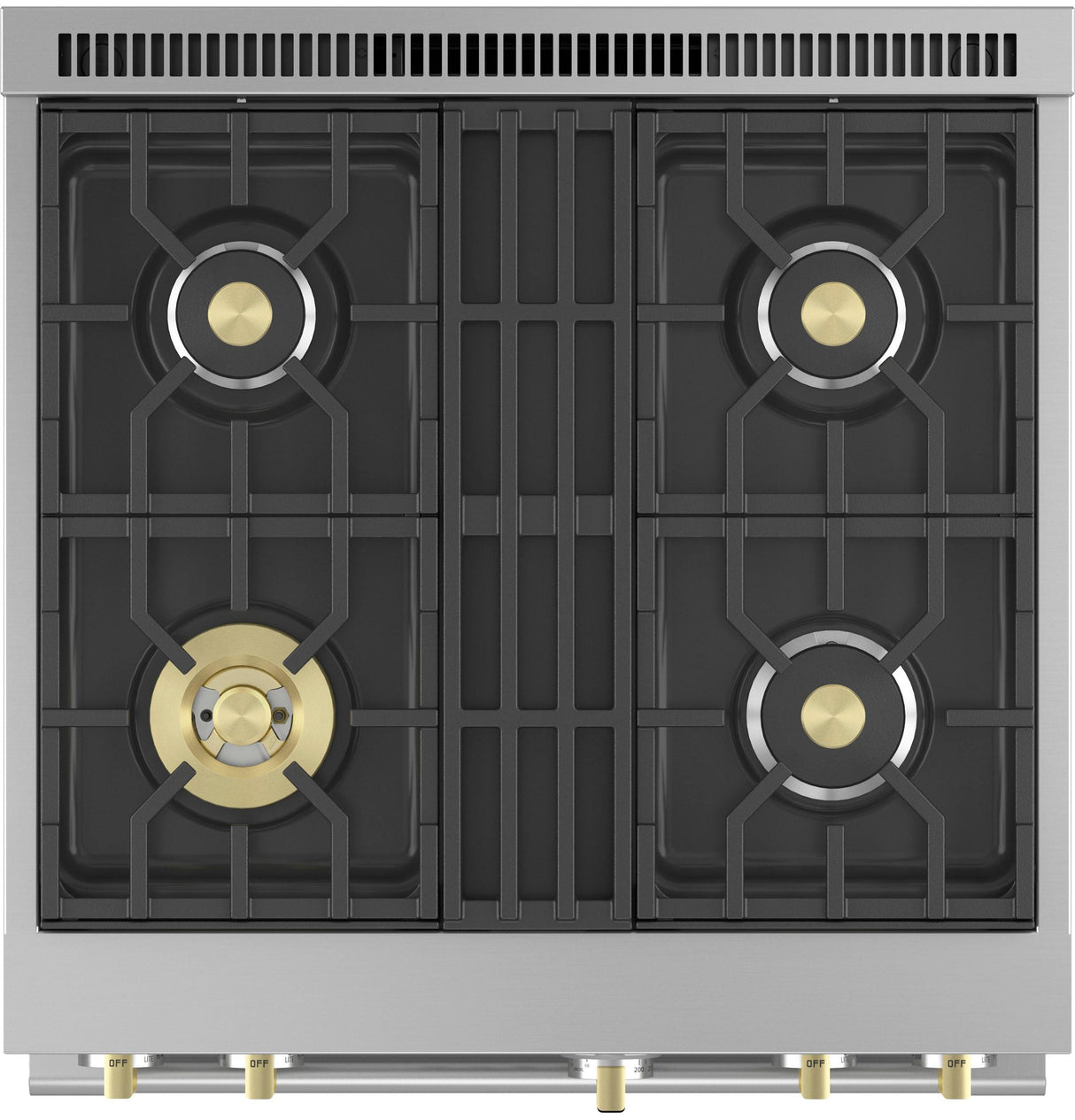

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000-BTU multi-ring brass burner and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
- Versatile Gas Burner Configuration
- Delivering exceptional cooking flexibility, the 21,000-BTU multi-ring brass burner and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
- 3-Piece Grates with Reversible Wok Feature
- Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
- Dynamic Oven LCD
- Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
- Solid Brass Burners
- Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
- Chef Connect
- Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
- Industry Exclusive-Custom Color LED Accent Lighting
- For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance
- Ring-Lit Knobs
- Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
- Solid Brass Blades on Precision Machined Knobs
- With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
- Seamless Stainless Top Frame
- Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
- Soft-Close Hinges
- Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

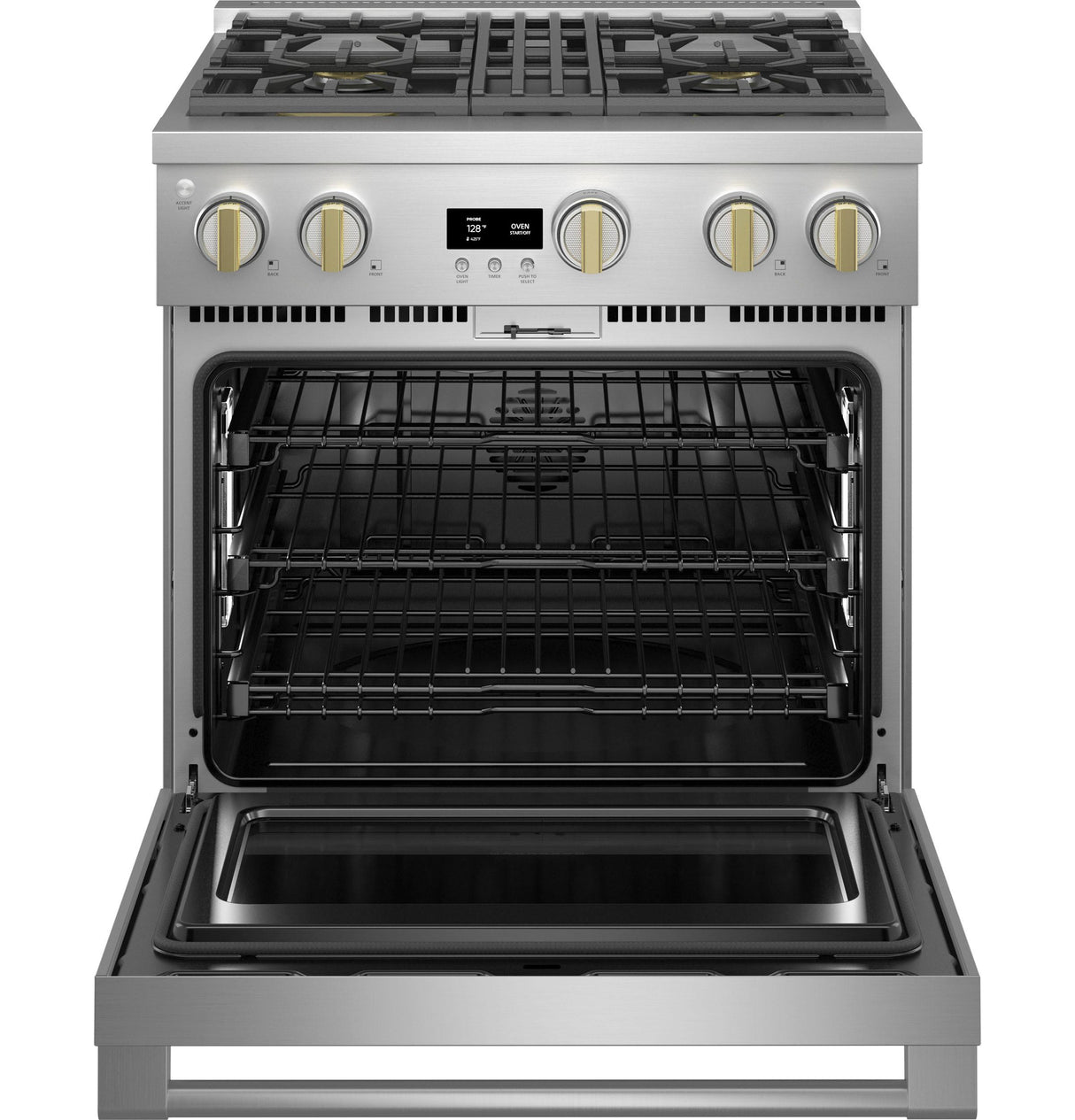

- 3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
- Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle
- Precision Oven Modes with SmartHQ™ app
- Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- Soft-Close Hinges
- 3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
- Precision Oven Modes with SmartHQ(TM) app
- WiFi Monitoring and Remote Control with the SmartHQ(TM) app
- Dynamic Oven LCD
- Solid Brass Burners
- Chef Connect
- Industry Exclusive-Custom Color LED Accent Lighting
- Ring-Lit Knobs
- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
| CAPACITY | |
| Total Capacity (cubic feet) | 5.3 cu ft |
| APPEARANCE | |
| Toe kick | Included |
| Installation | Side-by-Side |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0; (3) 15.0 |
| Electrical Requirements | 240VAC; 30A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 21.0; (1) 15.0; (2) 12.0 |
| Broiler Wattage | 4000W |
| Convection Wattage | 2500W |
| Bake Wattage | 2700W |
| Hertz | 60 |
| WARRANTY | |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| 30/36" Monogram Knob Kit | ZXPR36KKTSS (SS, qty. 9) |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Reversible Griddle/Grill Accessory | UXPRRGG |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |

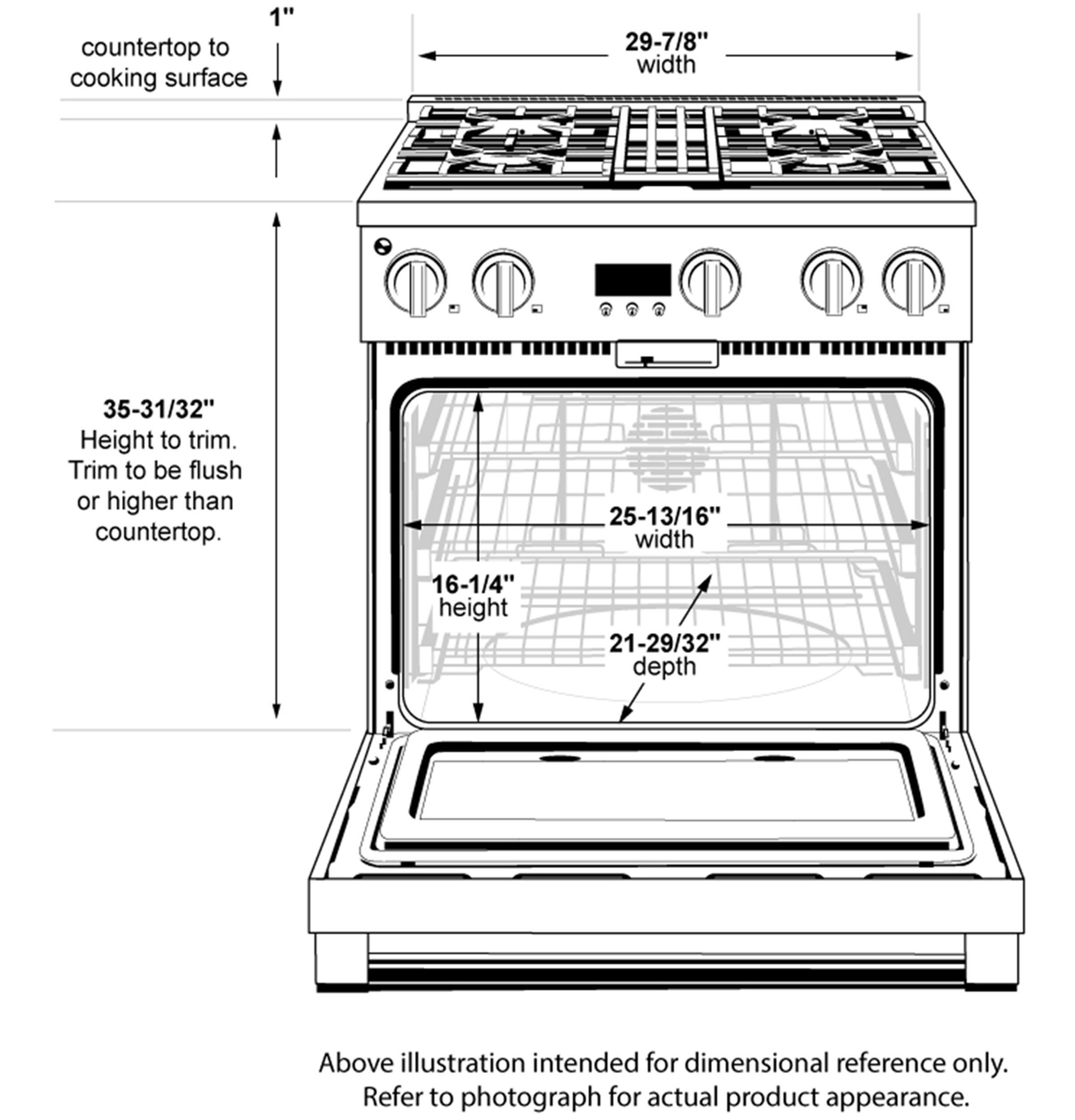

| WEIGHTS & DIMENSIONS | |
| Net Weight | 351 lb |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 391 lb |
| Overall Width | 29.875 in |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Height With Legs Retracted | 35.25 in |
| FEATURES | |
| Cooking System | Reverse Air Convection True European Convection |
| Cleaning Time | 3-5 Hours |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Chef Connect Cook Time C° or F° Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Sabbath Mode (* additional purchase required) Self & Steam Clean Modes Timer WiFi Connect |
| Oven Rack Features | 3 Self-Clean Oven Racks Full-Extension |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | Yes |
| Oven Cleaning Type | Self-Clean Steam Clean |
| Connected Capabilities | Amazon Alexa Bluetooth Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| Product Type | Professional Range |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Cooktop Type | 4 Burners |
| Fuel Type | Dual Fuel (with natural gas) |
| Indicator Lights | Burner "On" |
| Short Description | 30" Pro Range - Dual Fuel with 4 Burners |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Control Type | Digital Temperature LCD Display with Timer Display |
| Lighting | Customizable LED Bullnose and Knob Accent Lighting |
| Collection | Statement |
| Cooking Technology | Convection |
| Oven Features | 8-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Oven Cooking Modes | Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No-Preheat Air Frying Precision Cooking Modes Proof Scan-to-Cook Warming |
| Cooktop Burner Type | 1 Sealed, Dual Ring Brass Accents (Removable) 3 Sealed, Dual Flame Stacked |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 5 |
| Self-Clean Oven Door Lock | Automatic |
