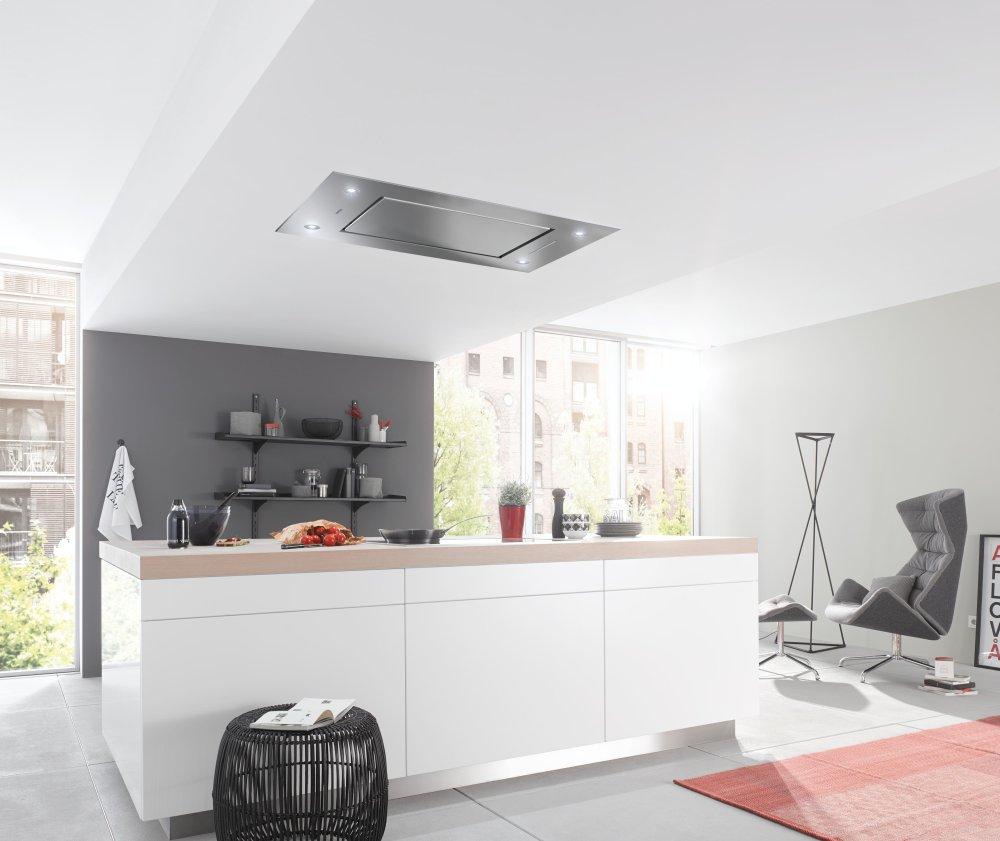

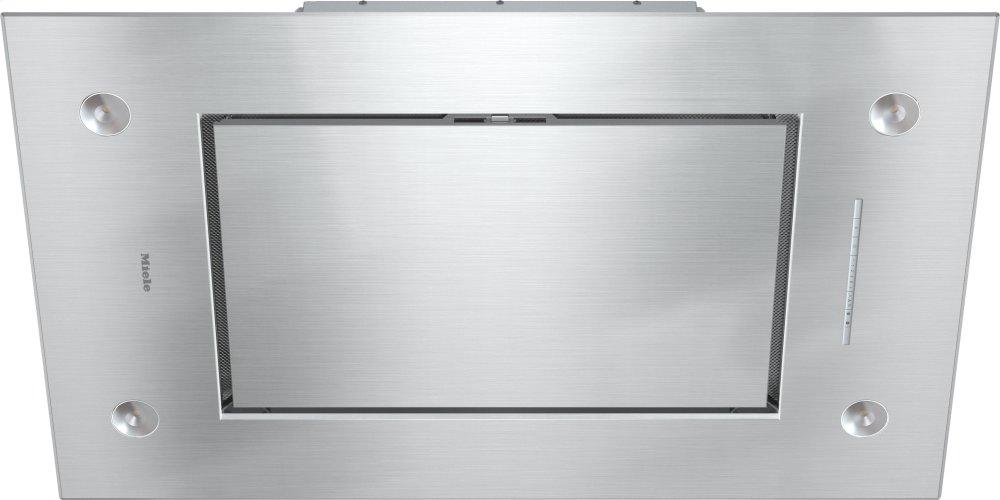

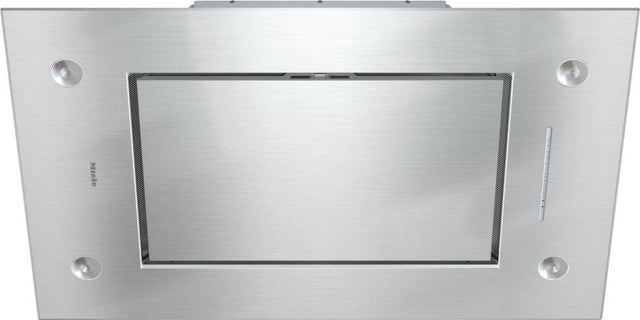

DA 2818 - Ceiling extractor with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2818
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
DA 2818 - Ceiling extractor with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2818DA 2818 - Ceiling extractor with energy-efficient LED lighting and backlit controls for easy use. is backordered and will ship as soon as it is back in stock.
We’ll confirm availability & delivery timing before processing your payment.
Available to Order
Regular price
$2,885.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Con@ctivity
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Edge vented
- Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Elegant design - harmonious in the kitchen environment
- Unique user convenience - Con@ctivity
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
| Design | |
| Ceiling fan | • |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 2900-900 |
| Design | |
| Color | Stainless steel |
| Edge extraction | • |
| User convenience | |
| Miele@home | • |
| Automatic function Con@ctivity | • |
| Electronic controls | • |
| Operation | Light-touch switches with LEDs |
| Miele@mobile app | • |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | |
| Grease filter saturation indicator | • |
| Grease filter saturation indicator | • |
| Active charcoal filter saturation indicator | • |
| CleanCover | |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 2 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 600 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Exhaust air | |
| Maximum air throughput in cfm according to HVI | 401 |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | • |
| Technical data | |
| Overall hood height for vented mode and external in inches (mm) | 13 3/8 (339) |
| Overall hood height for recirculation and external in inches (mm) | 13 3/8 (339) |
| Overall min. height for vented and external in in. (mm) | 13 3/8 (339) |
| Overall max. height for vented and external in in. (mm) | 13 3/8 (339) |
| Overall min. height for recirculation in in. (mm) | 13 3/8 (339) |
| Overall max. height for recirculation in in. (mm) | 13 3/8 (339) |
| Canopy width in in. (mm) | 43 3/8 (1100) |
| Canopy height in in. (mm) | 13 1/2 (342) |
| Depth of hood canopy in in. (mm) | 27 5/8 (700) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 47 (21.0) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | • |
| Vent connection on side | • |
| Vent connection at top, rear, and side | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Installation template | • |
| Combination with WiFi-enabled Miele cooktop | required |
| Standard accessories | |
| Non-return flap | • |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
- Elegant design - harmonious in the kitchen environment
- Unique user convenience - Con@ctivity
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
 | |
|---|---|
