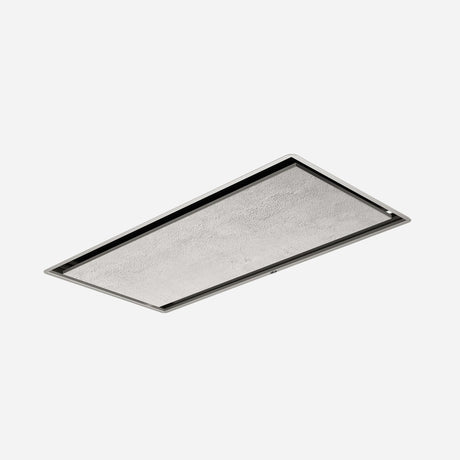

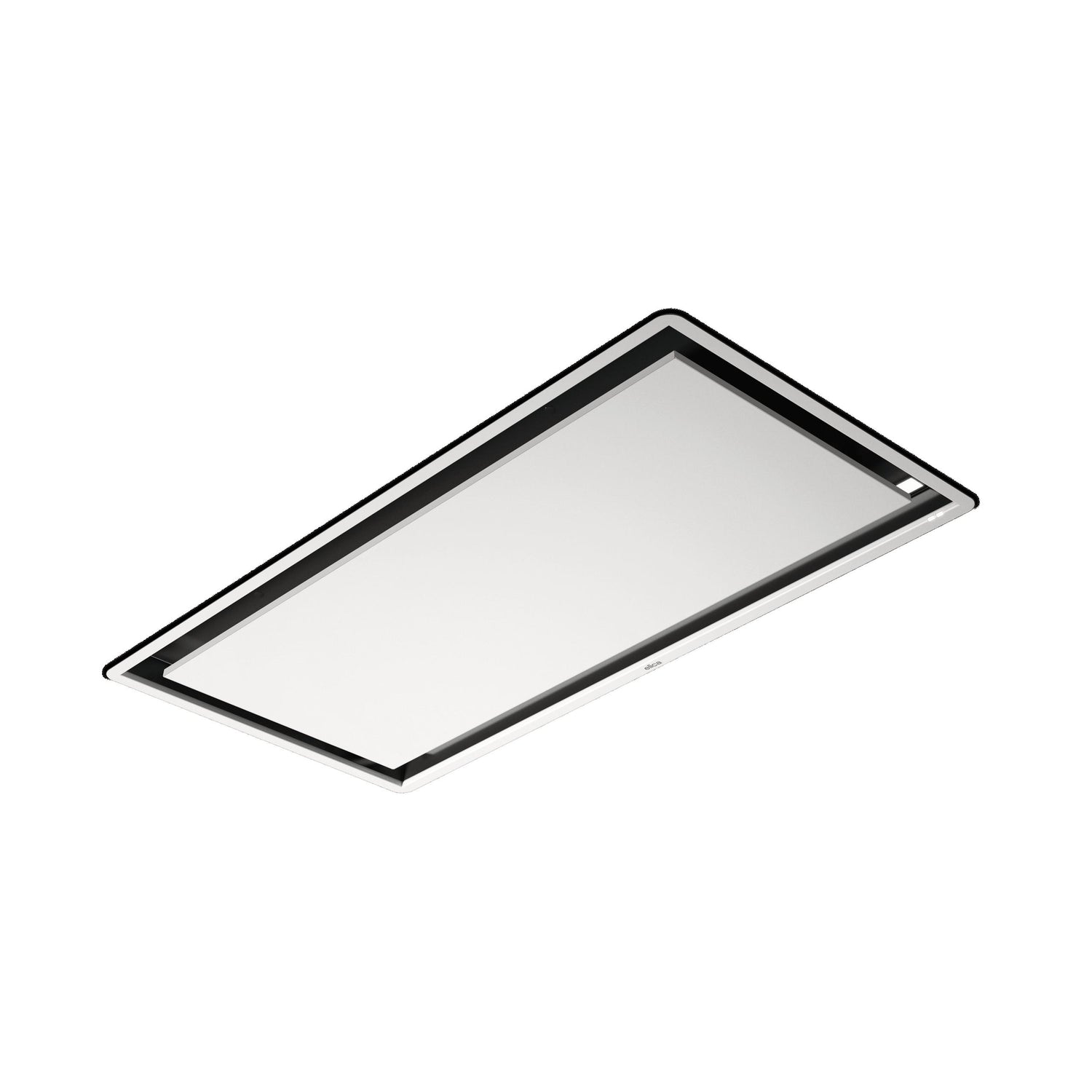

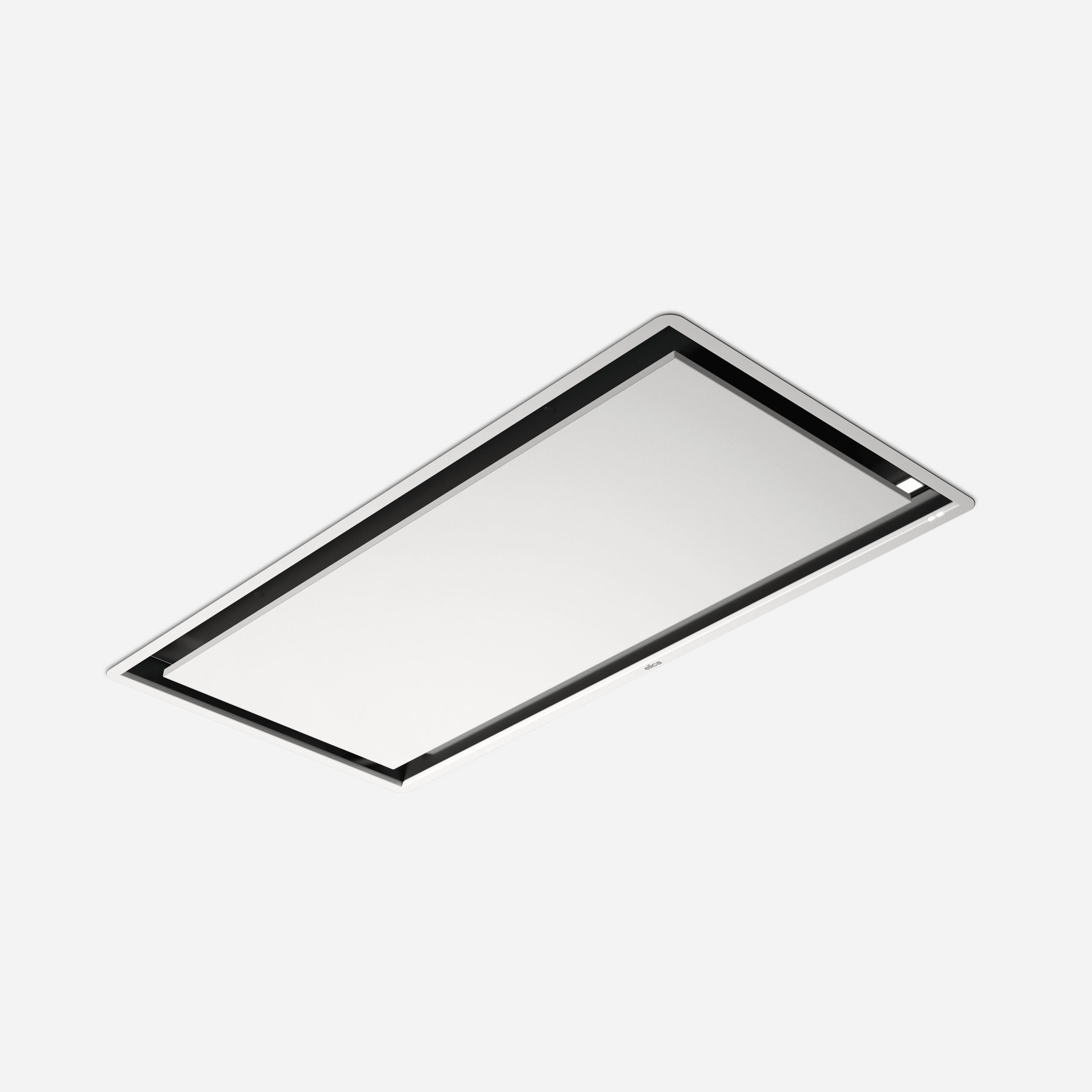

ILLUSION Ceiling Range Hood 40" wide - 600CFM
Model EIL640WH
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
ILLUSION Ceiling Range Hood 40" wide - 600CFM
Model EIL640WHQuick Specs
Energy
NO
Color
ILLUSION Ceiling Range Hood 40" wide - 600CFM is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,233.10
Regular price
$2,999.00
Unit price
/
Unavailable
You save 25%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Energy Star Rated
NO
- Special Material
- In the quest for attractive products to show off but which have a functional, everyday use, materials play a key role. They can make the difference by becoming an attractive signature feature or by disappearing into the background and by being easy to maintain in the long term. They are fundamental in the process of innovation, forming the basis of an attractive look and a fulfilling user experience. Elica selects materials in which sturdiness, easy cleaning and aesthetic impact are combined in a perfect balance. The wide selection of finishes available offers maximum freedom of choice whatever the setting.
- Super Easy Installation
- With the exclusive Elica system, installation can be done in total safety in just a few steps, safeguarding the look of the product and the space in which it is positioned. After the hood is automatically locked in position, the fastening points can be finely adjusted to preserve the linear design of the kitchen and ensure perfect integration of the hood in the room. A simple, hard-wearing and safe solution.
- Dim Light
- The light in the kitchen, as in any room, is a key design feature for improving the home living experience. Achieving the right intensity becomes fundamental in creating the desired atmosphere. Which is why Elica has designed the Dim light function which allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.
- Remote Control
- Elica s ADA compliant Remote Control, provides added convenience to the typical user, as well as, full function access for those with limited mobility.
- Tune-White
- Elica is at the top also with the customization of kitchen lighting, thanks to the use of the led strip with the GK Changing feature which, during the installation phase, allows you to choose to adapt the hood light with other lighting in the kitchen, by adjusting the temperature of leds, choosing from a range that goes from yellow light (2700 K) to white light (6000 K). The kitchen, thanks to the hood, will have uniform cool lightning.
- Special materials
- Tune white
- Long life filter
- Dim light
- Total integration
- Super easy installation
- Remote control
- Perimeter aspiration

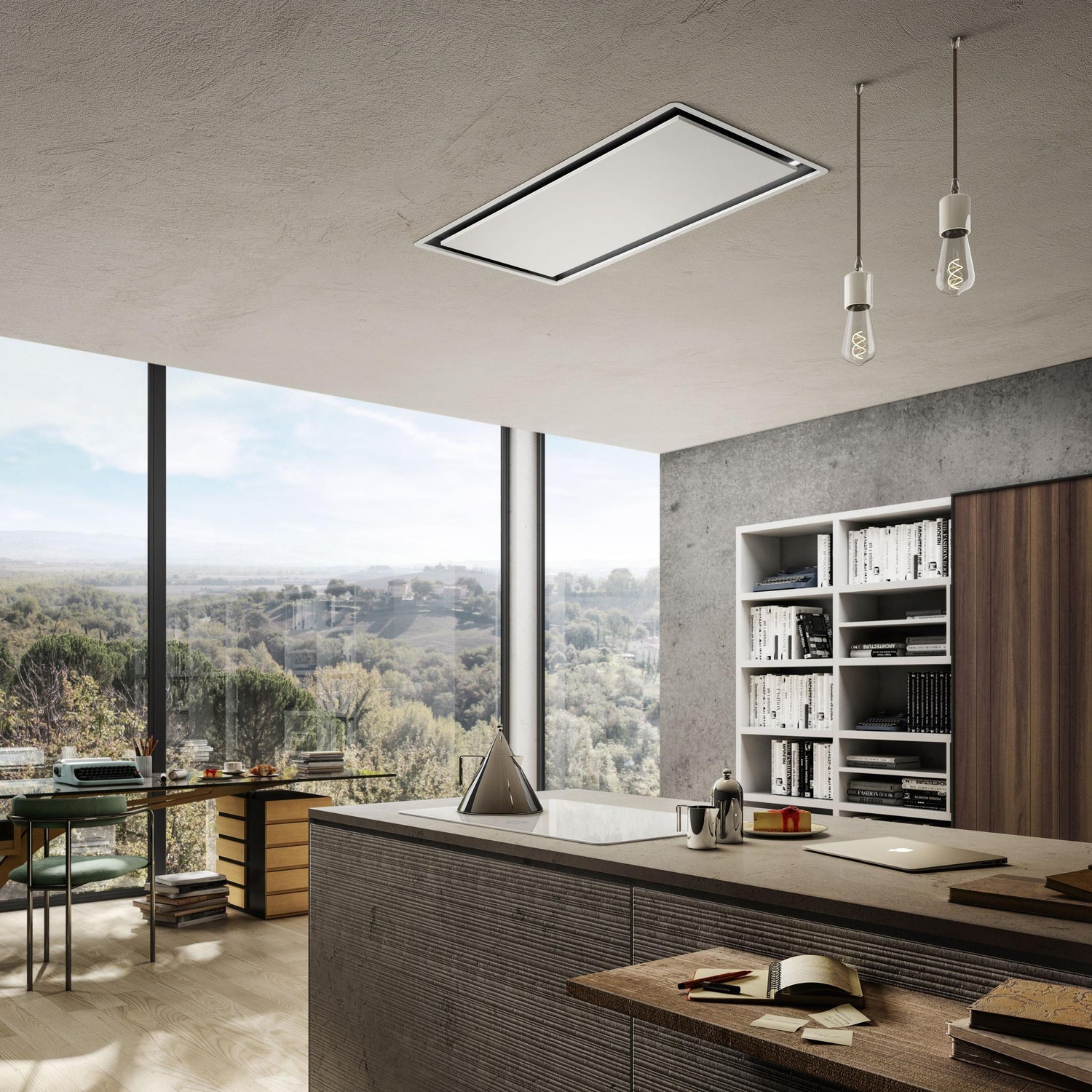

First panel-ready ceiling hood in the market, perfectly fitting the ceiling texture of the living space, disappearing like a true Illusion. Also naturally saves valuable kitchen space and frees the area of inconvenient obstructions cleverly hiding a powerful extraction system that guarantees always clean air in the living space. Combining discreet shapes and high performance, Illusion has been created for consumers who ask for an essential and bespoke style without compromising on functionality.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 32.60 |
| NET WEIGHT (kg) | 23.90 |
| CARTON LENGHT (mm) | 678.00 |
| CARTON HEIGHT (mm) | 385.00 |
| CARTON WIDTH (mm) | 1108.00 |
| VOLUMEN (M3) | 0.30 |
| SHIPPING WEIGHT | 71.87 |
| NET WEIGHT | 52.69 |
| CARTON LENGHT | 26.69 |
| CARTON HEIGHT | 15.16 |
| CARTON WIDTH | 43.62 |
| COUNTRY OF MANUFACTURE | PL |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel White |
| Color | white matte |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Special materials, Tune white, Long life filter, Dim light, Total integration, Super easy installation, Remote control, Perimeter aspiration |
| WIDTH (IN) | 40" |
| WIDTH (CM) | 100.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 36.00 |
| db (max) | 55.00 |
| SONES | 1.8 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Multidirectional |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 4A |
| HERTZ | 60.00 |
| WATTS | 578.00 |
| LIGHTING | Dimmable Strip LED 2 x 14 ww 3500 KK |
| BULB TYPE | Strip LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 14.00 |
| KELVINS | 3500.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Remote control |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | YES |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | No |
| DIMENSIONS | 100 x 50 x 30 |
| DIMENSIONS inches | 40" x 19 11/16 x 11 15/16" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | NA |
| Maximum Overall Height - Top to Bottom | NA |
| Overall Height - Top to Bottom | NA |
| Overall Width - Side to Side2 | 40" |
| Overall Depth - Front to Back | 19 11/16 |
| Hood Height | 11 1/16" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | 10'0" |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 9' |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT0167875 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | KIT0121469 |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | YES |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | YES |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | Activo |
