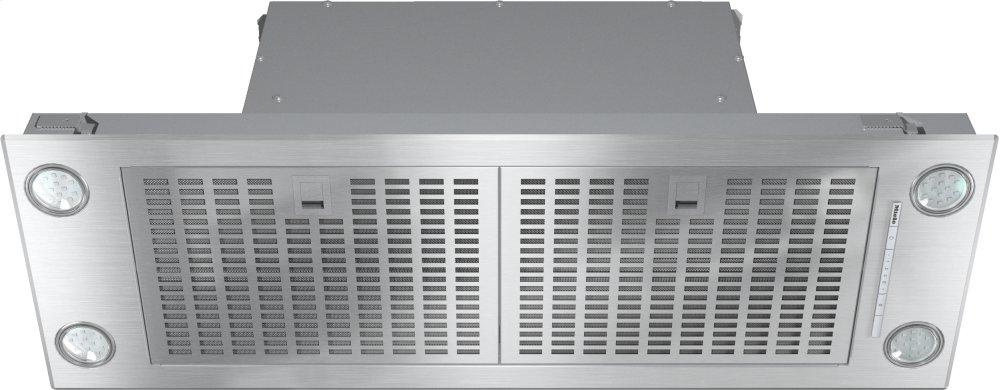

DA 2390 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2390
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
DA 2390 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2390Quick Specs
Width
36"
Depth
11"
Height
13"
Energy
NO
We’ll confirm availability & delivery timing before processing your payment.
Available to Order
Regular price
$1,799.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Width
36"
Depth
11"
Height
13"
Energy Star Rated
NO
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

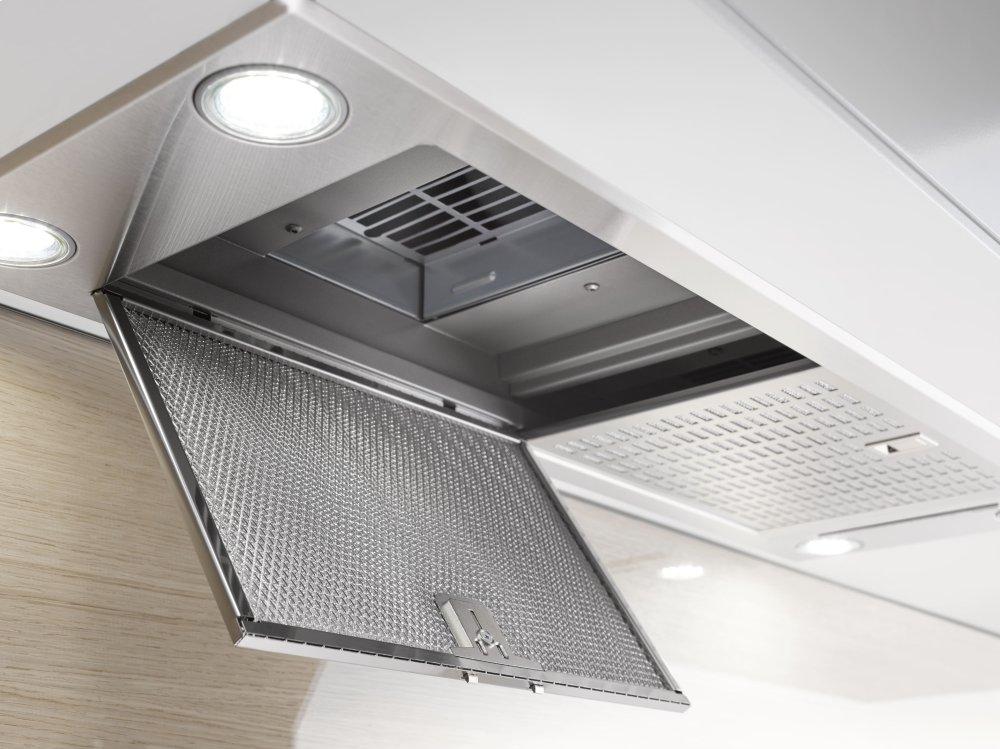

Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Customized kitchen design - fully integrated in 34 7/8 (884) in (mm) width
- Space saving - suitable for narrow wall units from 11.8" deep
- Powerful - 488.52 (830) ft /min (m3/h) in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Insert ventilation extractor | Yes |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 19-P |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Electronic controls | Yes |

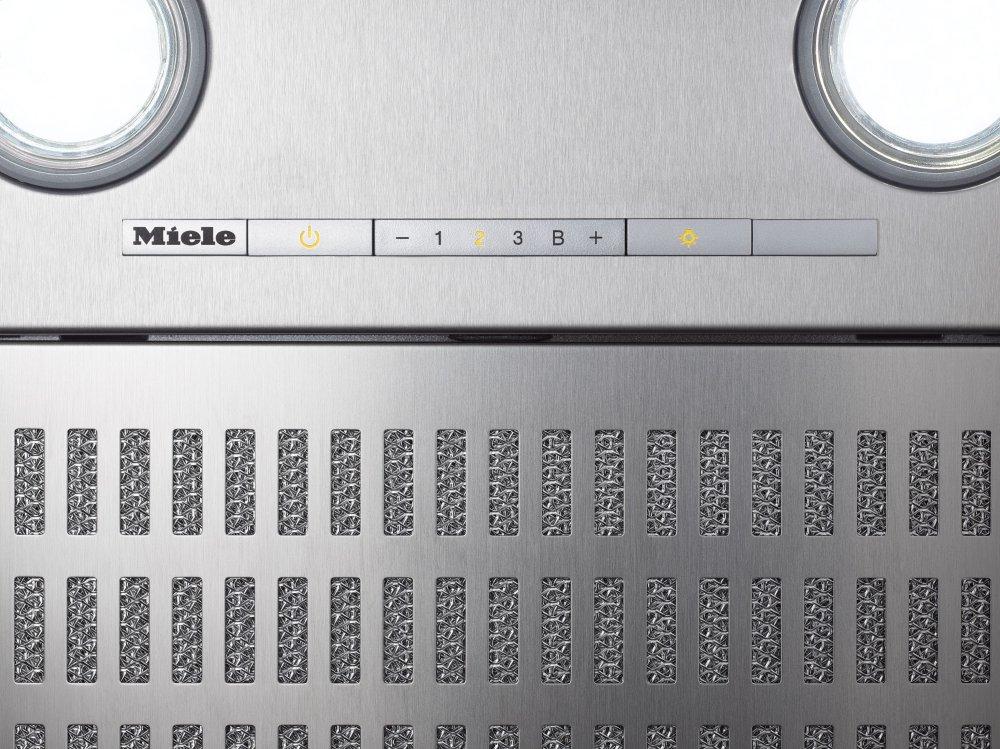

| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| CleanCover | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
| Lighting | |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 500 lx |
| Color temperature in K | 3000 Kelvin |
| Blower | |
| Dual-action blower | Yes |
| Exhaust air | |
| Air throughput in CFM in Booster | 395 |
| Air throughput | Values upon request |
| Air throughput with Booster level 1 (m /h) according to EN 61591 | 488.52 (830) |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Canopy width in in. (mm) | 34 7/8 (884) |
| Canopy height in in. (mm) | 2 1/2 (63) |
| Depth of hood canopy in in. (mm) | 11 3/4 (297) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 29 (13.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Vent connection at top and rear | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002515939932 |
- Customized kitchen design - fully integrated in 34 7/8 (884) in (mm) width
- Space saving - suitable for narrow wall units from 11.8" deep
- Powerful - 488.52 (830) ft /min (m3/h) in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Manufactured with great care by Miele & Cie. KG
- Safety information
