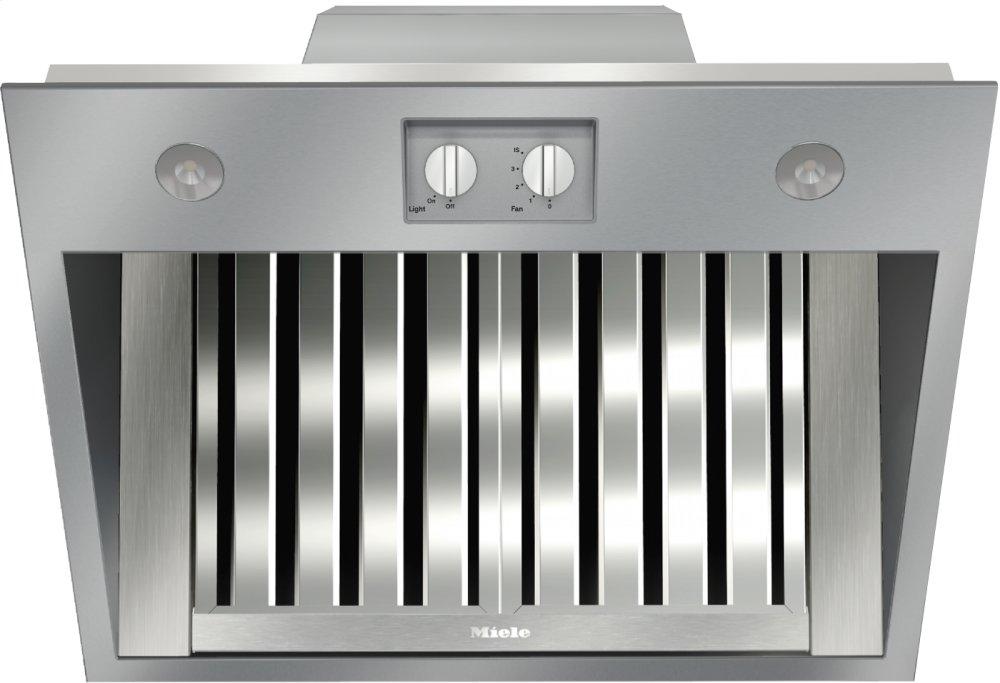

DAR 1120 Stainless steel - 30-inch extractor unit for perfect combination with Ranges and Rangetops.
Model: DAR1120Quick Specs
Width
27.5"
Depth
22.88"
Height
17.75"
Estimated to ship in 1-2 weeks
Available to Order
Regular price
$1,499.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Width
27.5"
Depth
22.88"
Height
17.75"
Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Knob controls
- Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
- LED ClearView lighting
- Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
- Temperature sensor
- Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Customized kitchen design - fully integrated in 27 1/2 (698) in (mm)
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 2 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
- View manufacturer details: Miele & Cie. KG
- Safety information
| General information | |
| Model number | DAR 1120 |
| Manufacturer material number | 09753460 |
| EAN number | 4002515446706 |
| Design | |
| Insert ventilation hood | Yes |
| Required accessories | |
| Blower | Yes |
| Operating modes | |
| Recirculated mode | Exhaust air |
| External operation possible | Yes |
| User convenience | |
| Rotary knob | Yes |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | Yes |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | Yes |
| Dishwasher-safe grease collection channel | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 2 |
| Lighting | |
| LED | Yes |
| Number x W | 2 x 3 W |
| Fan option (buy separately) | |
| DRIB XL internal blower in CFM (m (h) | 1189 |
| DREB XL external blower in CFM (m /h) | 1189 |
| Technical data | |
| Canopy width in in.(mm) | 27 1/2 (698) |
| Canopy width in inches | 29 15/16 |
| Canopy height in in.(mm) | 17 3/4 (449) |
| Canopy depth in in.(mm) | 22 7/8 (579) |
| Net weight in lbs. (kg) | 36 (16.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.806 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Plug type | US earthed plug |
| Installation note | |
| Vent connection at top | Yes |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002515446706 |
- Customized kitchen design - fully integrated in 27 1/2 (698) in (mm)
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 2 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
- View manufacturer details: Miele & Cie. KG
- Safety information
