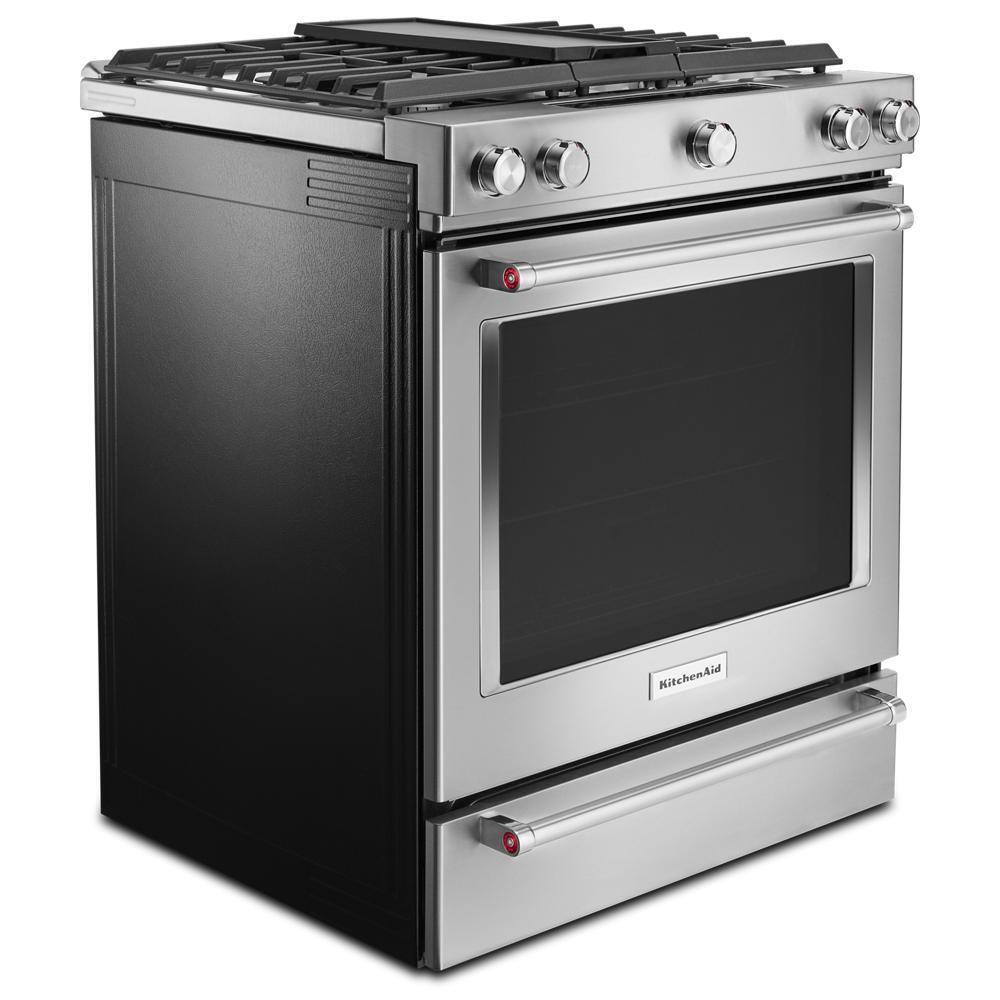

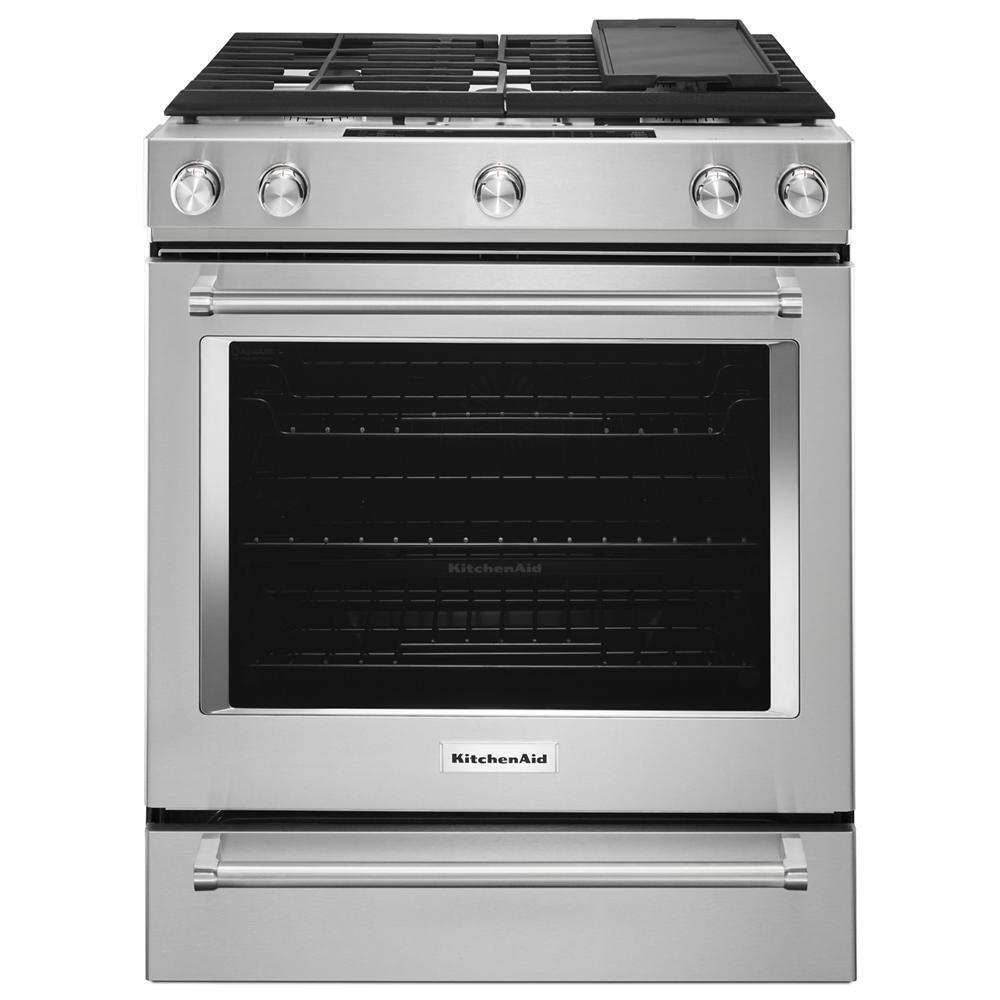

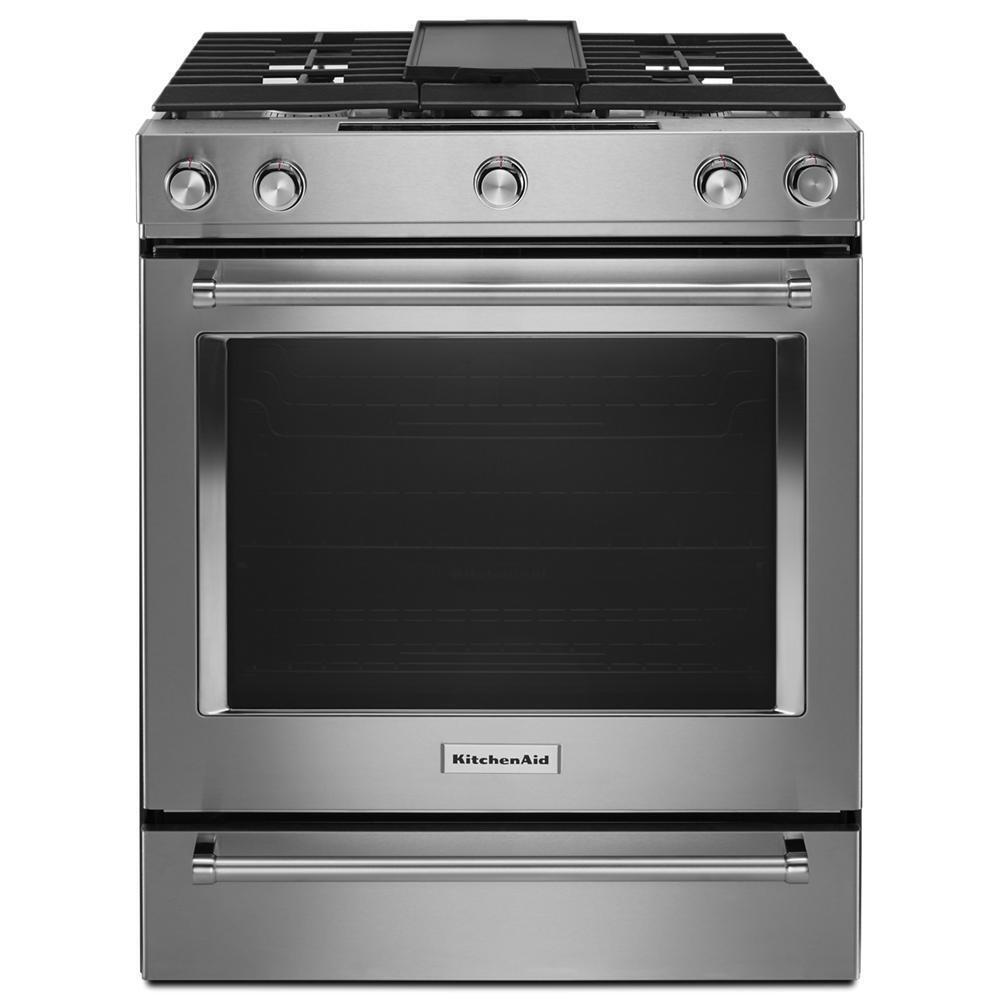

30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
Model KSDB900ESS
Authorized Dealer
1
of
20
Loading...
Authorized Dealer
30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
Model KSDB900ESSQuick Specs
Width
29.87"
Depth
28.875
Height
36.0
Sabbath
NO
ADA
YES
Wifi
NO
Burner
Sealed
Storage
NO
30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/23/2026
Sale Price
$3,149.00
$3,499.00
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
29.87"
Depth
28.875
Height
36.0
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
YES
Cooking oven number of burners
5
Cooking First Oven Capacity
7.1
Continuous Grate
YES
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Downdraft Ventilation
NO
Nominal Width
30.0
RPM
-1.0
Drawer Proof Mode
YES
Dual Fuel
YES
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Even-Heat(TM) True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
EasyConvect(TM) Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
FIT Guarantee
Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Baking Drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

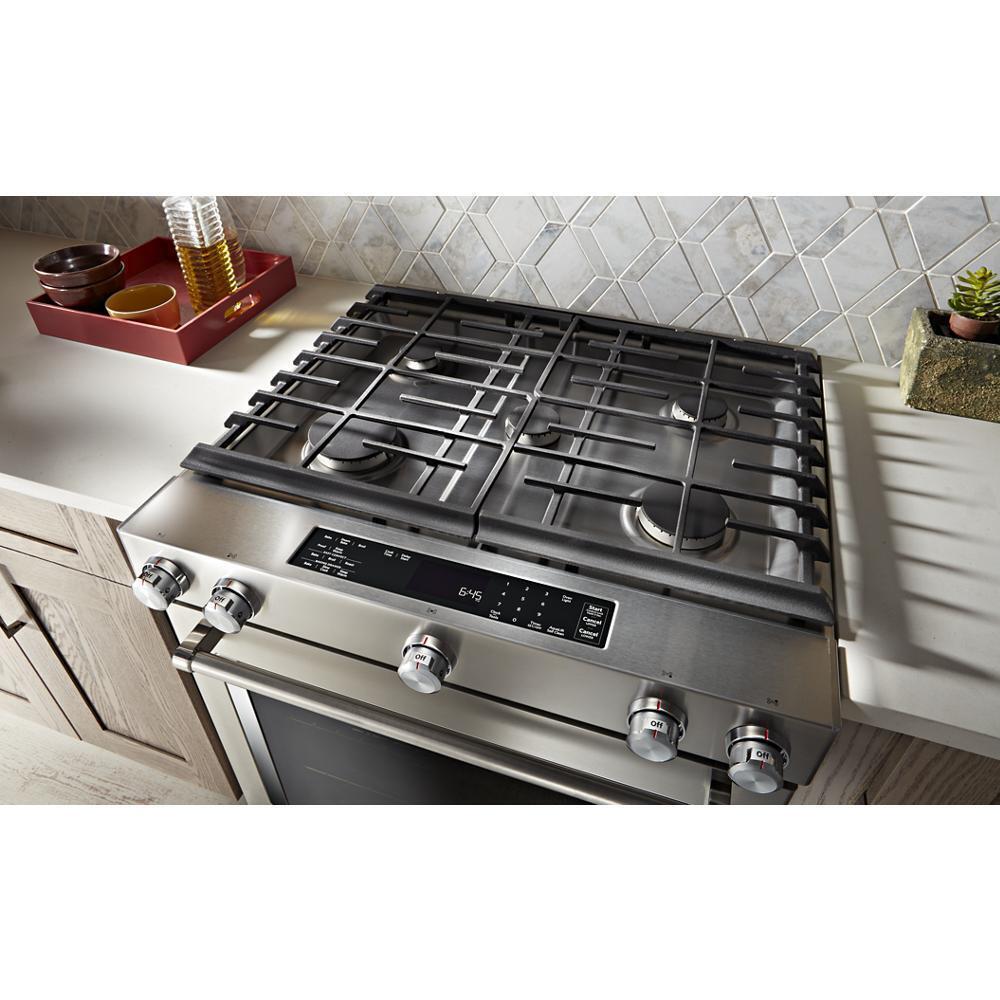

- 5 burners (5k, 8k, 9.2k, 15k and 19k)
- Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.
- 7.1 Cu Ft. Total Capacity
- This slide-in range provide an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.

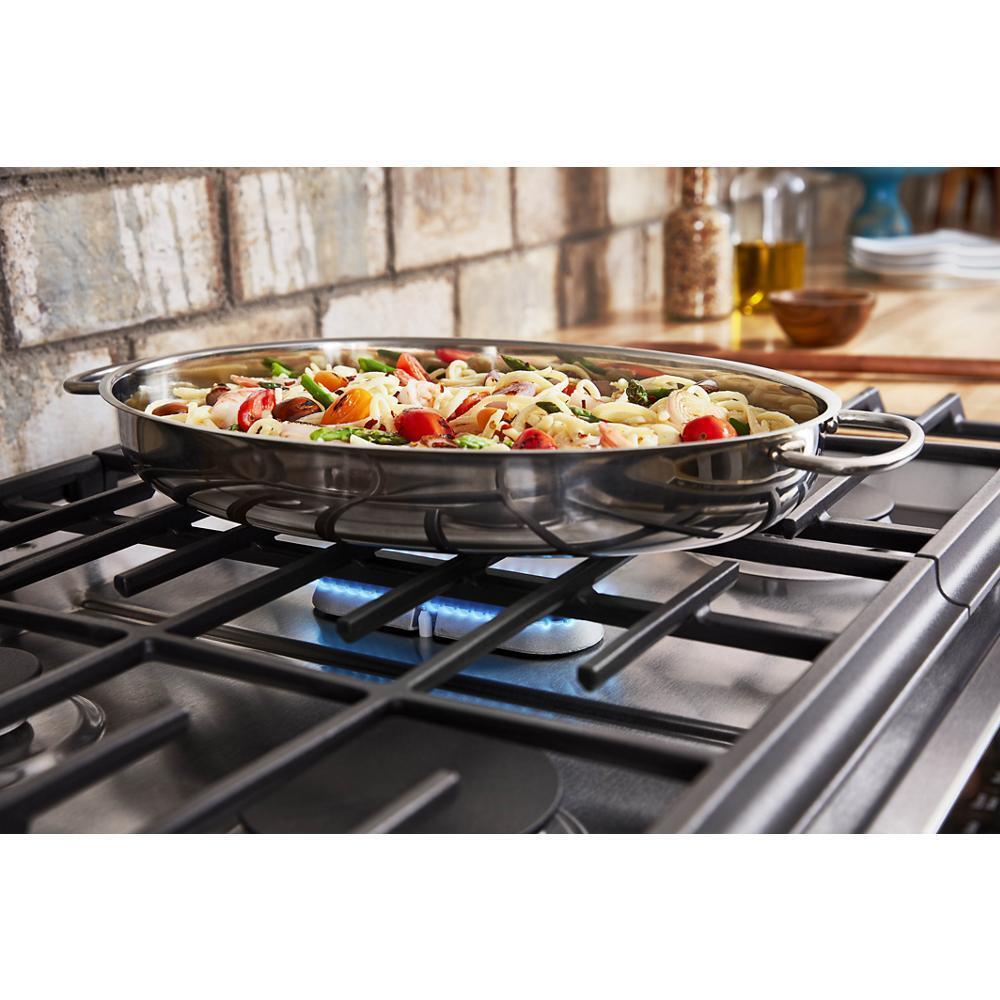

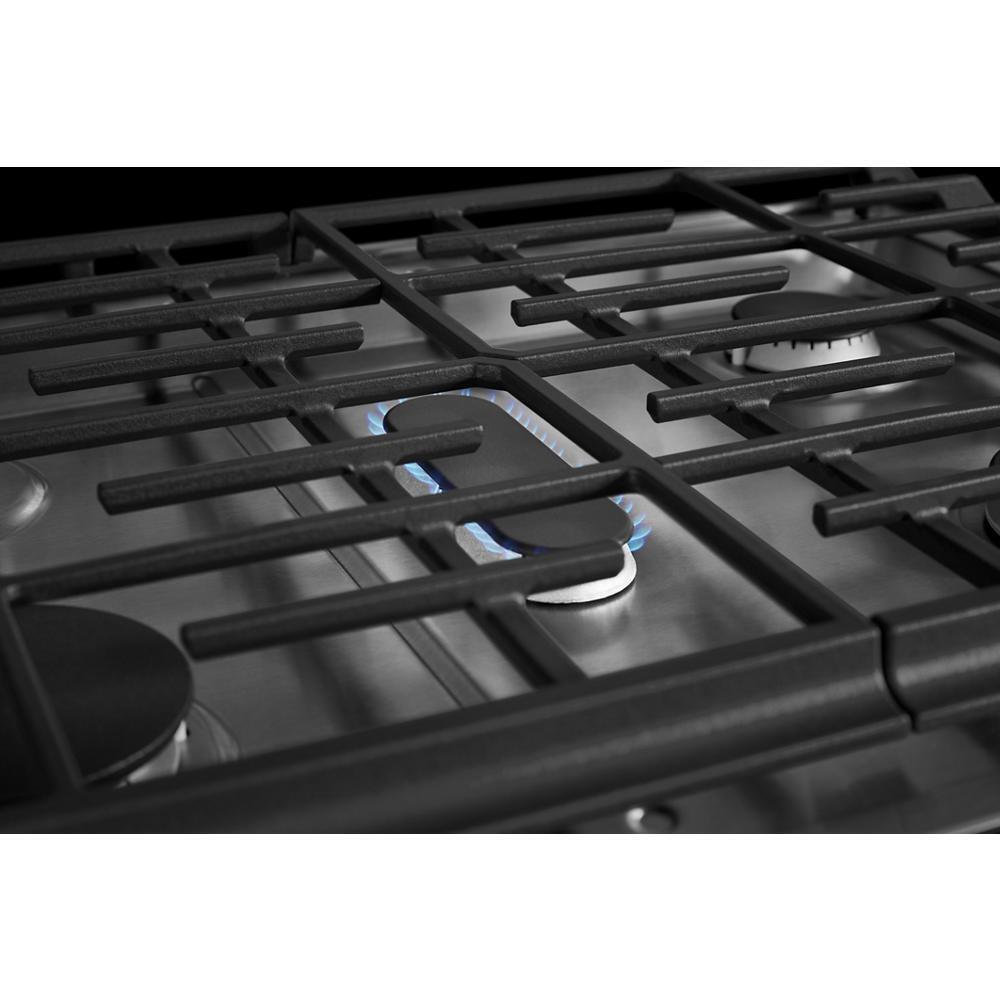

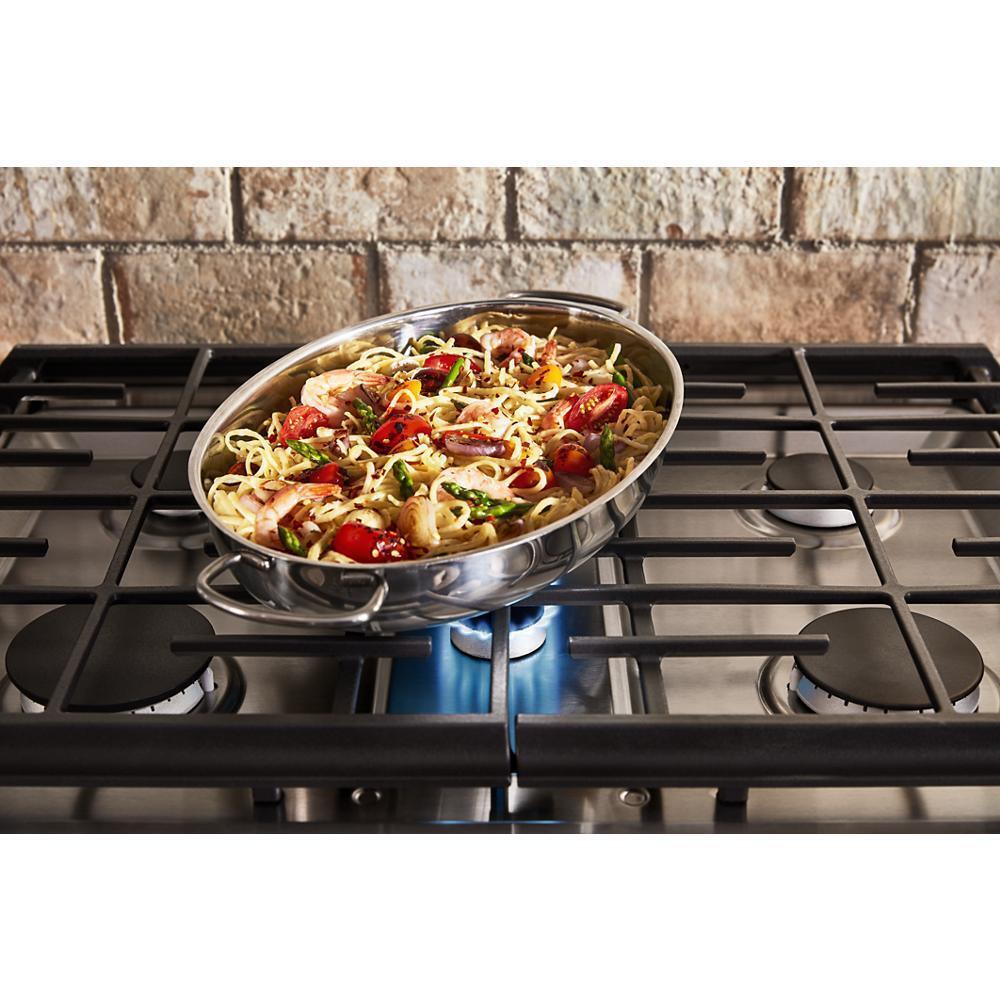

- 8K Center Oval Burner
- Fits large griddles and other longer cookware on this 8,000 BTU fifth burner so they heat evenly on the range top.
- Aqualift®
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.
- Baking Drawer
- Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

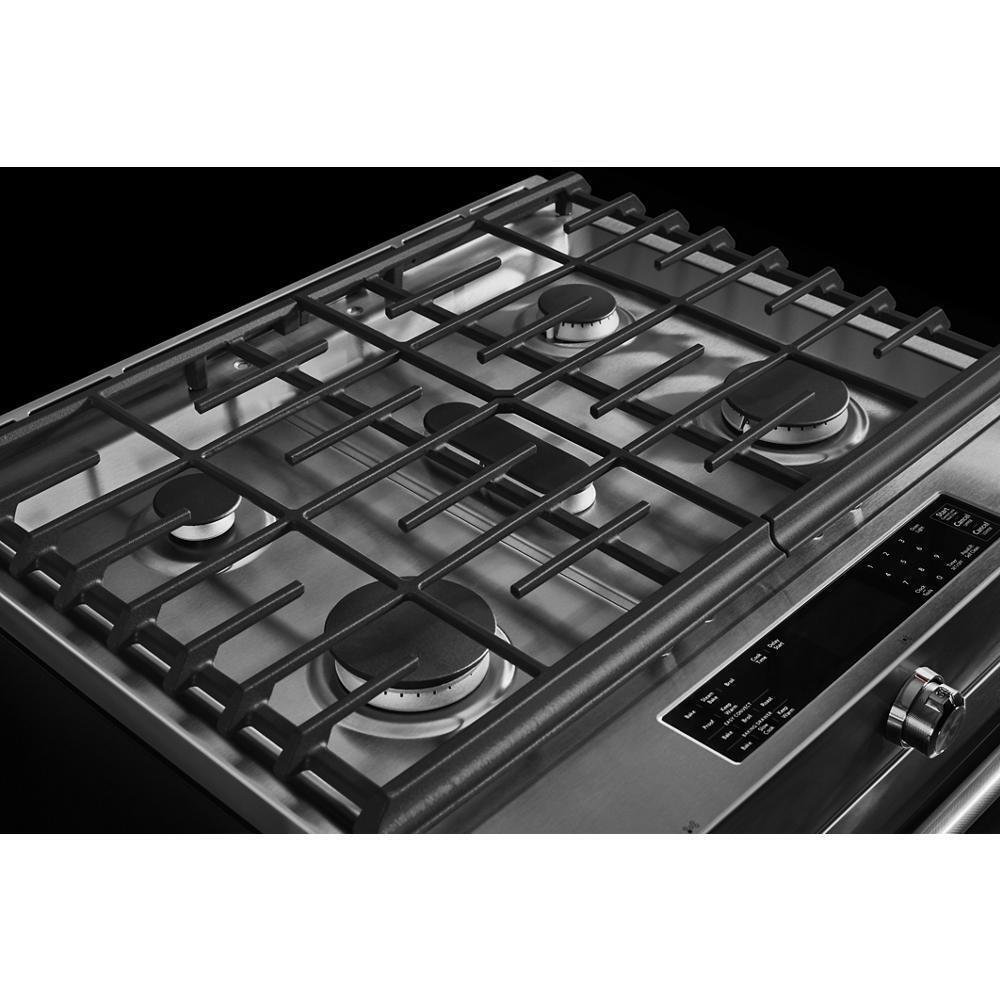

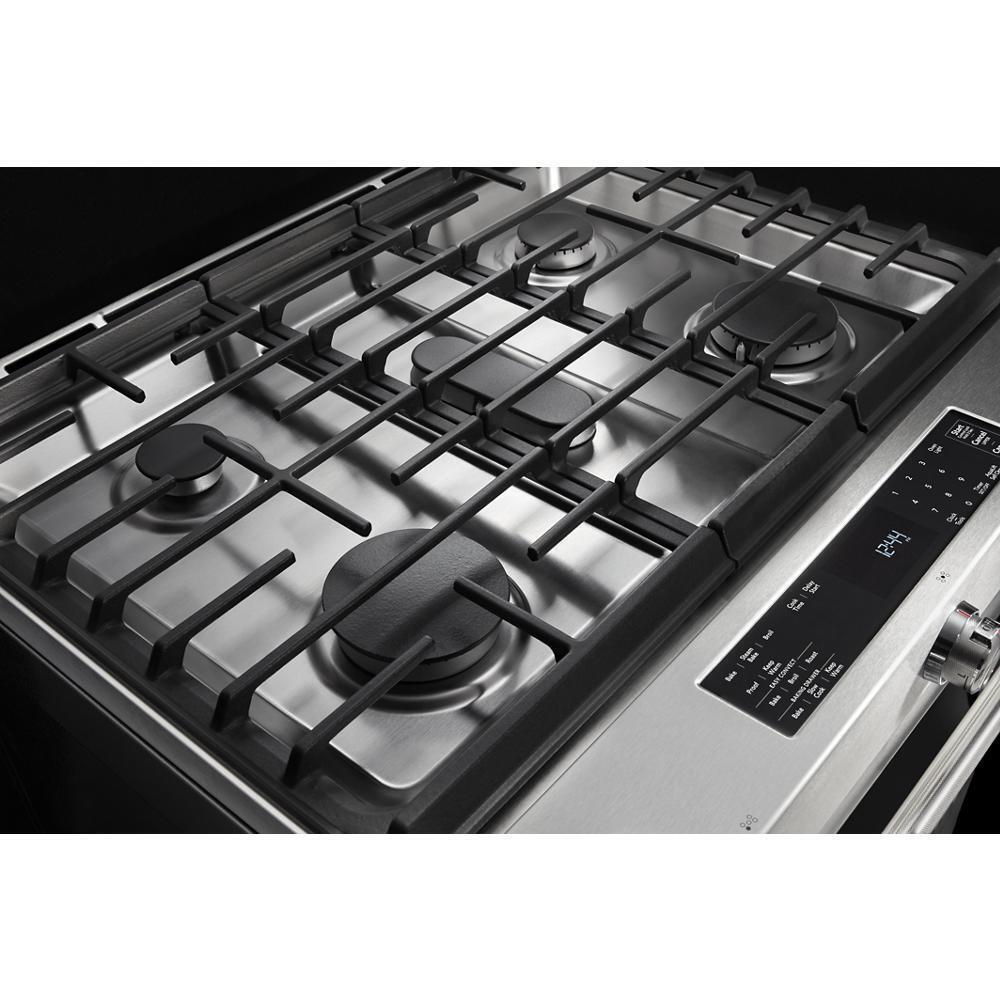

- Continuous Interlocking Grates
- Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
- EasyConvect™ Conversion
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Even-Heat™ True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
- FIT Guarantee
- Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

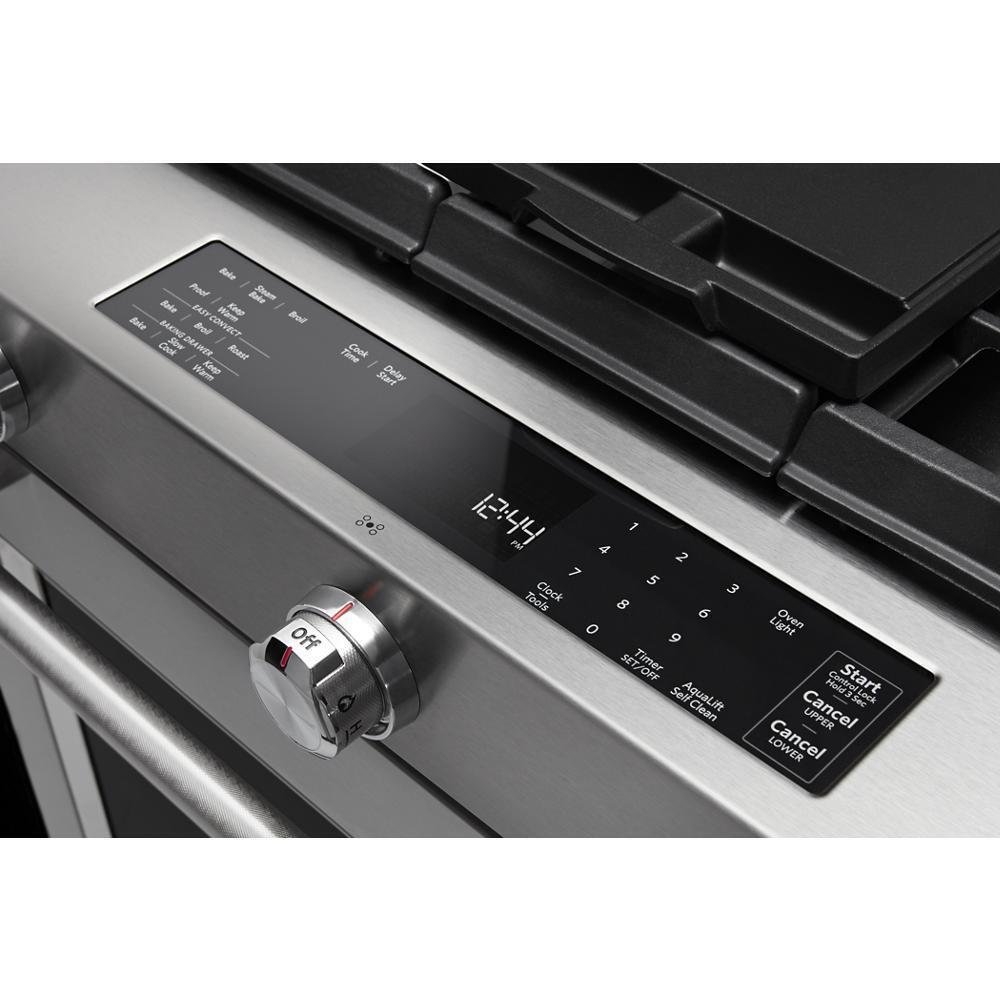

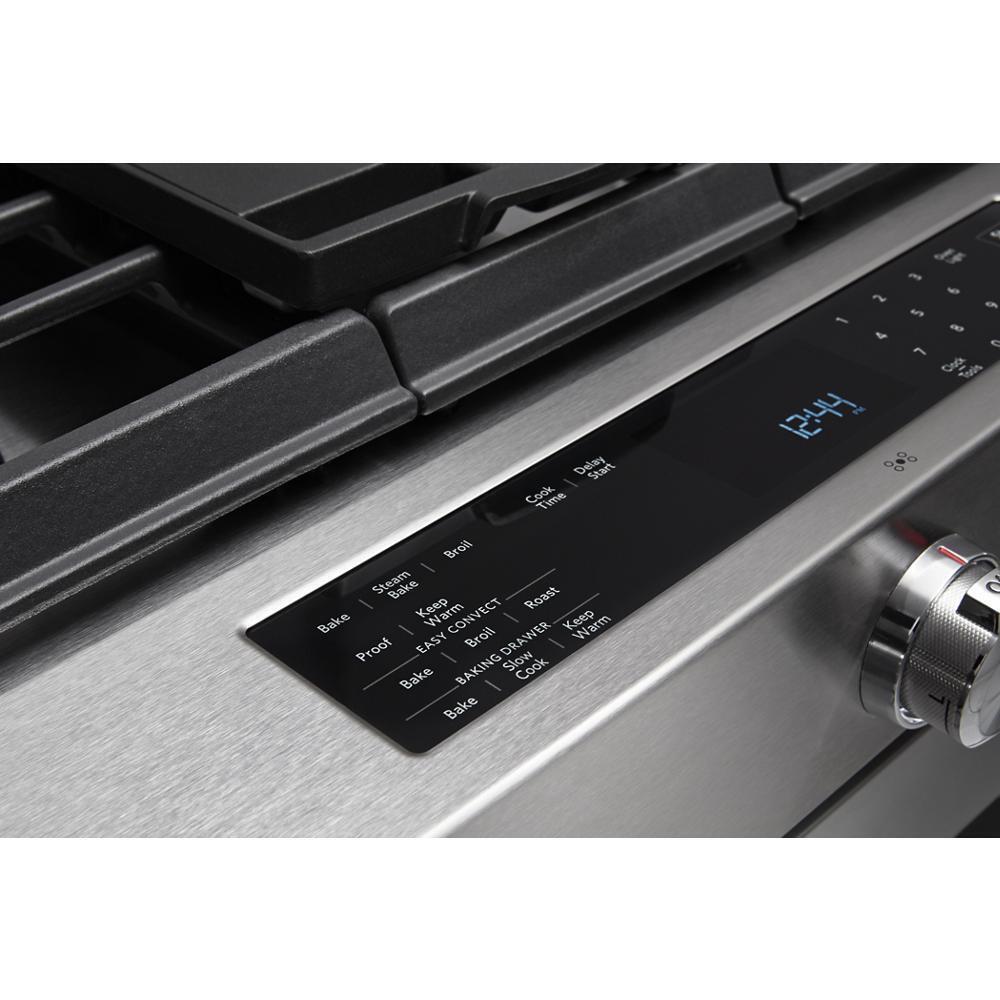

- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.

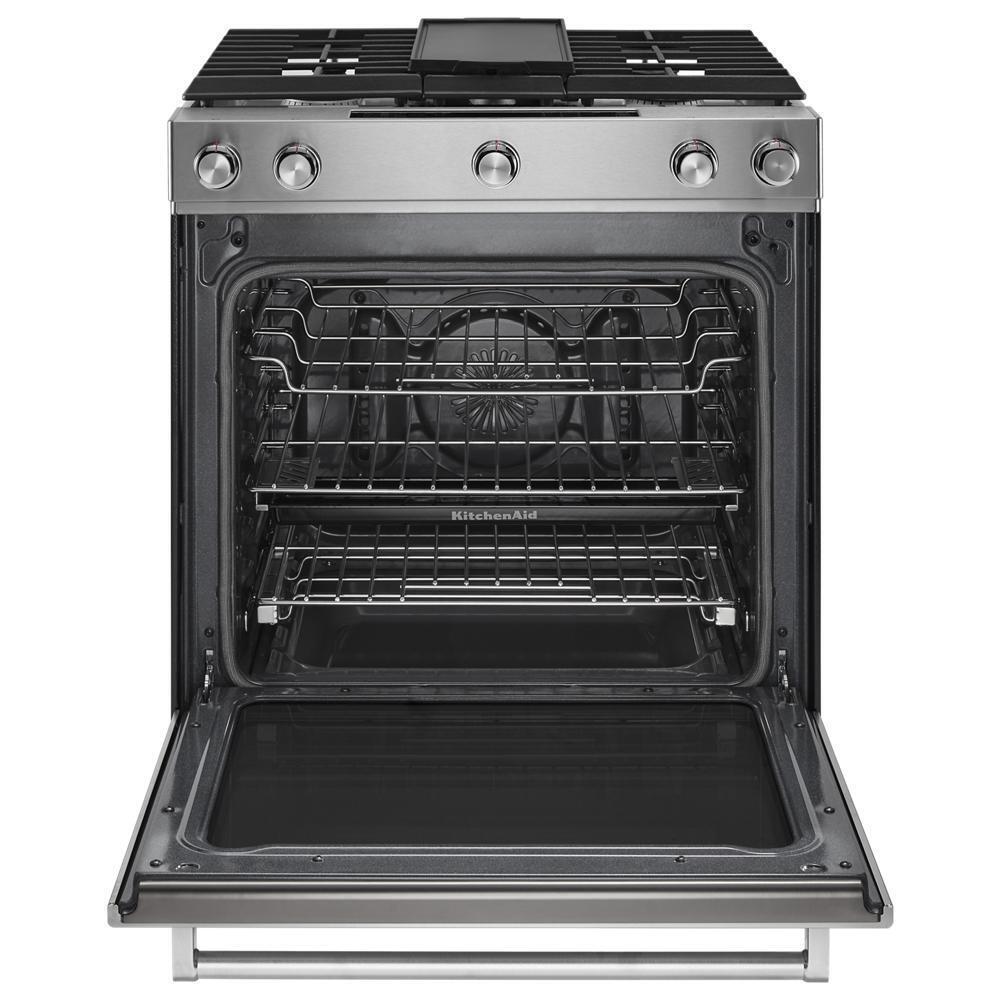

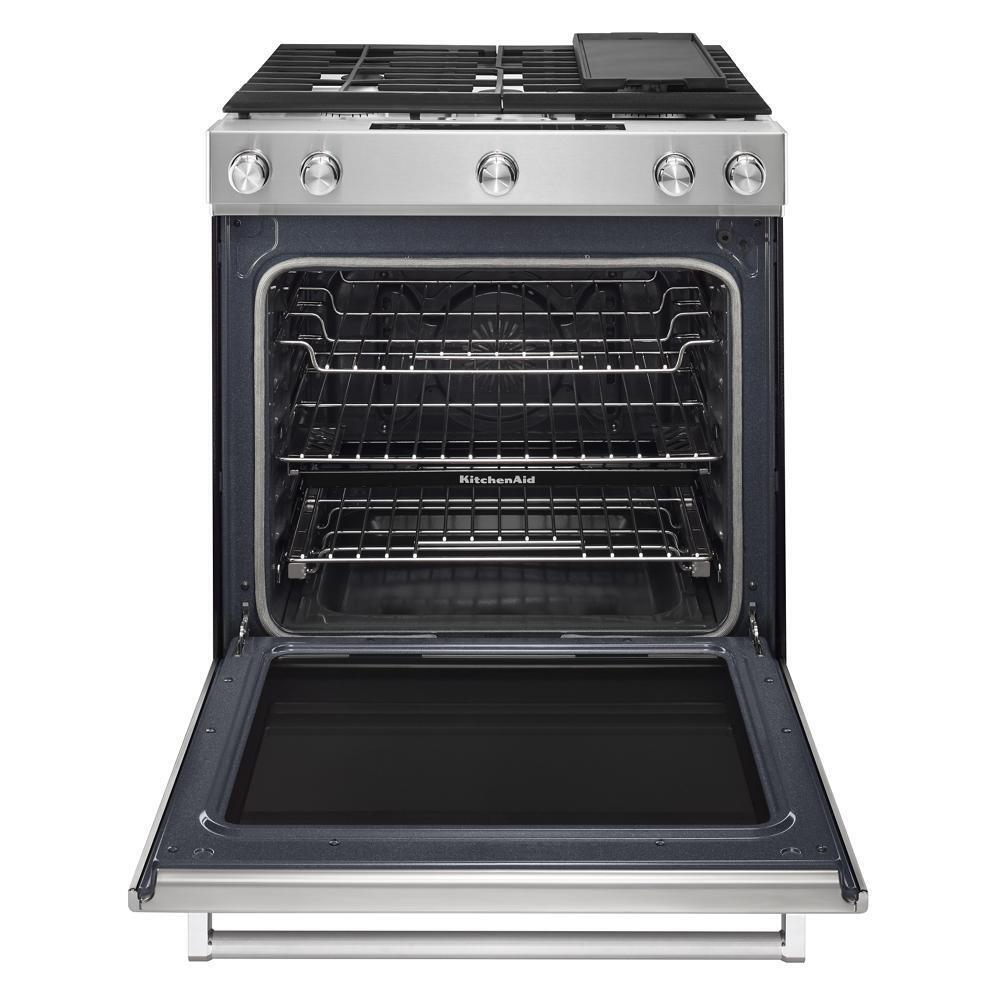

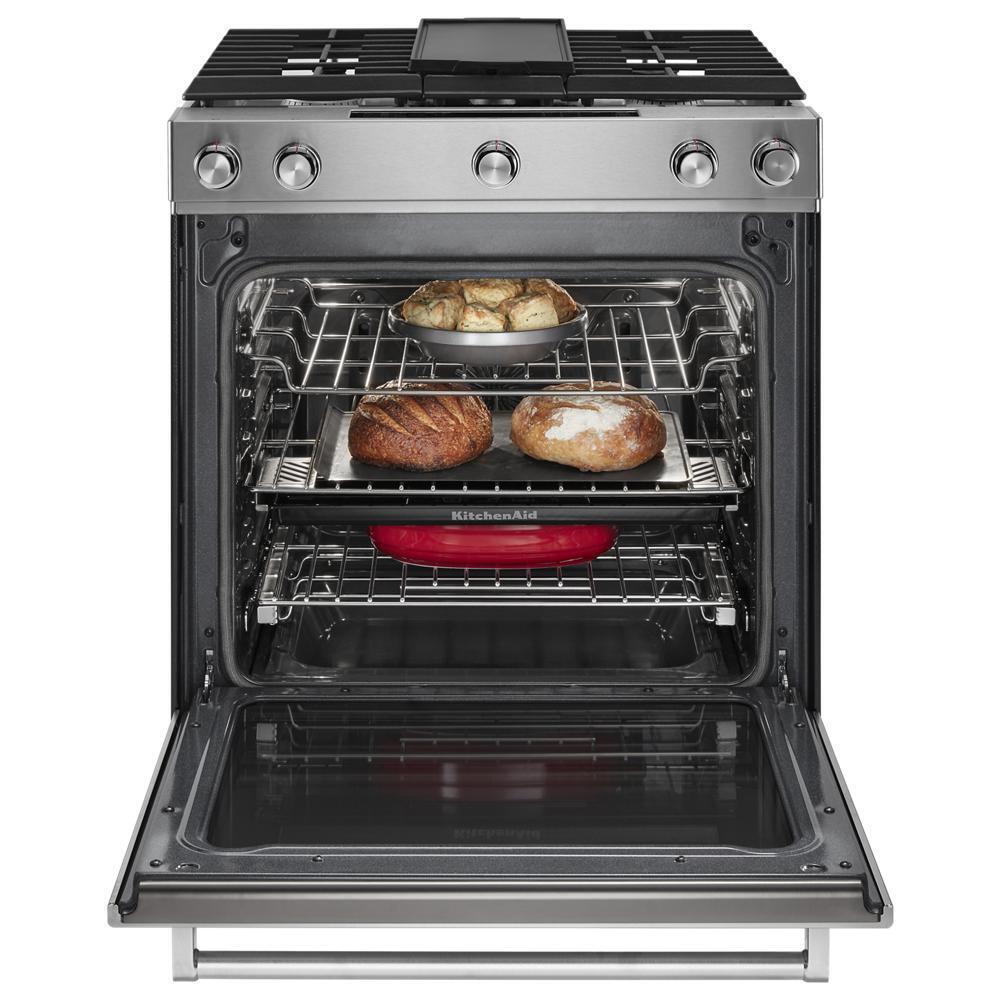

- SatinGlide® Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Side Trim Accessory Kit
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
- Baking Drawer
- Even-Heat(TM) True Convection
- Steam Rack
- 7.1 cu ft Total Capacity
- 5 burners (5k, 8k, 9.2k, 15k and 19k)
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Display Color | Red; White |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Griddle Included | Included |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic |
| Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Fuel Type | Dual Fuel |
| Lp Convertible | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Drawer Type | Baking Drawer |
| Range Type | Slide-in |

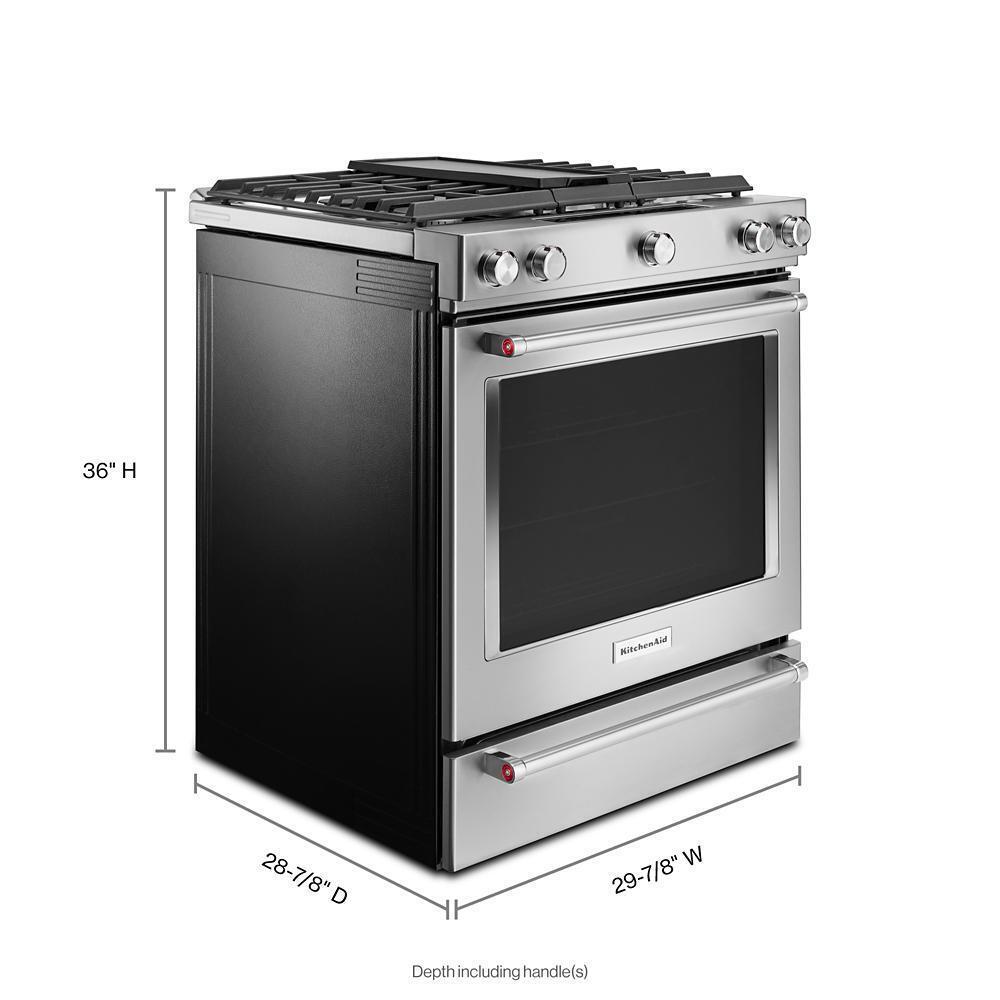

| Dimensions | |
| Product Height | 36.0 |
| Carton Height | 43.5 |
| Gross Weight | 251 |
| Oven Interior Height | 22.125 |
| Carton Width | 31.5 |
| Product Depth | 28.875 |
| Oven Interior Depth | 20.125 |
| Depth With Door Open 90 Degree | 48.75 |
| Depth Closed Excluding Handles | 26.375 |
| Depth Closed Including Handles | 28.875 |
| Carton Depth | 30.51 |
| Oven Interior Width | 24.125 |
| Net Weight | 233 |
| Product Width | 29.875 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Rear Element-burner Power | 8,000 BTU |
| Center Rear Element-burner Type | Sealed Burner |
| Cooktop Element Style | Gas Burner |
| Left Front Element-burner Power | 19,000 BTU |
| Left Front Element-burner Type | Sealed Burner |
| Left Rear Element-burner Power | 5,000 BTU |
| Left Rear Element-burner Type | Sealed Burner |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 15,000 BTU |
| Right Front Element-burner Type | Sealed Burner |
| Right Rear Element-burner Power | 9,200 BTU |
| Right Rear Element-burner Type | Sealed Burner |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| General | |
| Range Features | ADA Compliant; Baking Drawer; EasyConvect™ Conversion; Even-Heat™ True Convection; FIT System; SatinGlide™ Racks; Steam Clean |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 2 |
| Oven Details | |
| Bake Element Power | 3,600 W |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3,200 |
| Convection Element Type | Fan |
| Convection Functions | Bake; Broil; Roast |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
