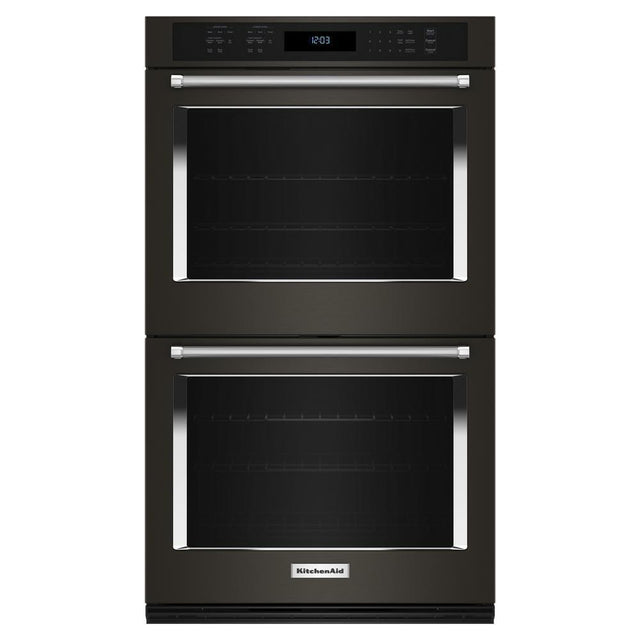

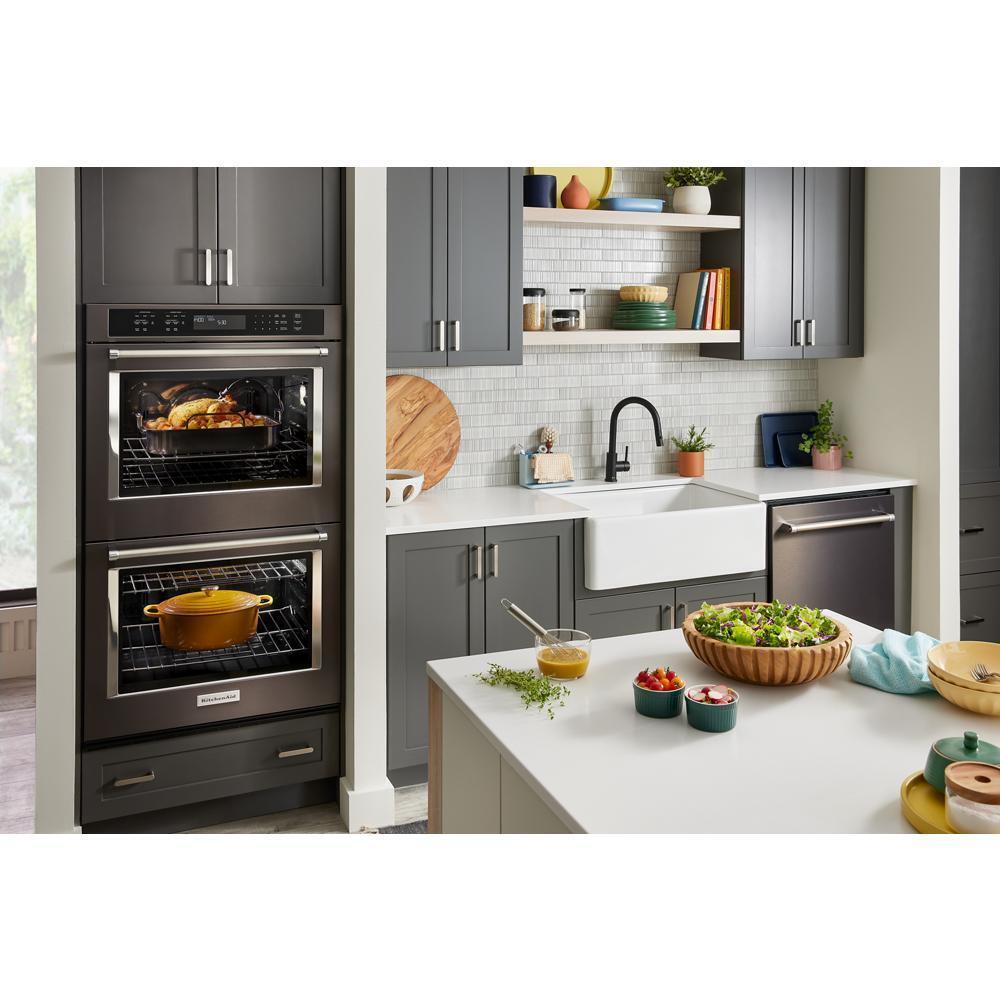

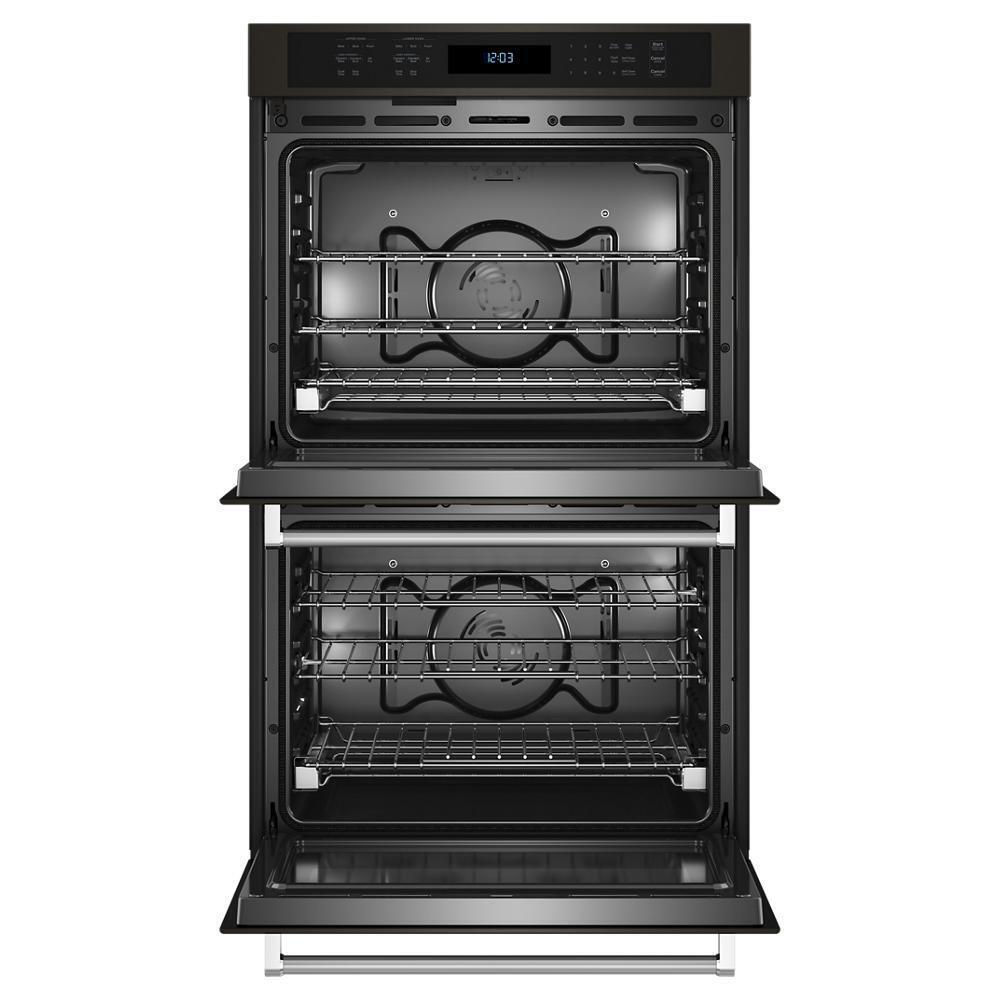

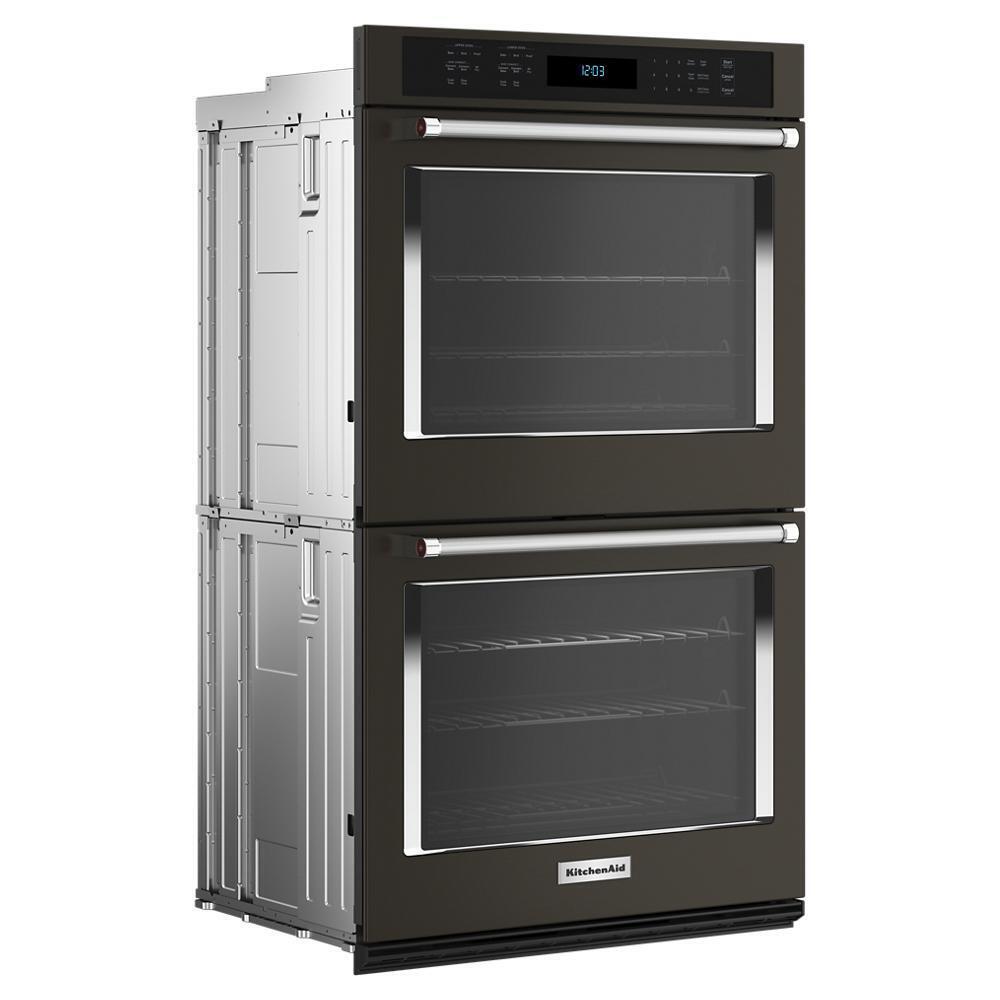

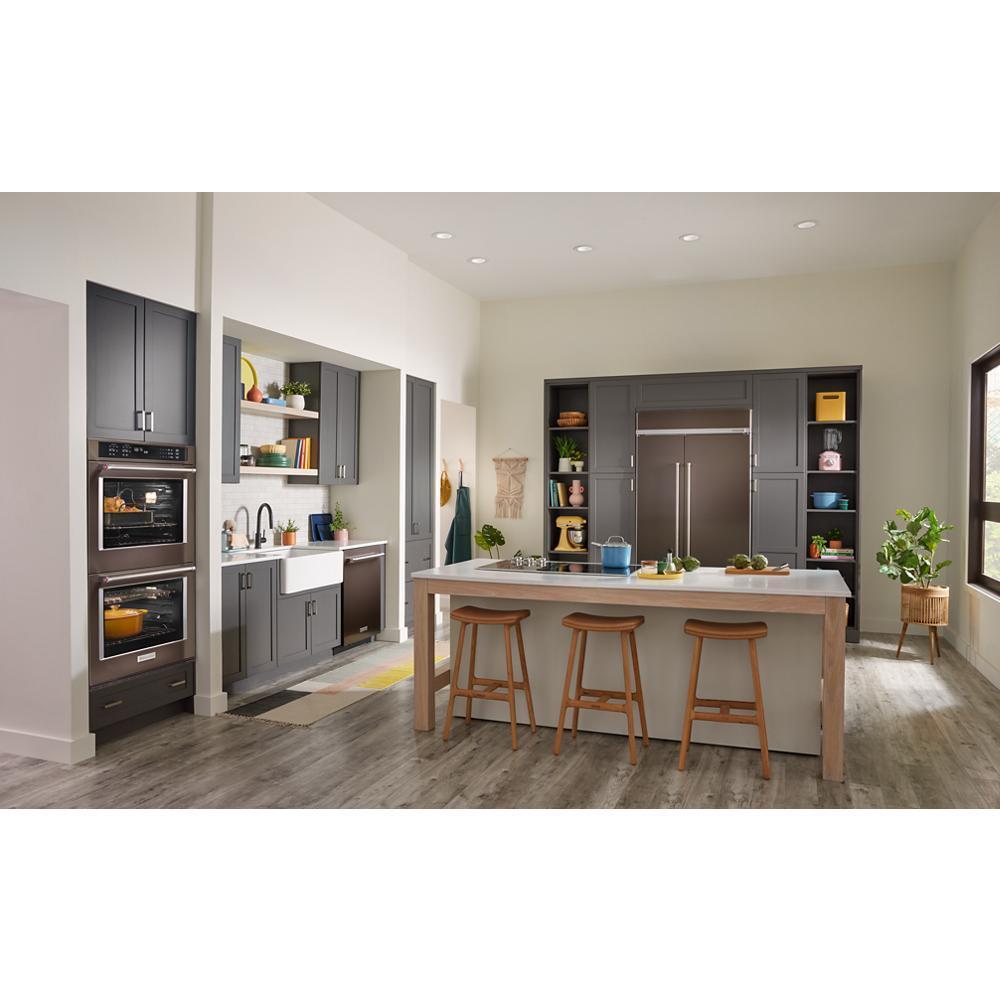

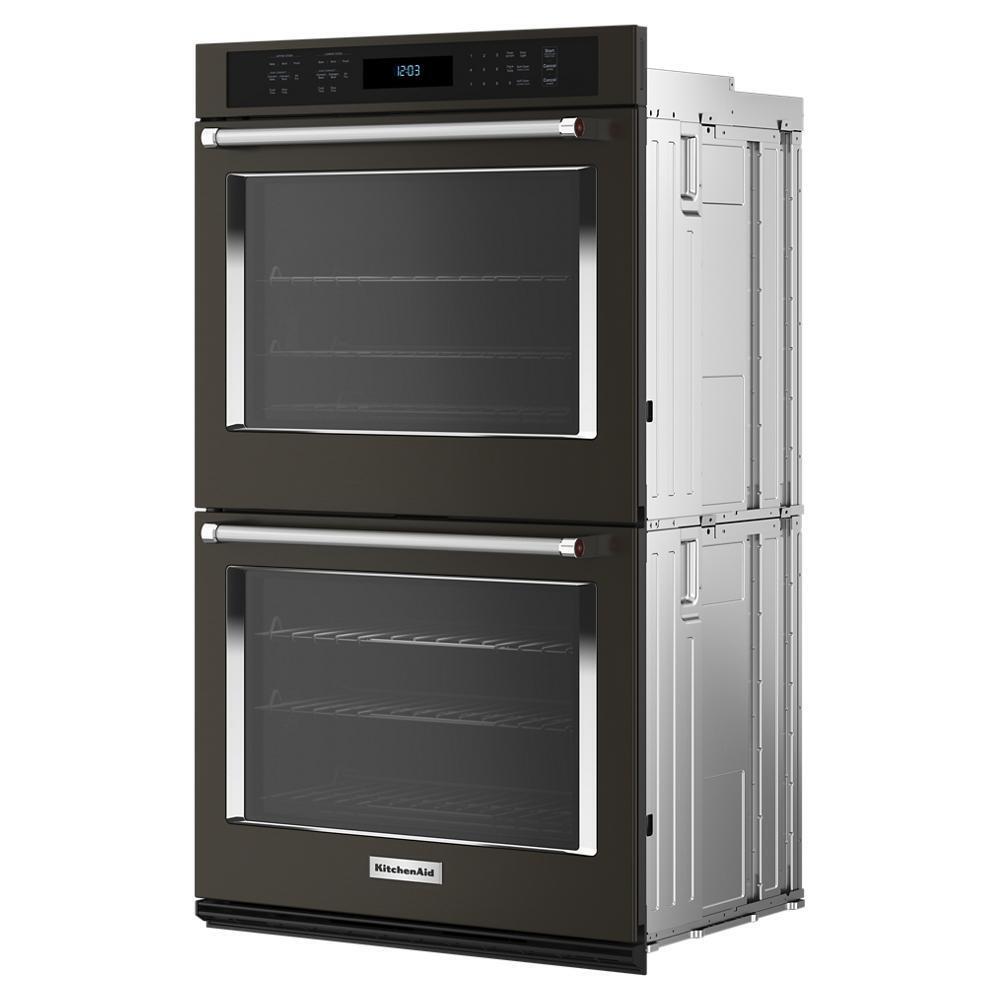

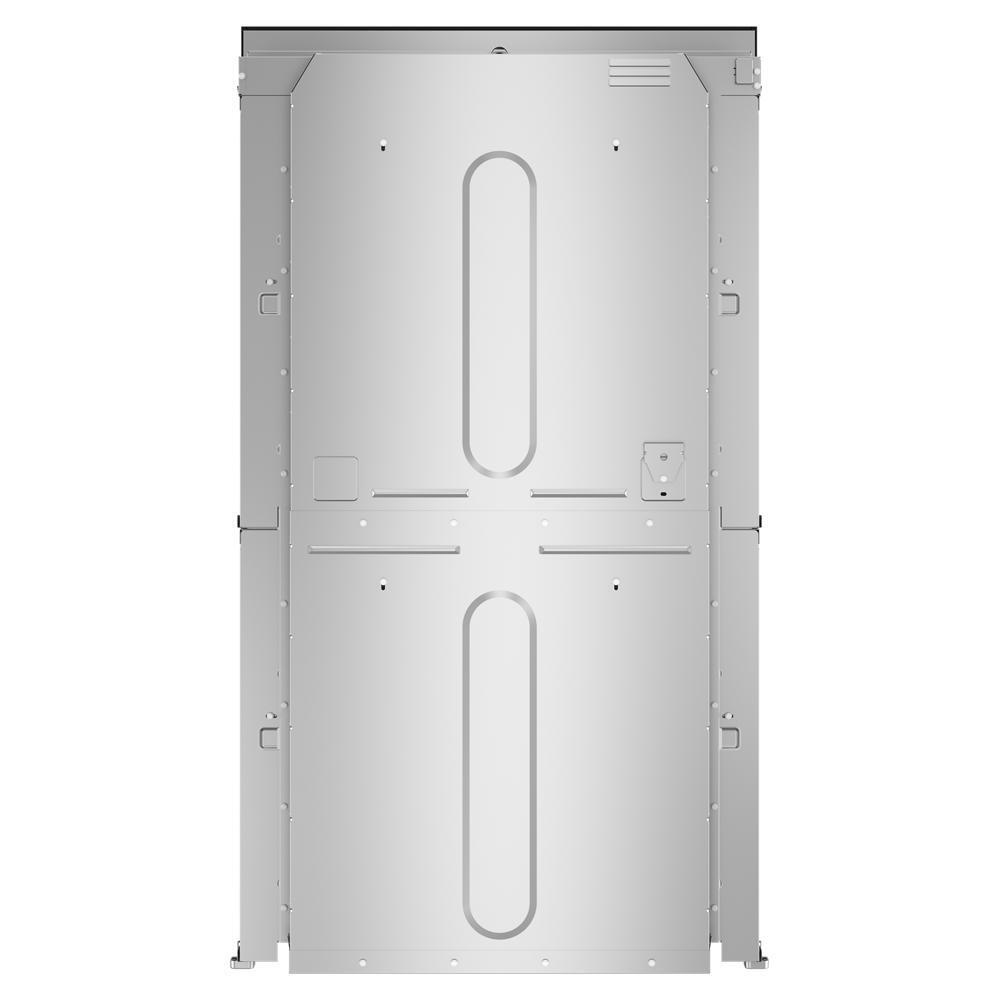

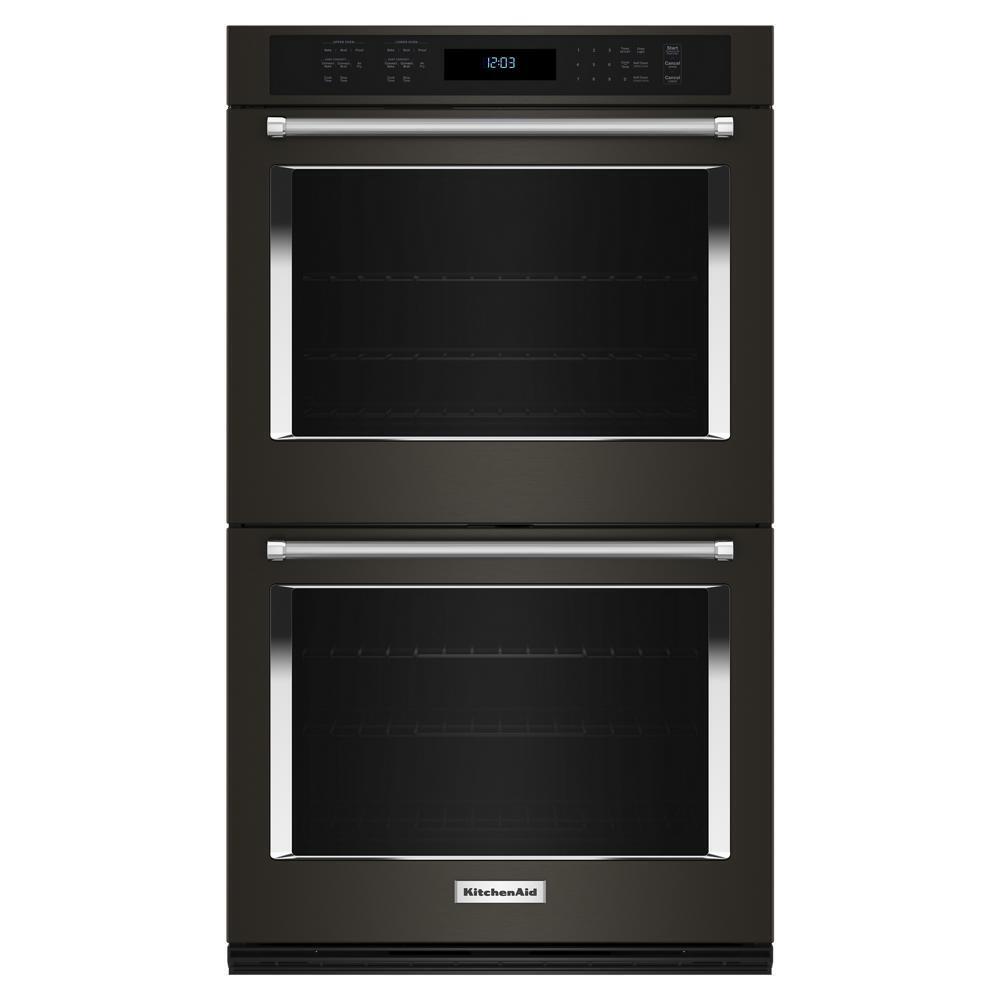

KitchenAid® 30" Double Wall Ovens with Air Fry Mode
Model KOED530PBS
Authorized Dealer
1
of
18
Loading...
Authorized Dealer
KitchenAid® 30" Double Wall Ovens with Air Fry Mode
Model KOED530PBSQuick Specs
Depth
27.125
Height
50.8125
Sabbath
YES
ADA
NO
Wifi
NO
Storage
NO
Warming
NO
Oven Cap
4.3
Color
KitchenAid® 30" Double Wall Ovens with Air Fry Mode is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$3,959.00
Regular price
$4,399.00
Unit price
/
Unavailable
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
27.125
Height
50.8125
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking First Oven Capacity
4.3
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Nominal Width
27.0
RPM
-1.0
Drawer Proof Mode
NO
Energy Star Rated
NO

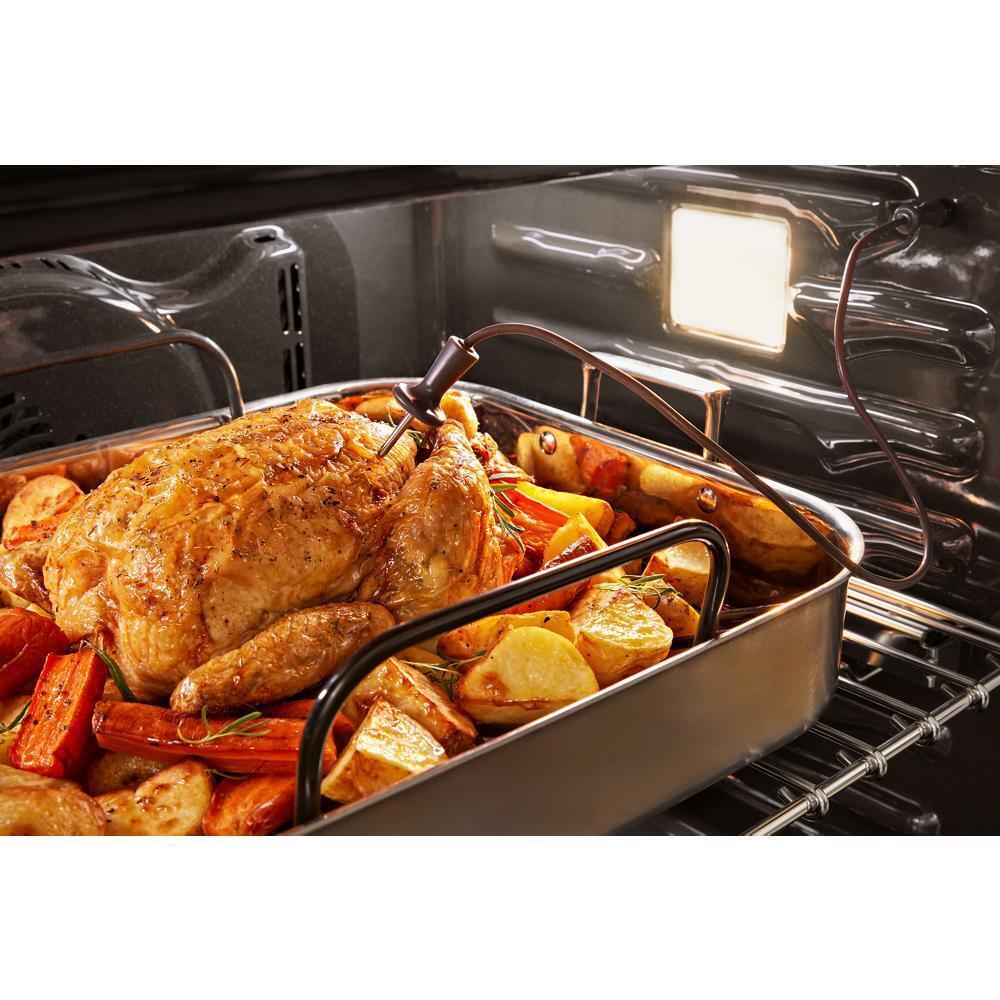

Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
- 4,000-Watt Broil Element
- Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
- 5.0 Cu. Ft. Oven Capacity
- Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
- Air Fry Mode
- Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying. - Dishwasher-Safe Air Fry Basket
- Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
- EasyConvect™ Conversion System
- Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
- Even-Heat™ Preheat
- Raises the oven temperature an extra 40(degree)F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

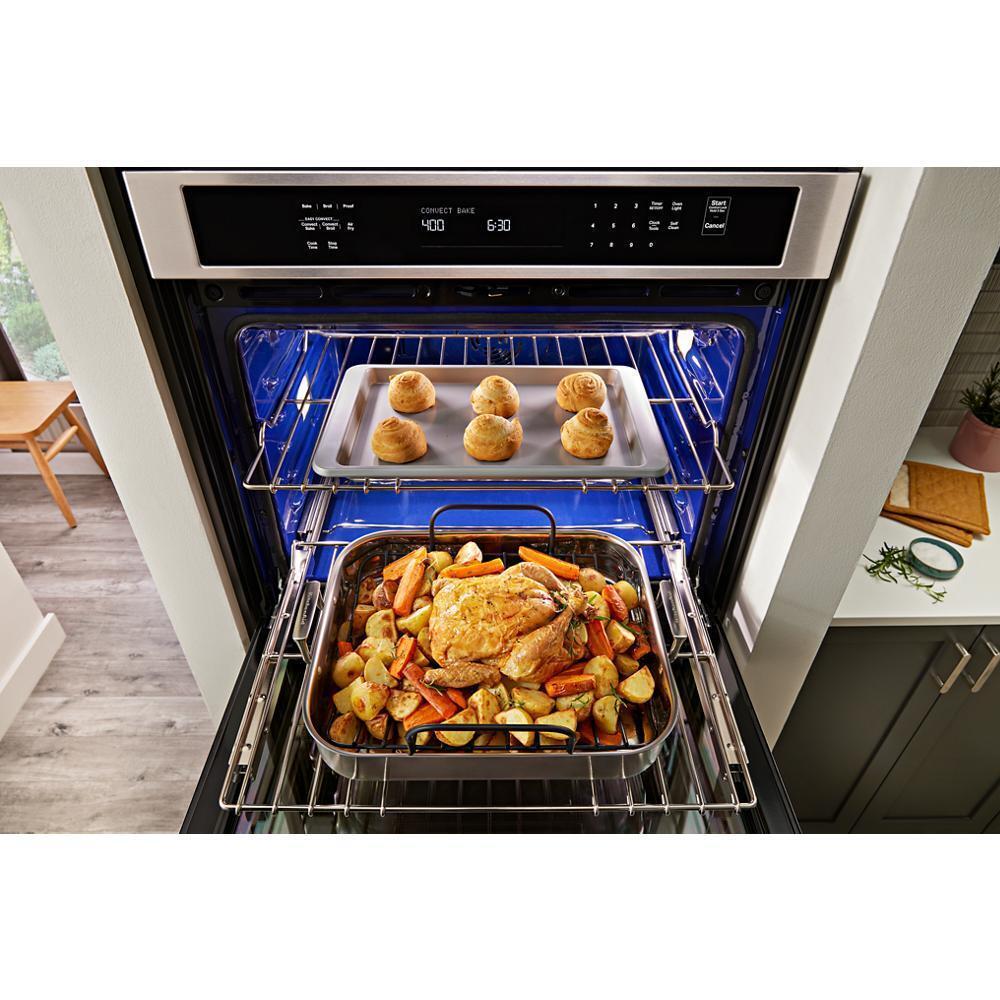

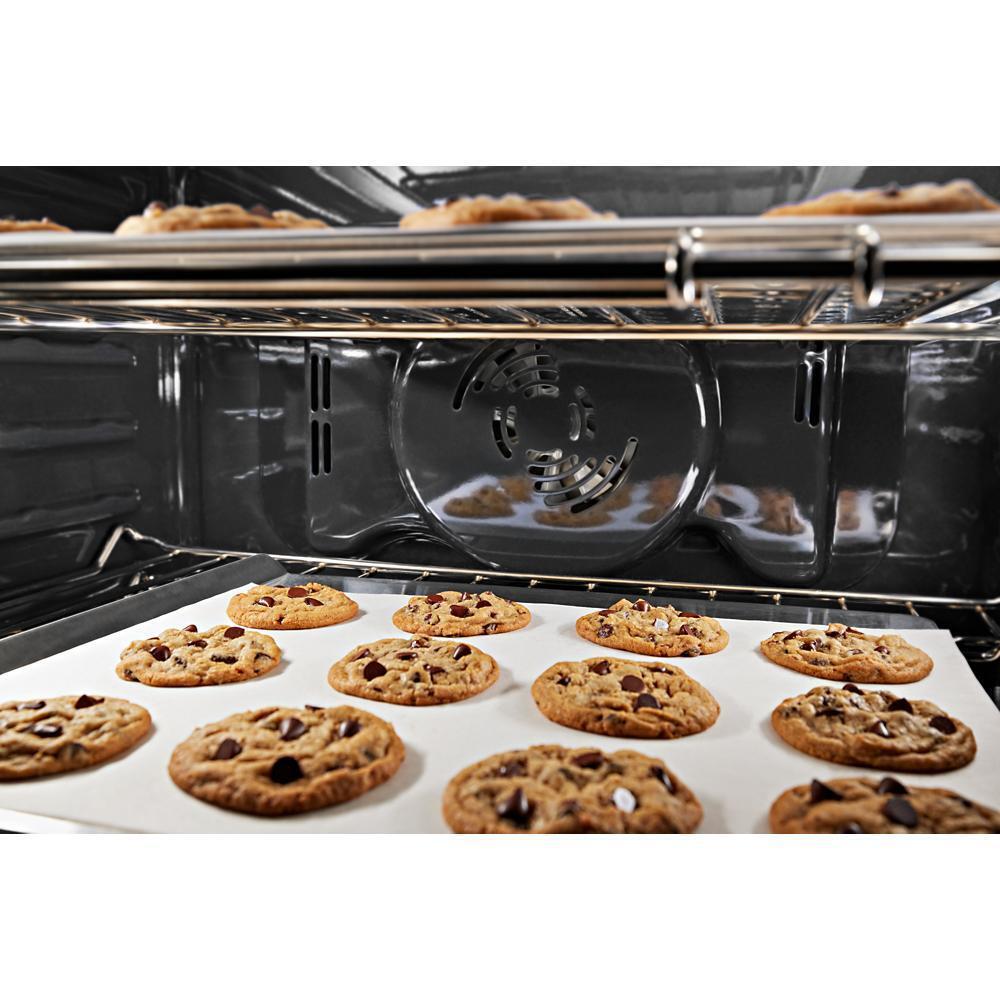

- Even-Heat™ True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
- FIT System Limited Guarantee
- Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions. - Integrated Meat Thermometer
- Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
- PrintShield™ Finish
- Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

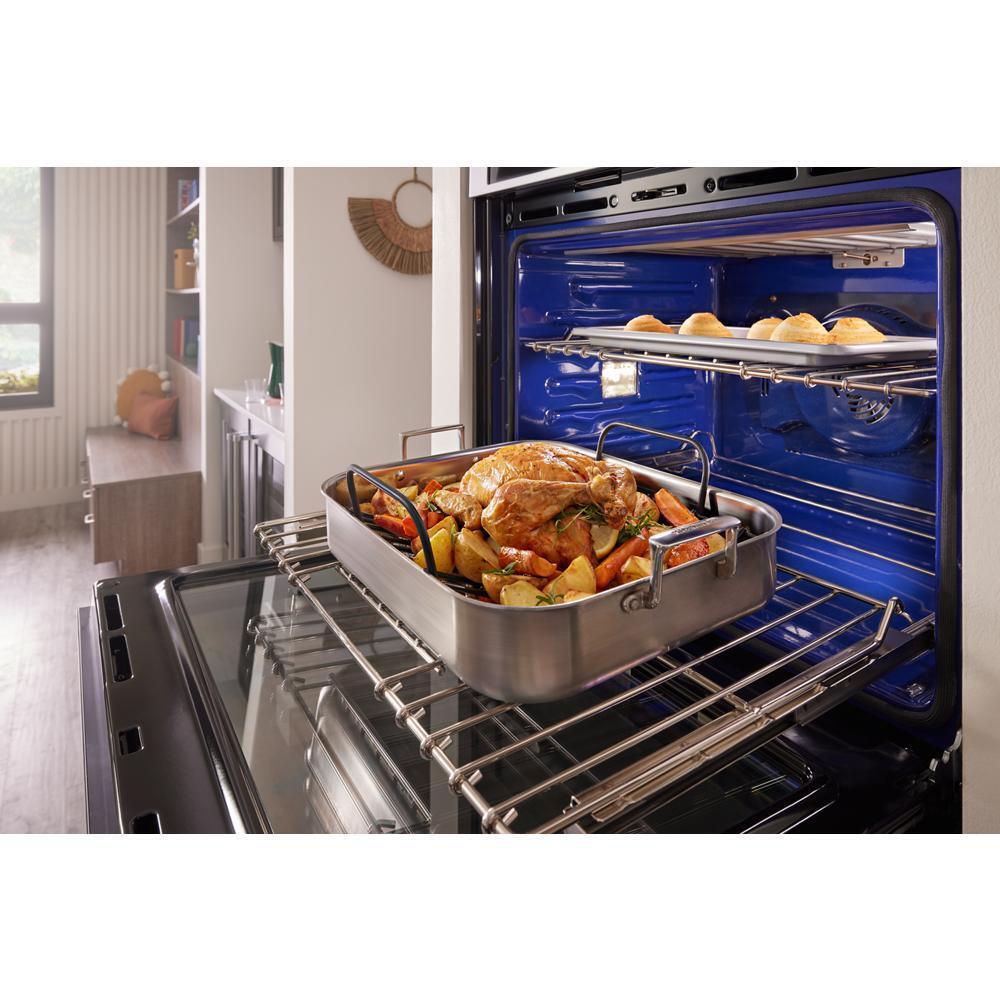

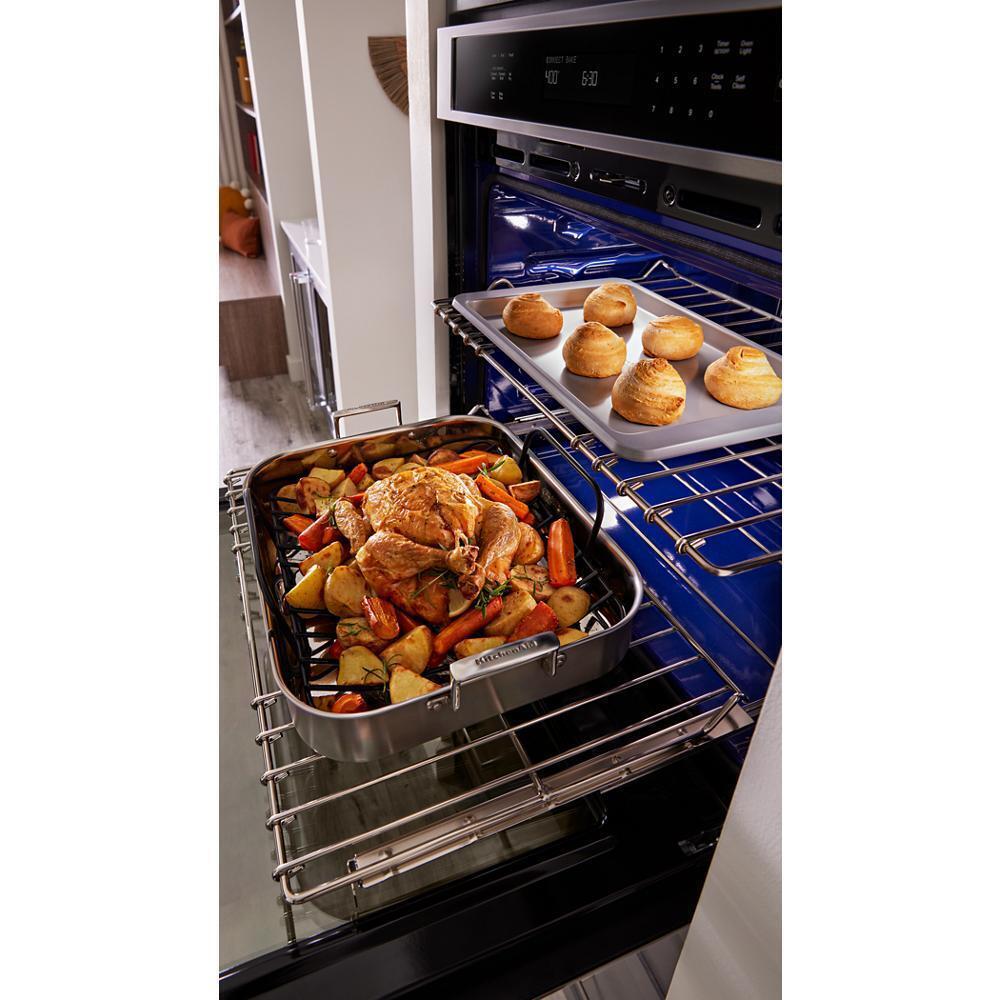

- SatinGlide™ Roll-Out Extension Rack
- Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

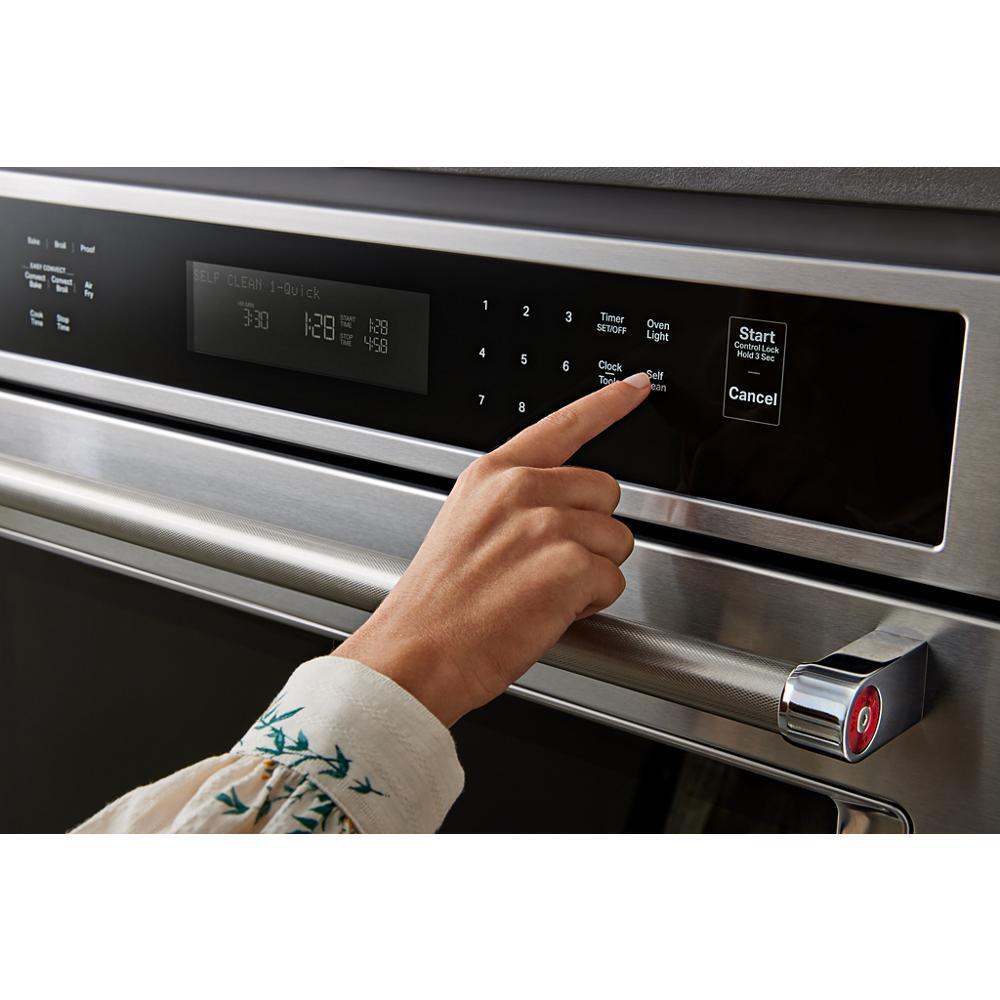

- Self-Cleaning Cycle
- Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

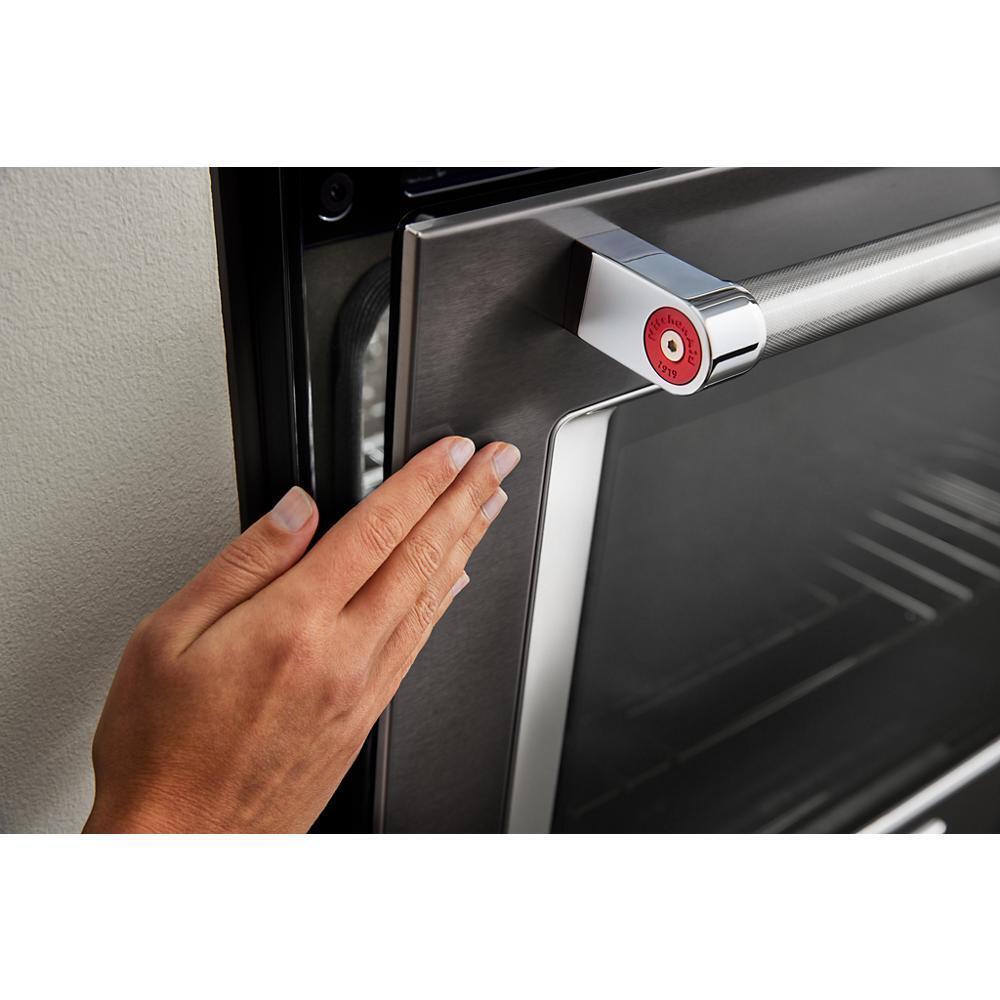

- Self-Close Doors
- Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
- Star-K Certified
- To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
- What's in the box
- Double Wall Oven includes a Dishwasher-Safe Air Fry Basket and an Integrated Meat Thermometer
- 4,000-Watt Broil Element uses high heat to sear and sizzle
- 5.0 Cu. Ft. Oven Capacity to cook multiple dishes at once
- SATINGLIDE Roll-Out Extension Rack for easy loading of bakeware
- Self-Cleaning Cycle uses high temperatures instead of chemical cleaners
- Self-Close Doors gently shut themselves when your hands are full
- Star-K Certified Sabbath Mode for use on religious holidays
- Includes air fry basket and integrated meat thermometer
- Air Fry Mode circulates hot air to crisp and brown
- Dishwasher-Safe Air Fry Basket allows air circulation around food
- EASYCONVECT Conversion System automatically adjusts temperatures
- EVEN-HEAT Preheat maintains temperature while food is added
- EVEN-HEAT True Convection for consistent baking and roasting
- FIT System Limited Guarantee allows oven to match existing cabinet cutout height
- Integrated Meat Thermometer takes the guesswork out of roasting meat
- PRINTSHIELD Finish coating resists fingerprints and smudges
| Certifications | |
| Ada Compliant | No |
| Cul | Yes |
| Energy Rating | 355 |
| Prop65 | Standard |
| Star K Certified | Star K Certified |
| Ul | Yes |
| Controls | |

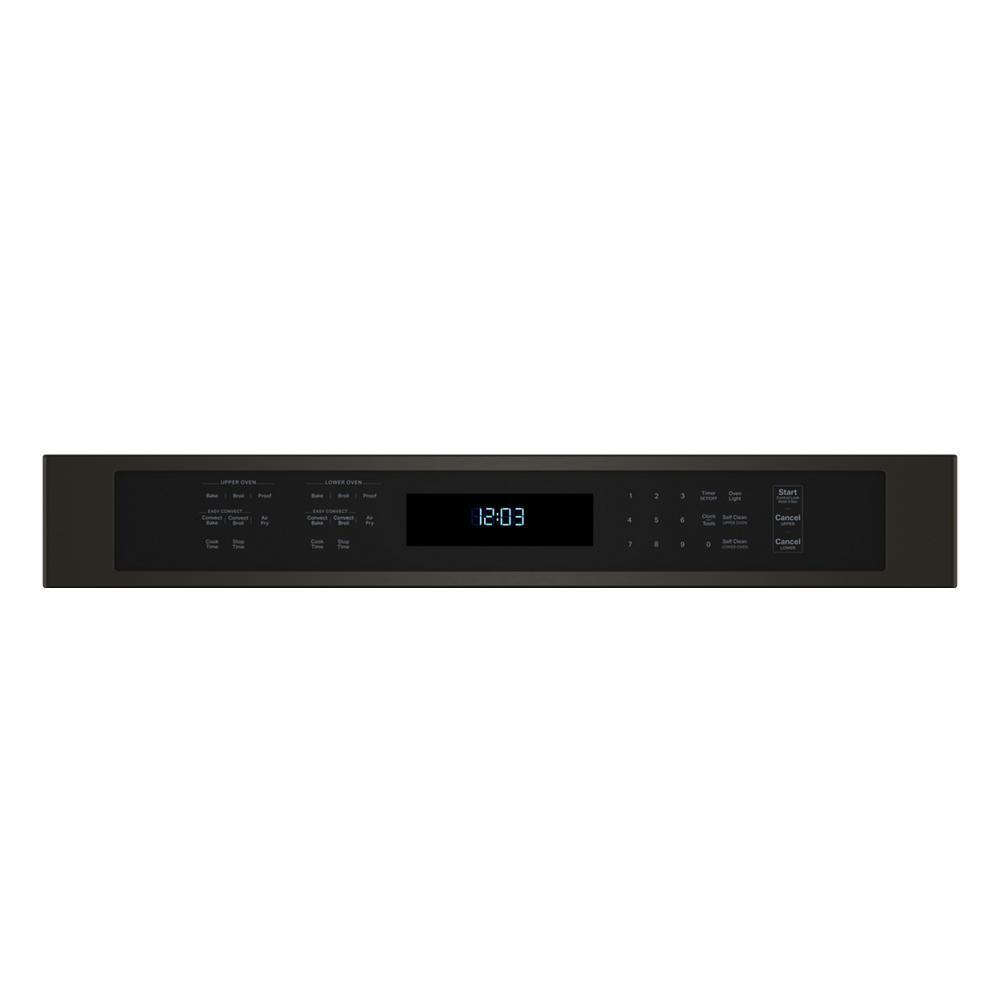

| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
| Details | |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Light Control | Oven Light Touch Pad |
| Oven Automatic Shut-off | Yes |
| Oven Type | Double |
| Power On Indicator Light | Yes |

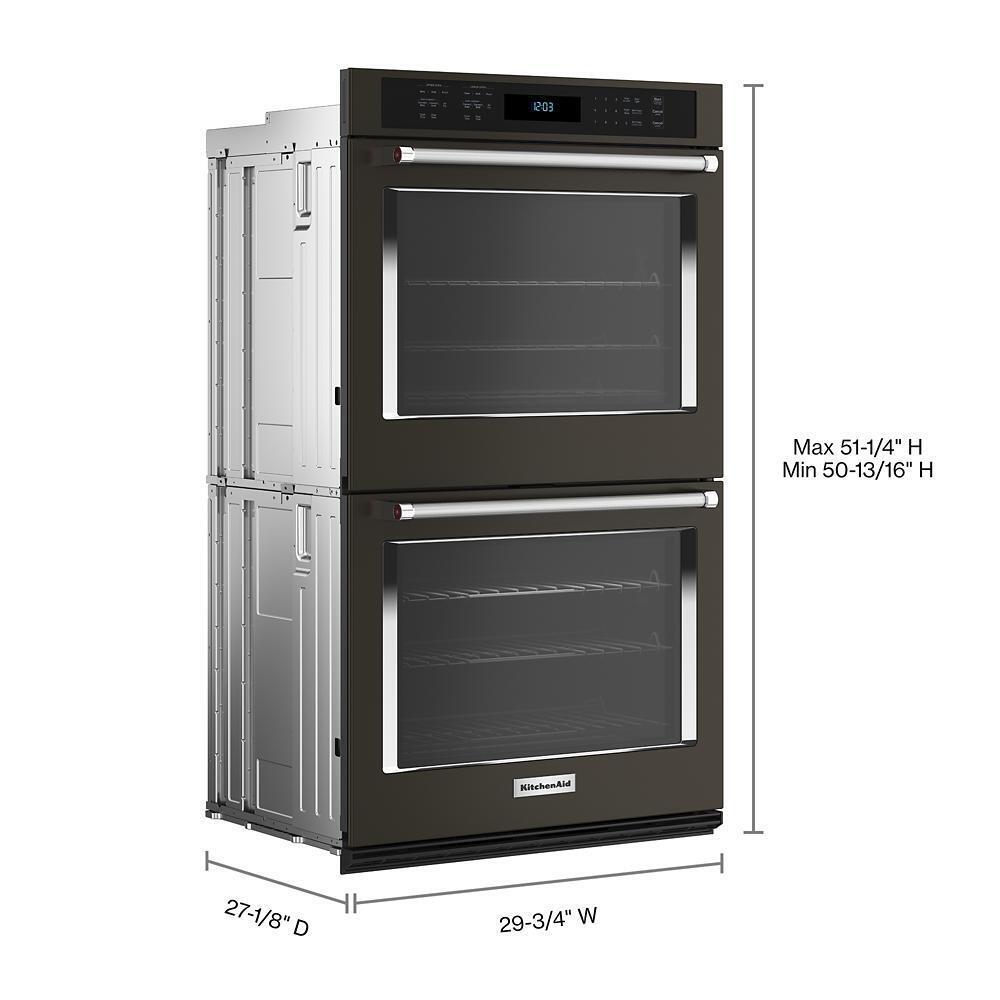

| Dimensions | |
| Product Height | 50.8125 |
| Carton Height | 54 |
| Gross Weight | 296 |
| Carton Width | 35 |
| Lower Oven Interior Height | 18 |
| Upper Oven Interior Width | 25 |
| Product Depth | 27.125 |
| Depth With Door Open 90 Degree | 46.75 |
| Lower Oven Interior Width | 25 |
| Cutout Depth | 24 |
| Cutout Height | 50.25 |
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 27.125 |
| Upper Oven Interior Depth | 19 |
| Carton Depth | 31 |
| Cutout Width | 28.5 |
| Upper Oven Interior Height | 18 |
| Net Weight | 286 |
| Product Width | 29.75 |
| Lower Oven Interior Depth | 19 |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Microwave Details | |
| Language Conversion | English/French/Spanish |
| Oven Details | |
| Bake Element Power | 2,800 W Both |
| Broiler Element Power | 4,000 W Both |
| Broiler Location | Top of Oven |
| Convection Element Power | 3,200 Both |
| Convection Element Type | True Convection |
| Convection Functions | Bake; Broil; Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |

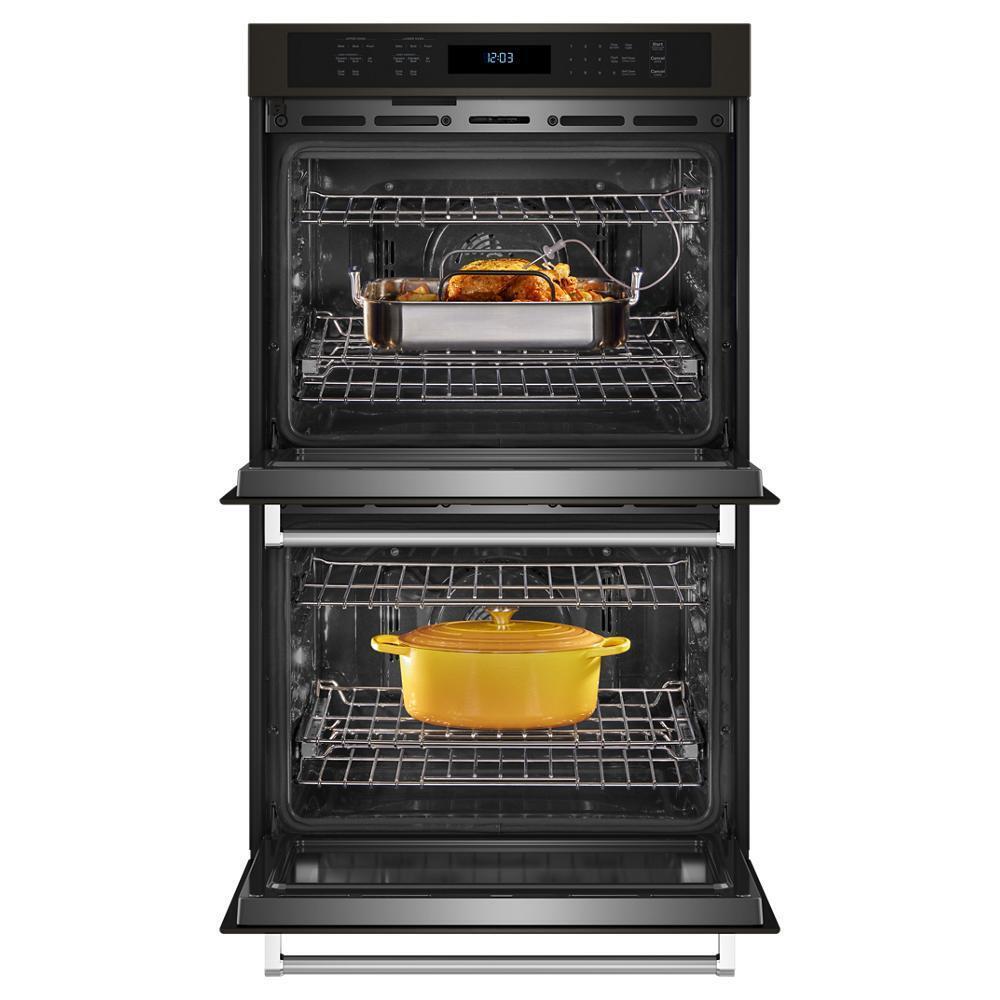

| Number of Lower Oven Racks | 3 |
| Number of Upper Oven Racks | 3 |
| Number of Upper Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Convection Both |
| Self-cleaning Oven Racks | No |
| Upper Oven Number of Oven Lights | 2 |
