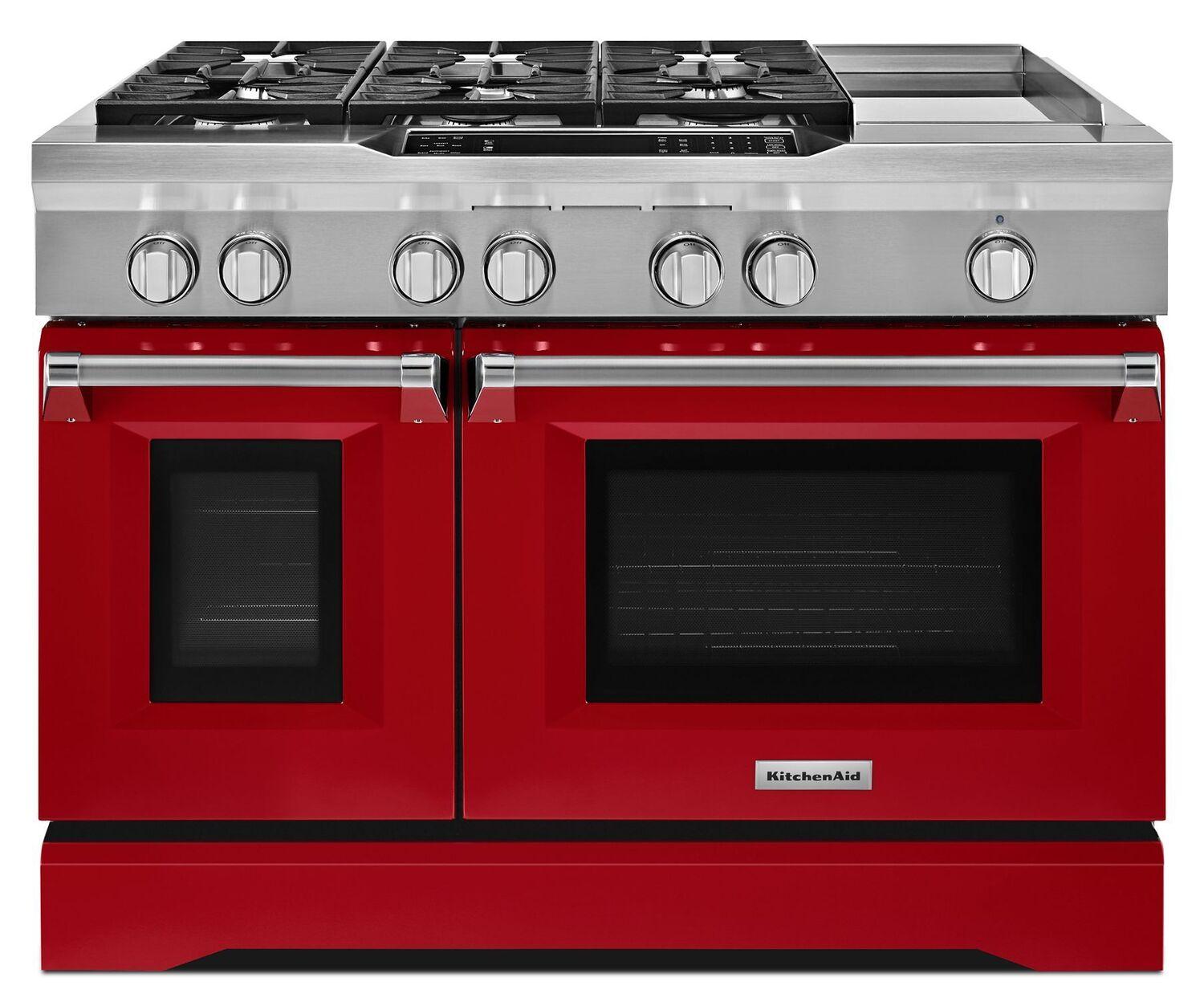

48'' 6-Burner with Griddle, Dual Fuel Freestanding Range, Commercial-Style Signature Red
Model KDRS483VSD
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
48'' 6-Burner with Griddle, Dual Fuel Freestanding Range, Commercial-Style Signature Red
Model KDRS483VSDQuick Specs
Width
48
Depth
29.563
Height
35.75
ADA
YES
Wifi
NO
Burner
Sealed
Storage
NO
Warming
NO
48'' 6-Burner with Griddle, Dual Fuel Freestanding Range, Commercial-Style Signature Red is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$9,033.05
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
48
Depth
29.563
Height
35.75
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
6
Cooking First Oven Capacity
6.3
Continuous Grate
NO
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Downdraft Ventilation
NO
Nominal Width
48.0
RPM
-1.0
Drawer Proof Mode
YES
Dual Fuel
YES
Energy Star Rated
NO
- Dual Fuel Range
- Satisfies the culinary needs of the most demanding cooks by combining the precise control of a gas cooking surface with an electric oven.

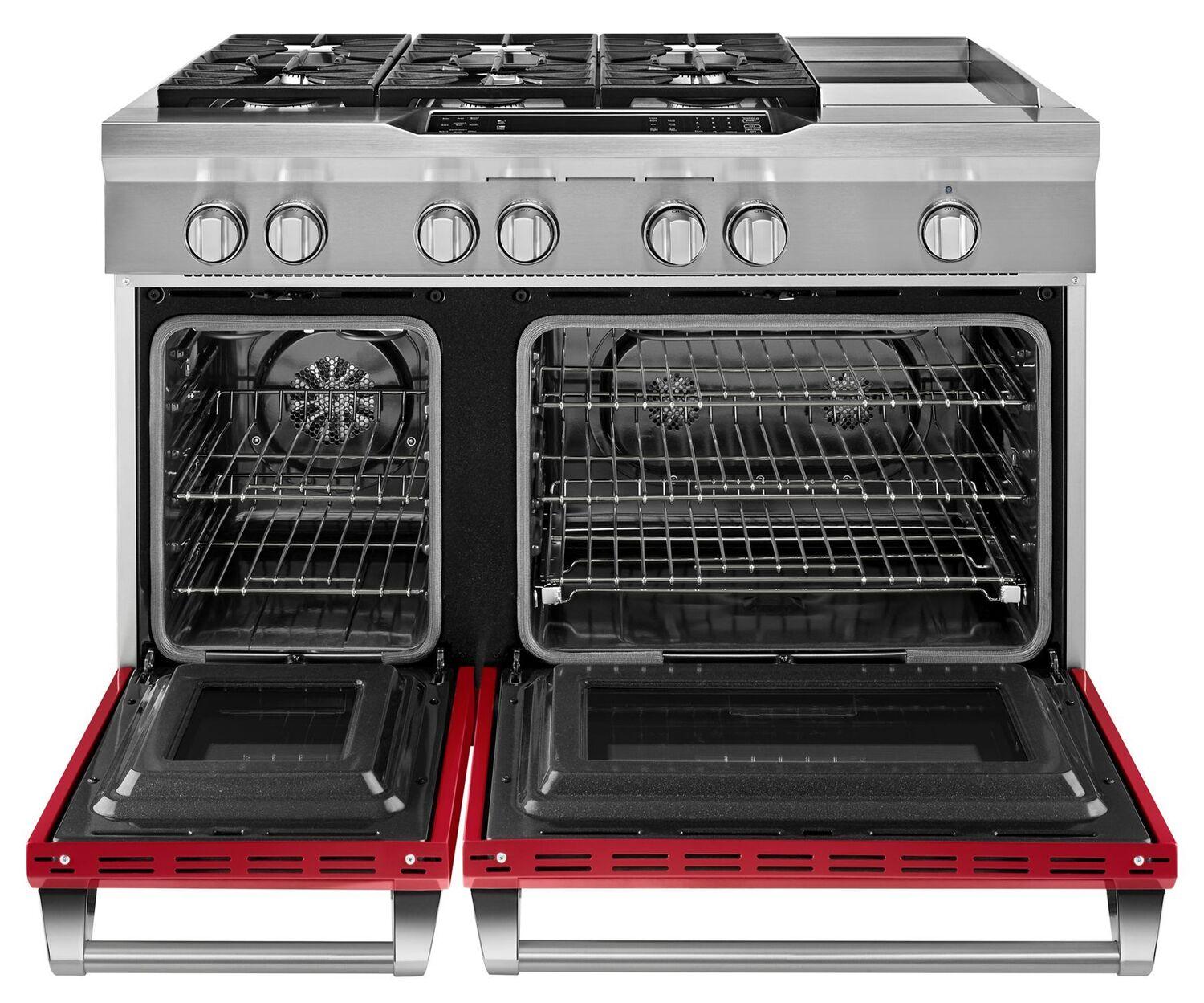

- Even-Heat™ True Convection Oven
- Provides consistent heating and even cooking on all racks with a unique bow-tie shaped design and convection fan that helps ensure no burnt edges or undercooked centers.
- Even-Heat™ Chrome Electric Griddle
- Provides exceptional cooking performance and features an easy-to-clean surface.
- Two 20K BTU Ultra Power™ Dual-Flame Burners
- Dual-flame burner design allows fine-tuned, versatile control for a range of high-to-low heat outputs that let you master a variety of cooking techniques and recipes.
- 5K BTU Simmer/Melt Burner - Reduces to 500 BTUs
- Gives you a wide range of low temperatures so that you can simmer, reheat, or keep sauces warm without having them scorch.
- EasyConvect™ Conversion System
- Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- Convect Bake, Roast, and Broil
- Intuitive convection settings provide even baking results on all racks, even browning and faster roasting times for meats, and decrease the time needed to get exceptional results similar to outdoor grilling.
- 6.3 Cu. Ft. Total Capacity
- Combined left and right oven capacities provide more room to cook multiple dishes at the same time.
- Star-K Certified
- to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
- Dual Fuel Range
- Even-Heat(TM) True Convection Oven
- Even-Heat(TM) Chrome Electric Griddle
- Two 20K BTU Ultra Power(TM) Dual-Flame Burners
- 5K BTU Simmer/Melt Burner - Reduces to 500 BTUs
- EasyConvect(TM) Conversion System
- Convect Bake, Roast, and Broil
- 6.3 Cu. Ft. Total Capacity
- Star-K Certified

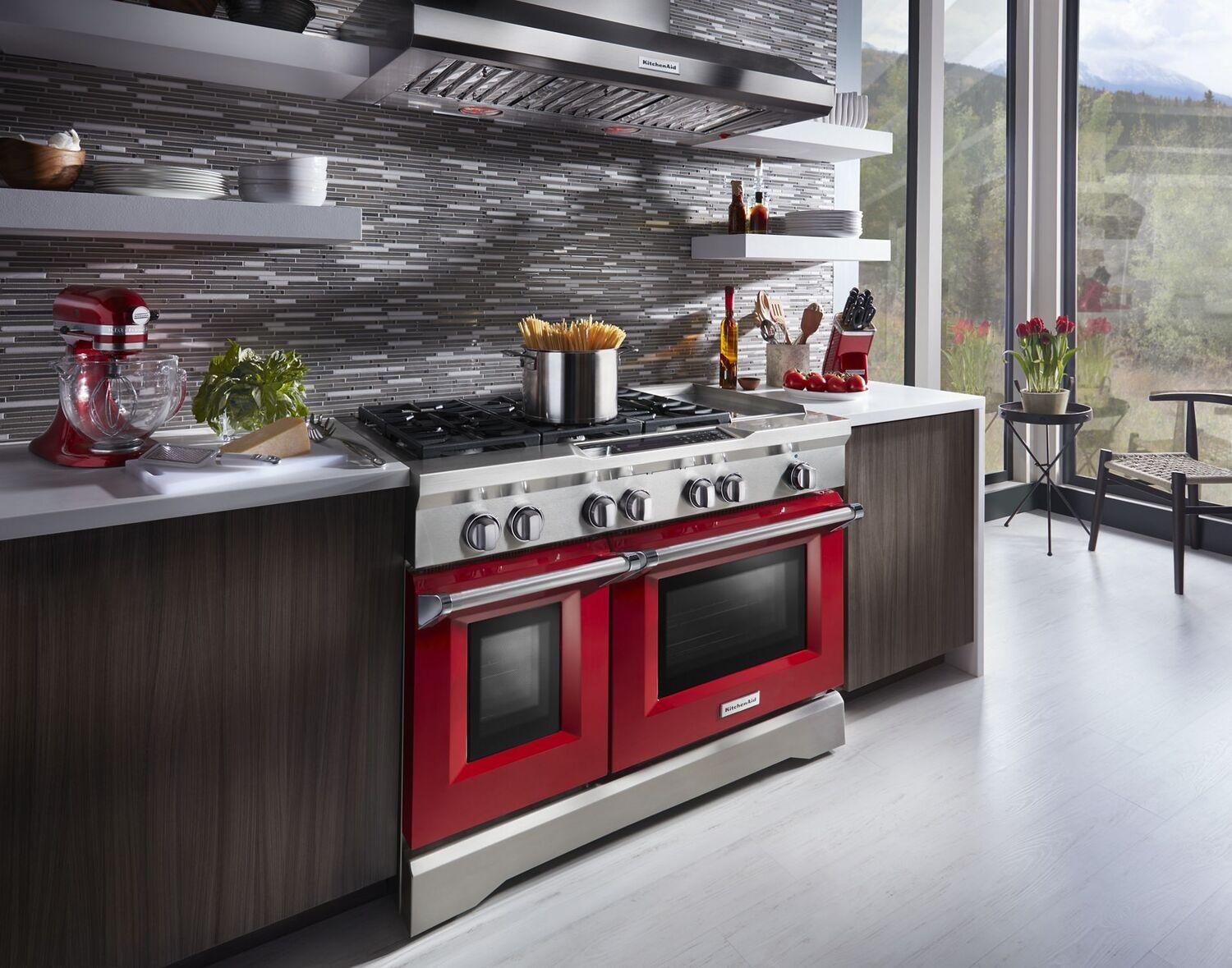

(P) This KitchenAid® commercial-style range, available in a variety of bold colors, brings the tools of restaurant chefs into residential kitchens. Bold, dimensional design and features like two 20K BTU Ultra Power™ Dual-Flame Burners and the Even-Heat™ True Convection System in both ovens allow passionate cooks to reach their gourmet potential, while helping their kitchens achieve their design potential.(/P)
| Dimensions | |
| Cutout Depth | 24.0 in |
| Gross Weight | 612 lbs |
| Left Oven Capacity | 2.2 cu. ft. |
| Depth Closed Excluding Handles | 27-3/4 in |
| Cutout Width | 48.0 in |
| Capacity | 6.30 cu. ft. |
| Cutout Height | 36.0 in |
| Height | 35-3/4 in |
| Width | 48.0 in |
| Right Oven Capacity | 4.1 cu. ft. |
| Depth | 29-9/16 in |
| Controls | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Display Color | Blue/Red |
| Electronic Display Type | Digital |
| Dimensions | |
| Gross Weight | 612.000 lbs |
| Refinements | |
| Features | EasyConvect™ Conversion , Even-Heat™ True Convection , ADA Compliant |
| Features | |
| Power Outage Compatible | Yes |
| LP Convertible | Yes |
| Power On Indicator Light | Yes |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Configuration and Overview | |
| LP Convertible | Yes |
| UL | UL |
| Size | 48 in |
| ADA Compliant | ADA Height and Operation Compliant |
| Range Type | Slide-in |
| Fuel Type | Dual Fuel |
| Certifications | |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |
| Oven Details | |
| Oven Control Location | Front |
| Oven Control Type | Electronic Touch |
| Oven Self-Cleaning | Self-Cleaning |
| Convection Element Type | True |
| Bake Element Power | 3000W |
| Number of Rack Guides | 5 |
| Interior Color | Grey |
| Left Oven Interior Width | 12-15/16 in |
| Door Removable | Yes |
| Drawer Type | None |
| Left Oven Interior Height | 16.0 in |
| Automatic Shut-Off | No |
| Right Oven Interior Height | 16.0 in |
| Number of Oven Lights | 5 |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Power On Indicator Light | Yes |
| Broiler Location | Top Center Both |
| Oven Cooking System | Convection Both |
| Oven Ignition Type | Electronic |
| Number of Oven Racks | 2 Left-3 Right |
| Convection Functions | Bake , Broil , Roast , Convection Conversion |
| Oven Light Type | Halogen |
| Left Oven Interior Depth | 17-5/8 in |
| Right Oven Interior Width | 25.0 in |
| Hidden Bake Element | Yes |
| Oven Rack Type | 1 Gliding Roll-Out, 4 Heavy Duty |
| Appearance | |
| Handle Material | Metal |
| Door Type | Metal & Glass |
| Handle Type | Towel Bar |
| Handle Color | Stainless Steel |
| Details | |
| Automatic Shut-Off | No |
| Interior Color | Grey |
| Oven Ignition Type | Electronic |
| Oven Control Location | Front |
| Oven Control Type | Electronic Touch |
| Bake Element Power | 3000W |
| Broiler Location | Top Center Both |
| Convection Element Power | 1600 |
| Oven Light Type | Halogen |
| Left Oven Interior Depth | 17-5/8 in |
| Left Oven Interior Height | 16.0 in |
| Left Oven Interior Width | 12-15/16 in |
| Right Oven Interior Depth | 17-5/8 in |
| Right Oven Interior Height | 16.0 in |
| Right Oven Interior Width | 25.0 in |
| Number of Oven Racks | 2 Left-3 Right |
| Oven Rack Type | 1 Gliding Roll-Out, 4 Heavy Duty |
| Oven Cleaning Type | Self-Cleaning |
| Convection Element Type | True |
| Number of Oven Lights | 5 |
| Number of Rack Guides | 5 |
| Hidden Bake Element | Yes |
| Convection Functions | Bake , Broil , Roast , Convection Conversion |
| Description | |
| Size | 48 |
| Cooktop Details | |
| Left Rear Element-Burner Type | Sealed Burner |
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Type | Dual Flame |
| Left Rear Element-Burner Power | 15,000 BTU |
| Cooktop Control Knob Type | Metal |
| Center Front Element-Burner Type | Sealed Burner |
| Cooktop Surface Material | Porcelain Coated Steel |
| Cooktop Control Location | Front |
| Number of Grates | 6 |
| Left Front Element-Burner Power | 20,000 BTU |
| Heating Element On Indicator Light | No |
| Cooktop Surface Color | Black |
| Number of Cooking Element-Burners | 6 |
| Power Outage Compatible | Yes |
| Center Front Element-Burner Power | 15,000 BTU |
| Hot Surface Indicator Light | No |
| Right Front Element-Burner Type | Dual Flame |
| Ignition Type | Electronic |
| Grate Details | Matte Finish , Continuous , Cast Iron Grates , Dishwasher Safe |
| Cooktop Control Type | Knobs |
| Exterior | |
| Handle Material | Metal |
| Door Removable | Yes |
| Oven Window Size | Large |
| Handle Color | Stainless Steel |
| Electrical Requirements | |
| Power Cord Included | |
- Dual Fuel Range
- Even-Heat(TM) True Convection Oven
- Even-Heat(TM) Chrome Electric Griddle
- Two 20K BTU Ultra Power(TM) Dual-Flame Burners
- 5K BTU Simmer/Melt Burner - Reduces to 500 BTUs
- EasyConvect(TM) Conversion System
- Convect Bake, Roast, and Broil
- 6.3 Cu. Ft. Total Capacity
- Star-K Certified
