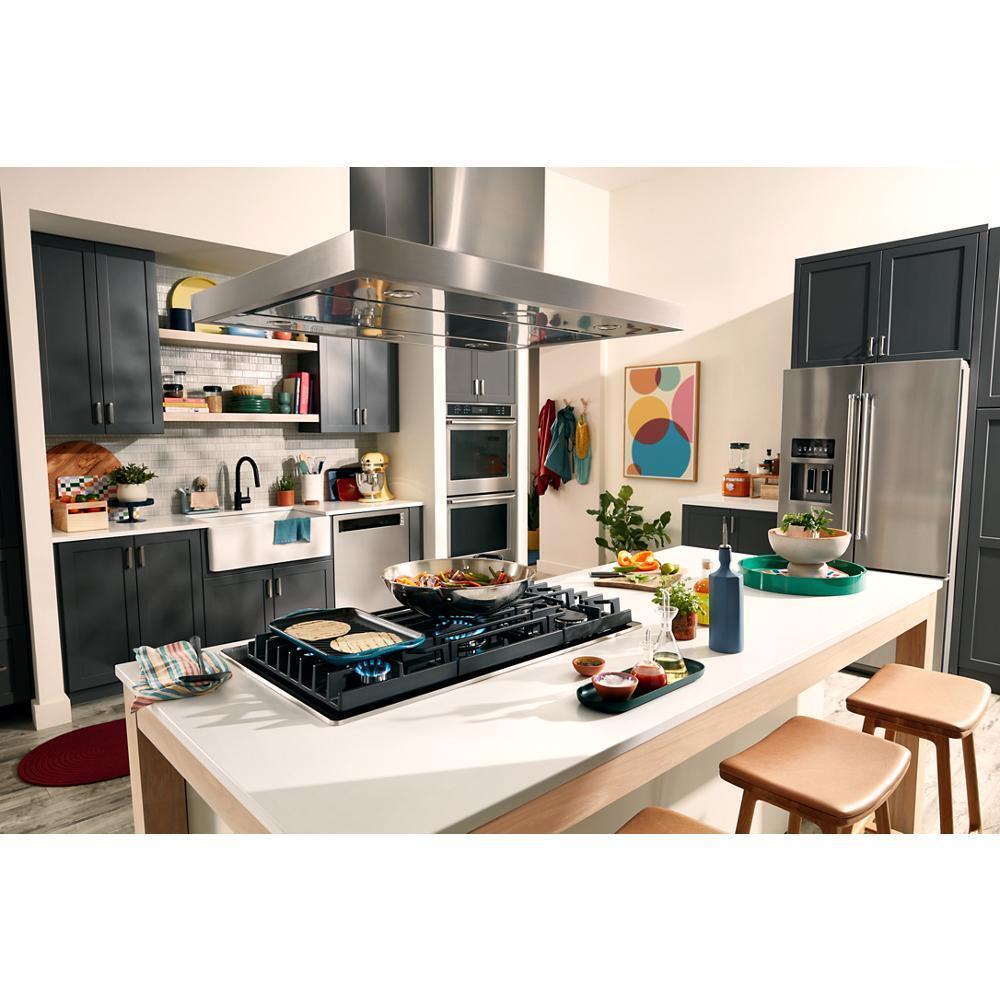

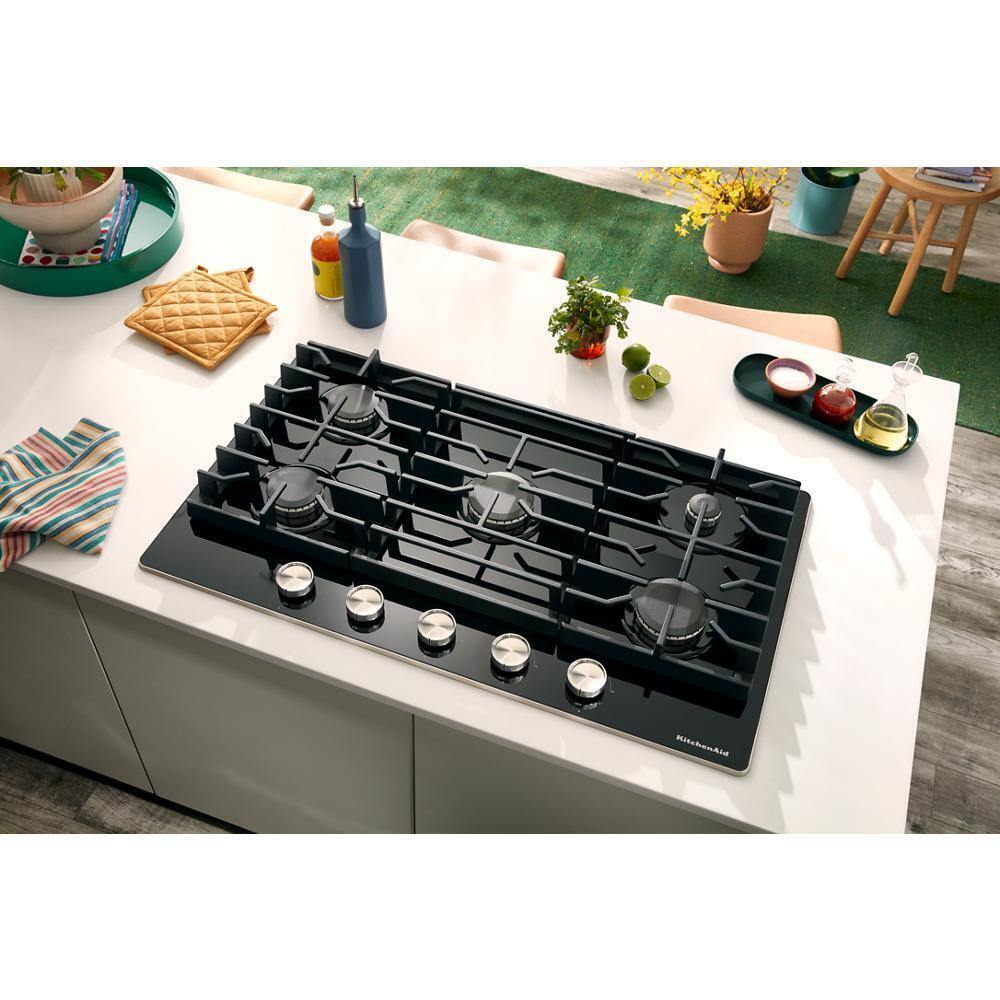

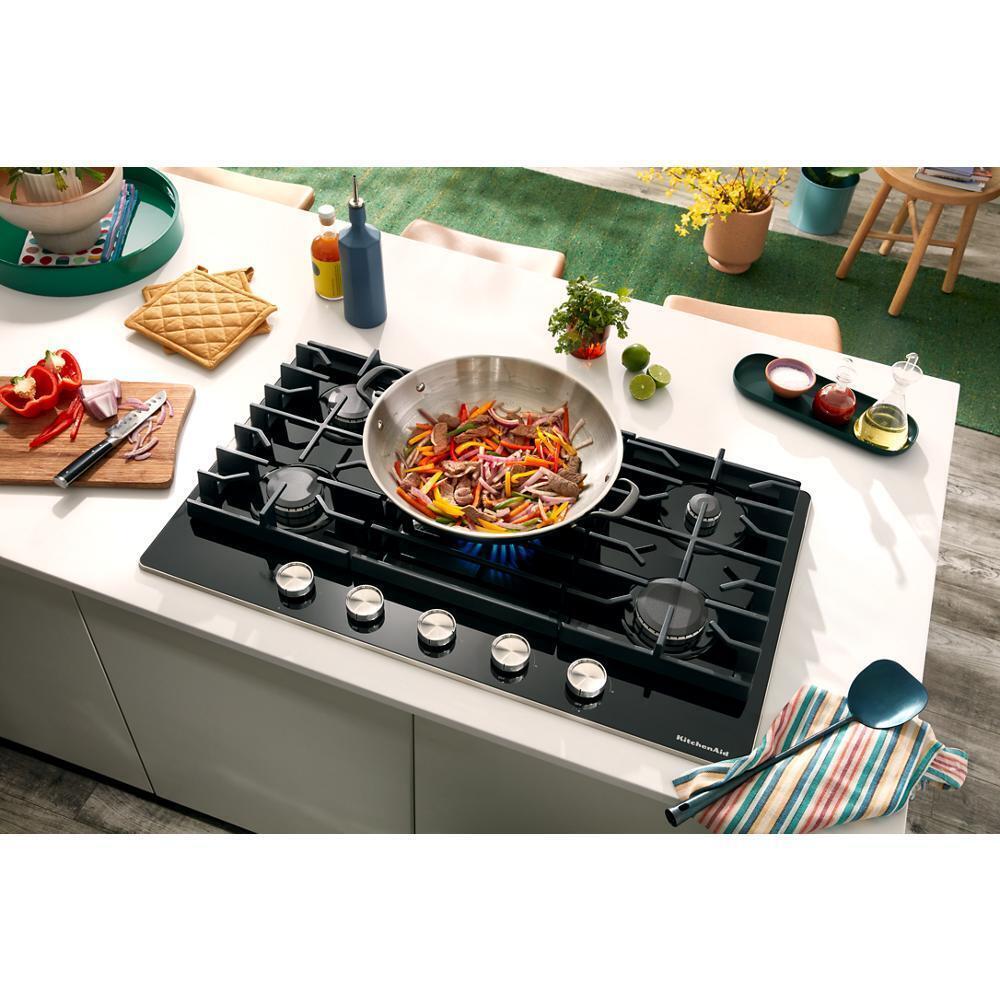

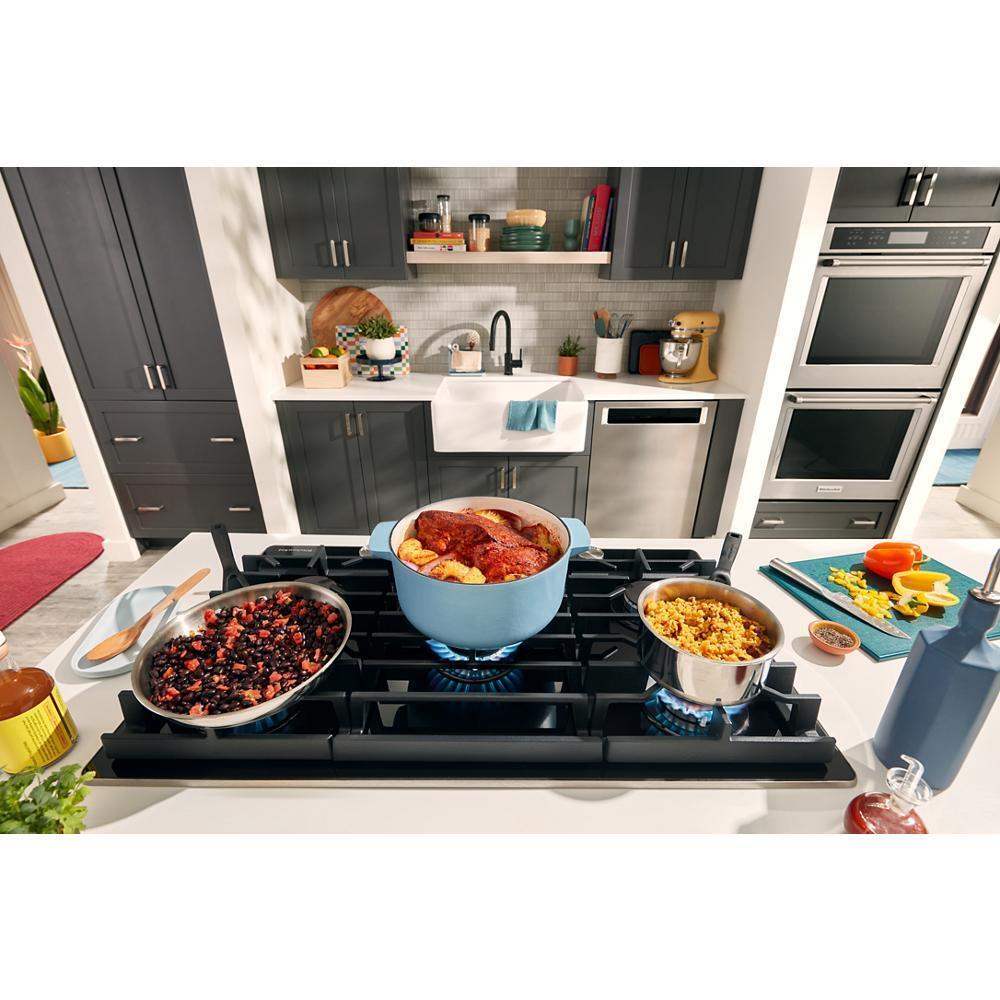

30" Gas-on-Glass Cooktop
Model KCGG530PBL
Authorized Dealer
1
of
20
Loading...
Authorized Dealer
30" Gas-on-Glass Cooktop
Model KCGG530PBLQuick Specs
Depth
21.6
Height
5.3125
Sabbath
NO
ADA
YES
Wifi
NO
Burner
Sealed
Burners
5
Grate
YES
30" Gas-on-Glass Cooktop is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$1,399.00
Regular price
$1,699.00
Unit price
/
Unavailable
You save 17%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21.6
Height
5.3125
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
5
Continuous Grate
YES
Downdraft Ventilation
NO
Nominal Width
24.0
RPM
-1.0
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- 15K BTU Burner
- Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
- Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.

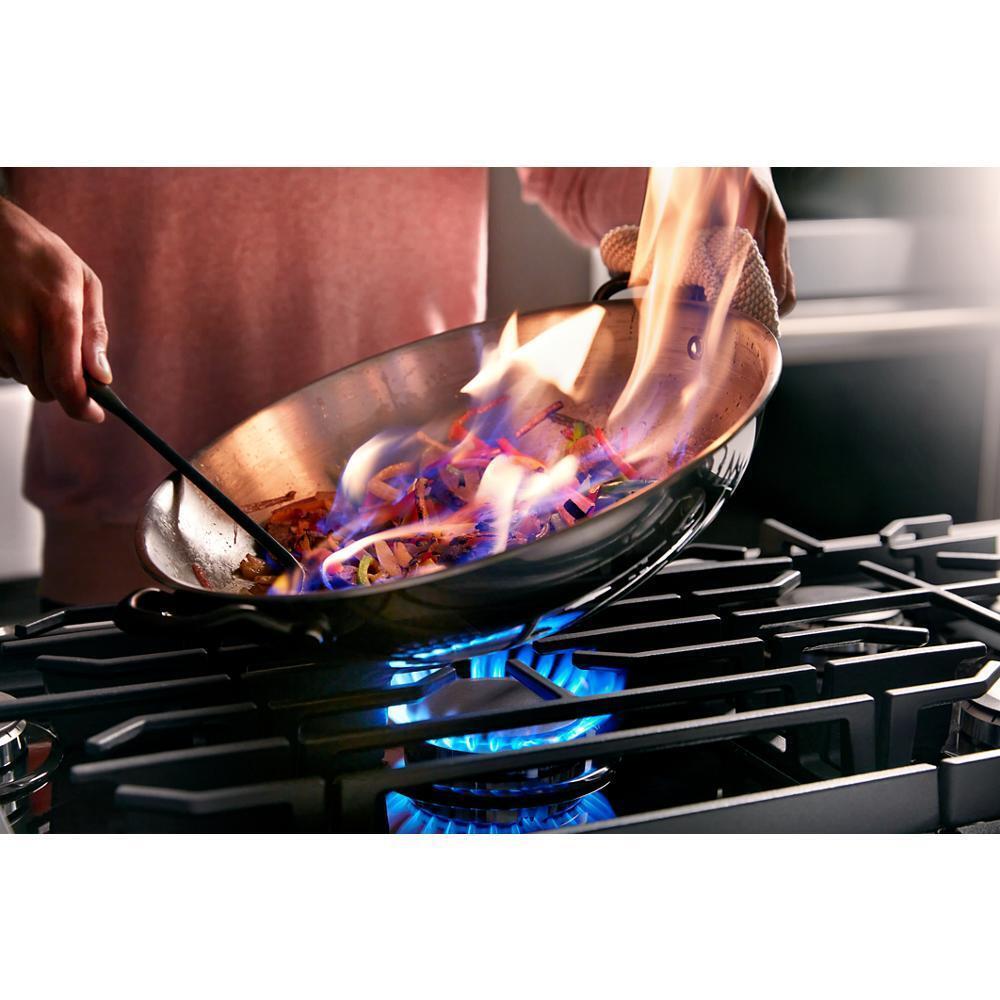

- 18K BTU Burner
- Delivers the high-heat you need to successfully sear, saut(eback), stir-fry, and bring pots to a rolling boil.
- 5K BTU Burner
- A flame sized for small saucepans to manage low temperatures for simmering sauces until they look, feel and taste delicious.
- ADA Compliant
- This appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Dishwasher-Safe Full-Width Cast-Iron Grates
- Cast-Iron Grates are dishwasher safe and allow for smooth, easy movement around the cooktop.

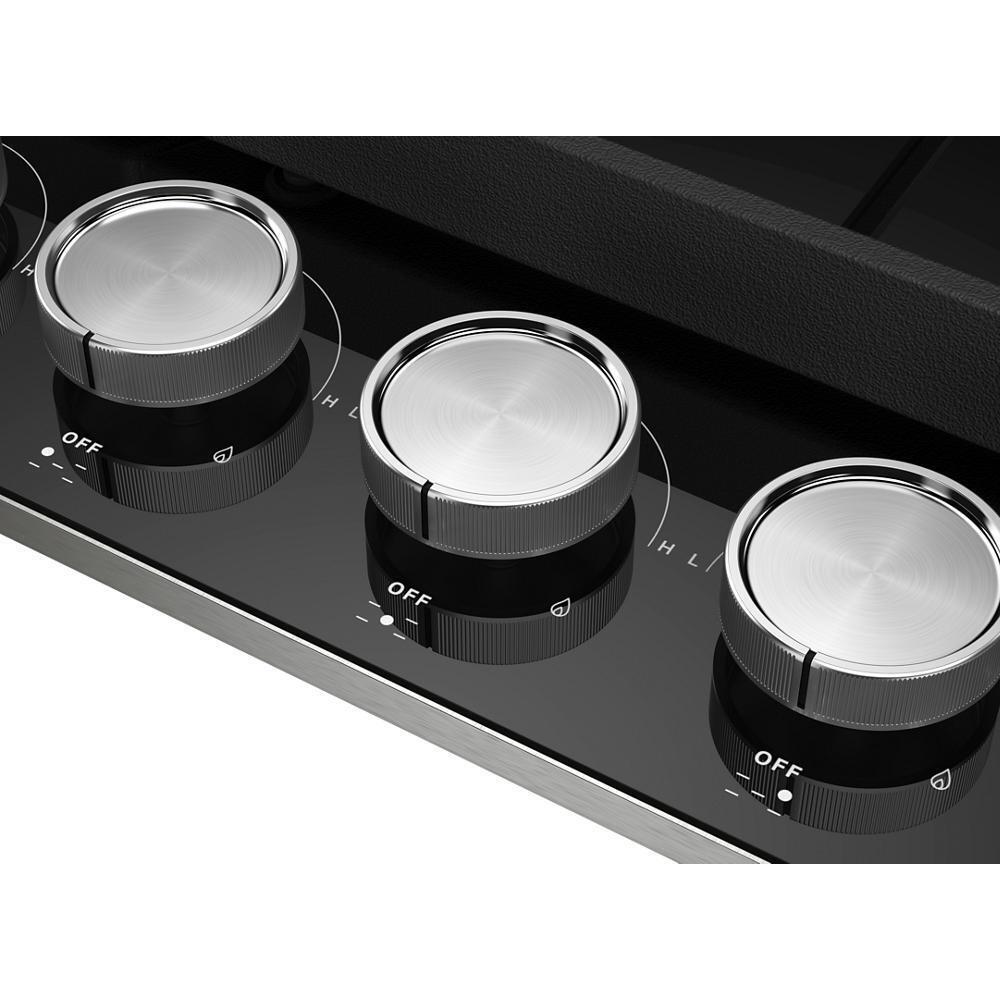

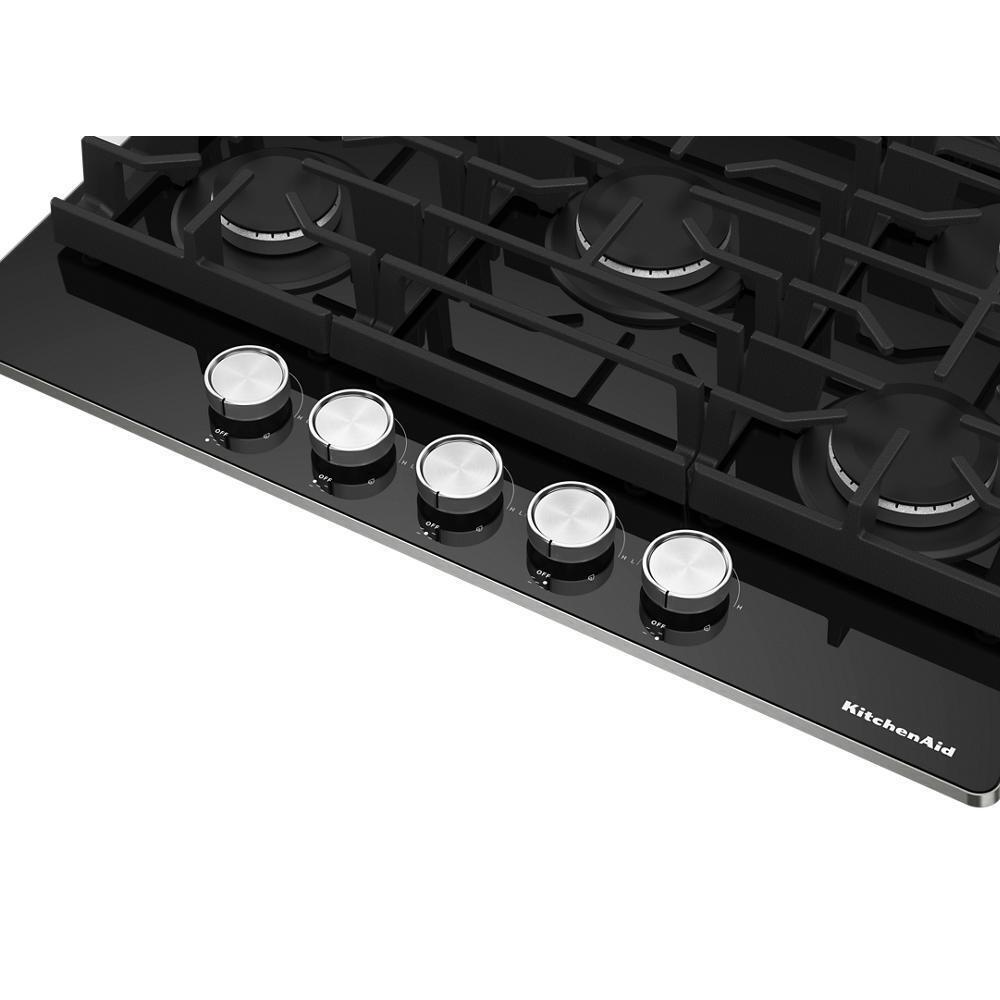

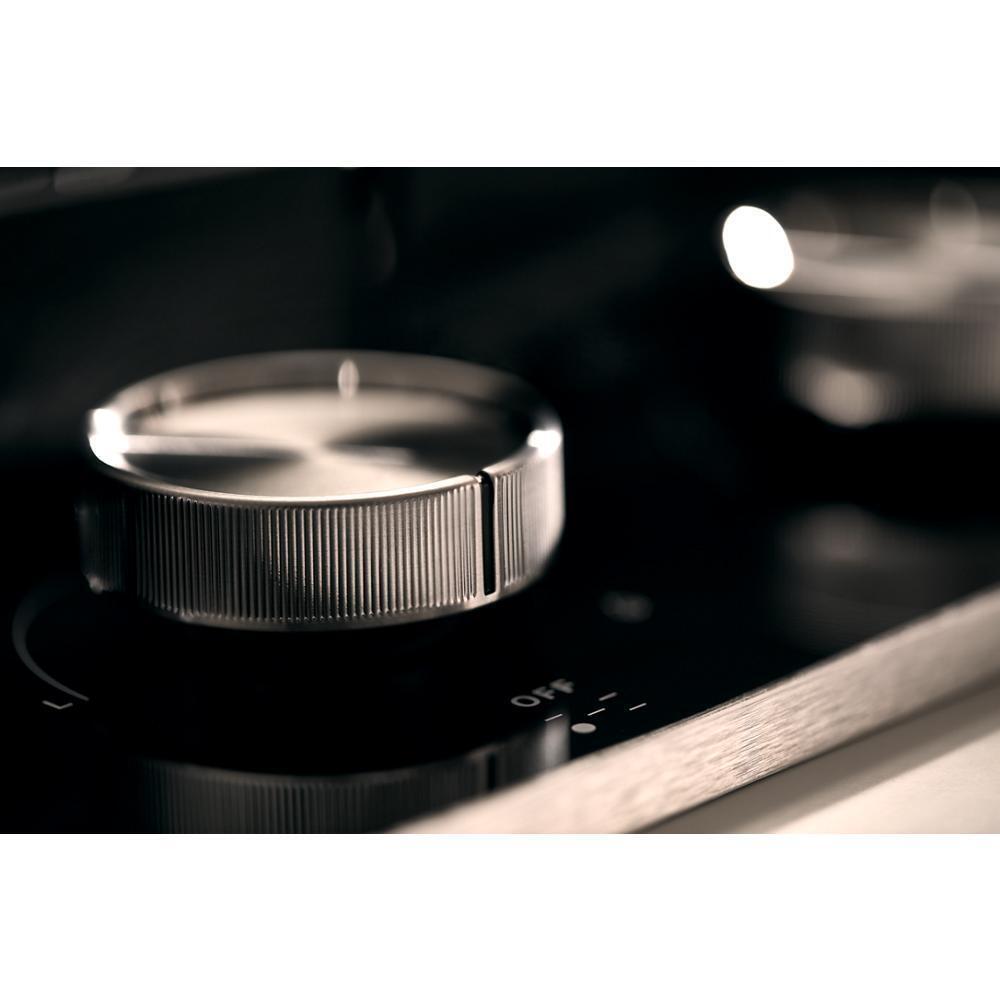

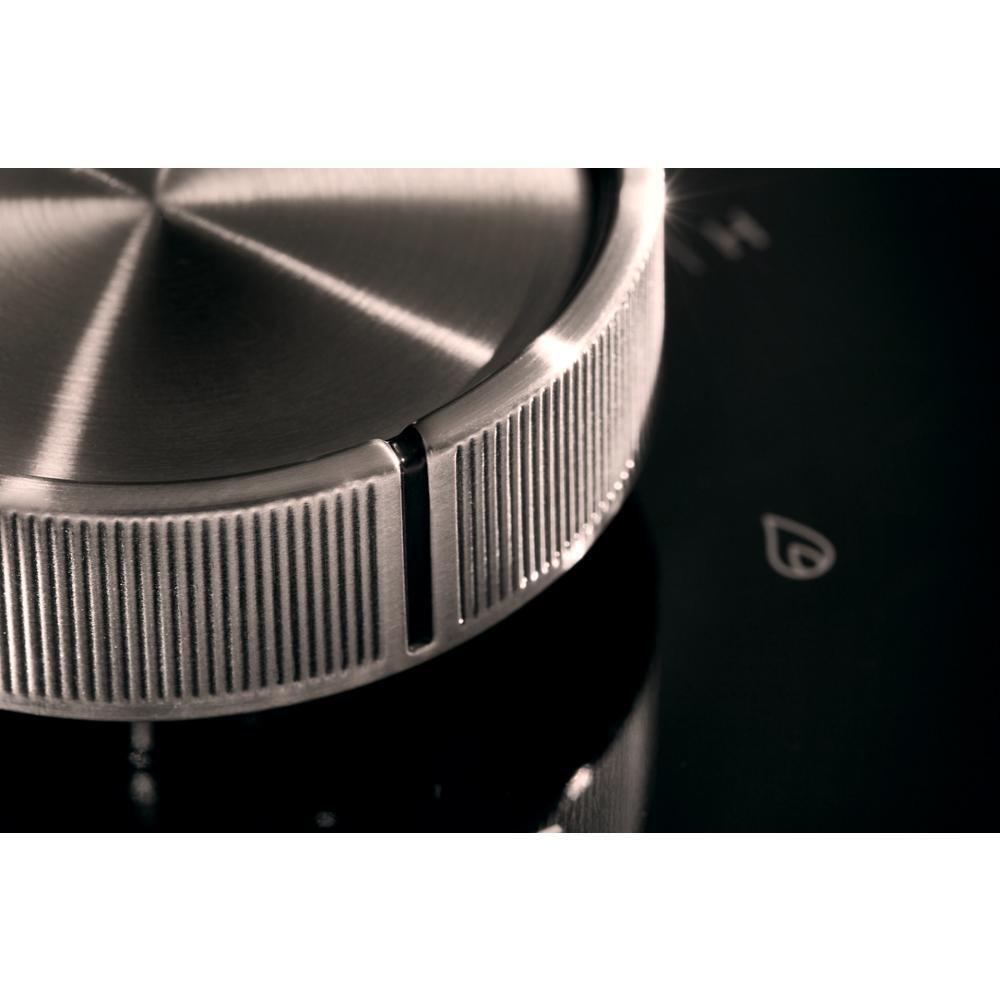

- Dishwasher-Safe Metal Knobs
- Professionally-inspired dishwasher-safe knobs are easy to clean and allow easy adjustment of cooktop settings, offering responsive, flexible control.
- Easy to Clean Glass Top Surface
A glass top surface that easily wipes to a reflective shine with just soap, water, and a soft cloth.- Easy-to-Clean Glass-Top Surface
- A glass-top surface that easily wipes to a reflective shine with just soap, water and a soft cloth.
- Most Powerful 30" Gas-on-Glass Cooktop* *Based on total BTU
- Most Powerful 30" Gas-on-Glass Cooktop.* 56.2K total BTU through 5 individual burners, including a central 18K burner.
*Based on total BTU - Most Powerful 30"" Gas-on-Glass Cooktop* *Based on total BTU
- Most Powerful 30" Gas on Glass Cooktop*. 56.2K total BTU through 5 individual burners, including a central 18K burner.
*Based on total BTU - Two 9.1K BTU Burner
- Use your 9.1K BTU Burner for your daily cooking, searing and saut(eback)ing.
- Use your 9.1K BTU Burner for your daily cooking, searing, and saute(eback)ing.
- 15K BTU Burner for every day cooking tasks like boiling and sauteing
- 15K BTU Burner for every day cooking tasks like boiling and saut(eback)ing.
- Two 9.1K BTU Burners help simmer and melt
- 18K BTU Burner for high-heat sears, stir-frys and fast boils.
- 5K BTU Burner helps manage low-heat delicate sauces and gravy.
- ADA Compliant
- Dishwasher-Safe Full-Width Cast-Iron Grates make clean up easy.
- Dishwasher-Safe Metal Knobs make clean up convenient.
- Easy to Clean Glass Top Surface
- Easy-to-Clean Glass-Top Surface
- Most Powerful 30" Gas-on-Glass Cooktop based on total BTU

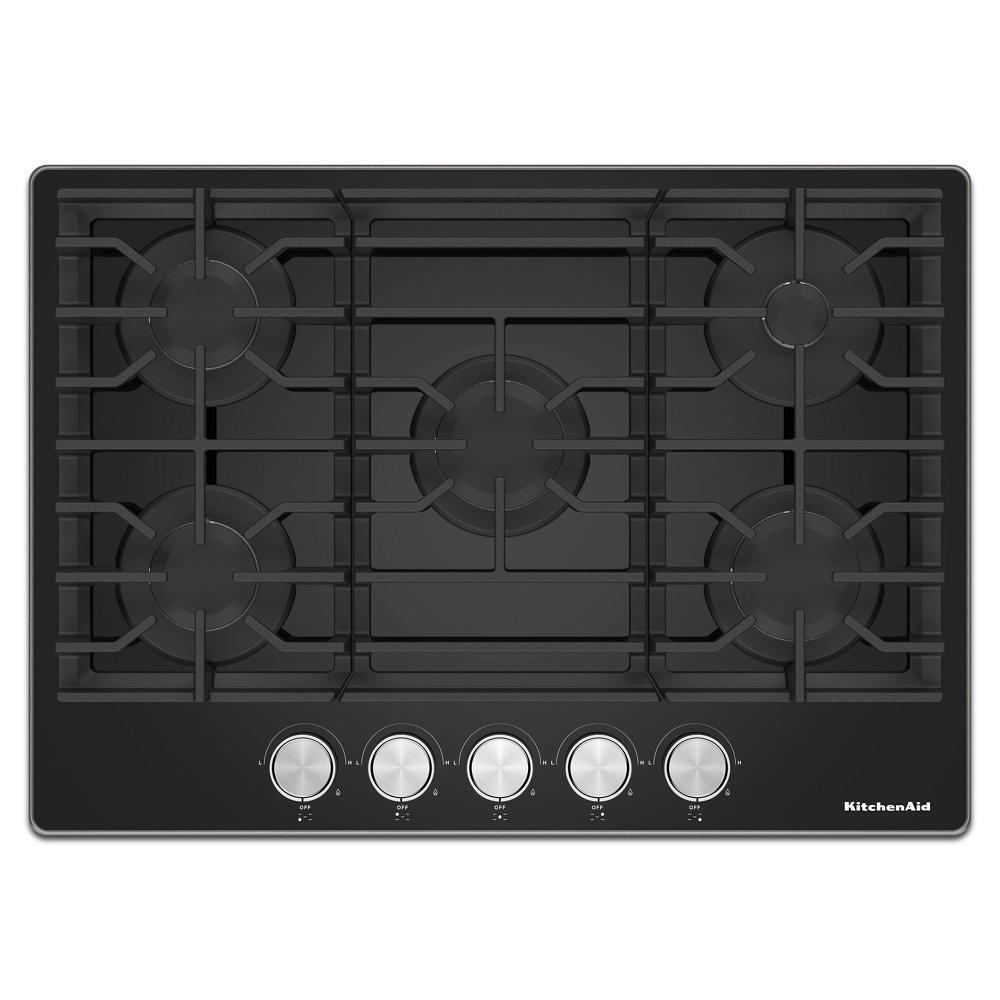

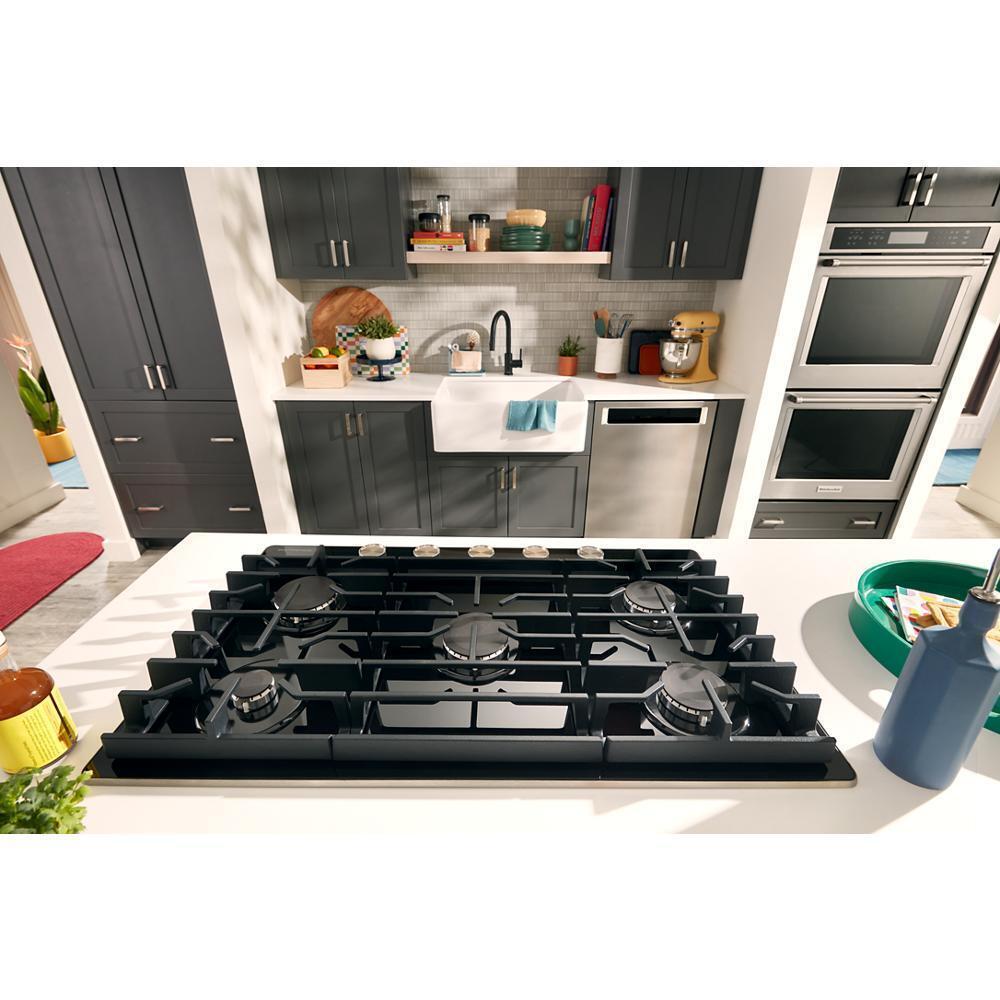

This KitchenAid® 30" Gas-on-Glass Cooktop is both easy to clean and the most powerful cooktop in its class. 56.2K total BTU, including a central 18K BTU burner, helps execute high-heat techniques, like stir-frying and searing. The glass top and dishwasher-safe elements, like professionally-inspired stainless steel knobs and continuous cast-iron grates, make cleaning up your creations almost as easy as cooking them.
| Certifications | |
| Ada Compliant | ADA Height and Side Reach Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

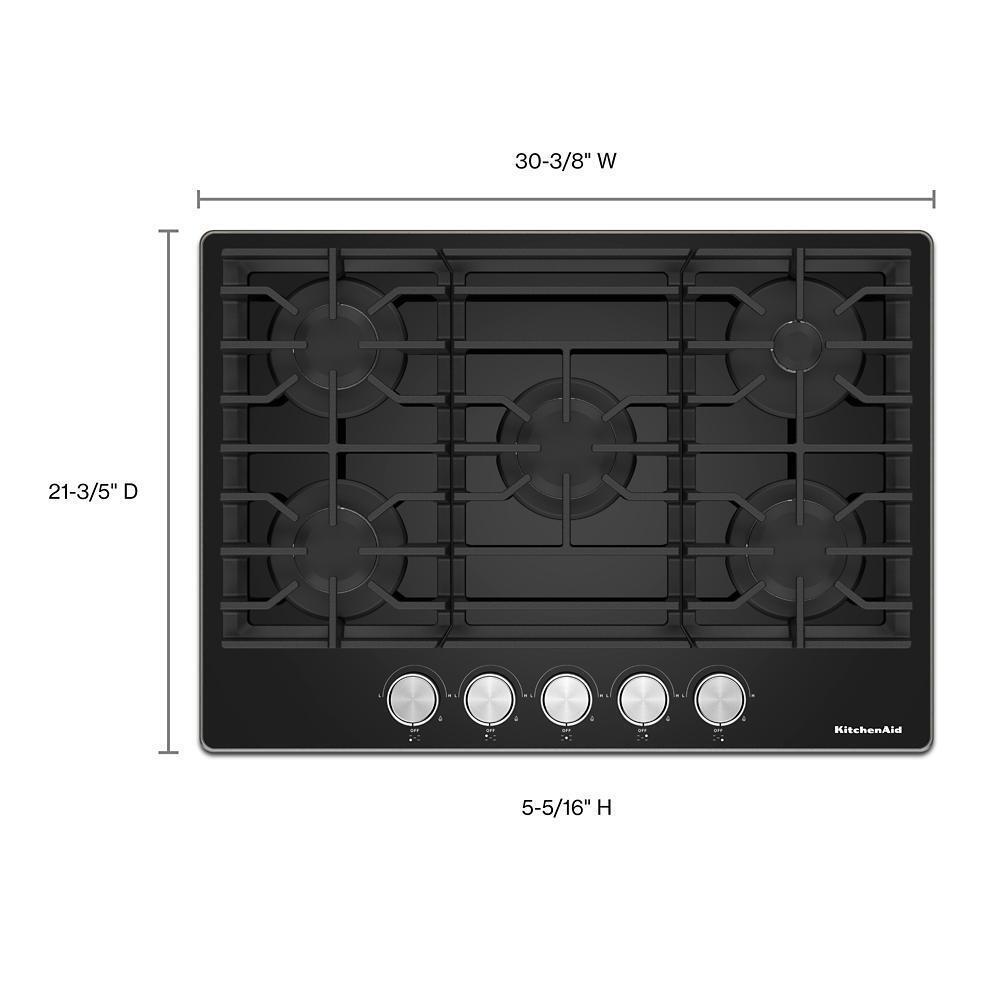

| Dimensions | |
| Product Height | 5.3125 |
| Carton Height | 12.99 |
| Gross Weight | 74.96 |
| Carton Width | 34.68 |
| Product Depth | 21.6 |
| Cutout Depth Max | 20 |
| Cutout Width Min | 28.125 |
| Cutout Depth | 19 |
| Cutout Height | 2.875 |
| Carton Depth | 24.96 |
| Cutout Width | 29 |
| Cutout Depth Min | 19 |
| Cutout Width Max | 29.313 |
| Net Weight | 68.34 |
| Product Width | 30.375 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Center Element Burner Power | 18,000 BTU |
| Center Element Burner Type | Power |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 9100 BTU |
| Left Front Element-burner Type | Standard |
| Left Rear Element-burner Power | 9100 BTU |
| Left Rear Element-burner Type | Standard |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 15,000 BTU |
| Right Front Element-burner Type | Standard |
| Right Rear Element-burner Power | 5000 BTU |
| Right Rear Element-burner Type | Simmer |
| Exterior Details | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| General | |
| Combination Match With Oven | KOES127P; KOES130P; KOES527P; KOES530P; KOES730P |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 3 |
| Smart Compatibility | |
| Works With | No |
| Ventilation Details | |
| Downdraft Vent | No |
- 15K BTU Burner for every day cooking tasks like boiling and sauteing
- 15K BTU Burner for every day cooking tasks like boiling and saut(eback)ing.
- Two 9.1K BTU Burners help simmer and melt
- 18K BTU Burner for high-heat sears, stir-frys and fast boils.
- 5K BTU Burner helps manage low-heat delicate sauces and gravy.
- ADA Compliant
- Dishwasher-Safe Full-Width Cast-Iron Grates make clean up easy.
- Dishwasher-Safe Metal Knobs make clean up convenient.
- Easy to Clean Glass Top Surface
- Easy-to-Clean Glass-Top Surface
- Most Powerful 30" Gas-on-Glass Cooktop based on total BTU
