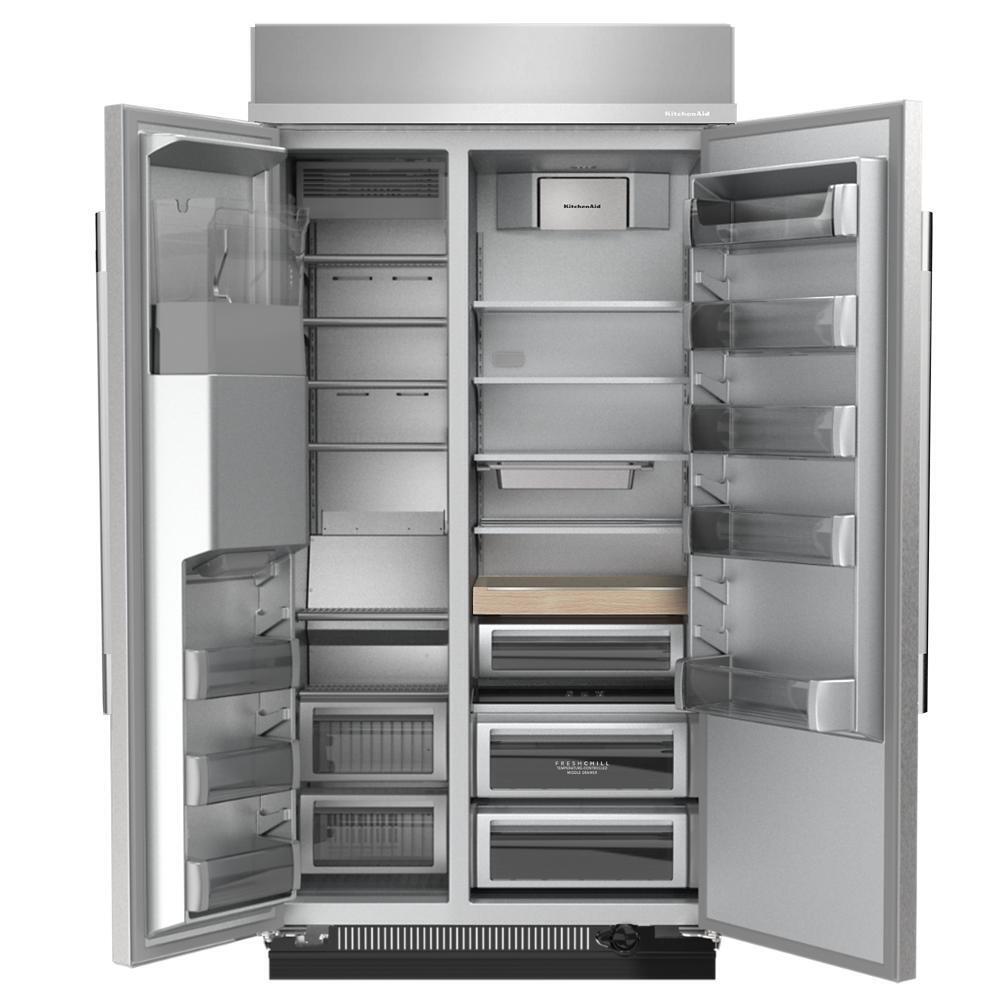

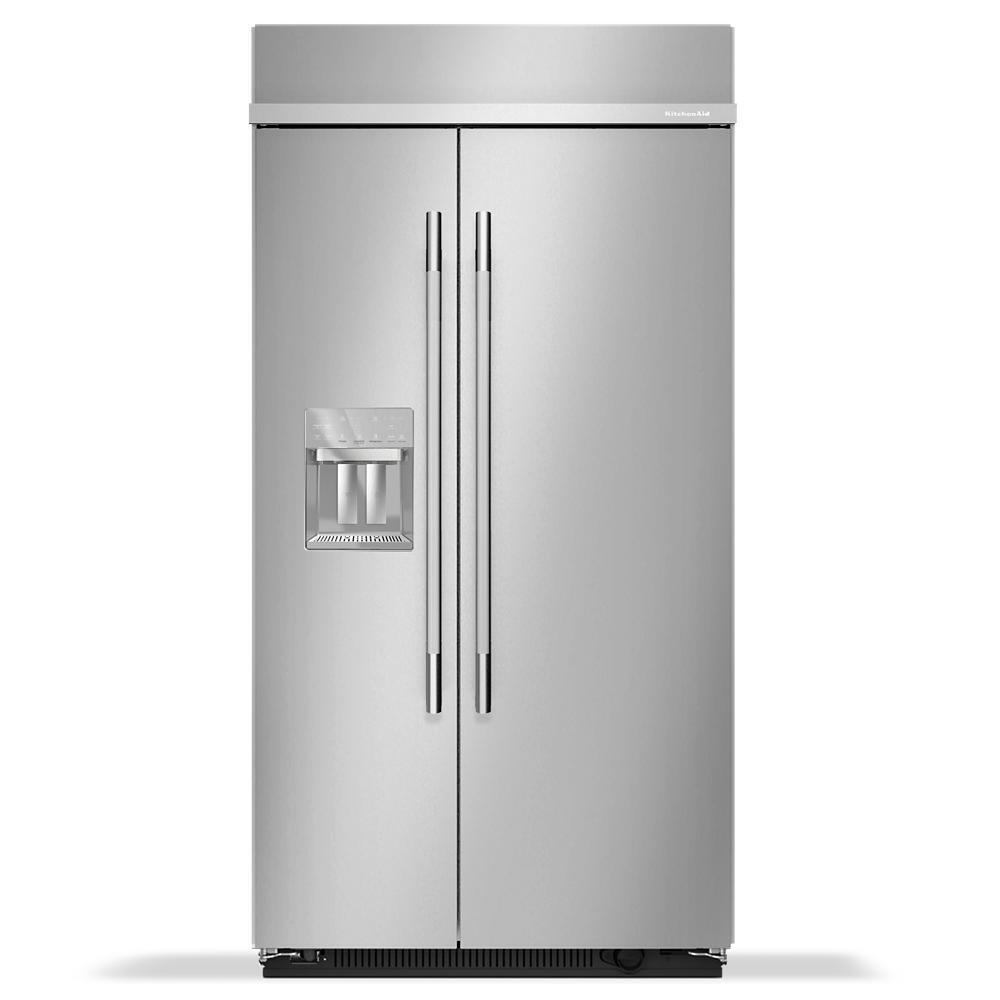

25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator features Exterior Water and Ice Dispenser with Measured Fill
Model KBSD742SPS
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator features Exterior Water and Ice Dispenser with Measured Fill
Model KBSD742SPSQuick Specs
Depth
25
Height
74.5
Sabbath
YES
Fresh
16.3
Freezer
8.8
Cu Ft
25.1
Size
25.1
Shelves
10
25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator features Exterior Water and Ice Dispenser with Measured Fill is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$10,439.00
$11,599.00
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
25
Height
74.5
Sabbath Mode
YES
Fresh food Capacity
16.3
Freezer Capacity
8.8
Capacity (cu ft.)
25.1
Refrigerator Size
25.1
Refrigerator number of Shelves
10
ADA
NO
Dispenser
YES
Icemaker
YES
Wifi Connected
NO
RPM
-1.0
Energy Star Rated
NO
Preserva(R) Cooling System
helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.
- Adjustable Spill-Resistant Glass Shelves
- feature premium glass, offering edge-to-edge storage for whatever you need. Plus, the nano-etched edges help prevent spills from overflowing into other parts of your refrigerator, and the design allows you to remove them for easy cleaning.
- Easy Access Door Bin
- is crafted with a shorter lip to store small, everyday items like butter, tomato paste and other favorites. This top door bin keeps items within easy reach.
- Exterior Water and Ice Dispenser with Measured Fill
- conveniently dispenses filtered ice and water without opening the door. Measured Fill allows you to select and dispense the exact amount you need or presets of 8, 16 and 24 ounces.
- Fit System Limited Guarantee
- offers support if your NEW 36 , 42 or 48 built-in refrigerator doesn t fit your existing cutout, you may get up to $500 for professional modifications. Existing cabinet modifications only. Exclusions apply. For full terms and details visit https://www.kitchenaid.com/promotions/promotions.html
- FreshChill™ Temperature-Controlled Drawer
- makes it easy to customize storage temperatures for different types of ingredients, helping to maintain freshness. Simply turn the dial to choose from presets for Meat, Produce, Deli and Assorted Items.
- FreshFlow™ Air Filter
- deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.
- Galloon Door Bins
- maximize storage with thoughtfully designed and adjustable bins, accommodating gallon jugs, large containers and bulky items with ease.
- Max Cool
- lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.
- Max Freeze
- lets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.
- Multiple Installation Options
- allow you to choose the installation style that fits your aesthetic: flush for a seamless look, overlay for a softly striking incorporated look or proud for a standout presence.
- Personalized Door Stop
- tailors your refrigerator to suit your space by setting the door to stop at 90(degree), 110(degree) or 130(degree). This prevents the door from swinging open too wide, giving you the flexibility to load or find ingredients without hitting counters or handles.
- Preserva® Cooling System
- helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.
- PrintShield® Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- SatinGlide® Drawer System
- adds a smooth experience to the crisper drawers. Ball-bearing rollers enhance the opening and closing experience every time, whether it is nearly empty or fully loaded.
- Signature Platinum Interior
- wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.
- Soft Self-Close Doors
- ensure doors close quietly and gently, helping to prevent slamming. Additionally, it enhances your cooking experience by automatically closing doors when left slightly ajar.
- Touchscreen Controls
- put all refrigerator functions at your fingertips. Display has a smooth design and easy-to-use controls that allow intuitive operation of the refrigerator.
- Ultra-Bright LED Lighting
- gradually brightens to fully illuminate the freezer and refrigerator, making it easy to find what you need.
- Under-Shelf Prep Zone
- utilizes unused space with included 9"x13" baking sheet and cake pan. Go directly from the refrigerator to the oven to the dishwasher. Ideal for storing food prep or leftovers, marinating, chilling desserts, making focaccia and more.
- Wood-Look Finish Sliding Storage Trays
- keeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.
- Adjustable Spill-Resistant Glass Shelves trap spills before they spill over
- The Easy Access Door Bin is designed to keep small ingredients within reach
- The Personalized Door Stop allows you to customize how wide the doors open
- PRESERVA Cooling System helps keep food fresh and flavorful
- PRINTSHIELD finish resists fingerprints and smudges
- SATINGLIDE Drawer System rolls open smoothly, even while fully loaded
- Signature Platinum Interior wows with wood-look trim and metallic accents
- Soft Self-Close Doors offer a quiet, hands-free experience
- Touchscreen Controls provide easy access to making adjustments
- Ultra-Bright LED Lighting makes it easy to find items inside
- Under-Shelf Prep Zone includes 9"x13" baking sheet and cake pan
- Wood-Look Sliding Storage Tray keeps platters and ingredients easily accessible
- Exterior Ice and Water Dispenser with Measured Fill for quick access
- Fit System Guarantee provides a budget to adjust your cabinets
- FRESHCHILL Temperature-Controlled Drawer with presets for Meat, Produce, Deli and Assorted Items
- FRESHFLOW Air Filter deodorizes 15x better than baking soda
- Galloon Door Bins adjust for custom storage
- Max Cool drops temperature to coldest level for optimal cooling
- Max Freeze drops temperature to coldest level for optimal freezing
- Multiple Installation Options let you customize your built-in kitchen style
| Certifications | |
| Ada Compliant | No |
| Cee Tier Rating | Tier I |
| Prop65 | Standard |
| Star K Certified | Star K Certified |
| Ul | No |
| Controls | |
| Automatic Defrost | Yes |
| Control Location | Exterior |
| Door Ajar/open Alarm | Yes |
| LCD Touch Screen | No |
| Max Cool/fast Cool | Max Cool |
| Refrigerator Max Cool | Yes |
| Sabbath Mode | Yes |
| Details | |
| Advance Foam Insulation | 99.9% lower Global Warming Potential and Better Energy Performance |
| Door Style Configuration | Side-by-Side |
| Installation Configuration | Built-In |
| Installation Option | Built-In |
| Refrigeration Configuration | Refrigerator |
| Refrigerator Type | Side-by-Side |
| Dimensions | |
| Cabinet Width | 41 |
| Carton Depth | 32.04 |
| Carton Height | 86.57 |
| Carton Width | 45.74 |
| Cutout Depth | 25 |
| Cutout Height | 83.5 |
| Cutout Width | 41.5 |
| Depth Closed Excluding Handles | 25 |
| Depth Closed Including Handles | 27.7 |
| Depth Excluding Doors | 22.4 |
| Dispenser Options | Filtered Water; Ice Dispenser Lock; Measured Fill; Night Light |
| Dispenser Type | Exterior Ice and Water |
| Freezer Capacity Volume | 8.8 |
| Gross Weight | 619.03 |
| Height To Top of Cabinet | 74.5 |
| Net Weight | 588.08 |
| Refrigerator Capacity Volume | 16.3 |
| Width Doors Open 90 Degrees | 47.2 |
| Exterior Details | |
| Cabinet Color | Grey |
| Cabinet Finish | Smooth |
| Door Color | Saturn Stainless |
| Door Finish | Smooth |
| Door Style | Flat |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Hidden Hinge | Yes |
| Filter Details | |
| Air Filter Part Number | W10311524 |
| Produce Preserver | No |
| Water Filter Location | Exterior |
| Water Filter Part Number | EDR3RXD1 |
| Freezer Details | |
| Freezer Door Bins | 5 Adjustable Full-Width |
| Freezer Door Type | Swing |
| Freezer Fast Cool | Yes |
| Freezer Lighting | LED |
| Freezer Number of Shelves | 6 |
| Freezer Shelves | 2 Fixed Full Width Wire; 4 Adjustable Full Width Wire |
| General | |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Icemaker Details | |
| Icemaker | Factory Installed |
| Refrigerator Details | |
| Additional Storage | Faux Wood Pull Out Tray; Under Shelf Prep Zone |
| Liner Finish | Platinum |
| Non Climate Control Drawers | 2 Full Width |
| Number of Doors | 2 |
| Number of Interior Shelves | 4 |
| Number of Lights | 7 |
| Refrigerator Door Bins | 1 Full Width Non Adjustable Gallon; 1 Full Width Non Adjustable Small Item; 3 Adjustable Full-Width |
| Refrigerator Lighting | LED |
| Spill-proof Glass Shelves | 4 Adjustable Full Width |
| Supplementary Containers | 1 9x13 Cake Pan; 1 9x13 Sheet Pan; 1 9x9 Cake Pan; Under Shelf Prep Zone |
| Temperature-controlled Drawers | 1 Full Width |
| Smart Compatibility | |
| Smart Appliance | No |
- Adjustable Spill-Resistant Glass Shelves trap spills before they spill over
- The Easy Access Door Bin is designed to keep small ingredients within reach
- The Personalized Door Stop allows you to customize how wide the doors open
- PRESERVA Cooling System helps keep food fresh and flavorful
- PRINTSHIELD finish resists fingerprints and smudges
- SATINGLIDE Drawer System rolls open smoothly, even while fully loaded
- Signature Platinum Interior wows with wood-look trim and metallic accents
- Soft Self-Close Doors offer a quiet, hands-free experience
- Touchscreen Controls provide easy access to making adjustments
- Ultra-Bright LED Lighting makes it easy to find items inside
- Under-Shelf Prep Zone includes 9"x13" baking sheet and cake pan
- Wood-Look Sliding Storage Tray keeps platters and ingredients easily accessible
- Exterior Ice and Water Dispenser with Measured Fill for quick access
- Fit System Guarantee provides a budget to adjust your cabinets
- FRESHCHILL Temperature-Controlled Drawer with presets for Meat, Produce, Deli and Assorted Items
- FRESHFLOW Air Filter deodorizes 15x better than baking soda
- Galloon Door Bins adjust for custom storage
- Max Cool drops temperature to coldest level for optimal cooling
- Max Freeze drops temperature to coldest level for optimal freezing
- Multiple Installation Options let you customize your built-in kitchen style
