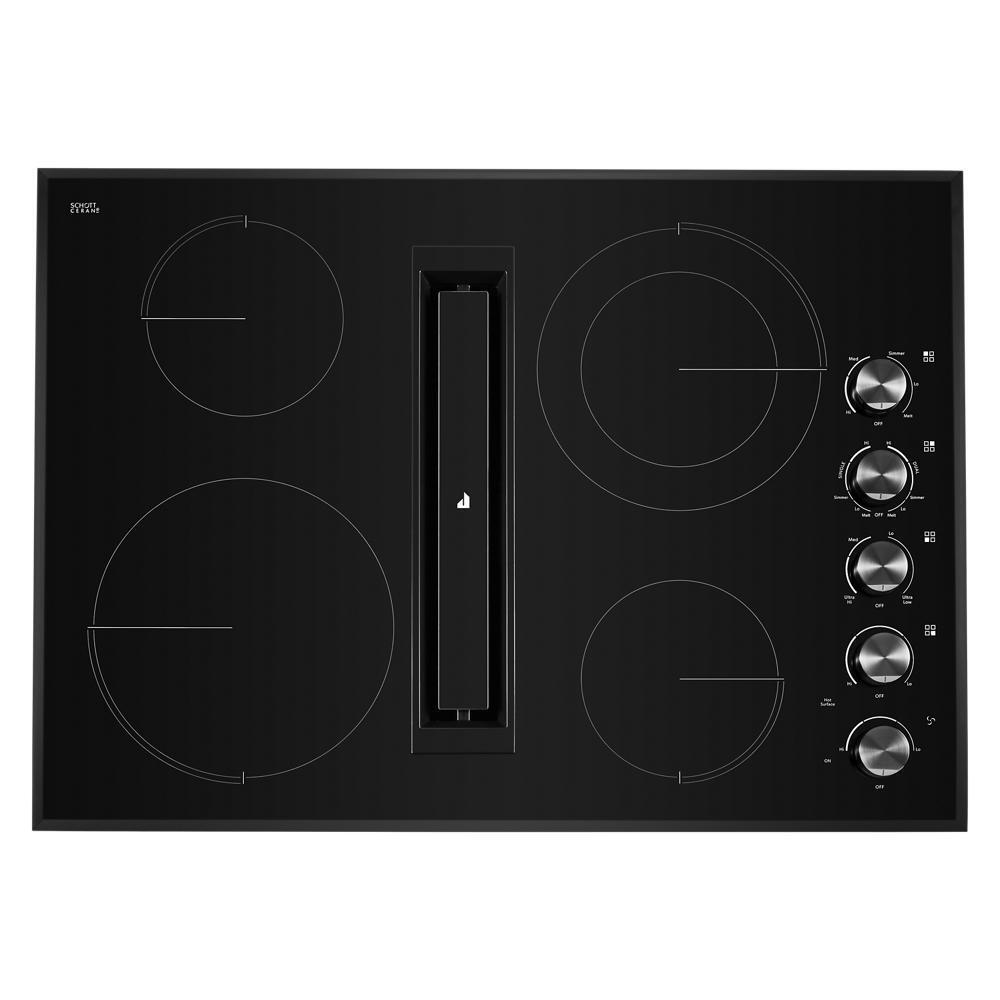

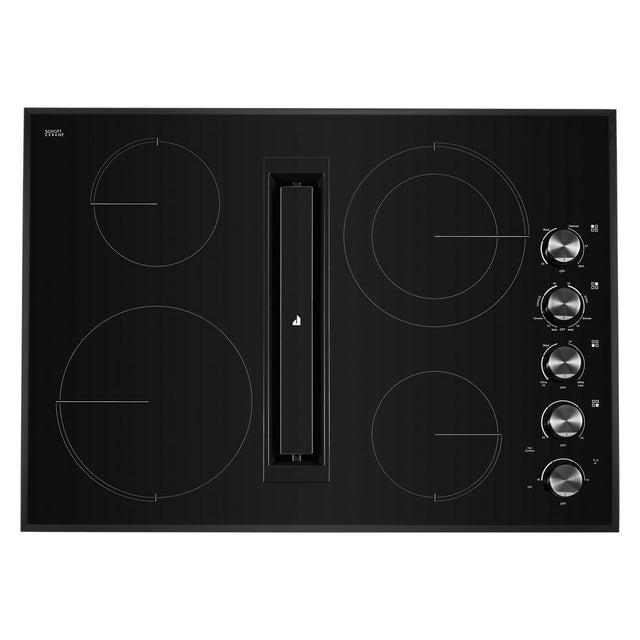

Black Floating Glass 30" JX3™ Electric Downdraft Cooktop
Model JED3430GB
Authorized Dealer
1
of
9
Loading...
Authorized Dealer

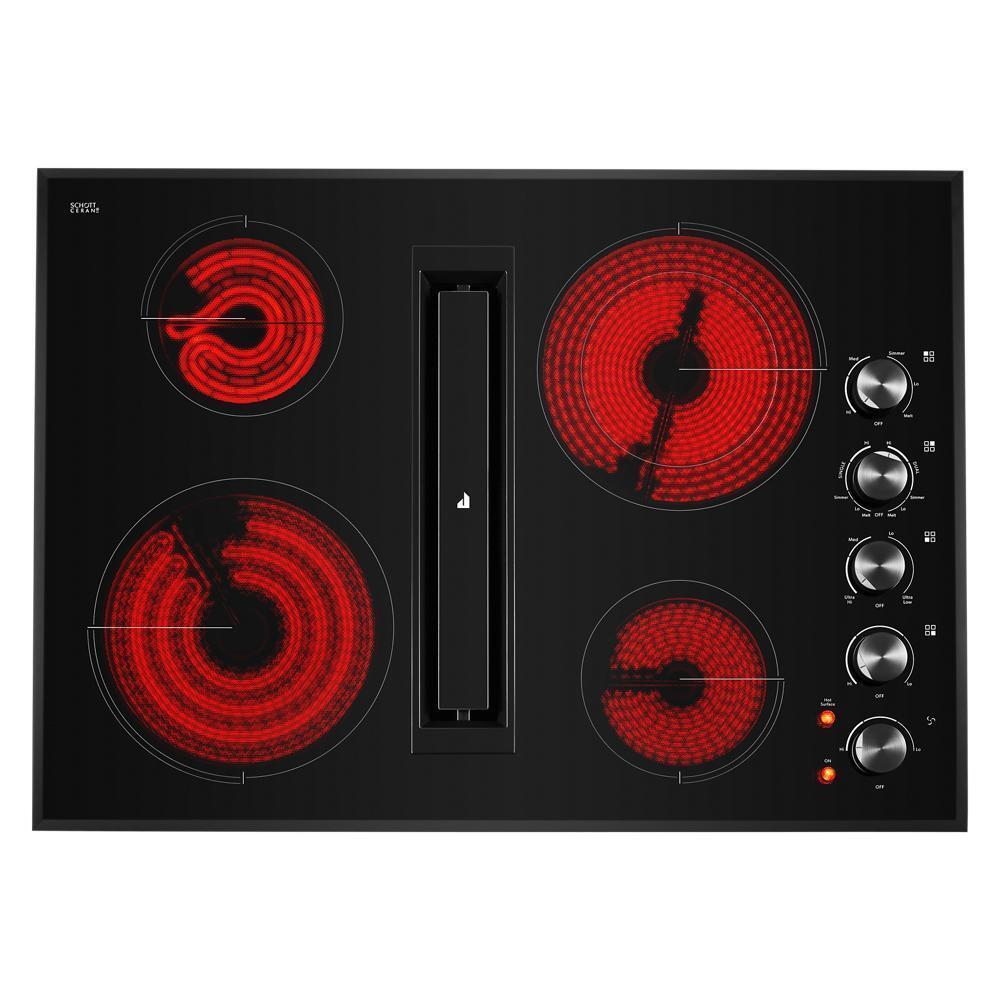

Black Floating Glass 30" JX3™ Electric Downdraft Cooktop
Model JED3430GBQuick Specs
Depth
22.0625
Height
3.6563
Sabbath
NO
ADA
YES
Wifi
NO
Cooktop
4
Vent
YES
Induction
NO
Black Floating Glass 30" JX3™ Electric Downdraft Cooktop is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/24/2026
Regular price
$2,899.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.0625
Height
3.6563
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Cooking oven number of cooktop element
4
Downdraft Ventilation
YES
Cooking is Induction
NO
RPM
-1.0
Energy Star Rated
NO
Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
DuraFinish(R) Glass Protection
DuraFinish(R) Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

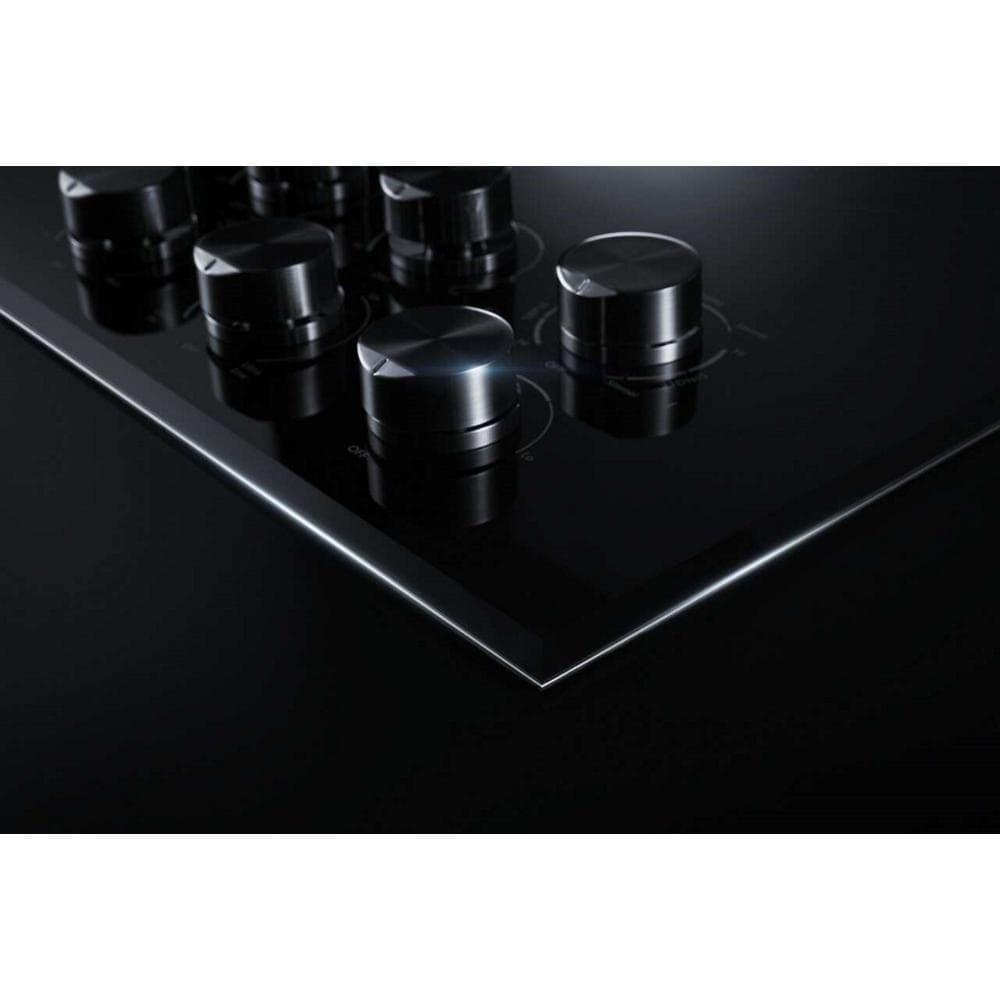

Color-Coordinating Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.

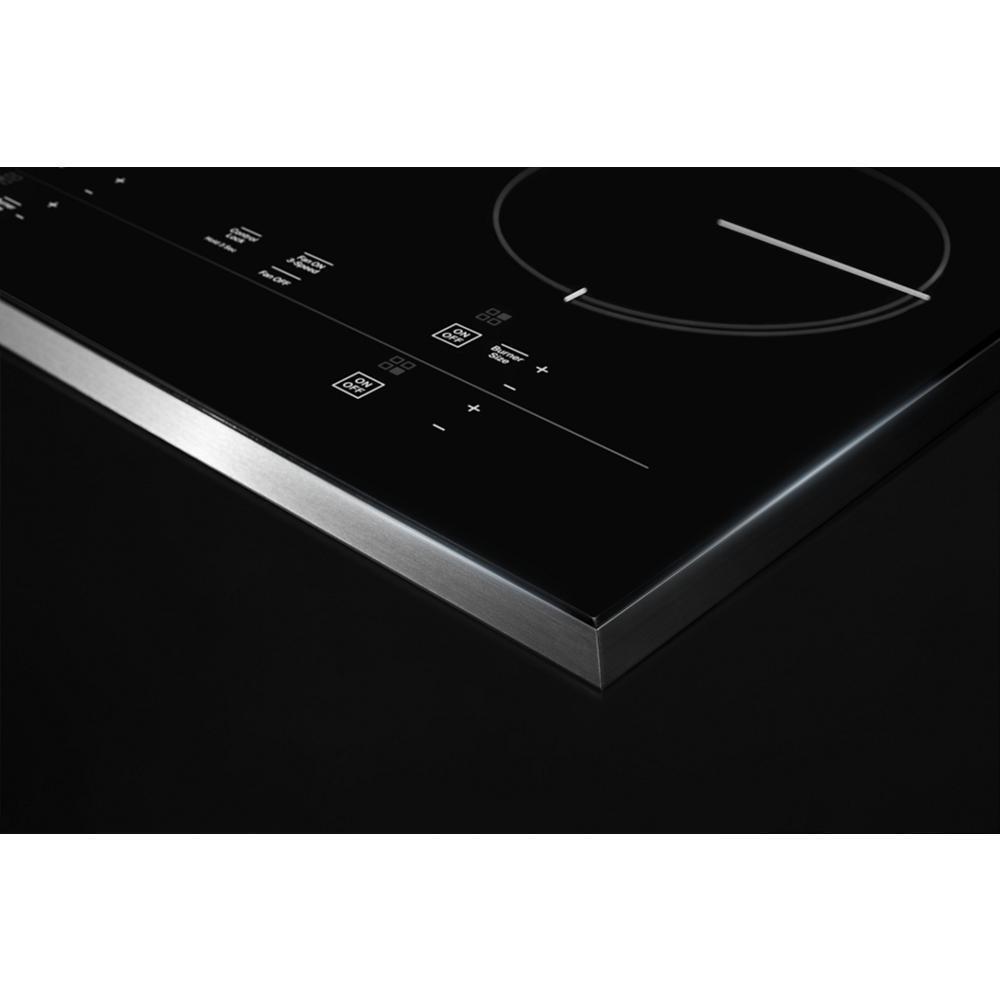

Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

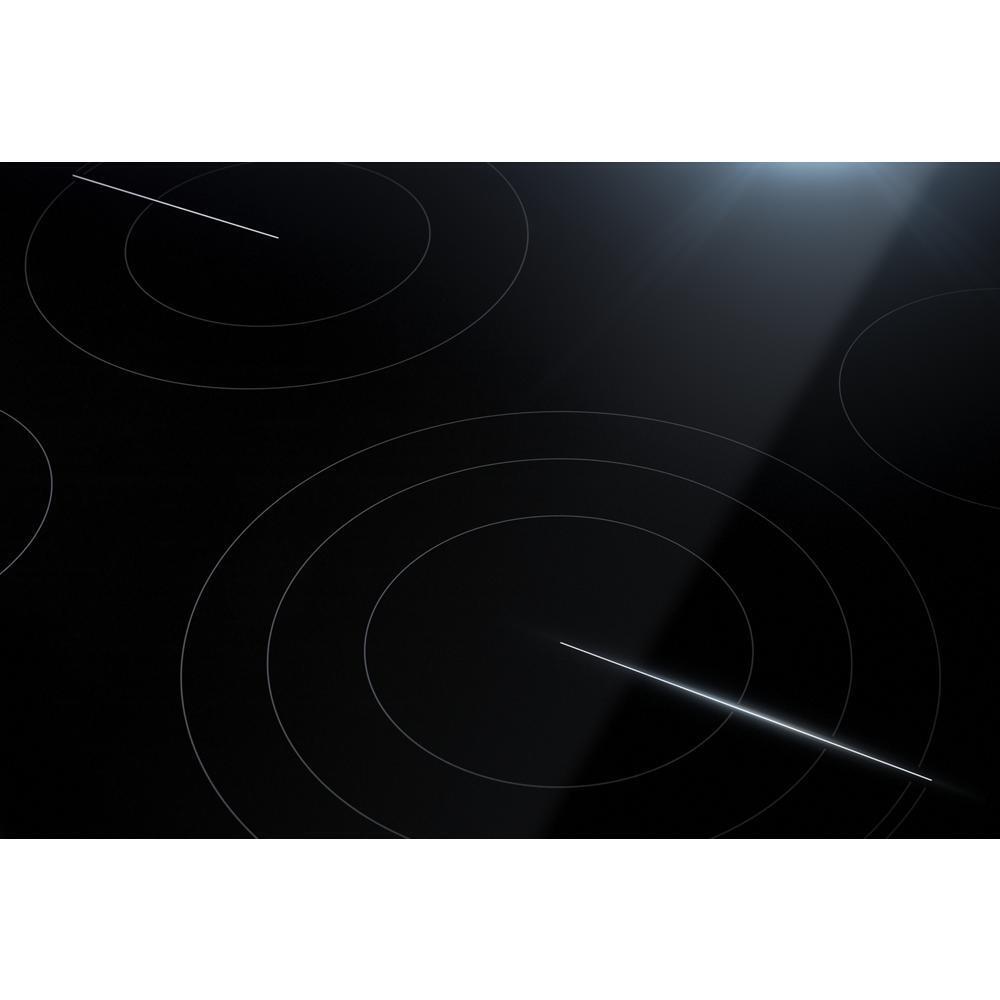

Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

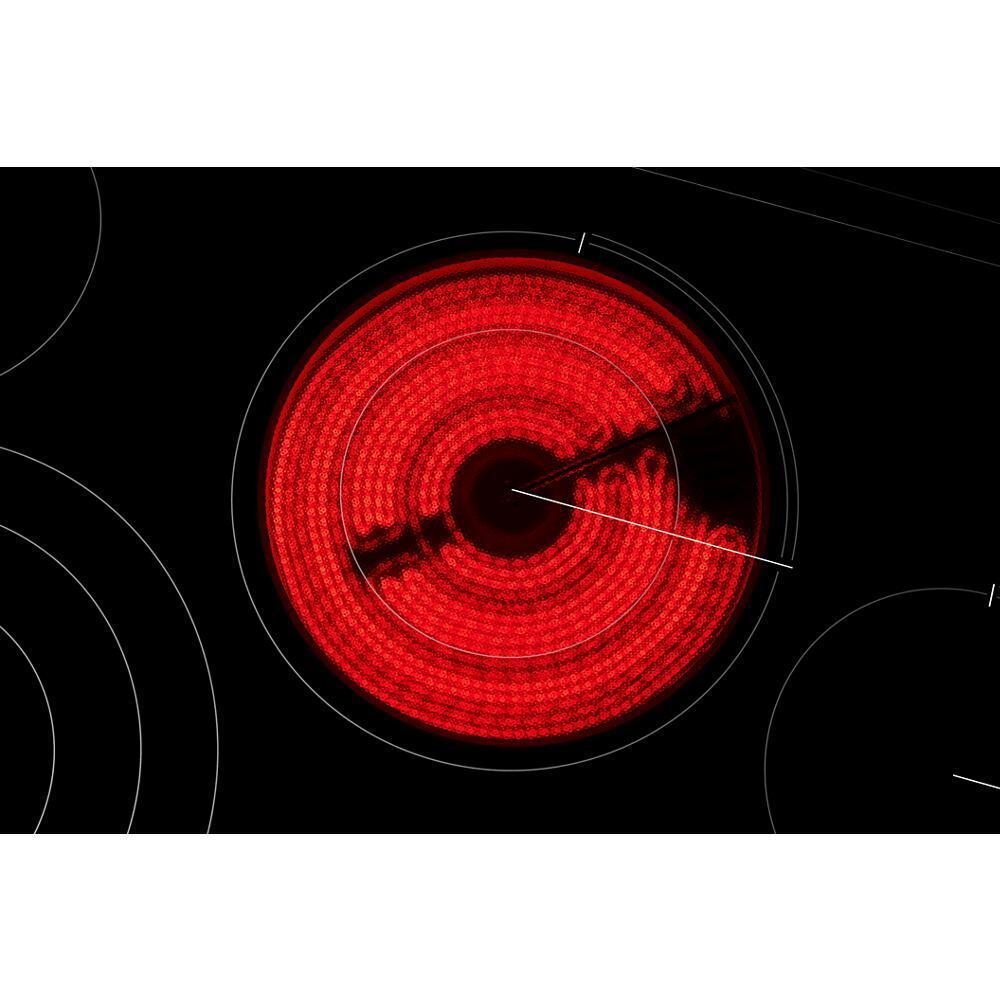

10"/6" Dual-Choice(TM) Element
An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
- 10"/6" Dual-Choice™ Element
- An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
- Color-Coordinating Die-Cast Metal Knobs
- Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
- Convertible to Duct-Free Ventilation
- Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
- DuraFinish® Glass Protection
- DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

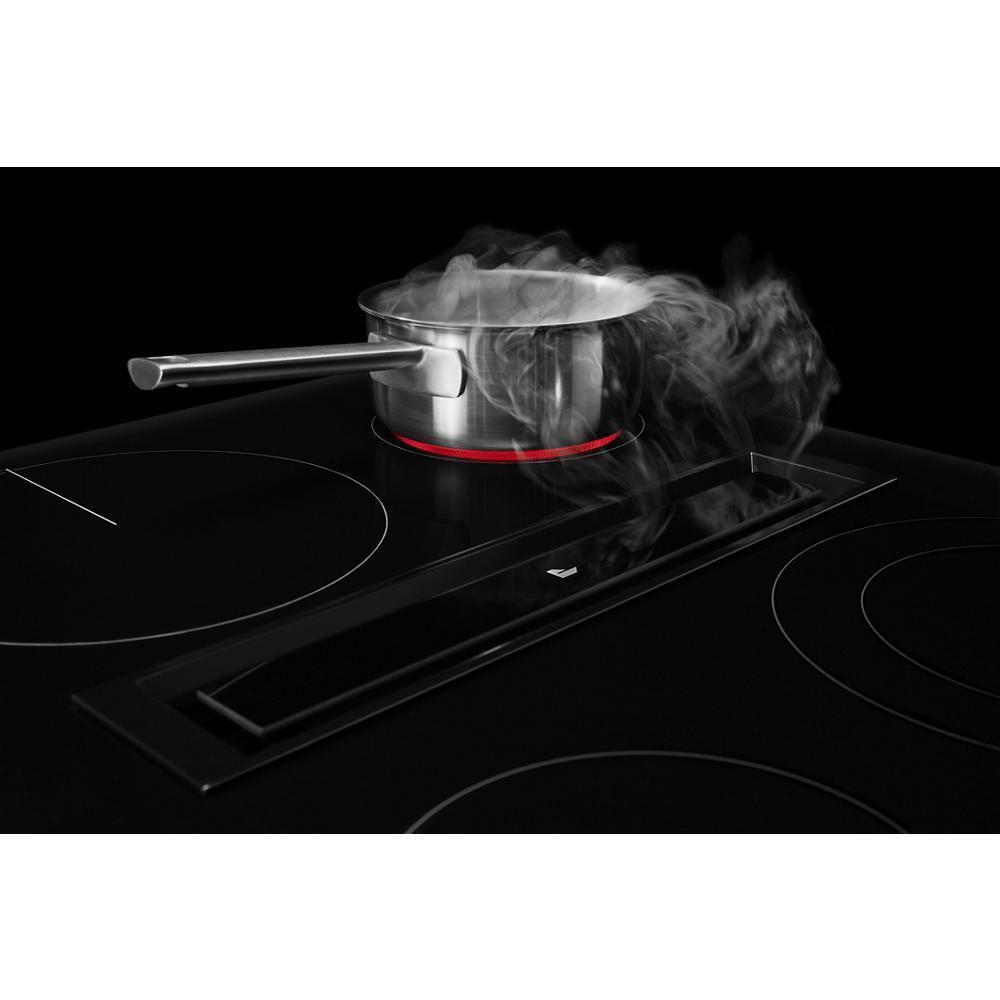

- JX3™ Downdraft Ventilation System with 3 Speeds
- Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
- Oblivion Glass Design
- Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
- Perimetric Extraction
- Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
- Semi-Flush Installation
- Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
- Helps capture smoke, steam and odors at the cooking surface.

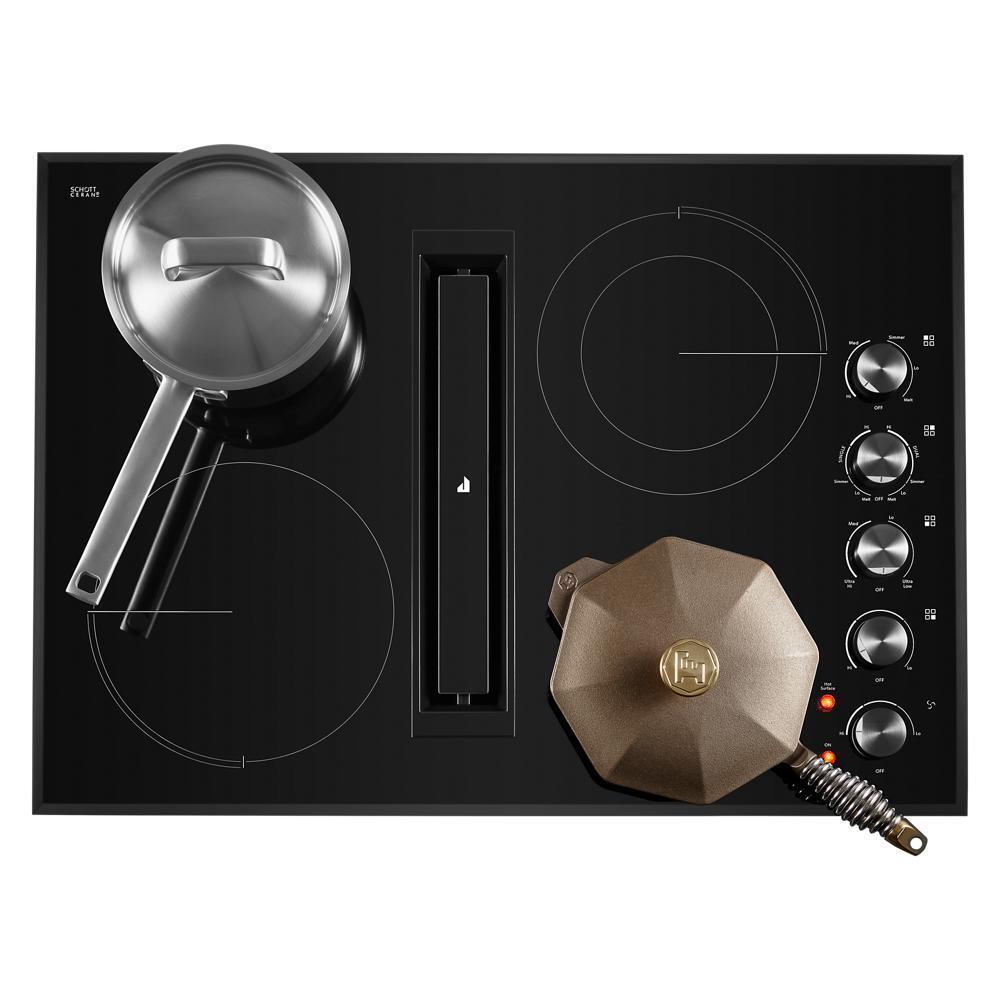

- A frameless cooktop in sleek black glass
- Installs semi-flush, 3mm above the countertop
| Certifications | |
| Ada Compliant | Yes |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Cooktop Selections | Convertible to Duct Free Ventilation; DownDraft |
| Design Expression | Black Glass |
| Fuel Type | Electric Radiant |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |

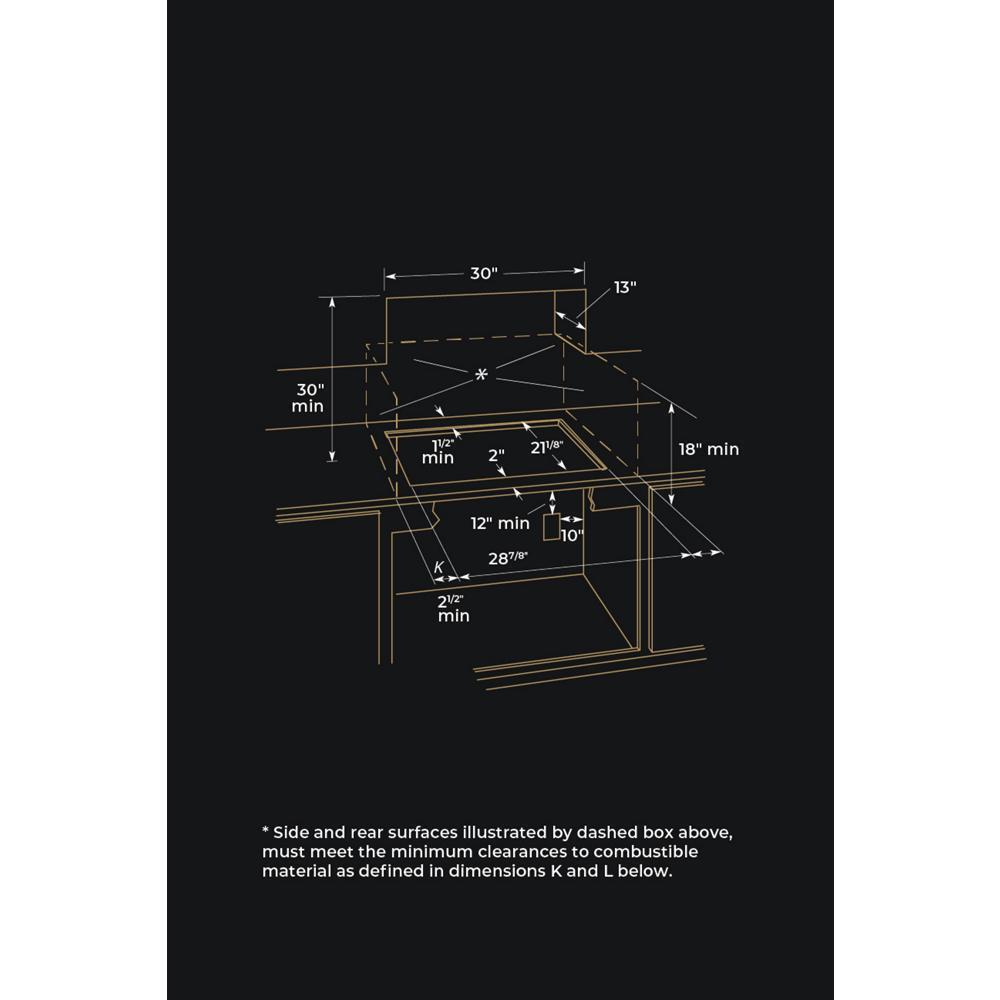

| Dimensions | |
| Product Height | 3.6563 |
| Cutout Depth | 21.125 |
| Carton Height | 23.78 |
| Gross Weight | 82 |
| Carton Depth | 26.38 |
| Carton Width | 35.12 |
| Cutout Width | 28.875 |
| Product Depth | 22.0625 |
| Net Weight | 70 |
| Product Width | 30.875 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 3,200W |
| Left Front Element-burner Size | 10in. |
| Left Front Element-burner Type | Hyper |
| Left Rear Element-burner Power | 1,300W |
| Left Rear Element-burner Size | 6in. |
| Left Rear Element-burner Type | Hyper |
| Number of Cooking Element-burners | 4 |
| Power Boost | No |
| Right Front Element-burner Power | 1200W |
| Right Front Element-burner Size | 6in. |
| Right Front Element-burner Type | Single |
| Right Rear Element-burner Power | 3000W/1400W |
| Right Rear Element-burner Size | 10in./6in. |
| Right Rear Element-burner Type | Dual-Stacked Burner |
| Exterior Details | |
| Knob Color | Black |
| Knob Type | Metal |
| Ventilation Details | |
| Cfm Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
